AAXA Technologies is excited to announce the release of the AAXA 4Kl LED Projector, a true native 4K 3840 x 2160 resolution mini projector. The 4Kl delivers cinema level resolution by employing the latest Texas Instruments OLP technologies featuring a native 4K digital imager mated to ultra-long-life Osram quad-cast LEDs. With its powerful 1500 Lumen optical engine, the 4Kl can deliver a vibrant 200" image in crystal clear Ultra-HD.

  • True Native 4K Ultra HD (3840x2160) Resolution
  • Texas Instrument's Latest 4K MEMs DLP Imager Technology
  • 30,000+ LED Hour with Osram Quad-Cast LED Light-Source
  • Remote Electric Focus & Ceiling Mount Compatible
  • Projects up to a 200" image*(In low-light conditions)

(PA-AAXA4K1)

12 Months

PROJECTION SYSTEM


Native Resolution: 3840 x 2160 (4K UHD)

Brightness: 1500 LED Lumens

Throw Ratio: 1.2:1

Contrast Ratio: 2000:1

Noise: 30dB

Projection Lens: Electric Focus

Projection Image: 16 - 200 inches

Aspect Ratio: 16:9

Light Source: Osram Quadcast RGBB LEDs with Vibrant Color Technology
Life 30,000hrs



GENERAL SPECIFICATIONS


Audio Output 2x 2W High-Low Frequency Speaker
Stereo speaker / headphone mini-jack

Color: Space Gray

File Playback: USB Memory Stick reader (up to 32GB)
Micro SD/TF Card Reader (up to 32GB)

Menu Language: English, Spanish, French, German, Chinese, Italian, Korean, Japanese

Aspect Ratio Control: 16:9

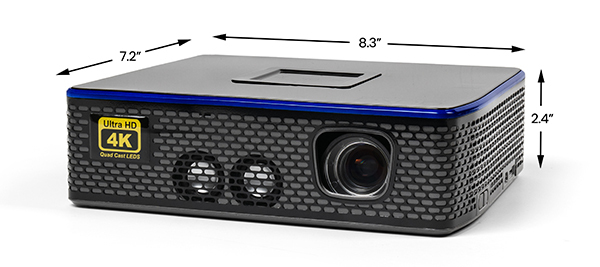

Dimensions: 8.3 in x 7.2 in x 2.4 in

Weight: 3.8 lbs

Power Consumption: 130 Watts

Supported Formats MP3 / WMA / OGG / WAV / AVI
BMP / JPG / GIF / TXT

Conformances: CE, FCC Class A

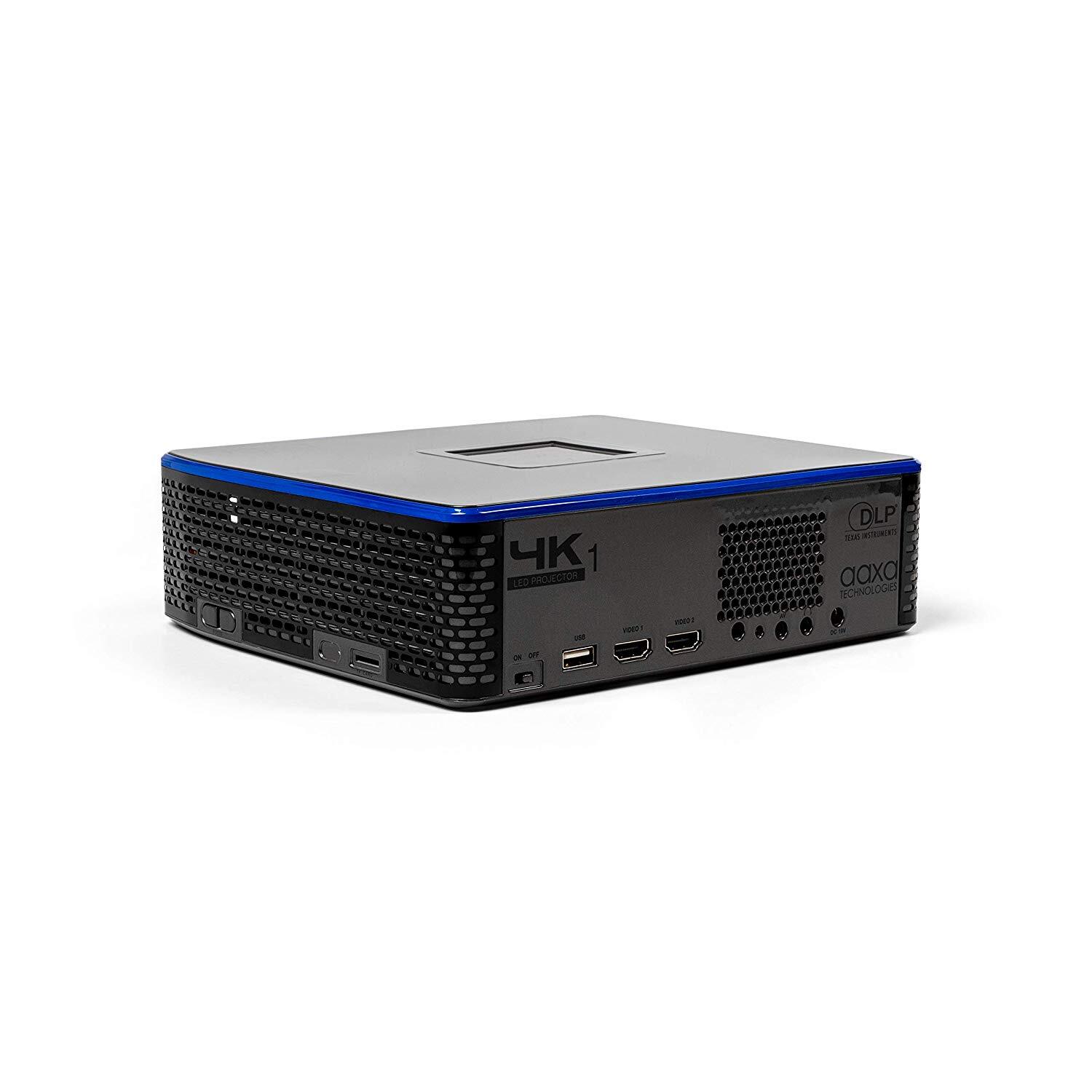

INPUTS / OUTPUTS


Video In: 2x HDMI (2.0 with HDCP 2.2)
Composite A/V (3.5mm Jack)

Audio Out: 3.5mm Stereo Headphone Jack

USB: Full Sized USB 2.0

SD Card: Micro SD/TF Card



INCLUDED ACCESSORIES


In the Box: Remote Control
Composite AV Cable
Wall Charger
User Manual



THROW RATIO (1.2:1)




Throw Distance (Inches) Screen Diagonal (Inches)

 20 19

 30 29

 40 38

 50 48

 60 57

 70 67

 80 76

 90 86



SKU PA-AAXA4K1
Barcode # 862334000480
Brand Aaxa
Shipping Weight 3.0000kg
Shipping Width 10.000m
Shipping Height 30.000m
Shipping Length 30.000m
Shipping Cubic 9000.000000000m3

Great resolution

By: on 16 September 2019
I bought this projector for an art installation And the results have been incredible. the quality of the image is very high and the resolution very detailed. The projector is a bit on the heavy side but it does exactly what it says does
(4)

Portable yet truly amazing image

By: on 12 August 2019
4k as advertised, you can see the difference in image quality. A bit on the big side for portable units, but still very portable.
(5)

Great colours and image size

By: on 5 August 2019
I tried this projector for our showroom in tradeshows and so far it has been an excellent unit. The colours are very bright and very close to real-life colours.
(5)

Write a product review
