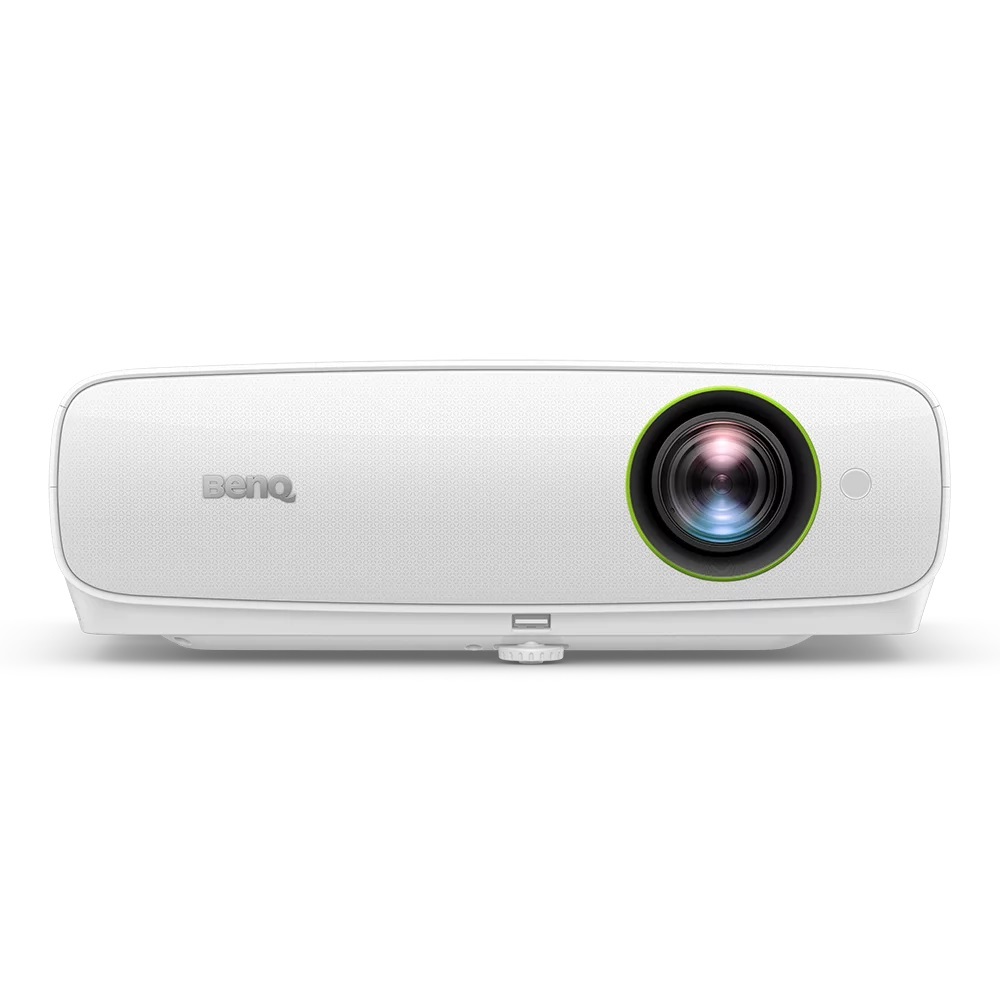

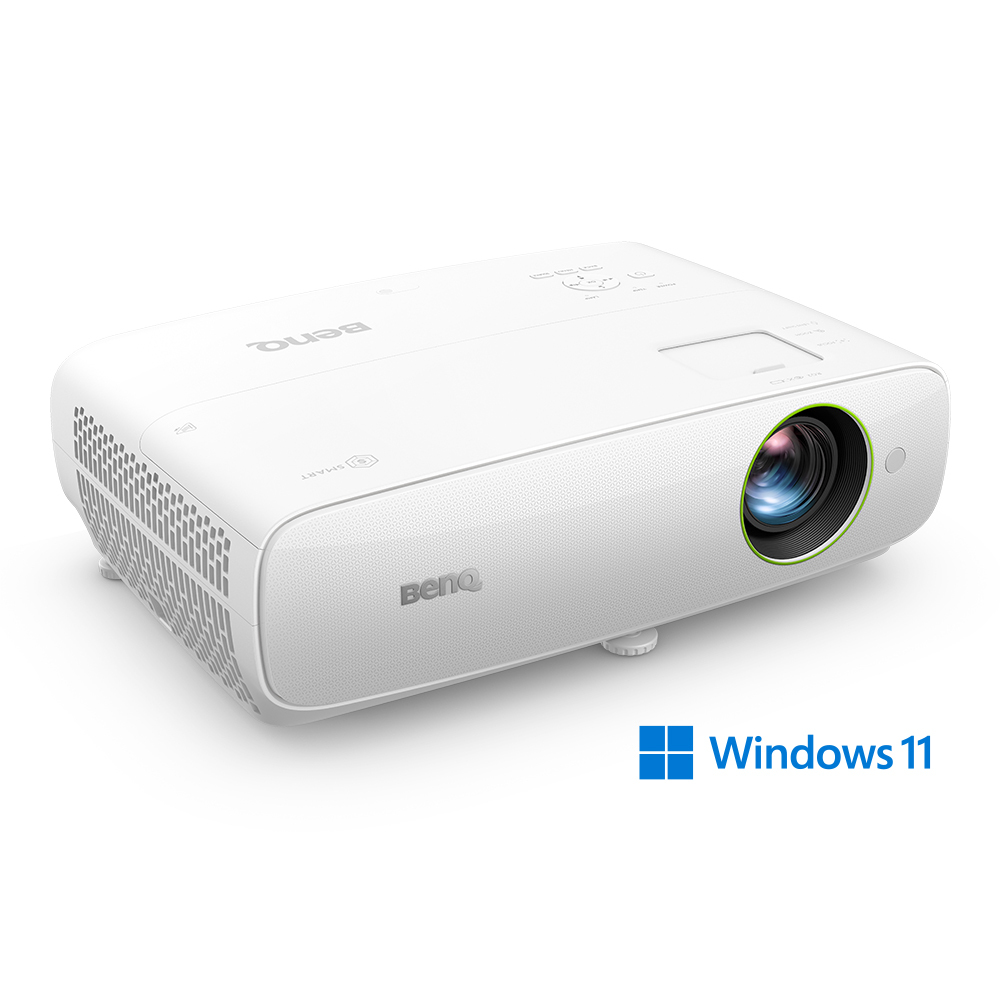

BenQ EH620 Smart Windows Projector for Meeting Room
A hybrid meeting solution with Windows 11 IoT Enterprise
What is a Windows Projector?
The question of what a Windows projector is, starts with a discussion of what a PC-less projector is. A PC-less projector is a projector where an operating system, generally Android or Windows, is built into the machine, bypassing the need to connect a separate PC to provide content. To complement its operating system, PC-less projectors typically feature pre-installed software and apps that allow it to perform a range of tasks from productivity-related jobs to streaming media. Furthermore, PC-less projectors are able to connect to the Internet, including via wireless connections, to access content on the web, download files located in the cloud, install additional software/apps, and to support wireless casting from BYOD mobile devices. With a range of PC-less projectors available to them, business users – particularly large businesses and corporations – have keyed in on Windows projectors as the most viable solution due to their compatibility with most office-related hardware and software, the familiarity and functionality of the Windows platform, and the strong security features incorporated into the operating system.
Whereas this article is focuses on solutions for business users, there are home entertainment PC-less projectors – most commonly known as smart or portable projectors – which tend to be powered by Android TV and mainly revolve around streaming apps.
You can read more about windowns projectors here:
https://www.benq.com/en-ap/business/resource/trends/upgrade-to-an-all-in-one-windows-projector.html#windowsprojector
Integrated Hub to Convenience

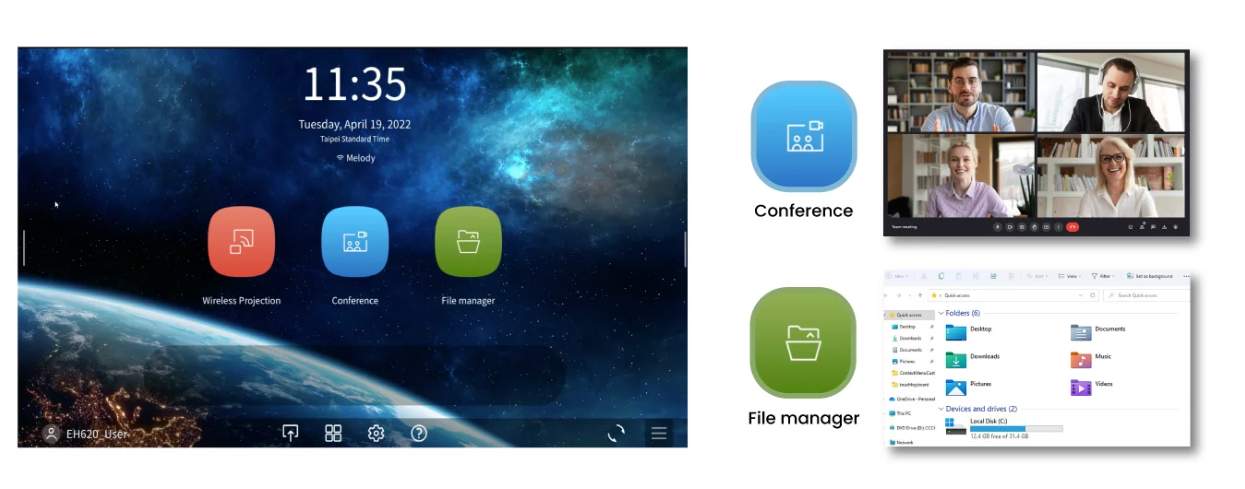

Transform a conventional meeting room into a modern cloud collaboration space. BenQ EH620 smart projector eliminates laptops and speakers, reducing device clutter but increasing capabilities when connected to a wireless keyboard-mouse set and webcam. Cloud workers can start smooth online meetings instantly.
Directly Project Cloud Presentations
Turn on EH620 Windows projector, launch built-in Edge and Chrome browsers, and access presentation files in OneDrive and Microsoft Teams without using laptops. This effectively reduces meeting preparation time, getting everything done on one projector to present seamlessly.
Cast Multiple Presentations Simultaneously
Share content or collaborate from 4-way split windows on a big screen via Miracast, Airplay, Google Cast, and BenQ InstaShare wireless casting technologies without extra apps or Wi-Fi dongles. It’s easy for team members to cast their presentations, up to 4 devices at the same time, for a thorough discussion.
Join Video Conferences with Built-in Apps
Use preloaded meeting apps like Google Meet, Skype for Business, and TeamViewer Meeting directly on the projector to free up personal devices from public use. Run the whole meeting smoothly without any embarrassing interruptions.
Simultaneously Share Content from Multiple Sources
With only one person signing into the meeting, participants in the same room can cast individually and share content via the projector to remote attendees. This ensures every participant is on the same page without switching from image to image
Amplified Sound with Vocal Clarity
Specially designed for video conferences, EH620 offers two 5W speakers and a voice-enhanced Vocal Mode to let every remote or in-person attendee hear meeting details clearly for effective collaboration.
(PA-BENQEH620)
Display
Brightness (ANSI lumens)
3400
Native Resolution
1080P (1920x1080)
Native Aspect Ratio
16:9
Contrast Ratio (FOFO)
15,000:1
Display Color
30-bit (1.07 billion colors)
Light Source
Lamp
Light Source Life
a. Normal 4000 hrs ,b. ECO 10000 hrs ,c. SmartEco 15000 hrs
Optical
Throw Ratio
1.13~1.47
Zoom Ratio
1.3x
Lens
F/# = 1.84 ~ 2.47, f = 12 ~ 15.6 mm
Projection Offset (Full-Height)
105%
Keystone Adjustment
1D, (Auto) Vertical ± 40 degrees
Rec. 709 Coverage
83%
Picture Modes
Bright ,Infographic ,Presentation ,Spreadsheet ,Video Conference
Compatibility
Input Lag
33.4 ms (1080p@60Hz)
Resolution Support
VGA(640 x 480) to Full HD(1920 x 1080)
Horizontal Frequency
15K~102KHz
Vertical Scan Rate
23~120Hz

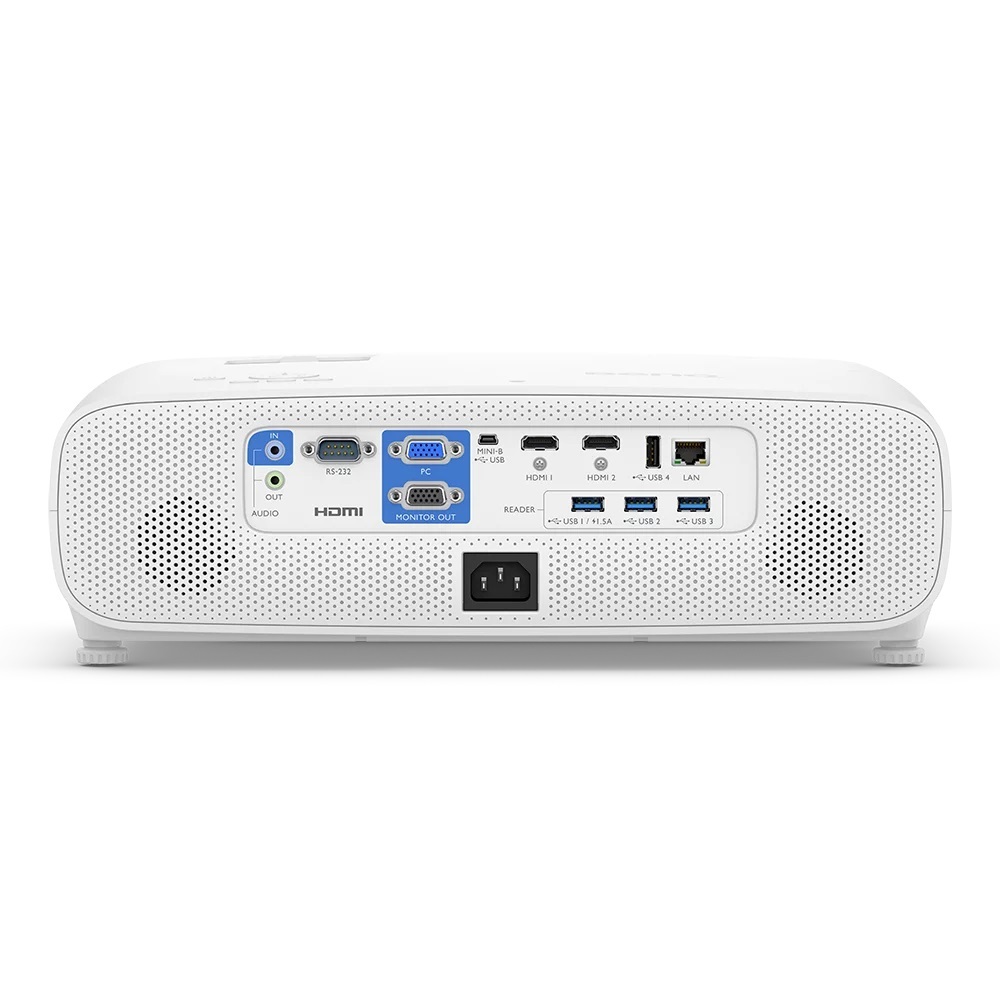

I/O Interface
PC in (D-sub 15pin)
(x1)
Monitor out (D-sub 15pin)
(x1)
HDMI in
(x2) ,HDMI-1 (1.4a/HDCP1.4) ,HDMI-2 (1.4a/HDCP1.4)
USB Type A
USB Type A-1 (3.0/Power Supply1.5A) ,USB Type A-2 (3.0/Power Supply1.0A) ,USB Type A-3 (3.0/Power Supply1.0A) ,USB Type A-4(2.0/無線轉接器) ,USB Type A-5 (2.0/Power Supply 0.9A)
USB Type Mini B
(x1)
RS232 in (DB-9pin)
(x1)
Audio
Speaker
(x2) ,5W
Audio in (3.5mm Mini Jack)
(x1)
Audio out (3.5mm Mini Jack)
(x1)
Environment
Operating Temperature
0~40℃
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
350W
Stand-by Power Consumption
<0.5W
Acoustic Noise (Typ./Eco.)(dB)
32/30
Accessories
Wireless USB dongle
(Standard) ,5201BS
Remote Control w/ Battery
RCI023
Power Cord (by region)
(Standard) ,x1 (1.8M)
VGA(D-sub 15pin) Cable
(Standard) ,1 (1.5m)
3D Glasses
(Optional) ,DGD5
Quick Start Guide
(x1) 21L
Warranty Card (by region)
Yes
Onscreen Display
Launcher
Uni Launcher
Smart System
Bluetooth
Yes, Bluetooth 4.2
Wi-Fi Standard
802.11 a/b/g/n/ac (2.4G/5G)
Preload Apps
Skype for business, Teamviewer Meeting
Dimension & Weight
Dimensions (WxHxD) (mm)
380 x 127 x 263
Net Weight (kg)
4.2
Dimensions (WxHXD) (inch)
14.9 x 4.9 x 10.35
Net Weight (lb)
9.25
Projection System
DLP
SKU | PA-BENQEH620 |
Barcode # | 840046046774 |
Brand | BenQ |
Shipping Weight | 4.2000kg |
Shipping Width | 0.300m |
Shipping Height | 0.200m |
Shipping Length | 0.400m |
Shipping Cubic | 0.024000000m3 |
