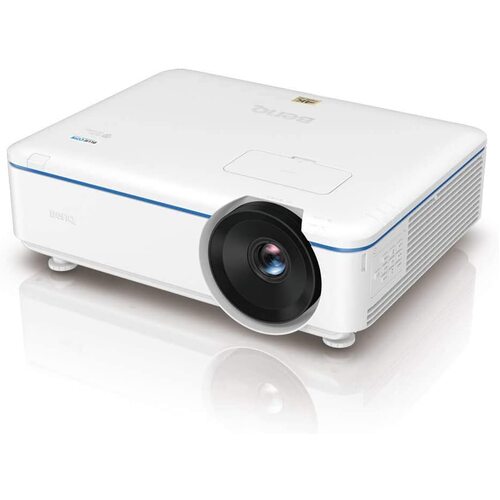

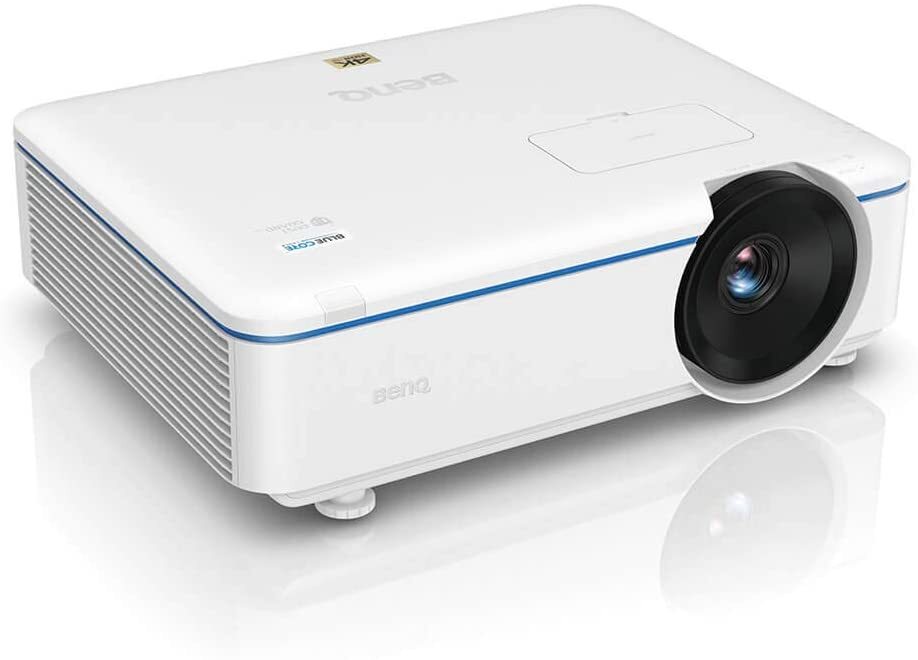

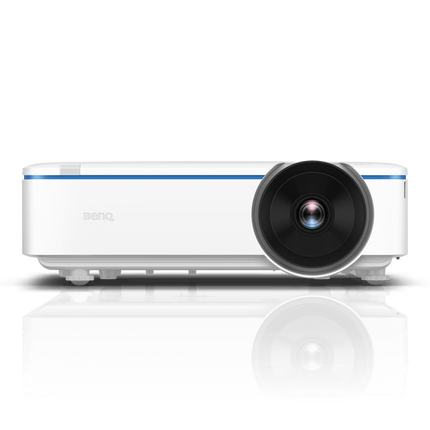

BenQ LK952 5000lms 4K Conference Room Laser Projector

BlueCore Laser Technology

Revolutionary BlueCore Laser Technology

The world’s No.1 DLP brand BenQ expands its full line of innovative BlueCore laser projectors with LK952, for fixed lens installation, enabling powerful visual communication in corporate meetings and public venues.

Superior Brightness

Precision-Aligned High-Output Laser Source

Zero-deviation alignment of BlueCore laser diodes boosts luminous flux into the light tunnel, improving light efficacy.

Superior Performance

Secondary Yellow-Infused Color Wheel

Dual synchronized BlueCore color wheels utilize an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance.

Superior Durability

Hermetically Sealed DLP Chip

Comprising over two million micromirrors that reflect pure light through the color wheel, the DLP chip is hermetically sealed to resist heat for over 100,000 hours without degradation.

Supreme Image Quality

4K UHD Image Quality for Flawless Presentation with Subtle Details

LK952 produces 4K UHD 3840 x 2160 resolution with 8.3 million distinct pixels for each frame to achieve CTA’s standard, and it utilizes the revolutionary 0.47” single-DMD DLP technology to maximize the projector’s sleek, compact profile for modern corporate environment. With four times the resolution of Full HD 1080p, 4K UHD delivers awe-inspiring clarity and crisply defined details.

Superb Image Details and Color Integrity from DLP Technology

To avoid inherent alignment issues of multiple panels , which can be more serious when projecting 4K content, BenQ's LK952 4K Laser Projector preserves color and image integrity with the single DMD DLP technology. Generating razor-sharp images and pure colors, LK952 eliminates problems such as blurriness, shadowing, and interference patterns for immaculate clarity.

Hyper-Realistic Video Quality Empowered by HDR 10 Technology

Supercharged by HDR10 support with BenQ’s exclusive Auto HDR Color Rendition, LK952’s high Dynamic Range performance offers greater brightness, contrast range, and image optimization in a single step, bringing out every detail in 4K content for superior video presentation.

Optimize Image Quality with 4K Image Amplifying Technology

To ensure the best image quality, BenQ's LK952 adopts the cutting-edge 4K Image Amplifying Technology to further enhance the quality of projected images. LK952 automatically upgrades the resolution of all projected images to 4K, guaranteeing superb image details. Additionally, LK952 also comes with Pixel Enhancer 4K, a motion-adaptive edge enhancement feature that detects changes in the color between an object and its background to produce sharp edges and precise surface textures.

DLP Technology for Lasting Vibrant Color

BenQ BlueCore laser projectors are based on the absolute reliability of the 1-chip DLP design. The highly durable DLP chip can last over 100,000 hours without degradation, ensuring true-to-life colors and pristinely legible text over countless uses.

Vivid Clarity in Bright Ambient Environments

LK952’s 5000lm high brightness allows presenters and participants to deliver presentations in comfortably lit medium-sized conference rooms, supporting uncompromised debate, collaboration, note-taking and interaction to facilitate the most productive meetings. The high luminance provides professional picture quality for installers to satisfy stringent corporate standards.

Laser-Powered Ultra-High Contrast

LK952 laser projector creates strikingly clear images with stratospherically high 3,000,000:1 contrast ratio for true deep blacks, vivid rich colors and fine subtle details. LK952 also features spontaneous response, requiring no wait to turn on or resume from blanking in true black for flexible performance capability.

Digital HDMI Output for Multi-Screen Projection

For large meeting rooms accommodating 50-80 participants, multiple projected screens can offer improved viewing experiences for the audience. Conventional projectors provide an analog-signal VGA output, which can decay due to transmission distance. BenQ LK952 delivers a perfect digital signal via HDMI output directly from projector to projector or other HDMI display devices with no signal degradation.

DICOM X-ray Imaging

DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. DICOM Simulation Mode is ideal for viewing grayscale medical images, such as X-rays, with an advanced grayscale level for training and educational purposes.

Wireless Presentation Solution Scalability

One Button to Start Full HD Wireless Presentations

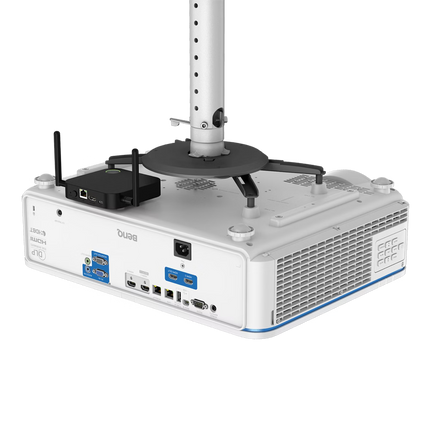

BenQ InstaShow™ WDC10 is a unique zero software solution that allows up to 16 presenters to lead from any device. The plug and play device requires no driver installation and is compatible with any OS or hardware platform, making it easy for presenters to wirelessly take turns delivering seamless presentations for improved meeting efficiency.

Excellent Installation Flexibility

360° Rotation Projection

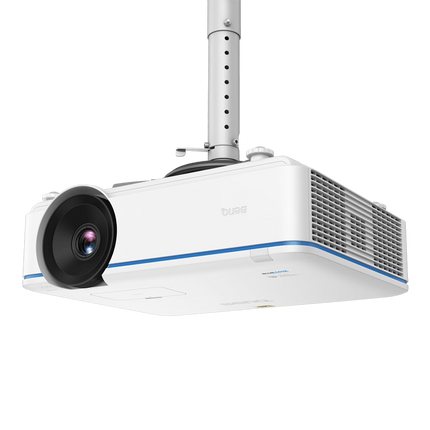

BenQ's LK952 can be tilted vertically at any angle, allowing projection onto ceilings, walls, floors, or angled signage to fulfill any projection demand.

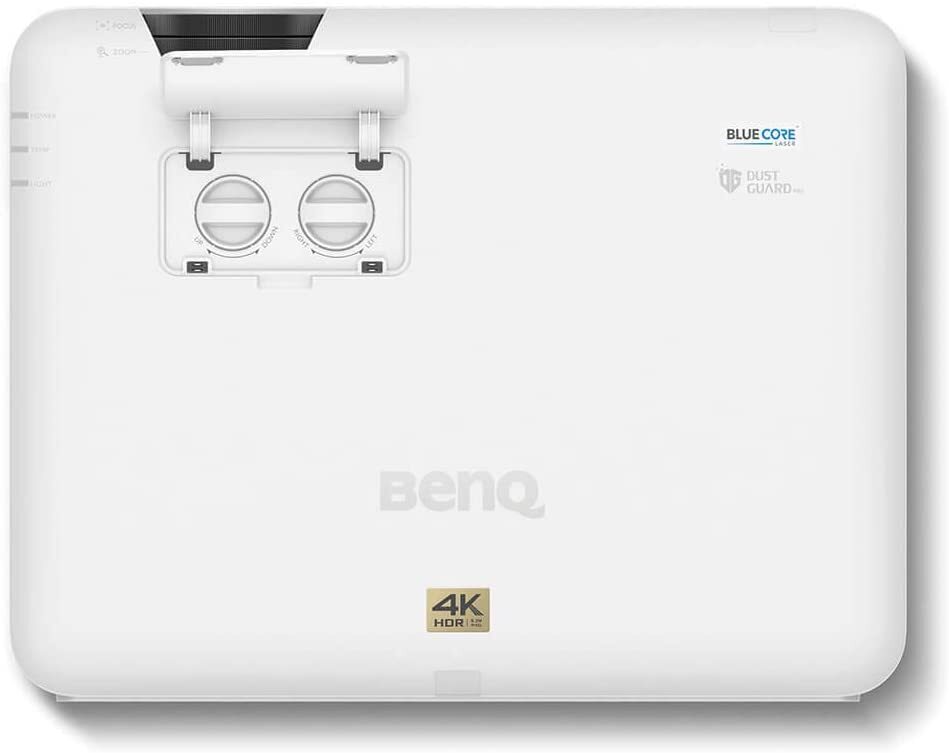

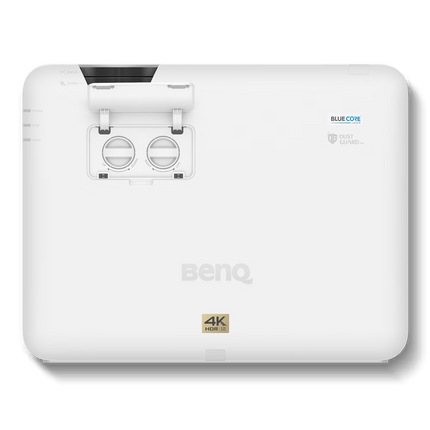

Big Zoom and Lens Shift for Flexible Installation

LK952’s wide zoom range and horizontal/vertical lens shift systems can perfectly align images in any challenging venue such as when lights or vents are located at the ceiling mount site. Lens shift can move projected images up and down by 60% of screen height or left and right by 23% of screen width. The 1.6X big zoom feature offers a wide range of throw distances to significantly increase installation flexibility for diverse mounting options in various public display scenarios.

Wired Remote Control

Wired Remote Control offers projector installers and IT managers extra set-up convenience and ease of operation. The added wired control functionality makes the device a dependable choice for projector installation adjustment.

Designate Remote Control ID to Projector for Independent Control

Installers and IT managers can assign a specific remote control ID to each projector, avoiding signal interference and unintentional changes when installing multiple projectors in a venue.

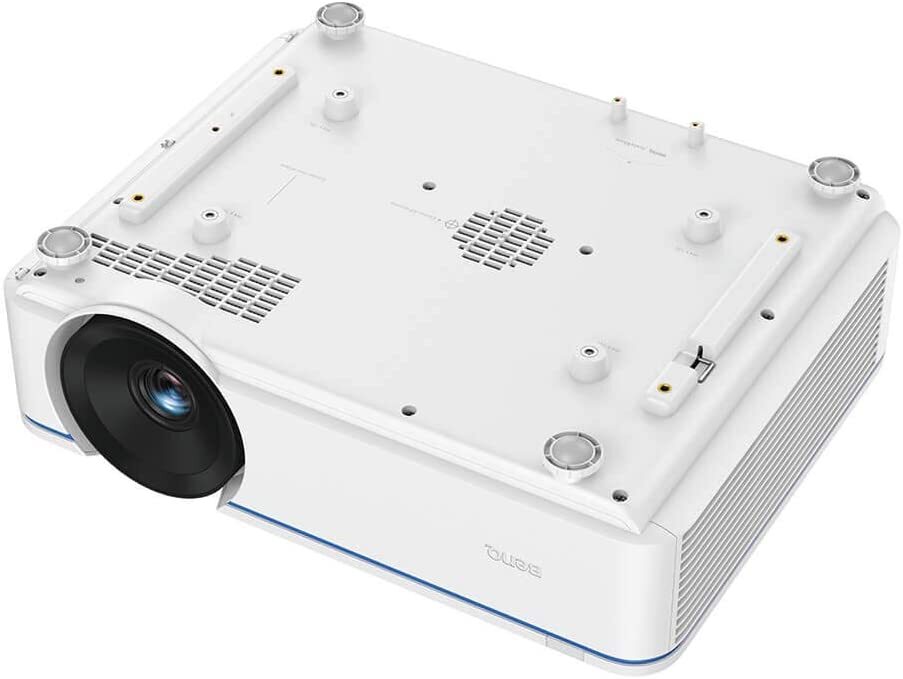

Bottom Surface Grip Design

LK952 is designed with grips on its bottom surface to easily and safely transport the projector during installation or moving from one venue to another.

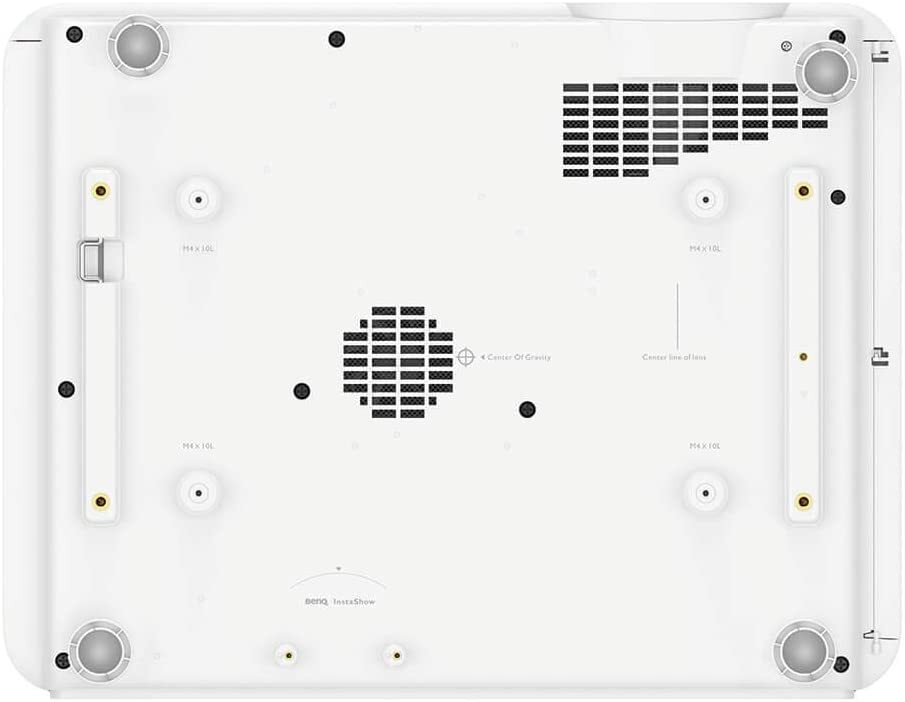

Center of Gravity Mark on Case Bottom

Embedded with a small but helpful detail, the bottom of the projector is marked with the center of gravity to make installation even easier.

Enduring Reliability

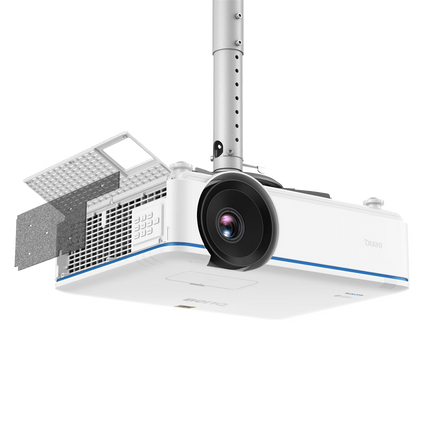

IP5X Dust Guard™ Pro for Superior Dustproofing

BenQ LK952 4K BlueCore Laser Conference room Projector with Dust Guard Design, Sealed Engine and IP5X enables outstanding performance even in severe conditions.

Sealed Engine

BenQ's LK952 laser projector is designed with sealed laser modules and enclosed light engines to protect the DMD chip, color wheel sensor, laser light source, and other optical components. It effectively eliminates color wheel sensor failure, visible spots on the image and color decay to significantly reduce service costs and downtime. The design has passed the dust chamber test standard for the international dustproof rating of IP5X.

Anti-Dust Accumulation Sensor to Resist Dust Buildup

By incorporating an ingenious anti-dust buildup feature in the color wheel sensor, BenQ LK952 prolongs optimal performance by repelling dust that can accumulate on traditional sensors to block the IR signal and cause flickering, abnormal colors, or even shutdown.

Long-Lasting 20,000 Hours Performance

BenQ BlueCore laser projectors deliver 20,000 hours of superior image quality and performance. The laser light source resists color decay over time, making BenQ laser projectors ideal for multiple blending projections without concern for adjacent projectors generating different levels of brightness after a period of operation.

High Altitude Mode for Elevated Environments

Equipped with an integrated air pressure sensor, LK952’s intelligent High Altitude Mode automatically alerts users to enable efficient cooling and properly maintain operating temperatures in high altitude environments with thinner atmospheres.

Low Maintenance Cost

Laser Light Creates Value Over Time

BenQ BlueCore projectors feature laser light sources that are guaranteed for 20,000 hours of maintenance-free operation, saving costs for lamp replacement and maintenance. Based on the average brightness cut-off of typical long-life lamps, BlueCore’s value exceeds that of 10 lamp replacements over the life of the projector.

(PA-BENQLK952)

All Specifications

Optical

Throw Ratio

1.36 ~ 2.18

Zoom Ratio

1.6x

Lens Control

Manual Zoom and Focus

Lens Shift

Manual lens shfit,
V: ±60 %; H: ±23 %

Keystone Correction

1D keystone,
V: ±30 degree

Projection Size

30" ~ 300"

Projection Offset

Display

Projection System

DLP Single 0.47" XPR 4K

DMD type

DC3 DMD Chip

Resolution

4K UHD (3840 x 2160)

Brightness

5000 ANSI Lumens

Contrast Ratio*

3,000,000:1

Display Color

30 Bits (1.07 billion colors)

Aspect Ratio

Native 16:9 (5 aspect ratio selectable)

Light Source

Laser

Light Source Life*

20,000 hrs

Audio

Built-in Speaker

10W

Special Feature

Security(anti-theft)

Security Bar

Feature

4K UHD, HDR, Projector/ Remote Control ID Setting, Auto High Altitude Mode, HDBaseT, LAN Control, 360∘Projection, Dust-Proof Filter

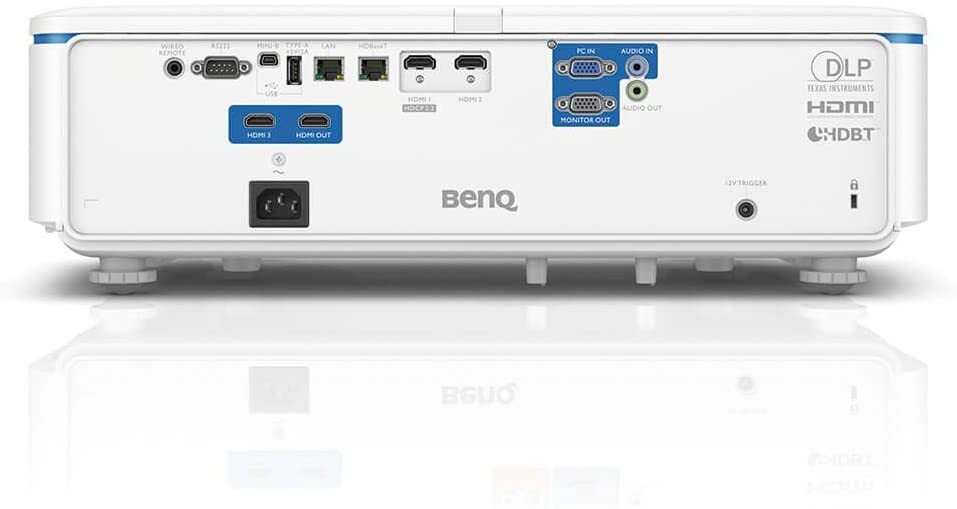

Connectivity

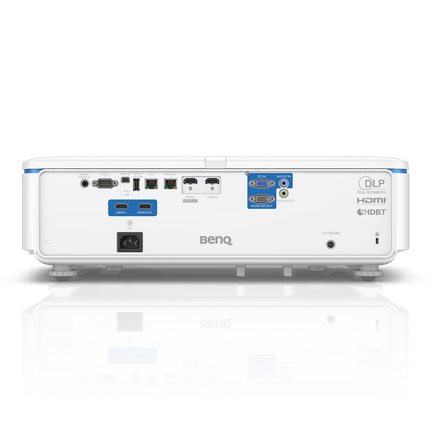

I/O Port

Wired Remote In x1
RS232 In (D-sub 9pin, male) x1
USB Mini-B(Service) x1
USB TypeA(5V/2A power) x1
LAN Port(RJ45 for Network control) x1
HDBaseT x1
HDMI In (HDCP2.2) x1
HDMI In x2
HDMI Out x1
PC In x1
Monitor out (D-sub 15pin,Female) x1
Audio in(mini jack) x1
Audio out (mini jack) x1
12V Trigger x1
IR Receiver(Front) x1
IR Receiver(Rear) x1
Kensington anti-theft lock slot x1

Compatibility

Resolution Support

Up to 3840x2160p

Horizontal Frequency

15K ~135KHz

Vertical Scan Rate

24~120Hz

HDTV Compatibility

SDTV(480i/576i), EDTV (480p/576p), HDTV (720p, 1080i 60/50, 1080P 50/60/30/25/24, 3840x2160p 60/50/30/25/24)

Video Compatibility

Power

Standby Power Consumption

Normal < 0.5W, Network <2W

Power Consumption(Max/Normal/Eco)

Max 585W/ Normal 520W/ Eco 390W

Dimension and Weight

Product Dimensions (WxHxD)

490.0x159.0 x 380.0mm

Product Weight

10.1 kg

Operation Condition

Operating Temperature

0 ~ 40oC

Noise Level (Normal/Eco)

40/38 dBA

Accessories

Accessories (Standard)

Power Cord
Remote control (RCA011)
Lens cover
AAA Batteryx2
Installation Guide/Regulatory Statement(Combined)
Warranty card(by sku)
Anti-dust Filter

Accessories (Optional)

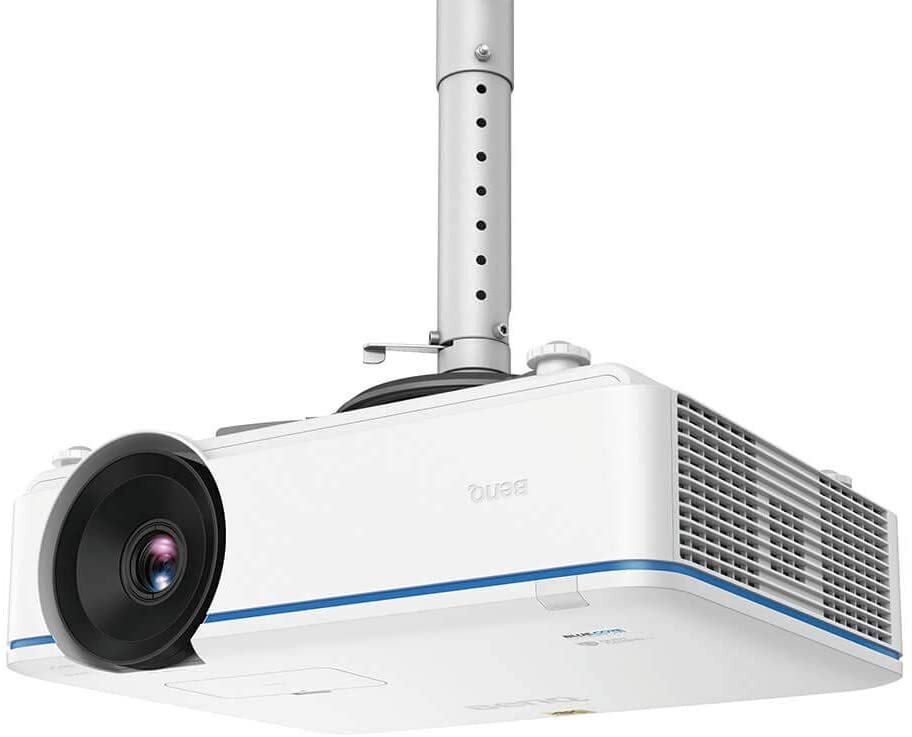

Ceiling mount (CMG3)

OSD

On Screen Display Language

Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian /Persian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese/ Vietnam (30 languages)

InstaShow Host

Power Supply

100 ~ 240V AC

SKU	PA-BENQLK952
Barcode #	4718755067471
Brand	BenQ
Shipping Weight	12.0000kg
Shipping Width	0.600m
Shipping Height	0.300m
Shipping Length	0.500m
Shipping Cubic	0.090000000m3
