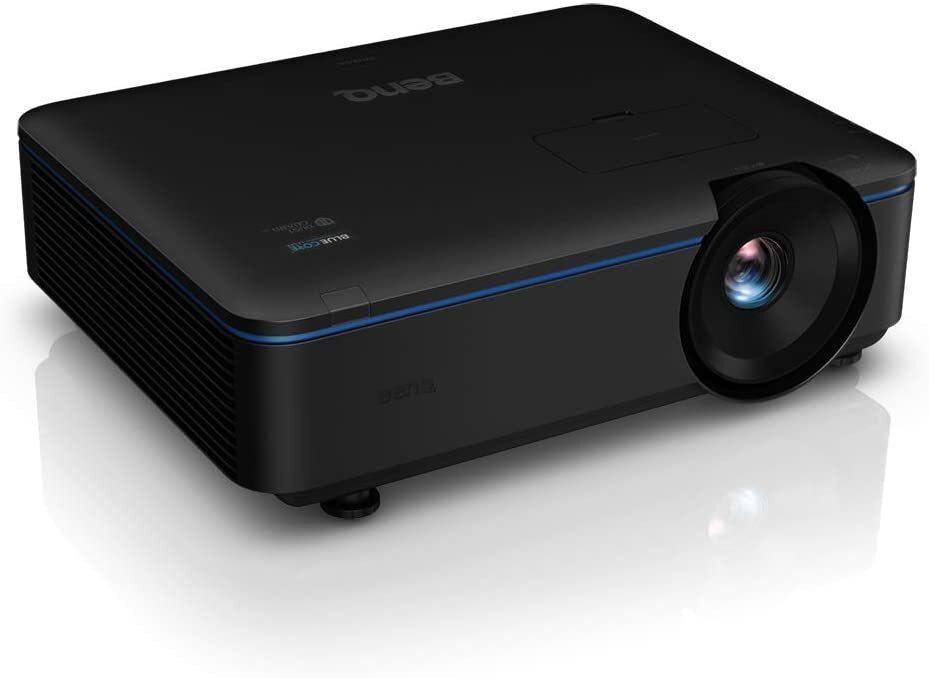

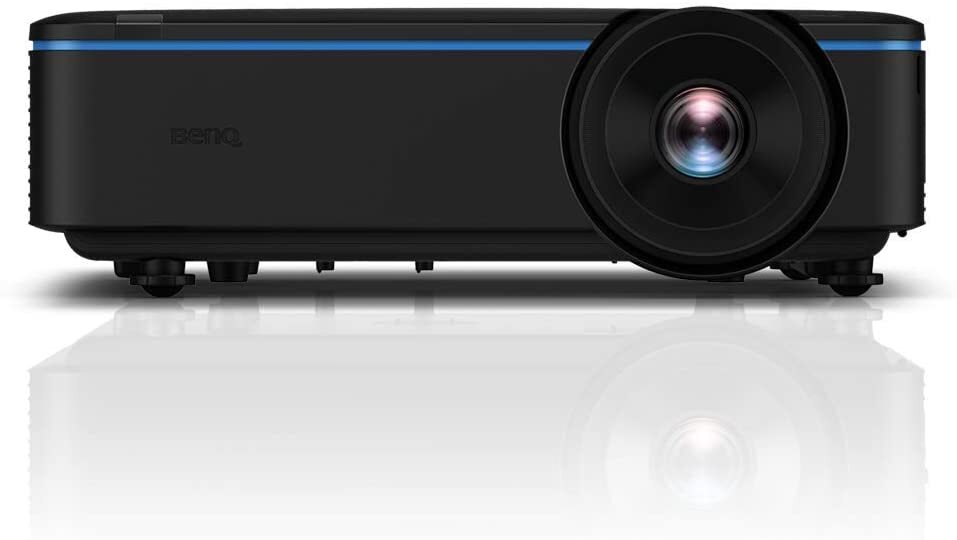

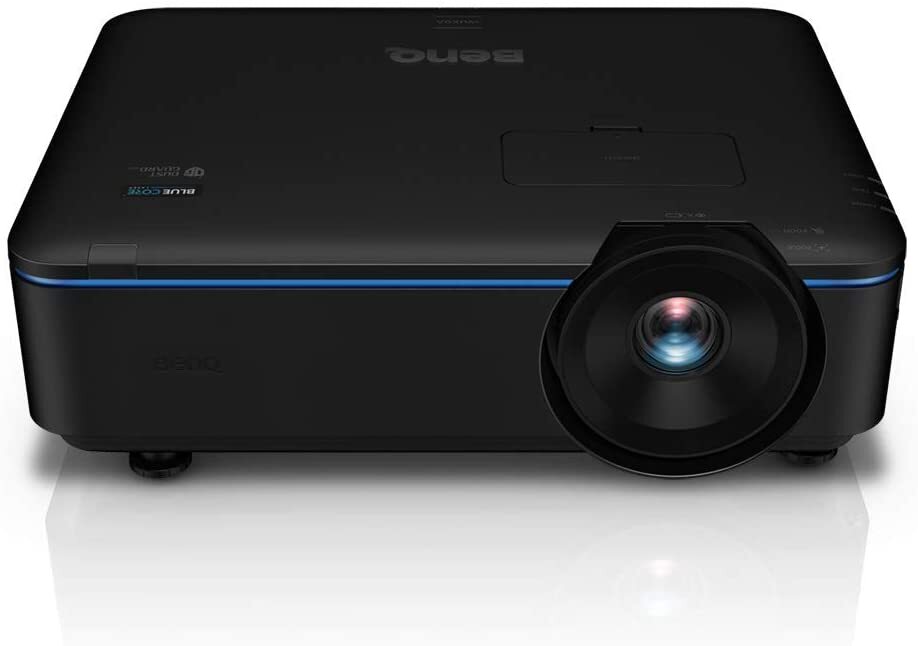

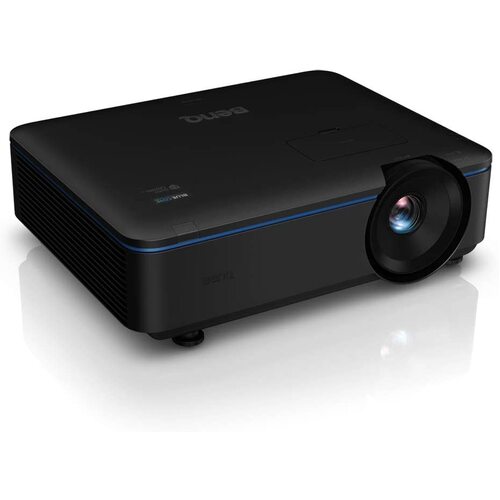

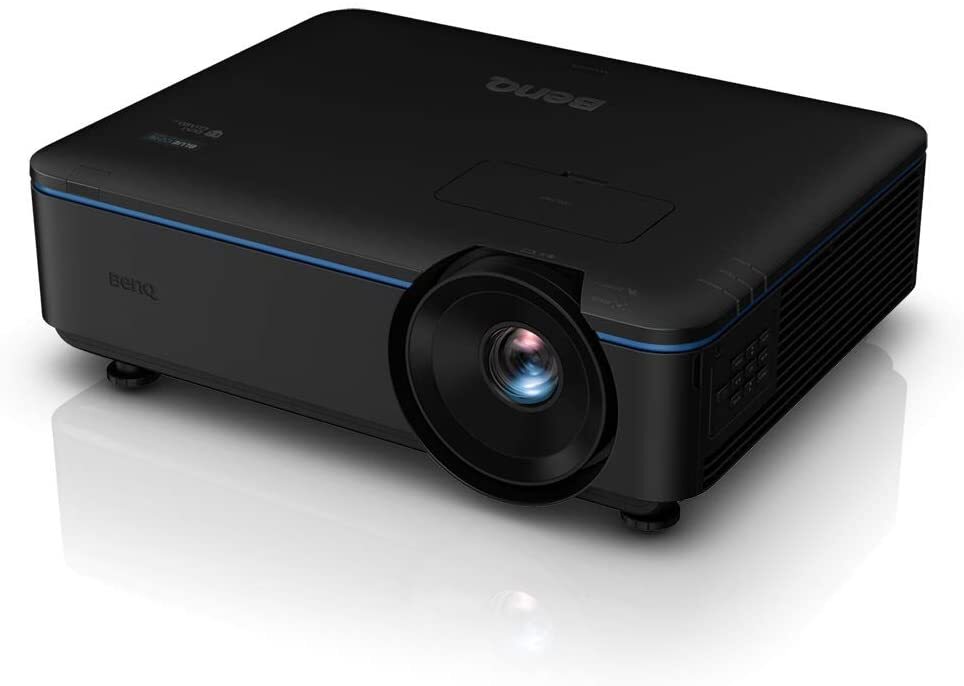

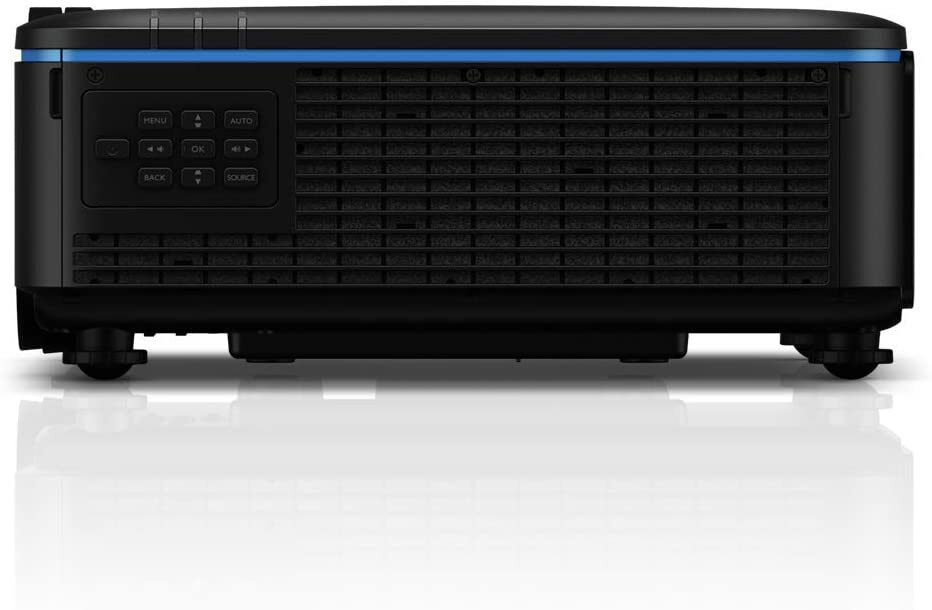

BenQ LU951ST Laser Big Venues Installation Projector

Reproduce True-to-life Images for Totally Immersive Experiences

With V/ H lens shift, 2D keystone and corner fit for hassle-free installation

Support for 360° and portrait installation

20,000 Hous Long-Lasting Performance

Revolutionary BlueCore Laser Technology

Extending its full line of revolutionary BlueCore laser projectors, the world’s No.1 DLP brand BenQ presents LU951ST, especially designed for short-throw fixed lens installation in compact meeting rooms and diverse public spaces.

Superior Brightness

Precision-Aligned High-Output Laser Source

Zero-deviation alignment of BlueCore laser diodes boosts luminous flux into the light tunnel, improving light efficacy to 5,000 lumens.

Superior Performance

Secondary Yellow-Infused Color Wheel

Dual synchronized BlueCore color wheels utilize an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance.

Superior Durability

Hermetically Sealed DLP Chip

Comprising over two million micromirrors that reflect pure light through the color wheel, the DLP chip is hermetically sealed to resist heat for over 100,000 hours without degradation.

Long-Lasting Supreme Image Quality

DLP Technology for Lasting Vibrant Color

BenQ laser projectors are based on the absolute reliability of the 1-chip DLP design. The highly durable DLP chip can last over 100,000 hours without degradation, ensuring true-to-life colors and pristinely legible text over countless uses.

Laser-Powered Ultra-High Contrast

LU951ST laser projector creates strikingly clear images with stratospherically high 3,000,000:1 contrast ratio for true deep blacks, vivid rich colors and fine subtle details. LU951ST also features spontaneous response, requiring no wait to turn on or resume from blanking in true black for flexible performance capability.

Digital HDMI Output for Stacked and Multi-Screen Projection

In exhibition spaces and public venues, multiple projected screens can capture the audience’s imagination with immersive viewing experiences. Two projectors can also be stacked to double the brightness for a single image. Conventional projectors provide an analog-signal VGA output, which can decay due to transmission distance. BenQ LU951ST delivers a perfect digital signal via HDMI output directly from projector to projector or other display devices with no signal degradation for intensely bright stacked projection and beautifully mirrored multiple displays in showrooms, professional exhibits, and trade shows.

Excellent Installation Flexibility

Short-Throw Design for Unobstructed Viewing Without Space Constraints

Producing larger-than-life images in tight spaces with a 0.8 short-throw ratio, LU951ST eliminates distracting shadows and glare for viewers to move freely in front of the screen while enjoying immersive viewing experiences in small rooms.

360° Rotation Projection

BenQ LU951ST can be tilted vertically at any angle, allowing projection onto ceiling, walls, floors, or angled signage to fulfill any projection demand.

Big Zoom and Lens Shift for Flexible Installation

LU951ST’s wide zoom range and horizontal/vertical lens shift systems can perfectly align images in any challenging venue such as when lights or vents that are located at the ceiling mounting site. Lens shift can move projected images up and down by 60% of screen height or left and right by 23% of screen width. The 1.1X zoom feature increases installation flexibility for diverse mounting options in various public display scenarios.

Digital Image Shrinking and Shift

Digital image shrinking and shift lets installers shrink the image to 75% of the original size with 0.5% increments via OSD menu. The image can also be shifted, so installers do not have to reinstall or adjust the projector physically in case the image is not precisely aligned on the desired frame and space.

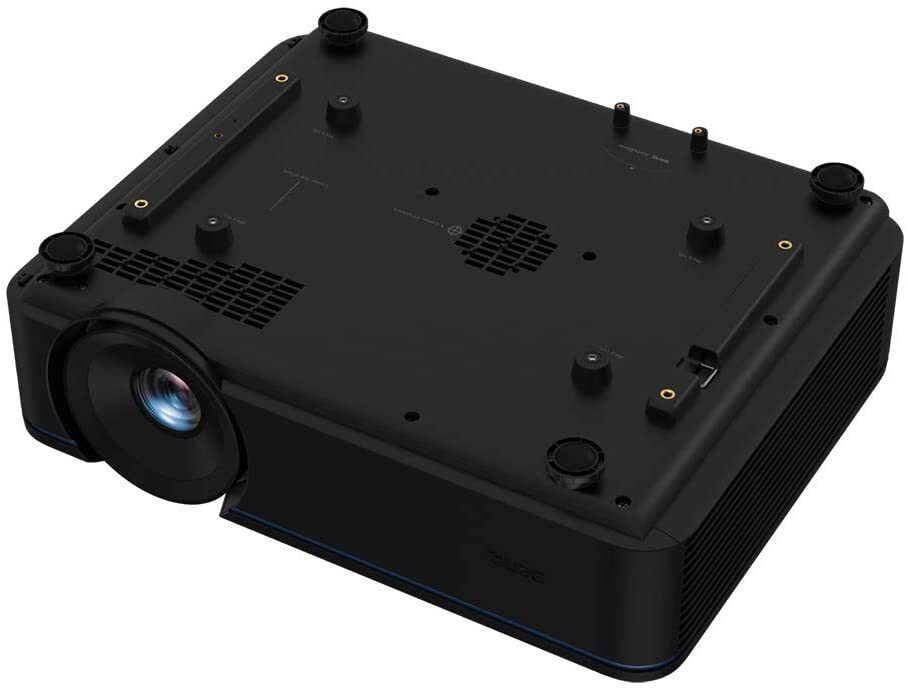

Grip Bottom Surface Design

LU951ST is designed with grips on its bottom surface to easily and safely transport the projector during installation or moving from one venue to another.

(PA-BENQLU951ST)

Optical

Throw Ratio

0.81 ~ 0.89

Zoom Ratio

1.1x

Lens Control

Manual Zoom and Focus

Lens Shift

Manual lens shfit,
V: ±60 %; H: ±23 %

Keystone Correction

2D keystone,
V: ±30 degree; H: ±30 degree

Projection Size

30" ~ 300"

Display

Projection System

DLP Single 0.47" WUXGA

DMD type

DC3 DMD Chip

Resolution

1920x1200 pixels

Brightness

5000 ANSI Lumens

Contrast Ratio*

3,000,000:1

Display Color

30 Bits (1.07 billion colors)

Aspect Ratio

Native 16:10 (5 aspect ratio selectable)

Light Source

Laser

Light Source Life*

20,000

Audio

Built-in Speaker

10W

Special Feature

Security(anti-theft)

Security Bar

Feature

Digital Shrink and Shift, Image Memory, Projector/ Remote Control ID Setting, Auto High Altitude Mode, HDBaseT, LAN Control, 360∘Projection, Dust-proof Filter

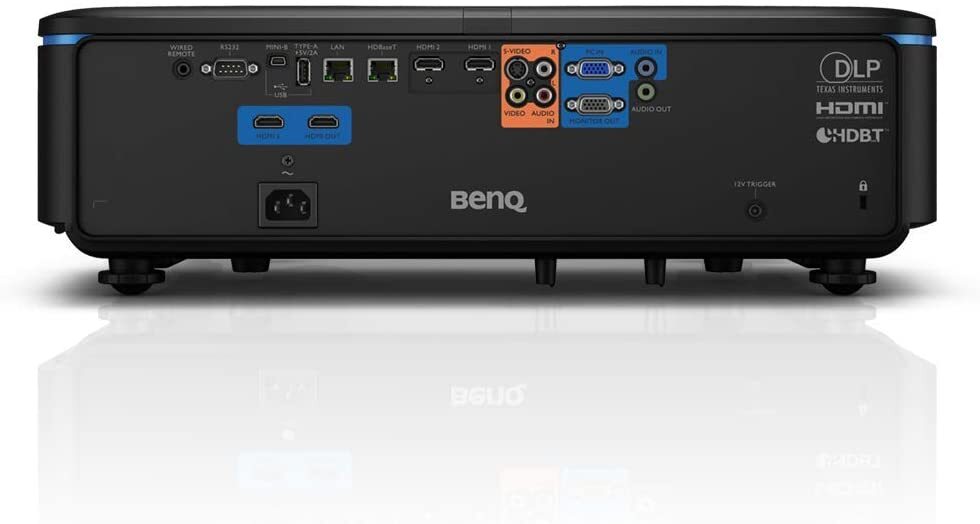

Connectivity

I/O Port

Wired Remote In x1
RS232 In (D-sub 9pin, male) x1
USB Mini-B(Service) x1
USB TypeA(5V/2A power) x1
LAN Port(RJ45 for Network control) x1
HDBaseT x1
HDMI In x3
HDMI Out x1
S-Video in x1
Composite Video(RCA) x1
RCA Audio in- L/R x1
PC In x1
Monitor out (D-sub 15pin,Female) x1
Audio in(mini jack) x1
Audio out (mini jack) x1
12V Trigger x1
IR Receiver(Front) x1
IR Receiver(Rear) x1

Compatibility

Resolution Support

VGA(640 x 480) to WUXGA_RB(1920 x 1200)
*RB-Reduced Blanking"

Horizontal Frequency

15~102KHz

Vertical Scan Rate

24 ~ 120 Hz

HDTV Compatibility

480i, 480p, 576i, 567p, 720p, 1080i, 1080p

Video Compatibility

NTSC, PAL, SECAM

Power

Power Consumption (Max/Normal/Eco)

Max 530W/ Normal 475W/ Eco 365W

Standby Power Consumption

Normal < 0.5W, Network <2W

Dimension and Weight

Product Dimensions (WxHxD)

490mm x 159mm x 380mm

Product Weight

9.4 kg

Operation Condition

Operating Temperature

0 ~ 40oC

Noise Level (Normal/Eco)

37 /35 dBA

Accessories

Accessories (Standard)

Power Cord
Remote control (RCA011)
Lens cover
AAA Batteryx2
Installation Guide/Regulatory Statement(Combined)
Warranty card(by sku)
Anti-dust Filter

Accessories (Optional)

Ceiling mount (CMG3)
3D glasses
InstaShowTM (WDC10)
