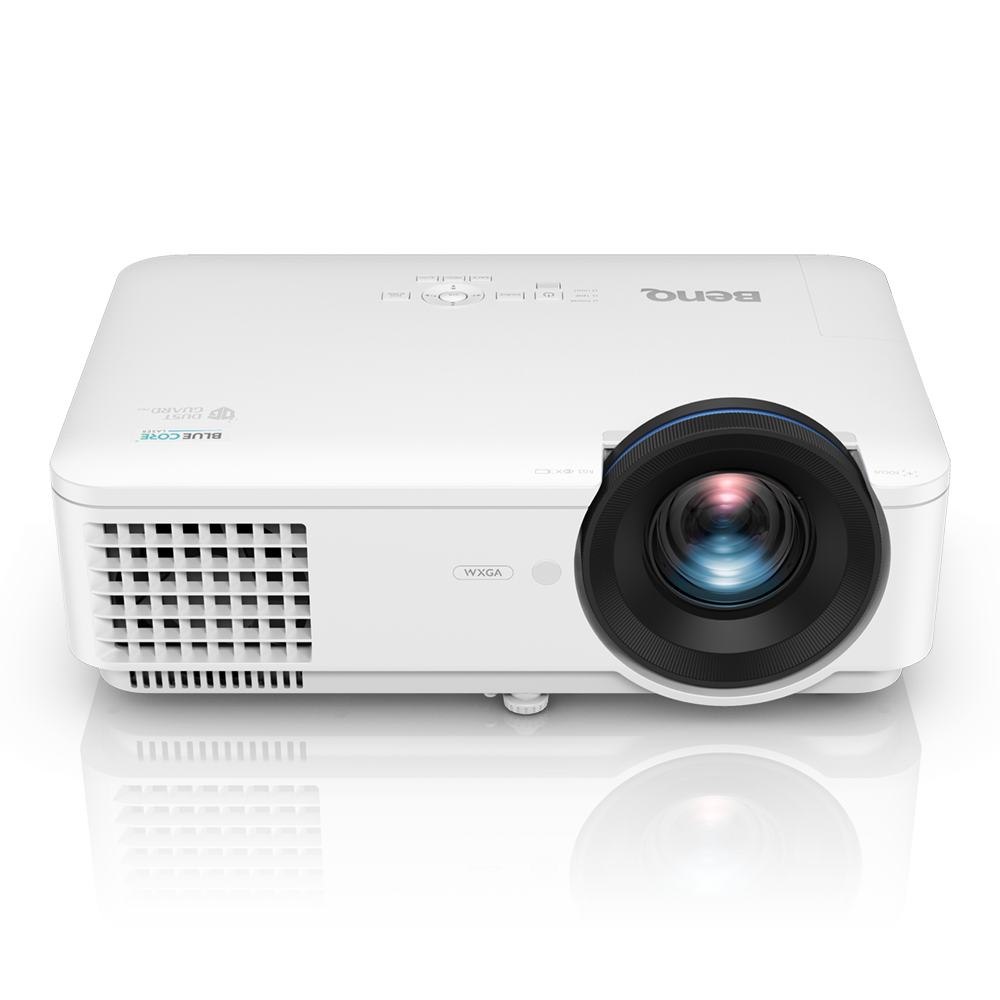

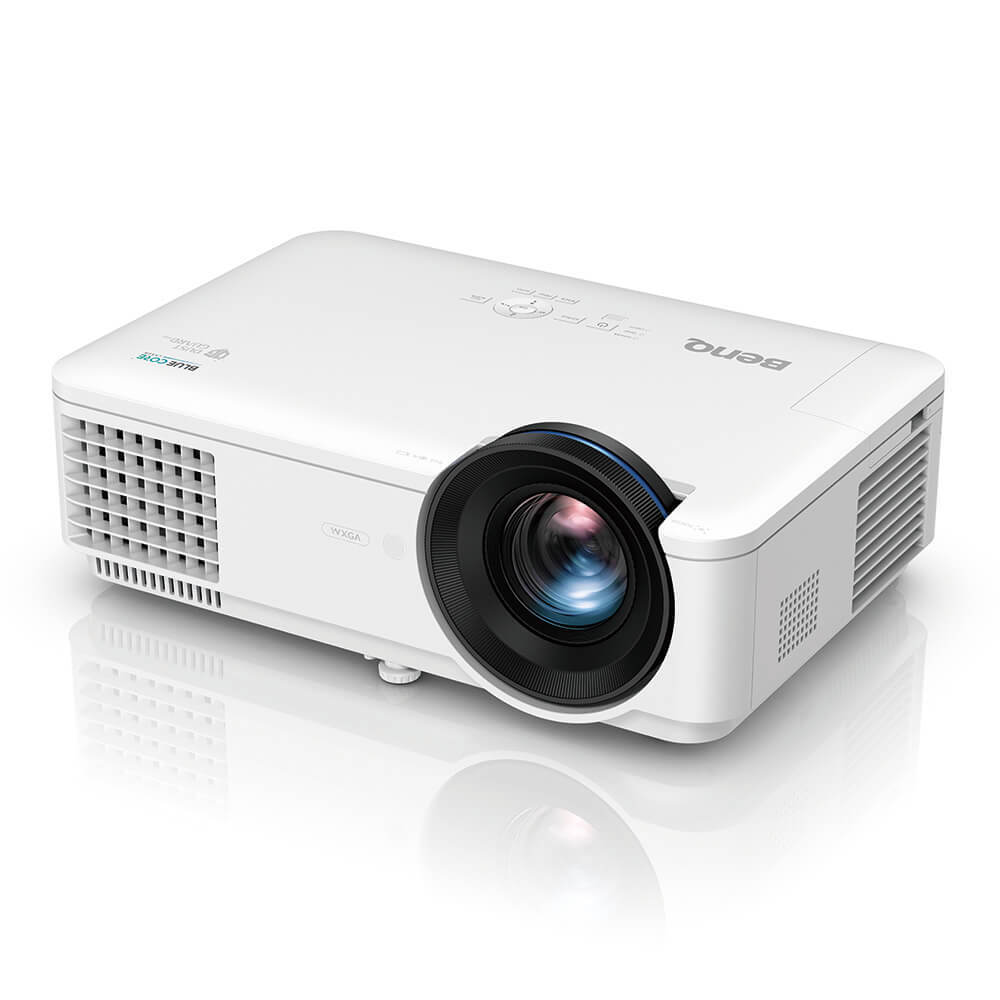

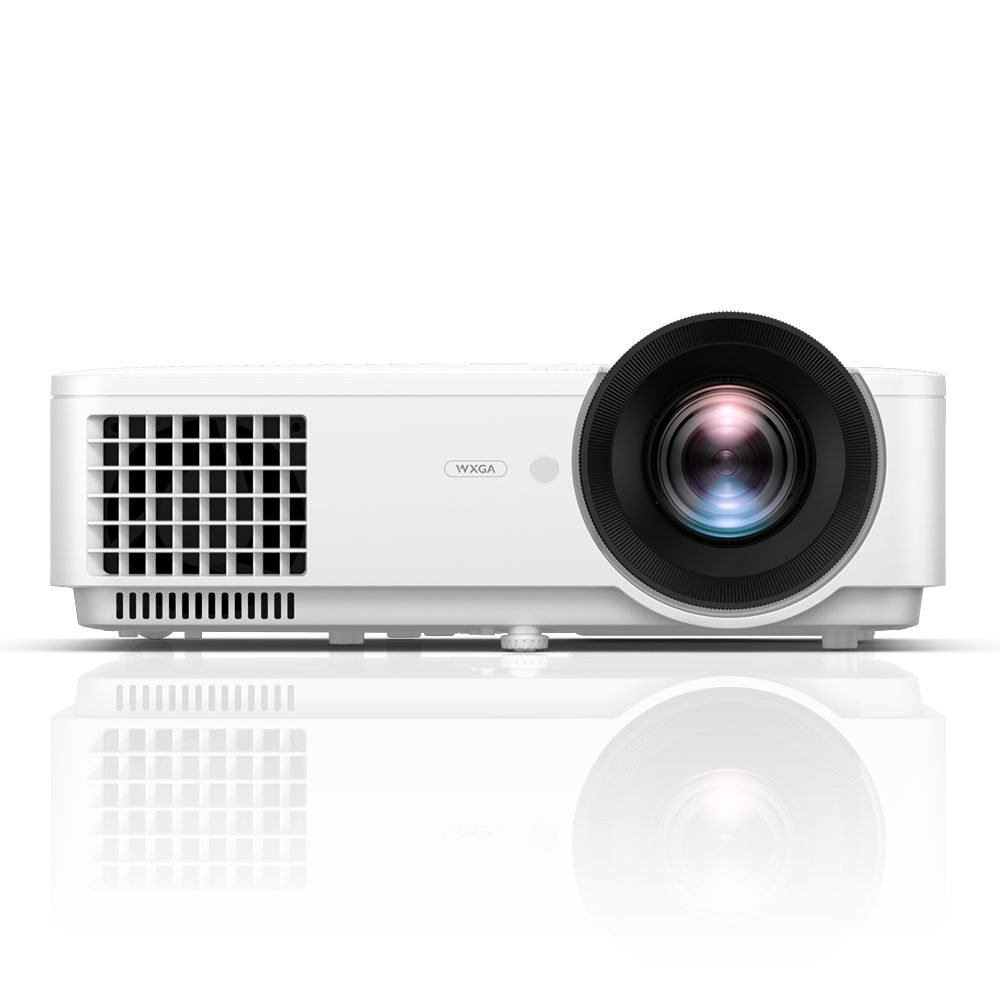

BenQ LW820ST BlueCore laser technology Short Throw Projector

BenQ BlueCore™ Laser Technology Laser Technology for Pure Color

Powerful BlueCore laser projectors employ dual colour wheel systems to unleash outstanding color performance by increasing color ratios and purity of RGBY color, greatly enhancing color saturation and brilliancy at the same lumen output of lamp-based projectors to deliver superior viewing experiences.

Superior Brightness

Precision-Aligned High-Output Laser Source

Zero-deviation alignment of BlueCore laser diodes boost luminous flux into the light tunnel, improving light efficacy to 3,600 lumens.

Superior Performance

Secondary Yellow-Infused Color Wheel

Dual synchronized BlueCore color wheels utilize an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance.

Superior Durability

Hermetically Sealed DLP Chip

Comprising over two million micromirrors that reflect pure light through the color wheel, the DLP chip is hermetically sealed to resist heat for over 100,000 hours without degradation.

Superior Dustproofing Design to Prolong Projector Lifespan

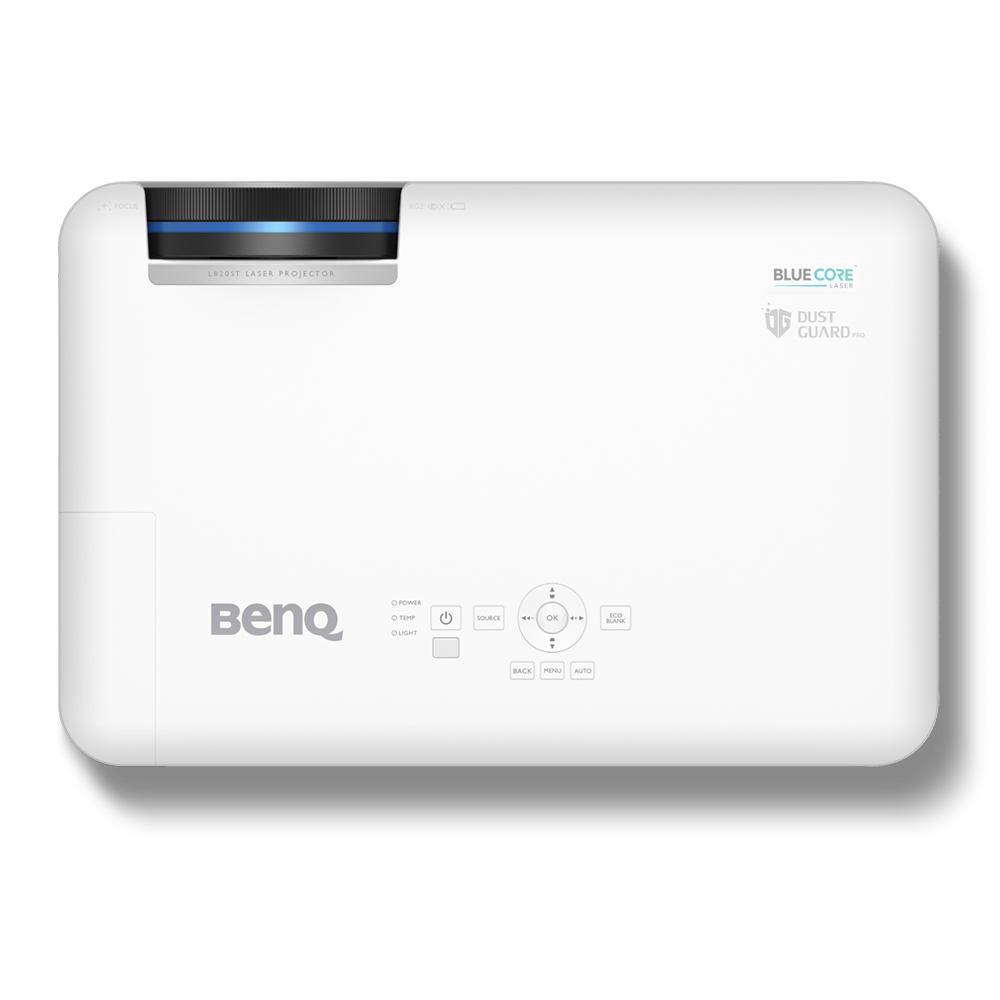

BenQ LW820ST is designed with Dust Guard™ technology including sealed laser modules to protect the laser bank. This lock-and-key design hermetically seals the laser engine from dust to prolong projector lifespan.The design has passed the dust chamber test standard for the international dustproof rating of IP5X.

Sealed Engine for Laser Light Source

With a fully enclosed laser light source and an innovative sealed engine design powered by BenQ Dust Guard™ technology, BlueCore education projectors guarantee 20,000 hours of maintenance-free operation to prevent extra expenses on lamp replacement and maintenance. The laser light source resists brightness decay, making BenQ laser education projectors highly stable while ensuring high brightness performance through years of usage.

Anti-Dust Accumulation Sensor Resists Dust Buildup

Incorporating color wheel sensors with an ingenious anti-dust accumulation feature, LW820ST prolongs optimal performance by rejecting dust which can accumulate on traditional sensors to block the IR signal and cause flickering, abnormal colors, or even shutdown.

Brilliant Display of Lecture Content

LW820ST’s powerful BlueCore™ laser projection utilizes a dual color wheel system to produce outstanding color performance by increasing color ratios and purity of RGBY colors, greatly enhancing color saturation and brilliancy at the same lumen output of lamp-based projectors to deliver superior viewing experiences.

Long Lasting High Brightness

LW820ST produces 3,600 ANSI lumens and superior brightness efficiency, at the same level as IFPs for clear, sharp images and text even in large, bright classrooms with lights kept on during lessons. LW820ST’s Custom Brightness function also allows manual light output adjustments in 1% increments to precisely control projection brightness to fit ambient lighting and conserve energy, as well as providing perfect edge blending for multiple projector applications.

Laser-Enabled Ultra-High Contrast

LW820ST laser projectors create strikingly clear images with stratospherically high native contrast ratio of 100,000:1 for true deep blacks, vividly rich colors, and fine subtle details. LW820ST also features spontaneous response, requiring no wait to turn on or resume from blanking in true black for flexible performance capability.

Instant Power-On

BenQ BlueCore™ education projectors can be turned on and off instantly to significantly reduce setup time compared to other lamp-based projectors.

20,000 Hour Long-Lasting Performance

With a fully sealed laser light source and an innovative sealed laser engine design, BenQ BlueCore™ laser education projectors deliver 20,000 hours of maintenance-free operation, preventing extra expenses on lamp replacement and maintenance. The laser light source resists color and brightness decay over time, offering significantly more reliable performance after a period of operation.

Expanding Possibilities

Unobstructed Instruction Without Space Constraints

Offering a big screen in short distances with a 0.49 short-throw ratio, LW820ST eliminates distracting shadows and glare for students and teachers to engage and collaborate freely in front of the board.

Bigger Images

BenQ education projectors offer a range of resolutions and projected image sizes to meet diverse classroom needs. Featuring crisp image quality up to 100 inches, BlueCore short throw education projectors deliver increased classroom versatility at reduced costs.

Create Interaction on Any Surface

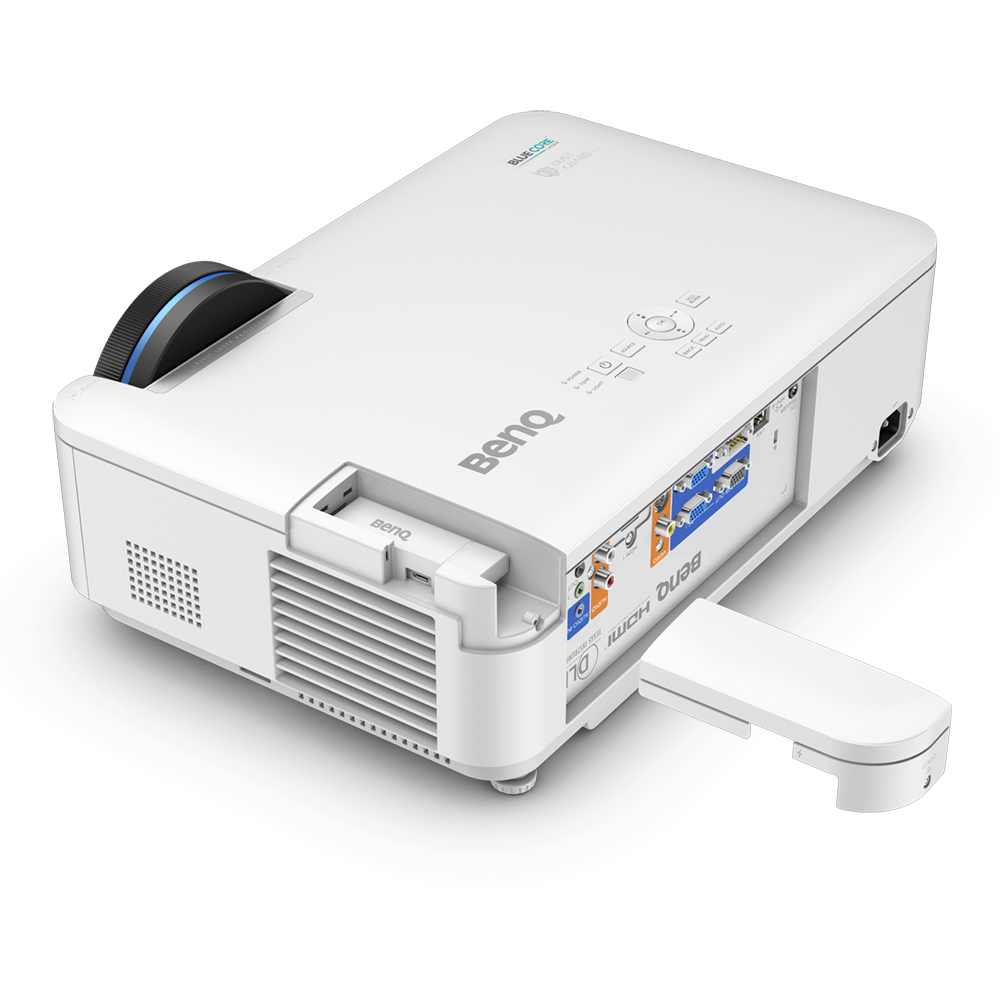

PointWrite™ technology works on any flat surface, so no expensive digital whiteboard or additional equipment is necessary. With the PointWrite™ module, images can be projected onto a wall for multiple students to easily share and write on the same screen, creating vast new opportunities for classroom interactivity and enabling possibilities for modern digital classrooms.

Multi-Touch with Pens and Multi-Screen Drawing

PointWrite™ projectors offer multi-user capability, and two PointWrite™ projectors can be used to double the projection surface. With QWrite* Whiteboard Mode, teachers can run different applications or display, view, and annotate across two monitors.

* BenQ exclusive annotation software QWrite™ is compatible with BenQ PointWrite™ module.

Windows Gesture Support

PointWrite™ projectors support intuitive Windows gestures such as zooming in and out or scrolling while browsing webpages, pictures, or Google Maps. All multi-touch commands and gestures are supported for Windows 7 or above and future applications.

Advanced Interactive Module Compatible

For engaging and intuitive lessons, teachers and students can bring their own smart devices and computers to stream documents, images, and even Full HD videos to LW820ST projectors, facilitating the free exchange of ideas and collaborative teamwork.

*LX820ST/ LW820ST are compatible with QCast and QCast Mirror dongles as optional accessories.

(PA-BENQLW820ST)

All Specifications

Optical

Throw Ratio

0.52

Zoom Ratio

Fixed

Lens Control

Manual Focus

Keystone Correction

2D keystone, Vertical ± 30 degrees

Projection Size

60”~120”

Projection Offset

106.1 +/- 2.5%

Lens shift

N/A

Display

Projection System

DLP Single 0.65" WXGA

Resolution

1280 x 800 pixels, 16:10

Brightness

3,600 Lumens

Display Color

1.07 Billion Colors

Aspect Ratio

Native 16:10 (5 aspect ratio selectable)

Light Source

Laser

Light Source Life*

min 20000Hrs

Contrast Ratio

3,000,000:1

DMD Type

DC3 DMD Chip

Audio

Built-in Speaker

10Wx1

Feature

Security

Kensington Lock

Feature

Blank for True Black, Digital zoom(2x), Digital Shrink(0.75x), LAN Control, AMX/ PJ Link/Crestron/Extron IPL Compatible. MDA Compatibility Optional Wireless Display, Optional Interactive module (PW02, PT12) compatibility.Optional Dust Filter

Connectivity

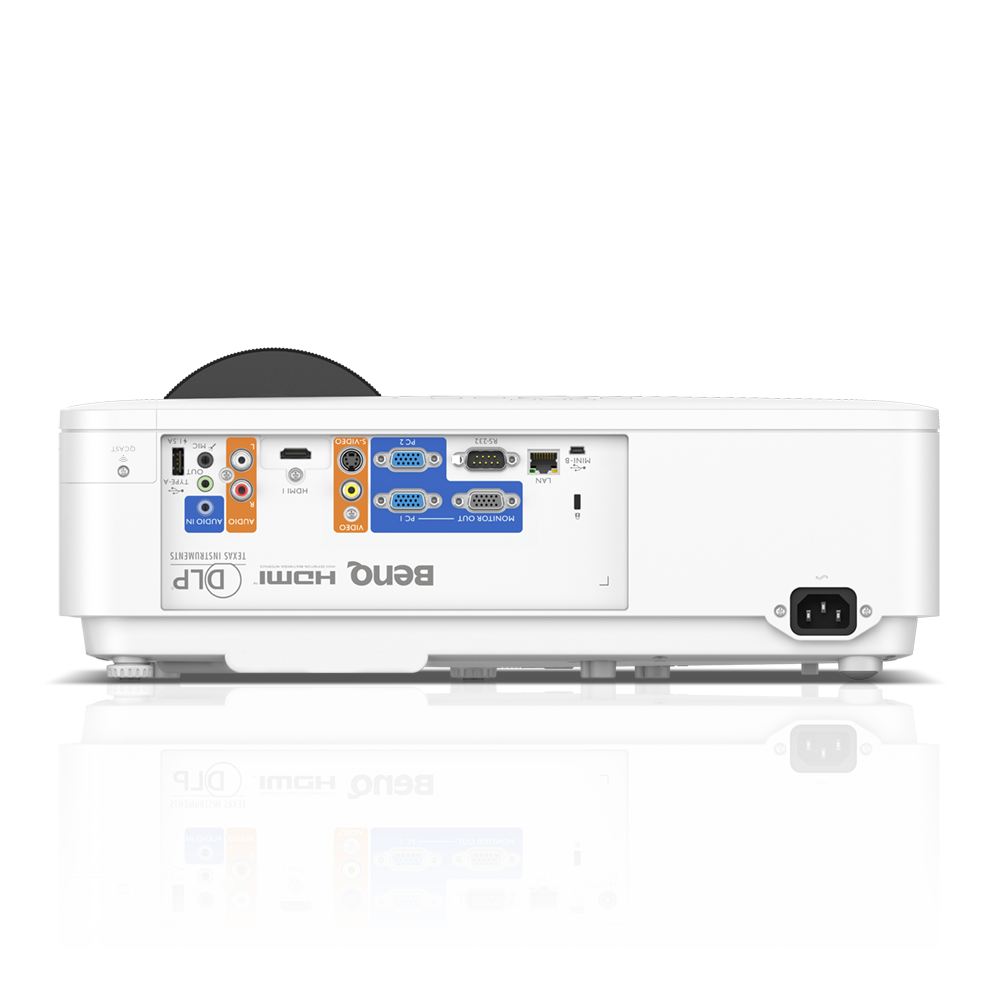

I/O Port

HDMI-1 X1
HDMI-2/MHL X1
PC (D-sub 15pin) X2
Monitor out (D-sub 15pin,Female) X1
Composite Video in (RCA) X1
S-Video in X1
Audio in(mini jack) X1
Audio L/R in (RCA) X1
Microphone in (Mini jack) X1
Audio out (mini jack) X1
LAN Port(RJ45 for Network ) X1
RS232 In (D-sub 9pin, male) X1
USB TypeA (5V,1.5A) X1
USB Type mini B (For service) X1
IR Receiver(Front/Top) X2

Compatibility

Resolution Support

VGA(640 x 480) to WUXGA_RB(1920 x 1200)

Horizontal Frequency

15KHz ~102KHz

Vertical Scan Rate

23 - 120Hz

HDTV Compatibility

480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Video Compatibility

NTSC, PAL, SECAM

Power

Power Consumption (Max/Normal/Eco)

Max 320W. Normal 283W. Eco 234W.

Standby Power Consumption

Normal < 0.5Watts. Network < 2W.

Dimension and Weight

Product Dimensions (WxHxD)

410 x 158 x 272 mm

Product Weight

5.6kg

Operation Condition

Operating Temperature

0o ~ 40oC

Noise Level (Normal/Eco)

33/29 dBA (without dust filter)

Accessories

Accessories (Standard)

Power Cord 3m (by region)
Remote Control for WW RCE015 (5J.JJF06.001)
Remote Control for J sku RCE013J (5J.JGS06.001)
AAA Batteryx2
VGA cable 1.8m
Warranty Card (by region)
QSG (4J.JJJ01.001)
User Manual CD (5B.JJJ01.001)

Accessories (Optional)

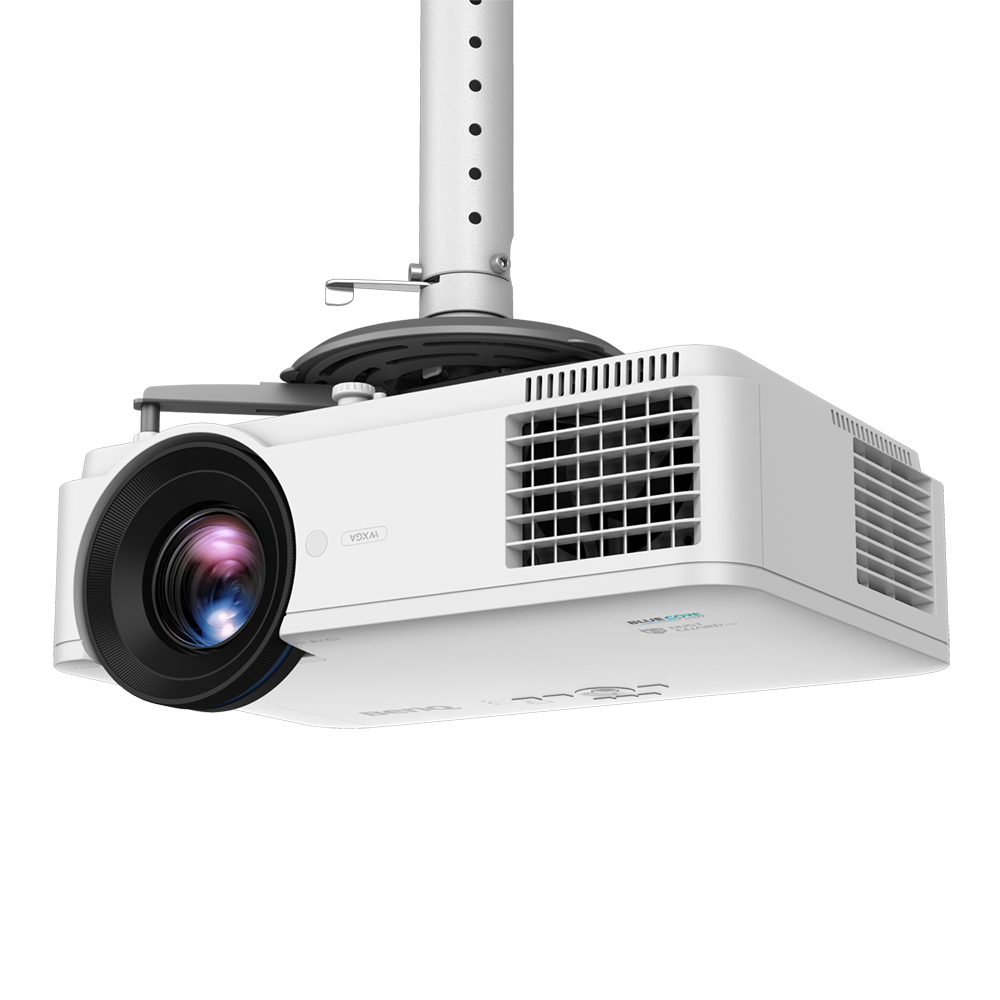

Wall mount WM06G3 (5J.J4R10.011)
3D Glasses (5J.J9H25.002)
Wireless Dongle: QCast Mirror (5A.JH328.10X)
Wireless Dongle: QCast (5J.JCK28.X01)
Dust Filter (5J.JJF14.001)

OSD

On Screen Display Language

Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)

InstaShow Host

Power Supply

100 ~ 240V AC

SKU	PA-BENQLW820ST
Barcode #	4718755074851
Brand	BenQ
Shipping Weight	6.0000kg
Shipping Width	0.500m
Shipping Height	0.300m
Shipping Length	0.300m
Shipping Cubic	0.045000000m3
