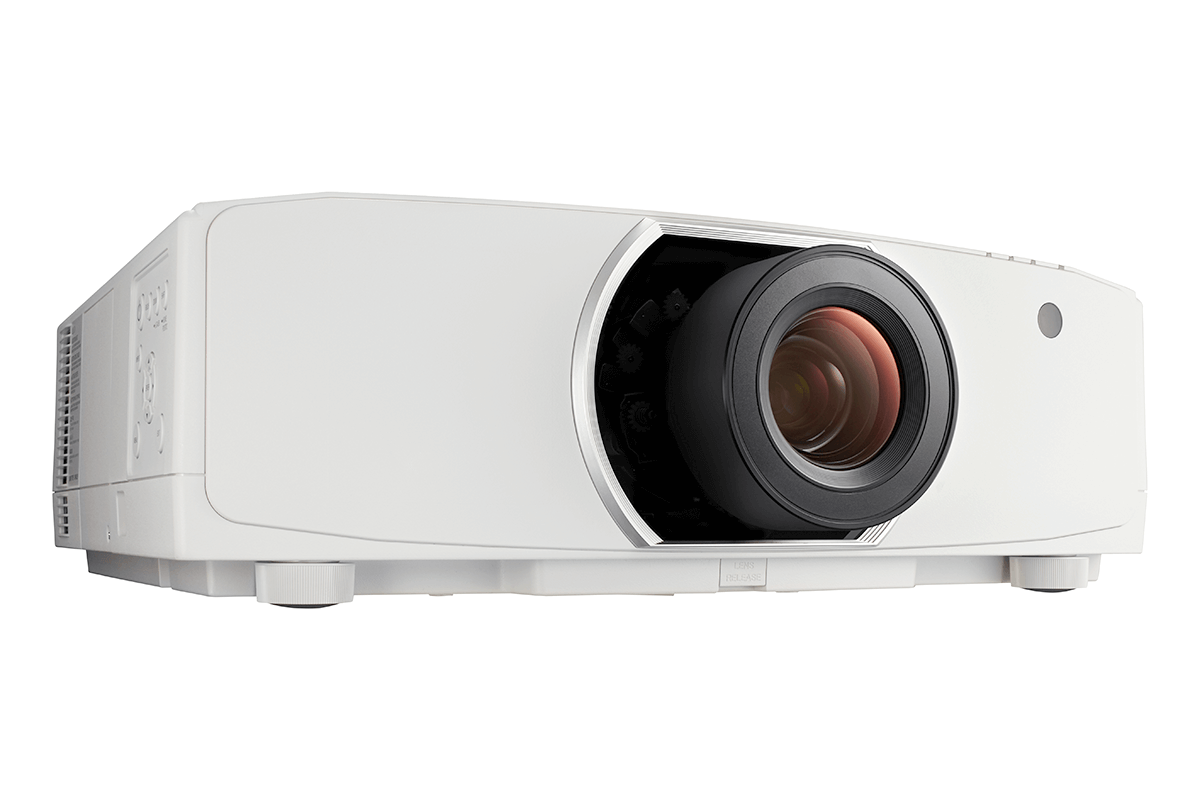

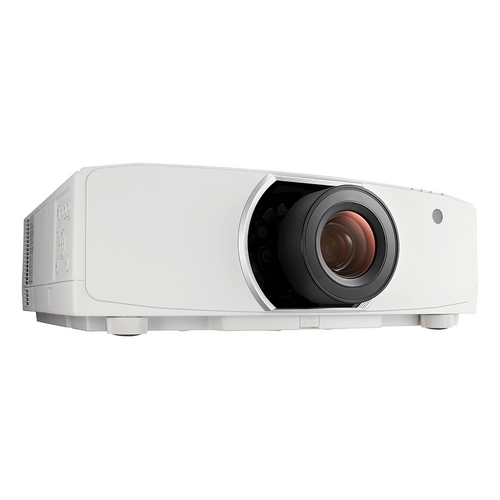

Introducing the NEC PA653UG, where vivid colors and dynamic contrasts converge to deliver a visual experience par excellence. Designed for those who won't settle for anything but the best, this projector seamlessly integrates performance with utility, ensuring that your business and presentations shine in true splendor.

Key Features:

  • Unmatched Visualization: The 6,500 lumen LCD projector with WUXGA resolution leverages cutting-edge colour processing technology, setting it leagues apart from competitors.
  • Effortless Installation: With motorized lens shift, focus, and zoom, setting up becomes a breeze. Add to that the free tilt, portrait installation capability, and geometric adjustment, you're looking at unmatched flexibility.
  • Cost-Efficient Daisy Chaining: The exclusive HDBaseT-out interface allows multiple projectors to be interconnected via economical network cables, drastically cutting down installation costs.
  • 4K and Ultra HD Compatibility: With management of the latest copyright protocols, the projector is primed to handle 4K and Ultra HD Blu-ray content.

Benefits You'll Love:

  • Cinema At Its Best: Leveraging the latest NEC scaler chip, the projector guarantees cinema-grade picture and color processing technology even in rooms with ample ambient light.
  • Remote Setup: The hassle of physically accessing the projector is history. Use remote adjustment for motorized lens shift, focus, and zoom.
  • Unparalleled Visual Options: Features like picture-in-picture, tiling, 3D support, and camera-based blending/stacking up to 4K will leave your audience in awe.
  • Streamlined Cabling: Benefit from the HDBaseT connectivity standard, allowing content transfer over up to 100m with just CAT6 network cabling.
  • True Colors, Dynamic Contrast: With Rec2020 to Rec709 colour conversion and a higher dynamic contrast supporting the HDR10 standard via HDMI, your visuals will be nothing short of stunning.
  • Protected & Seamless Content Playback: No worries about copyright issues while playing 4K and Ultra HD Blu-ray content. The projector has you covered.

Ideal For:
From corporate boardrooms and lecture halls to seminars in higher educational institutions, the NEC PA653UG projector is the definitive choice. With a focus on reducing total ownership costs without compromising on features, it's the embodiment of efficiency meeting brilliance.

In Conclusion:
With the NEC PA653UG projector, you're not just investing in a product, but a promise — a promise of outstanding visuals, streamlined operations, and lasting impact. Elevate your presentations; illuminate your ideas.

(PA-NECPA653UG)

Specifications

Projection Technology 3LCD Technology
Native Resolution 1920x1200
Aspect Ratio 16:10
Contrast Ratio (typ.) 8000:1
Brightness [Lumen] 6500
Light Source Lamp
Lamp Life 4000
Lens 3 motorized lens options; 5 manual lens options
Lense Adjustment Motorized and manual (depending on lens)
Keystone correction +/- 40° manual horizontal / +/- 40° manual vertical
Projection Factor depending on lens selection (std. option NP41ZL at 1.3-3.02:1)
Projection Distance [m] 0.7 – 50.9
Screen Size (diagonal) [cm] / [inch] (best performance range); Maximum: 1,270 / 500"
Zoom Motorized and manual (depending on lens)
Focus Adjustment Motorized and manual (depending on lens)
Supported Resolution 1920x1080
1920x1200
4096x2160
1280x720
2048x1080
720×576
2560x1600
720x480
Frequency Horizontal: analog: 15/24-100 kHz, digital: 15/24-153 kHz; Vertical: analog: 48-120 Hz, digital: 48-120 Hz
Connectivity
RGB (analog) Input 1 x Mini D-sub 15-pin, compatible to component (YPbPr)
Digital Input 1 x DisplayPort; 1 x HDBaseT; 2 x HDMI™ supporting HDCP 2.2
Digital Output 1 x HDBaseT supporting HDCP 2.2
Audio Input 1 x DisplayPort Audio support; 1 x HDBaseT audio support; 2 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio support
Audio Output 1 x 3.5 mm Stereo Mini Jack (variable)
Control Input 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
LAN 1 x RJ45
USB 1 x Type A (USB 2.0 high speed)
3D Sync Output 1 x Mini DIN 3pin
Remote Control
Remote Control Audio Control; Digital Zoom; Geometric Correction; ID Select; ID set; Power (On-OFF); Select (up, down, left, right); Source Select; Test Picture; Zoom/Focus and Lens Shift Control
Electrical
Power Supply 100-240 V AC
50/60 Hz
Power Consumption [W] 482 (Normal) / 376 (Eco)
1 (Network Stand-by) / 0.26 (Stand-by)
Mechanical
Dimensions (W) [mm] 499
Dimensions (H) [mm] 163.7
Dimensions (D) [mm] 406
Weight [kg] 10-15
Fan Noise [dB (A)] 33 / 39 (Eco / Normal)
Environmental Conditions
Operating Temperature [°C] 5 to 40
Operating Humidity [%] 20 to 80
Storage Temperature [°C] -10 to 50
Storage Humidity [%] 20 to 80
Ergonomics
Safety and Ergonomics CE
EAC
ErP
RoHS
TUEV Type Approved
Additional Features
Special Characteristics 3D ready; 4K/60Hz interfaces; Active 3D; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Contrast Ratio 10000:0 with Iris; Crestron RoomView; DICOM simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function; Free Tilt; Geometric Correction; HDBaseT; HDBaseT-out signal connection; HDR10 Support; High Altitude Mode; Hollywood Quality Video Processing for best image quality; HTTP Browser Control; Keystone Correction (H=±40°, V=±40°); LAN control; Lens Memory; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.3 max.); Light Source Adjustment; Long Life Lamp; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Portrait Setting; Rec2020 to Rec709 colour conversion; RS-232 Control; Seamless Switching; Stacking Function; Test Pattern; Timer-Function; UHD player support; Up to 5,000 hrs Light Source Life; Virtual Remote for direct PC control
Green Features
Energy Efficiency ECO scheduler
Intelligent Power Management
Less than 0.3W Stand-By power
Longer Light Source Life
Software scheduling
Timer-Function
Ecological Materials Downloadable manuals
100% recyclable packaging
Ecological Standards ErP compliant
Warranty
Projector Warranty 5 years conditional warranty
Light Source Warranty 6 months, max. 1000 hrs
Shipping Content
Shipping Content Power Cable
User Manual
Projector
Quick Setup Guide
IR Remote Control
Optional Accessories
Optional Accessories Air Filter (NP-06FT)
8 optional bayonet lenses
Cable Cover (NP10CV)
Lamp (NP42LP)
Lenses - motorized NP40ZL (0.79-1.11:1)
NP41ZL (1.3-3.02:1)
NP43ZL (2.99-5.93:1)
NP44ML (0.32:1)
Lenses - manual NP11FL (0.79:1)
NP12ZL (1.16-1.52:1)
NP13ZL (1.46-2.95:1)
NP14ZL (2.9-4.68:1)
NP30ZL (0.79-1.04:1)
SKU PA-NECPA653UG
Barcode # 5028695612907
Brand NEC
Shipping Weight 12.0000kg
Shipping Width 0.600m
Shipping Height 0.400m
Shipping Length 0.500m
Shipping Cubic 0.120000000m3
