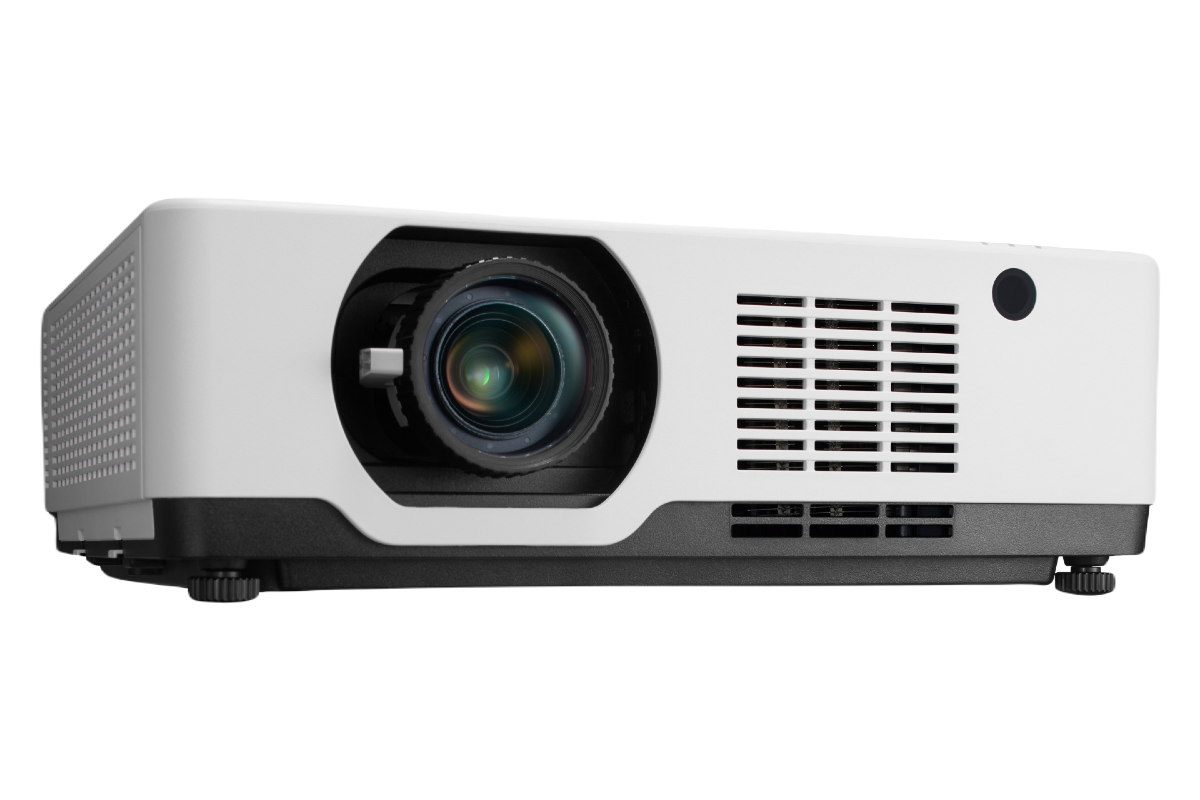

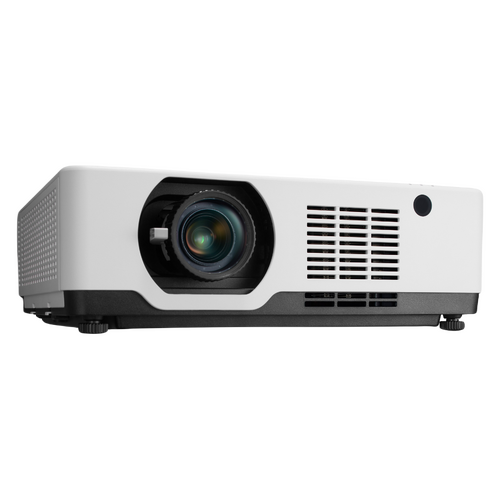

Meet the new benchmark in compact projection - the NEC PE506ULG. Whether it's classroom lectures or corporate presentations, this is a device that merges the potency of high brightness with the convenience of a compact form. Don't let the size fool you; it packs a luminous punch that's sure to impress.

Key Features:

  • Compact Yet Mighty: Even with a more compact frame than its predecessor, the PE506ULG dazzles with an outstanding brightness level of 5,200 ANSI lumen, illuminating every corner of your presentation space.
  • True-to-Life Visuals: Powered by 3 LCD technology, witness images that are not only bright but also colour-rich, lifelike, and captivating.
  • Wireless Wonder: With its seamless wireless presentation and screen-sharing capabilities, connectivity has never been so smooth and hassle-free.

Unique Benefits:

  • Effortless Installation: Adaptability is key. Its versatile projection characteristics offer installation flexibility, making it a breeze to set up and potentially cutting down on added expenses.
  • Economically Efficient: With its laser light source, expect up to 20,000 hours of operation. Paired with its low power consumption, the result is an impressively low total cost of ownership.
  • Safety Comes Standard: Thanks to its Risk Group 2 compliance, operate confidently without the need for additional safety measures.
  • Streamlined Device Management: Simplify the administration of all linked NEC devices from one centralized point with the NaViSet Administrator 2 software tool, ensuring more streamlined operations and reduced effort.

Ideal For:
Educational institutions, corporate meeting rooms, training facilities, or any space where clarity and impact matter.

Conclusion:
The NEC PE506ULG doesn't merely project – it captivates, ensuring every presentation becomes a vivid, memorable experience. For those in search of the perfect blend of portability and luminosity, this compact marvel is your go-to solution. Brighten up your presentations without bulking up on equipment.

(PA-NECPE506ULG)

Specifications

Projection Technology 3LCD Technology
Native Resolution 1920x1200
Contrast Ratio (typ.) 3,000,000:1
Brightness [Lumen] 5200
Light Source Laser
Light Source Life [hrs] 20000
Lens F:1.5~2.08 /f=17.2~27.7mm
Lens shift Manual ( H = +/- 29% / V = -0%~+60%)
Keystone correction +/- 30° horizontal (manual), +/- 30° vertical (manual + auto)
Throw Ratio 1.22 - 1.98:1
Projection Distance [m] 0.8 to 13.5
Screen Size (diagonal) [cm] / [inch] 30 - 300 in. / 0.76 - 7.62m
Zoom 1.6x; Manual
Focus Adjustment Manual
Supported Resolution 1920x1200
4096x2160 @30
Connectivity
RGB (analog) Input 1 x VGA 15-pin D-sub
RGB (analog) Output 1 x VGA 15pin D-sub
Digital Input 2 x HDMI w/ HDCP (v1.4b)
Audio Input 1 x 3.5 mm Stereo Mini Jack
Audio Output 1 x 3.5 mm Stereo Mini Jack
Control Input 1 x RS-232 (D-Sub 9pin), IR
LAN 1 x RJ45
USB 1 x Type A (Optional Wireless LAN, Memory, 2.0A); 1 x Type B (Service)
Electrical
Power Supply 100-240 V AC
Power Consumption [W] 352 (Normal) / 228 (Eco)
2.0 (Network Stand-by) / 0.5 (Stand-by)
Mechanical
Dimensions (W) [mm] 405
Dimensions (H) [mm] 137
Dimensions (D) [mm] 373
Weight [kg] 5-10
Fan Noise [dB (A)] 27 / 37 (Eco / Normal)
Environmental Conditions
Operating Temperature [°C] +0 to +40
Storage Temperature [°C] -10 to 50
Humidity 20 to 88 non-condensing
Ergonomics
Safety and Ergonomics RCM
CE
ErP
RoHS
Speakers [W] 1 x 16 (mono)
Additional Features
Special Characteristics AMX Beacon; Auto Eco Mode; Carbon Savings Meter; Colour Management; Content Transmission via Network; Crestron RoomView; PJ LINK
Green Features
Ecological Materials Downloadable manuals
ECO packaging
100% recyclable packaging
Warranty
Projector Warranty 5 years conditional warranty
Light Source Warranty 5 years or 12,000 hours (whatever comes first)
Shipping Content
Shipping Content User Manual
2x AAA Batteries
Quick Setup Guide
Security Sticker
Utility Software
IR Remote Control
Mini D-SUB Signal Cable (1.8 m)
Optional Accessories
Optional Accessories Wireless LAN module (NP05LM4)
SKU PA-NECPE506ULG
Barcode # 5028695614628
Brand NEC
Shipping Weight 8.0000kg
Shipping Width 0.400m
Shipping Height 0.300m
Shipping Length 0.500m
Shipping Cubic 0.060000000m3
