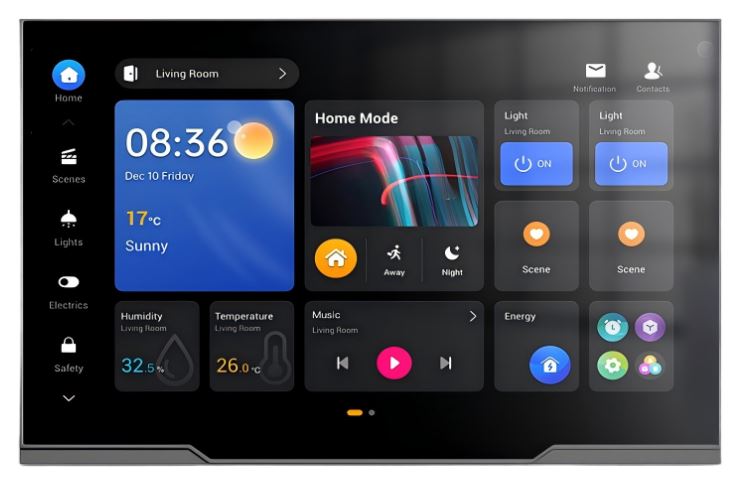

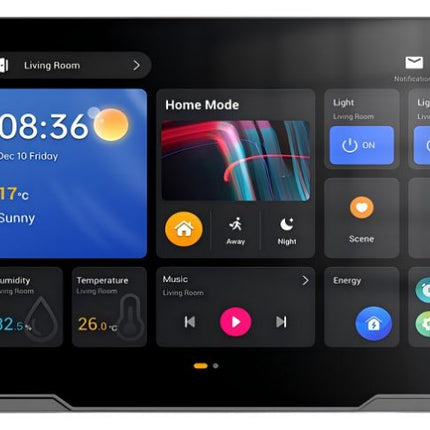

Akubela HyPanel Supreme 12.35" Smart Home Control Panel with Metal Frame
The Akubela HyPanel Supreme PHX1-ST is a premium 12.35-inch smart home control panel designed for top-tier automation experiences. Featuring a stunning 2.5K UHD display (2560 × 1600 resolution) with ultra-slim bezels and a minimalist metal frame, this panel seamlessly integrates high-end aesthetics with advanced functionality. Powered by Android 12, it delivers smooth integration with smart home apps and supports whole-house automation for modern living spaces.
Key Features
-
12.35-inch 2.5K UHD Touchscreen: Crystal-clear 2560 × 1600 resolution display with 400 nits brightness and ultra-slim bezels for an immersive visual experience
-
Premium Metal Frame Construction: Sleek, minimalist metal exterior that blends luxury design with durability
-
Advanced Gesture Control: Cutting-edge hand gesture recognition - wave your hand to control your smart home without touching the screen
-
Multi-Protocol Connectivity: Built-in Wi-Fi 6 (2.4GHz/5GHz), Bluetooth 5.0, ZigBee 3.0, and Ethernet for seamless integration with all your smart devices
-
Built-in Smart Sensors: Temperature, humidity, proximity, light, and gesture sensors for intelligent automation and data collection
-
5MP Privacy Camera: High-resolution camera with privacy shutter for video intercom, monitoring, and room-to-room communication
-
Android 12 OS: Full Android ecosystem support for third-party apps and seamless integration with smart home platforms
-
Powerful Processing: 64-bit quad-core processor (up to 1.8GHz) with 4GB RAM and 32GB ROM for smooth performance and multitasking
Complete Smart Home Hub
The HyPanel Supreme serves as the central command center for your entire smart home ecosystem. Control lighting, climate, security systems, entertainment, and more from a single, elegant touchscreen interface. The panel supports integration with Amazon Alexa and Google Assistant for voice control, while the built-in infrared control allows you to command traditional appliances alongside your smart devices.
Professional-Grade Automation Interfaces
Designed for both residential and commercial automation projects, the HyPanel Supreme includes comprehensive physical interfaces:
-
6-channel dry contact relays for controlling high-power devices
-
8 digital inputs (0-5VDC) for sensor integration
-
RS485 port for industrial automation protocols
-
Ethernet port (10/100Mbps) for reliable wired connectivity
-
ZigBee 3.0 hub supporting up to 128 sub-devices
-
Infrared control with 125° coverage (horizontal and vertical) up to 6 metres
Enhanced Privacy & Security
The built-in 5-megapixel camera with privacy shutter ensures your peace of mind. Use it for video monitoring of your home, video calls via the Akubela app, and intercom communication between panels, then close the shutter when privacy is needed. The panel supports local network operation for enhanced data security.
Superior Audio & Communication
Equipped with dual microphones (-38dBV) and a 6Ω 1.8W speaker, the HyPanel Supreme delivers clear two-way audio for video intercom, voice commands, and room-to-room communication. Perfect for answering the door, communicating between rooms, or controlling your smart home with voice.
Energy-Efficient & Flexible Power
Operating on 12-24VDC power supply, the HyPanel Supreme is designed for professional installation in smart home systems. The flexible voltage range ensures compatibility with various power configurations and allows for energy-efficient operation.
What's in the Box
- Akubela HyPanel Supreme PHX1-ST Control Panel
- Power supply unit
- Mounting hardware and installation kit
- Quick start guide
- Documentation and warranty information
Full Specifications
Display
| Screen Size |
12.35 inches |
| Resolution |
2560 × 1600 pixels (2.5K UHD) |
| Brightness |
400 nits |
| Aspect Ratio |
1:0.618 (Golden Ratio) |
| Touch Technology |
Capacitive multi-touch |
Processing & Memory
| Operating System |
Android 12 |
| Processor |
64-bit Quad-Core, up to 1.8GHz |
| RAM |
4GB |
| Storage |
32GB ROM |
| GPU/VPU/NPU |
Integrated advanced GPU, VPU, and 1T NPU |
Connectivity
| Wi-Fi |
Wi-Fi 6 (IEEE 802.11 b/g/n/ac), 2.4GHz/5GHz dual-band |
| Bluetooth |
Bluetooth 5.0 |
| ZigBee |
ZigBee 3.0 (supports up to 128 sub-devices) |
| Ethernet |
1 × RJ45, 10/100Mbps adaptive |
| RS485 |
Yes, for industrial automation |
Sensors
| Built-in Sensors |
Proximity, light, temperature, humidity, and gesture recognition |
Audio & Video
| Camera |
5-megapixel with privacy shutter |
| Microphone |
Dual microphones, -38dBV |
| Speaker |
Single speaker, 6Ω 1.8W |
| Infrared Control |
Horizontal 125°, vertical 125°, range 6m |
Physical Interfaces
| Digital Input |
8 channels, 0-5VDC |
| Dry Contact Output |
6 channels (4 × 230VAC + 2 × 0-30VDC), rated current 3A |
| RS485 Port |
Yes |
Power & Environment
| Power Supply |
12-24VDC |
| Working Temperature |
As per manufacturer specifications |
| Working Humidity |
As per manufacturer specifications |
| Storage Temperature |
As per manufacturer specifications |
Physical
| Material |
Metal frame construction |
| Bezel Design |
Ultra-slim bezels |
| Mounting |
Wall-mount (professional installation required) |
Smart Home Integration
| Voice Assistants |
Amazon Alexa, Google Assistant |
| Third-Party Apps |
Supported via Android 12 |
| Intercom Function |
Video intercom, room-to-room communication |
| Automation Features |
AI-powered learning, custom scenes, schedules |
Specifications are sourced from the manufacturer product page and may be updated.
