Akubela HyPanel Ultra 10.36" Smart Home Control Panel with Camera and Android 12
The Akubela HyPanel Ultra PH81-KNX-EU is a cutting-edge smart home control panel that transforms how you manage your entire home automation system. Featuring a stunning 10.36-inch 2K touchscreen (2000 × 1200 resolution) with 360 cd/m² brightness, this premium control center runs Android 12 and integrates seamlessly with KNX home automation systems, ZigBee 3.0 devices, and third-party smart home platforms. Perfect for modern villas, luxury apartments, and smart home installations, the HyPanel Ultra delivers intuitive control over lighting, climate, security, intercom, and entertainment systems from a single, elegant wall-mounted touchscreen.
Why You'll Love the Akubela HyPanel Ultra
-
Stunning 2K Display: Crystal-clear 10.36-inch touchscreen with 2000 × 1200 resolution and ultra-slim bezels for an immersive viewing experience
-
Built-In 5MP Camera: Integrated camera with privacy shutter for video intercom, surveillance monitoring, and video calls
-
All-In-One Smart Hub: Combines intercom, ZigBee gateway, KNX interface, environmental sensors, and dual relay outputs in one device
-
Advanced Connectivity: Wi-Fi 6, Bluetooth 5.0, ZigBee 3.0, Ethernet, KNX, and RS485 for comprehensive smart home integration
-
Built-In Sensors: Proximity, ambient light, temperature, and humidity sensors for intelligent automation
-
Premium Design: Sleek metal frame with minimalist aesthetics that complements any modern interior
Comprehensive Smart Home Control
The HyPanel Ultra serves as your central command center for whole-house automation. Control your KNX lighting scenes, adjust climate settings, monitor security cameras, answer door intercoms, and manage entertainment systems, all from one intuitive touchscreen interface. The Android 12 operating system allows you to install third-party smart home apps from Google Play, giving you unlimited customization and compatibility with popular platforms including Google Home, Philips Hue, TP-Link, Sonos, Ring, and many more.

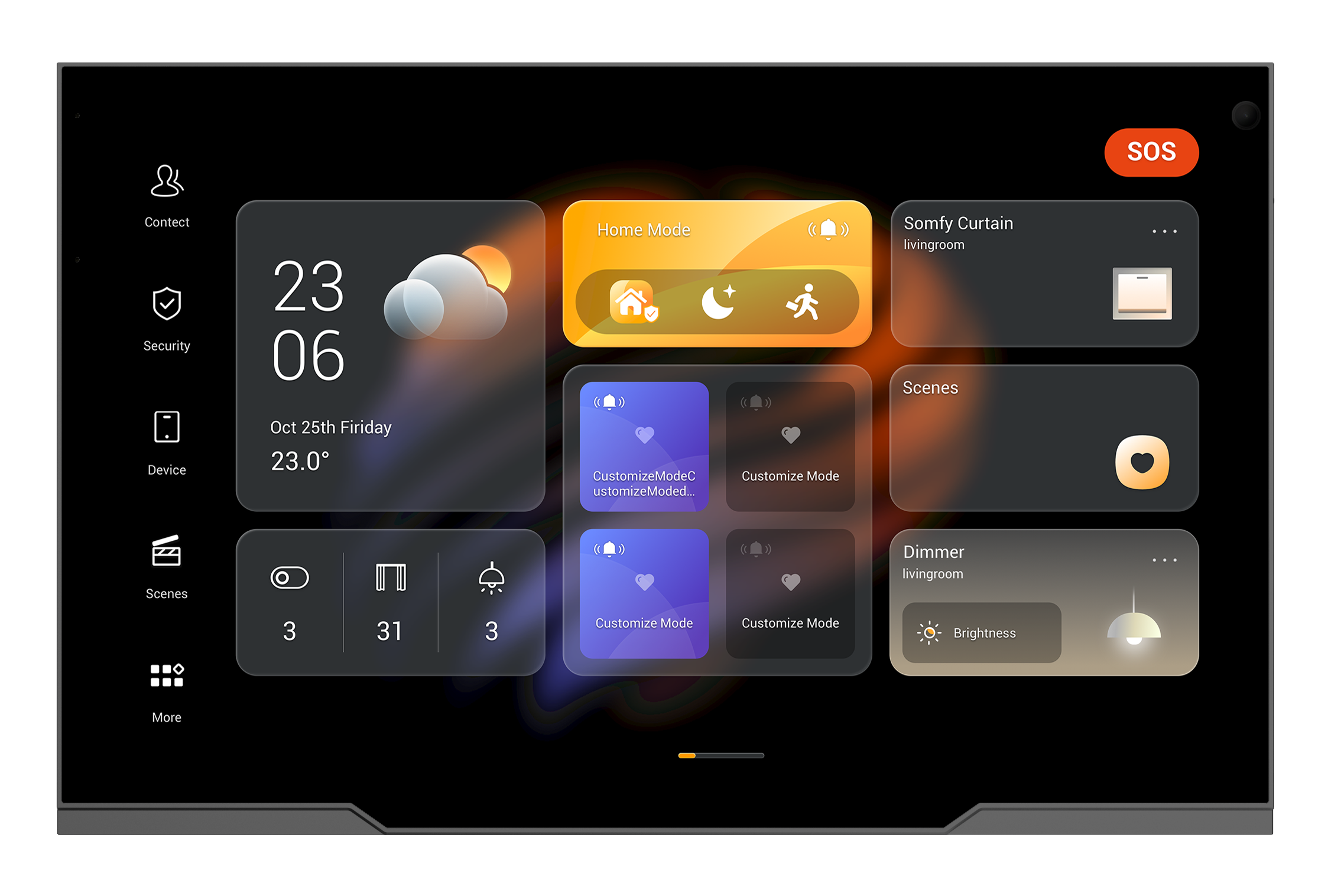

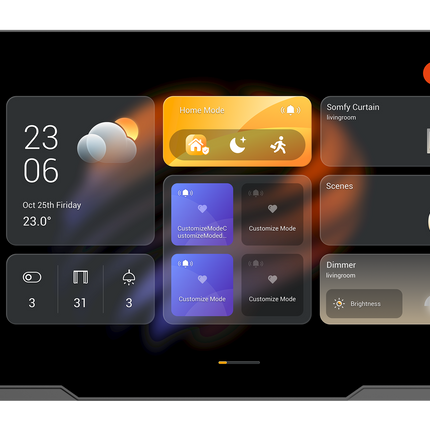

Crystal-Clear 2K Touchscreen Display
Experience home automation like never before on the 10.36-inch 2K display with a high screen-to-body ratio. The vivid touchscreen delivers sharp text, vibrant colors, and smooth navigation, making it feel like an iPad mounted on your wall. Whether you're viewing security camera feeds, browsing family photos in digital frame mode, or controlling complex automation scenes, the HyPanel Ultra's display ensures every detail is crystal clear.
Integrated Video Intercom and Security
The built-in 5-megapixel camera with privacy shutter enables seamless video intercom functionality. Answer calls from your door station, unlock doors remotely, and communicate with visitors or family members throughout your home. Stream live video from connected door phones and CCTV cameras directly on the panel. The dual microphones and integrated speaker deliver clear two-way audio communication.
Powerful Multi-Protocol Connectivity
The HyPanel Ultra excels as a universal smart home gateway. It supports KNX for professional home automation, ZigBee 3.0 (supporting up to 128 sub-devices) for wireless sensors and switches, Wi-Fi 6 for high-speed networking, Bluetooth 5.0 for local device pairing, and Ethernet for reliable wired connectivity. Additional interfaces include RS485 for industrial protocols, dry contact inputs, and digital inputs for legacy system integration.
Intelligent Environmental Sensing
With built-in proximity, light, temperature, and humidity sensors, the HyPanel Ultra can automatically trigger scenes based on environmental conditions. Wake the display as you approach, adjust lighting based on ambient brightness, or activate climate control when temperature thresholds are reached. The sensors enable truly intelligent automation that responds to your needs.
Infrared Remote Control
Control traditional appliances and AV equipment with the built-in infrared transmitter. With horizontal and vertical coverage of 125° and a 6-meter range, you can control TVs, air conditioners, projectors, and other IR-controlled devices directly from the panel, eliminating the need for multiple remote controls.
Flexible Installation and Power Options
The HyPanel Ultra is designed for flush-mounted installation in EU standard boxes, with a sleek metal frame measuring 245 × 156 × 10 mm. The panel requires an auxiliary power supply of 12 to 24 VDC for operation. The compact design and professional finish ensure seamless integration into any wall surface.
Technical Specifications
Display
| Screen Size |
10.36 inches |
| Resolution |
2000 × 1200 (2K) |
| Brightness |
360 cd/m² |
| Material |
Metal frame |
| Dimensions |
245 × 156 × 10 mm |
System
| Operating System |
Android 12 |
| RAM/ROM |
Varies by configuration |
Network & Connectivity
| Wi-Fi |
Wi-Fi 6 (802.11ax), 2.4 GHz/5 GHz |
| Bluetooth |
Bluetooth 5.0 |
| ZigBee |
ZigBee 3.0 (up to 128 sub-devices) |
| Ethernet |
1 × RJ45, 10/100 Mbps |
| KNX |
Built-in KNX interface |
| RS485 |
Supported |
Audio & Video
| Camera |
5-megapixel with privacy shutter |
| Microphone |
Dual microphones |
| Speaker |
Integrated speaker |
Sensors & Controls
| Built-In Sensors |
Proximity, ambient light, temperature, humidity |
| Infrared Control |
Horizontal/vertical 125°, 6 m range |
| Relay Output |
2 relays |
| Input |
Dry contact and digital inputs |
Power & Environment
| Power Supply |
12 to 24 VDC (auxiliary power required) |
| Installation |
Flush-mounted, EU standard box |
| Environment |
Indoor use only |
What's in the Box
- Akubela HyPanel Ultra PH81-KNX-EU control panel
- Mounting hardware
- Quick start guide
- Documentation
Specifications are sourced from the manufacturer product page and may be updated.
