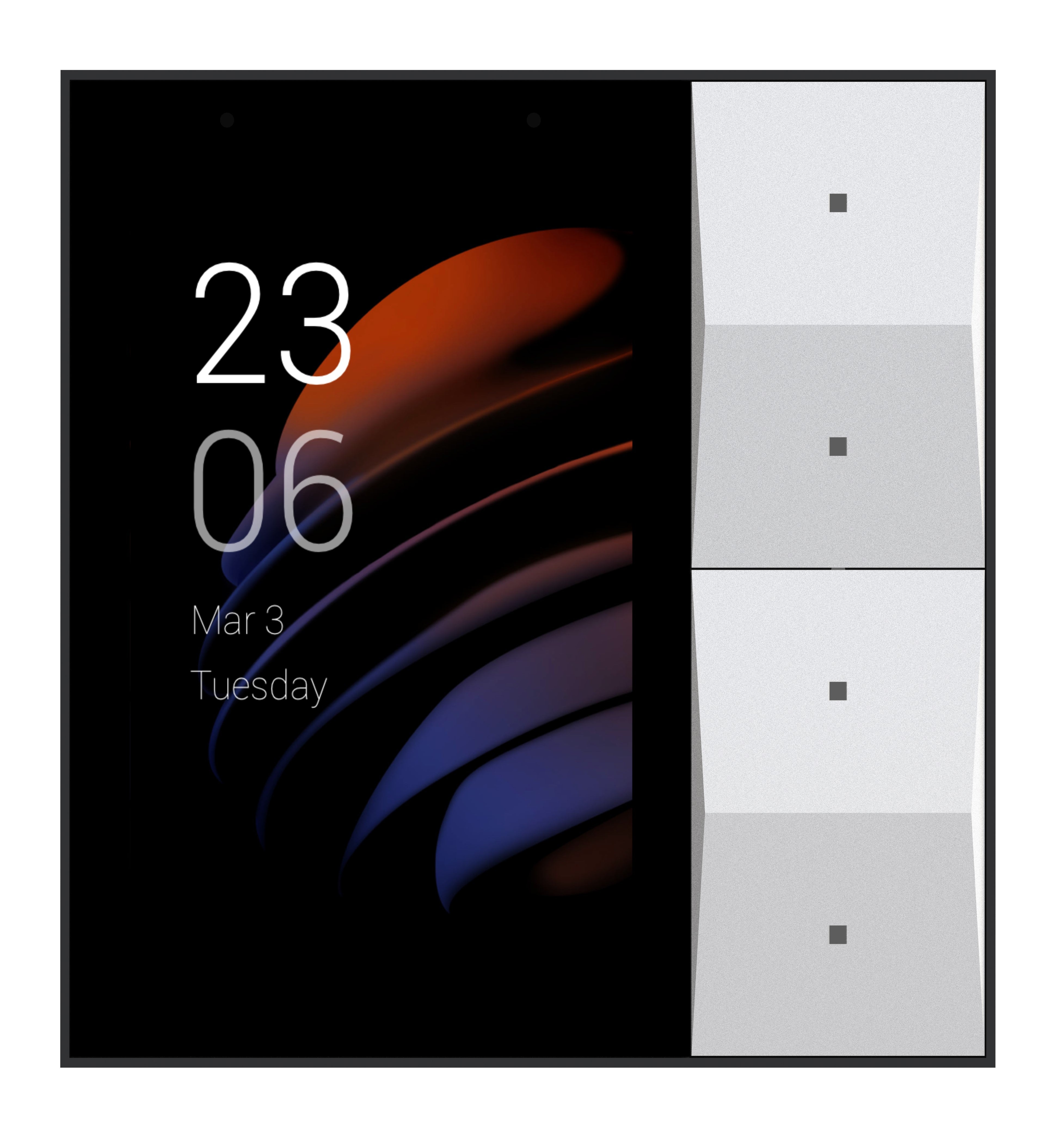

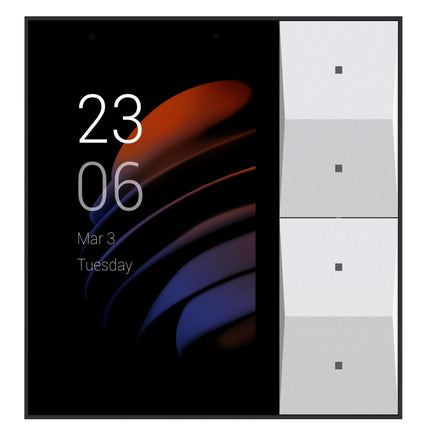

Akubela KS41-POE-EU Linux Smart Home Control Panel with Intercom
The Akubela HyPanel Lite KS41-POE-EU is a powerful Linux-based smart home center panel that combines home automation control, video intercom functionality, and environmental monitoring in one sleek device. With its 3.27-inch touch screen, 4 physical buttons, and integrated ZigBee 3.0 gateway, this all-in-one control panel brings smart home management to your fingertips. Perfect for modern homes, smart apartments, and automated buildings throughout Australia.
Key Features
-
All-in-One Smart Hub: Integrates smart intercom, ZigBee gateway, home automation control, and environmental sensors in a single wall-mounted device
-
3.27-inch Touch Screen: High-resolution 320×480 pixel TFT display with 210 cd/m² brightness for clear viewing
-
4 Physical Buttons: Metal buttons alongside touch controls for reliable physical interaction suitable for all family members
-
Flexible Power Options: Supports both IEEE802.3af PoE and 12-24VDC power supply for versatile installation
-
Advanced Connectivity: Built-in Wi-Fi 2.4GHz, Bluetooth 4.2, ZigBee 3.0, and Ethernet for seamless smart home integration
-
Video Intercom Ready: Two-way audio with dual microphones and Crystal Clear technology, compatible with Akuvox video door stations
Smart Home Automation Hub
The KS41-POE-EU serves as a central control hub for your entire smart home ecosystem. With ZigBee 3.0 gateway functionality, it can control up to 32 ZigBee sub-devices including smart lights, sensors, locks, and more. The panel is compatible with leading smart home platforms including Philips Hue, FIBARO, Shelly, IKEA, Sonos, and many others. Create custom scenes and automations directly from the touch screen or remotely via the BelaHome or SmartPlus mobile apps.
Built-In Environmental Sensors
Monitor and automate your home environment with integrated sensors:
-
Proximity Sensor: 30-60cm range for automatic wake and sleep functions
-
Light Sensor: Low-level lux detection for automatic brightness adjustment
-
Temperature Sensor: ±1°C accuracy, range -10°C to 55°C
-
Humidity Sensor: ±5% accuracy, range 10% to 90%RH
Professional Video Intercom System
Transform your home communication with integrated video intercom capabilities. The panel features dual microphones with -26dBFS sensitivity and a single 8Ω 1.5W speaker for crystal-clear two-way audio. Standard SIP protocol 2.0 support allows easy integration with third-party PBX systems and Akuvox door stations. Answer visitors at your door directly from the wall panel or via your smartphone anywhere in the world.
Cloud-Based Management
Manage your entire smart home system remotely through the Akuvox Installer Cloud platform. Configure devices, update firmware, modify network settings, adjust volume and relay parameters, and monitor connection status - all from anywhere with internet access. The cloud platform enables communication between panels and door stations across different networks without port forwarding or VPN requirements.
Easy Installation and Integration
Designed for flush mounting in standard EU electrical boxes (50mm depth recommended, 40mm minimum). The compact 86mm × 86mm × 47.4mm panel weighs just 0.4kg and integrates seamlessly into any interior design. The panel can be powered via IEEE802.3af PoE through a single Ethernet cable carrying both data and power, or via 12-24VDC for non-PoE installations. An RS485 port is included for connecting third-party devices.
Connectivity and Compatibility
-
Ethernet: 1×RJ45, 10/100Mbps adaptive
-
Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
-
Bluetooth: 4.2 for headset and speaker pairing
-
ZigBee: 3.0 with support for 32 sub-devices
-
RS485: Port for third-party device integration
-
Power: IEEE802.3af PoE or 12-24VDC
What's in the Box
- Akubela HyPanel Lite KS41-POE-EU panel
- Flush mounted module ×1
- M3×20mm Phillips self-tapping screws ×2
- Installation guide
- User manual
Full Specifications
Basic Information
| Model |
KS41-POE-EU |
| Operating System |
Linux |
| DDR / Flash Memory |
128MB / 256MB |
| Power Supply |
IEEE802.3af PoE & 12-24VDC |
Display
| Screen Type |
TFT touch screen |
| Screen Size |
3.27 inches |
| Screen Resolution |
320×480 pixels |
| Screen Brightness |
210 cd/m² |
| Physical Buttons |
4 metal buttons |
Connectivity
| Ethernet |
1×RJ45, 10/100Mbps adaptive |
| Wi-Fi |
IEEE802.11 b/g/n, @2.4GHz |
| Bluetooth |
Bluetooth 4.2 |
| ZigBee |
ZigBee 3.0 |
| ZigBee Sub-Device Limit |
32 devices |
| RS485 Port |
Supported |
Audio
| Microphone |
Dual microphones, -26dBFS |
| Speaker |
Single speaker, 8Ω / 1.5W |
| Audio Technology |
Crystal Clear two-way audio |
| Voice Detection |
Automatic voice detection |
Built-In Sensors
| Proximity Sensor |
30-60cm range |
| Light Sensor |
Low-level lux detection |
| Temperature Sensor |
±1°C accuracy, range -10°C to 55°C |
| Humidity Sensor |
±5% accuracy, range 10% to 90%RH (without condensation) |
Physical Specifications
| Dimensions |
86mm × 86mm × 47.4mm |
| Weight |
0.4kg (400g) |
| Material |
V0 fireproof PC with metal buttons |
| Installation |
Wall flush mounting |
| Flush Mounted Box |
EU standard (50mm depth recommended, 40mm minimum) |
Environment
| Environment |
For indoor use only |
| Working Temperature |
-10°C to +55°C |
| Storage Temperature |
-20°C to +65°C |
| Working Humidity |
10% to 90%RH (without condensation) |
Specifications are sourced from the manufacturer product page and may be updated.
