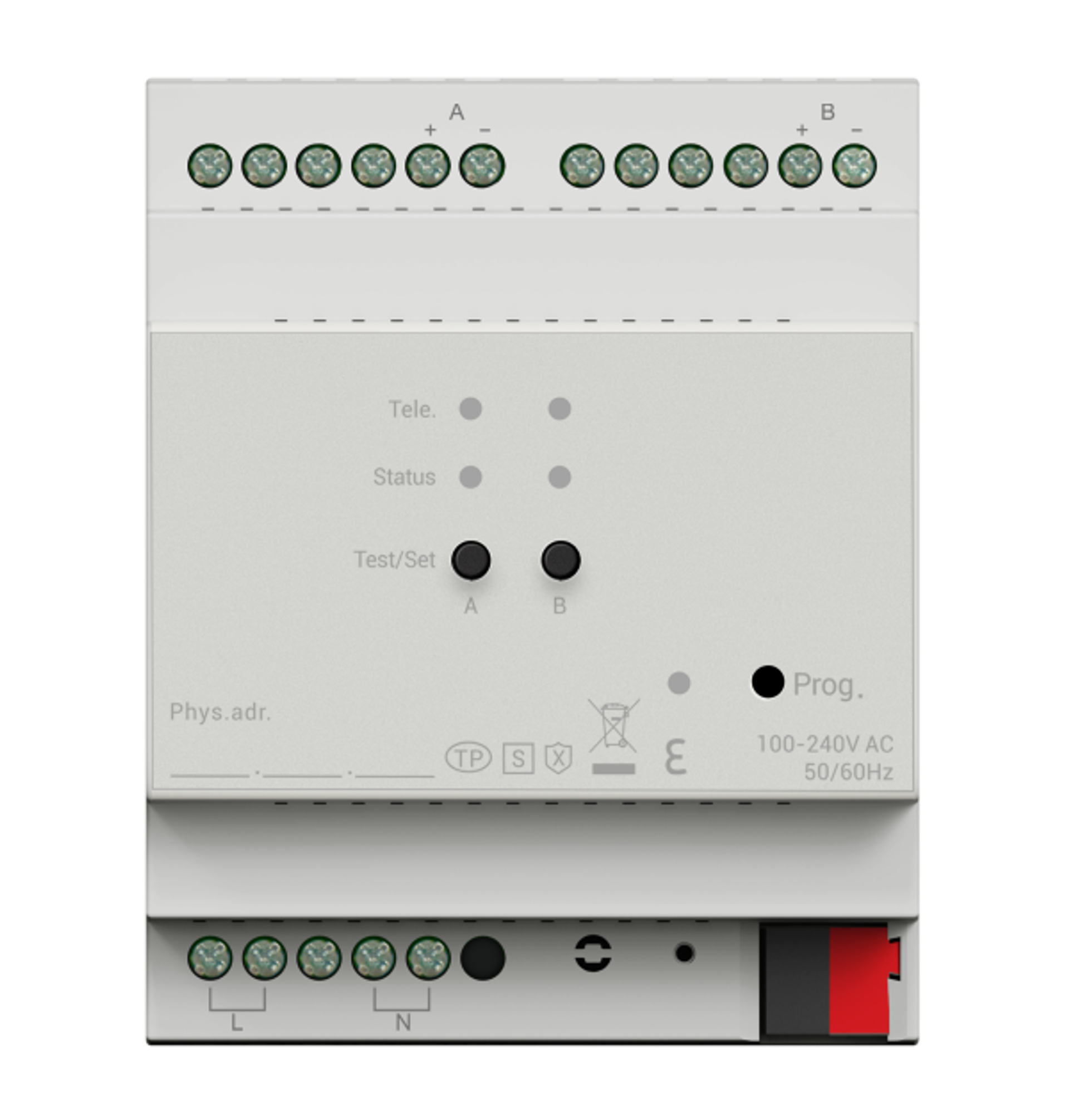

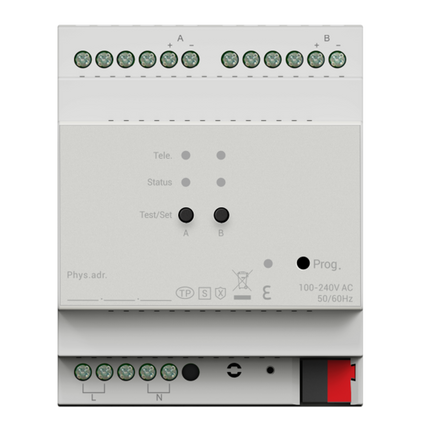

Akubela KXAC-G1DD4 Dual-Channel KNX DALI Gateway DIN Rail Mount
The Akubela KXAC-G1DD4 Dual-Channel DALI Gateway is a professional KNX-to-DALI interface device designed for advanced commercial and residential lighting control. This DIN rail-mounted gateway bridges KNX building automation systems with DALI-compatible LED drivers and ballasts, enabling seamless integration and intelligent lighting management. Perfect for smart buildings, commercial offices, and premium home automation installations across Australia.
Key Features
-
Dual-Channel DALI Control: Two independent DALI outputs supporting up to 64 devices per channel for maximum flexibility
-
Comprehensive Device Type Support: Compatible with DT6, DT8 Tc, DT8 XY, and DT8 RGB DALI device types for full colour and tunable white control
-
Advanced Control Options: Supports broadcast, individual device addressing, 16 groups per channel, and 16 scenes per channel
-
Wide Voltage Range Design: Integrated DALI bus power supply ensures reliable operation across various installations
-
DIN Rail Installation: Standard 35mm DIN rail mounting for professional electrical cabinet integration
-
KNX Certified: Official KNX certification ensures compatibility with all KNX building automation systems
Professional Building Automation Integration
The KXAC-G1DD4 gateway seamlessly integrates DALI lighting systems into KNX building automation networks, providing centralised control of commercial and residential lighting. Each of the two DALI channels can control up to 64 individual LED drivers or ballasts, with flexible grouping and scene management capabilities. The gateway supports modern DT8 colour control standards, enabling advanced tunable white and RGB colour lighting control via the KNX bus.
Wide Device Compatibility
Supporting DALI device types DT6, DT8 Tc (tunable white), DT8 XY (colour coordinates), and DT8 RGB, this gateway works with virtually all modern DALI lighting fixtures and drivers. The integrated DALI bus power supply eliminates the need for external power supplies, simplifying installation and reducing component count in electrical cabinets.
Flexible Control Options
Control your lighting in multiple ways: broadcast commands to all devices, address up to 64 individual lights per channel, create 16 groups per channel for zone control, or configure 16 scenes per channel for preset lighting moods. This flexibility makes the gateway ideal for applications ranging from conference rooms and retail spaces to hotel lobbies and premium residential projects.
What's in the Box
- Akubela KXAC-G1DD4 Dual-Channel DALI Gateway
- DIN rail mounting clip
- Installation guide
Full Specifications
Technical Specifications
| Model Number |
KXAC-G1DD4 |
| Product Type |
KNX-to-DALI Gateway |
| DALI Channels |
2 independent channels |
| Devices per Channel |
Up to 64 DALI devices |
| Supported Device Types |
DT6, DT8 Tc, DT8 XY, DT8 RGB |
| Groups per Channel |
16 |
| Scenes per Channel |
16 |
| DALI Bus Power Supply |
Integrated |
| Mounting Type |
35mm DIN rail (EN 60715) |
| Certification |
KNX Certified, CE |
Specifications are sourced from the manufacturer product page and may be updated.
