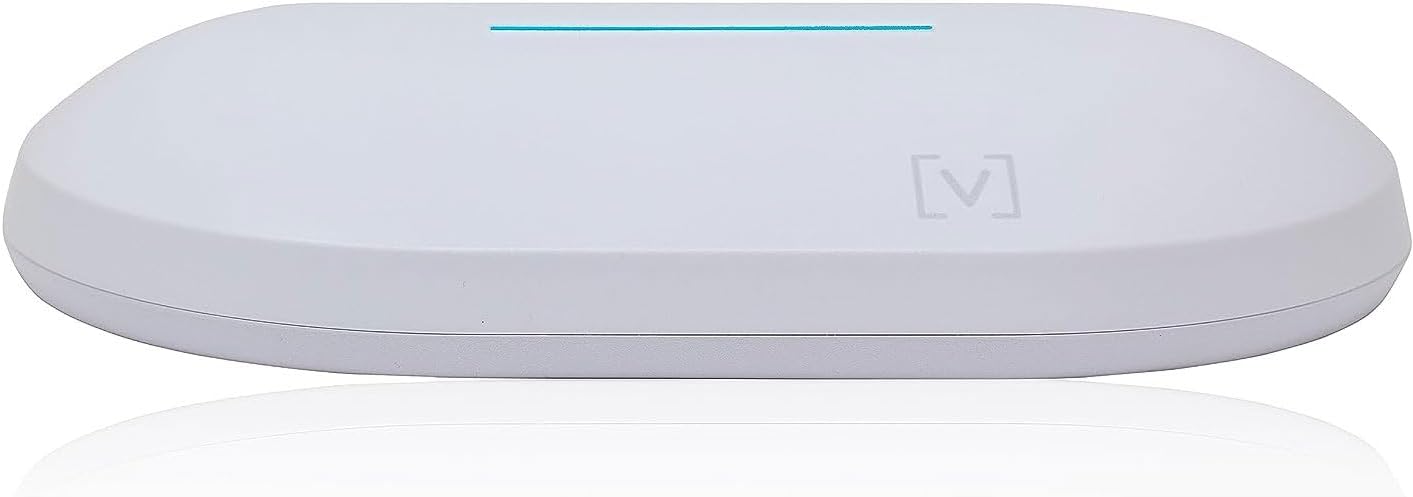

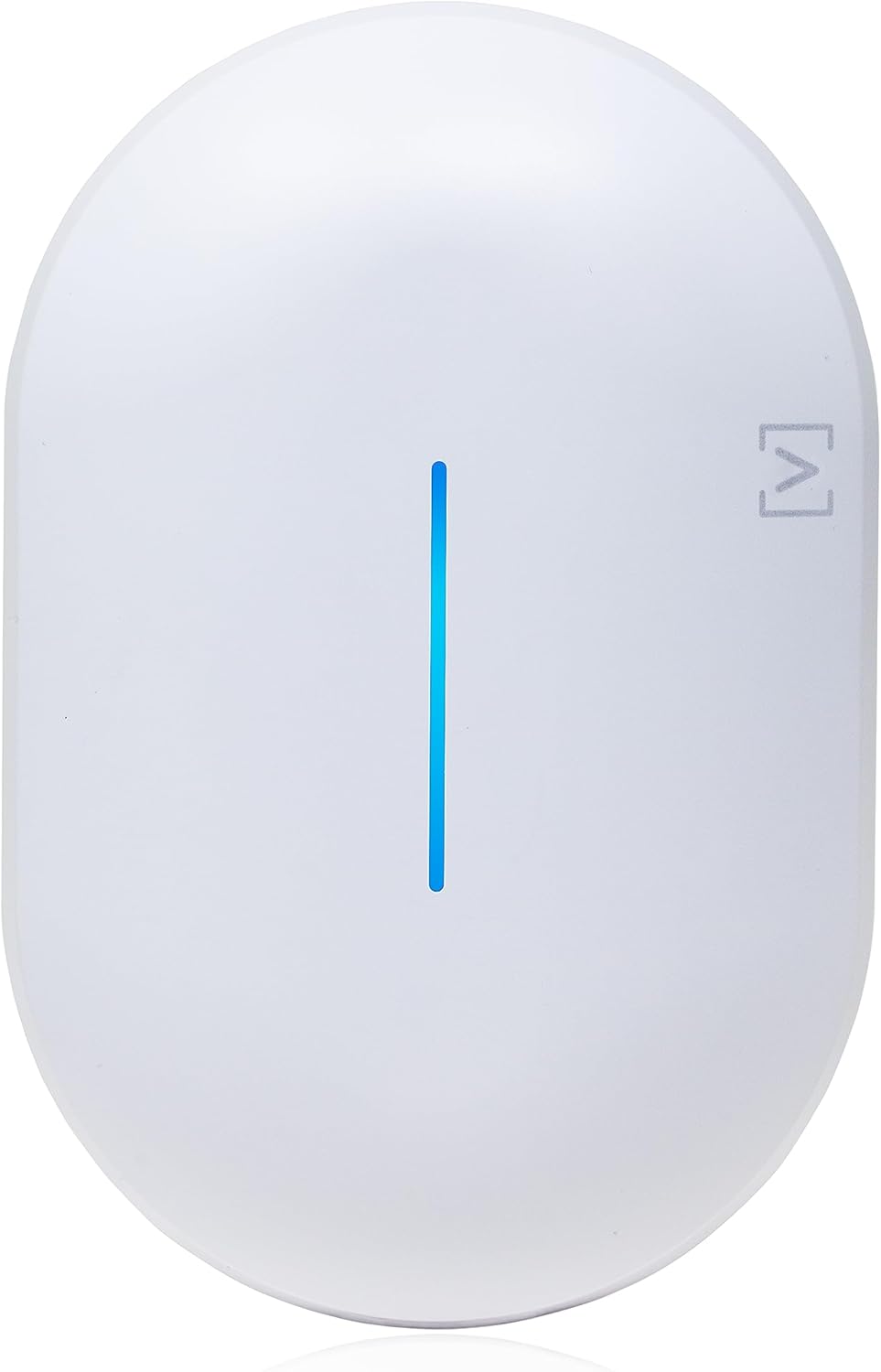

Alta Labs AP6 Dual Band Wi-Fi 6 Access Point 3 Gbps with Cloud Management
The Alta Labs AP6 is a high-performance enterprise-grade Wi-Fi 6 access point delivering up to 3 Gbps combined throughput. Built on Qualcomm's dual-band, 4-stream WiFi 6 platform, the AP6 provides optimal 2.4 GHz and 5 GHz performance with superior range and reliability. Featuring AltaPass multi-password technology, deep packet inspection, and cloud-based management, this access point seamlessly integrates into corporate, commercial, and residential environments with its compact form factor and sleek design.
Key Features
-
High-Performance Wi-Fi 6: Built on Qualcomm's dual-band, 4-stream platform delivering 2.4 GHz (up to 573 Mbps) and 5 GHz (up to 2.4 Gbps) for a combined 3 Gbps throughput
-
2x2 MU-MIMO: Dual-band 2x2 MIMO configuration for optimal coverage and performance
-
Mesh Technology: Intelligent mesh formation extends your WiFi network to areas difficult to reach with wired Ethernet
-
AltaPass Multi-Password Technology: Proprietary feature allowing clients to connect to the same SSID using different passwords with differentiated network access levels
-
Deep Packet Inspection (DPI) Engine: Built-in content filtering to restrict access to websites, applications, or application types
-
Seamless Roaming: Fully automatic roaming with support for 802.11k, 802.11v, and 802.11r standards
-
PoE+ Powered: Simple installation with Power over Ethernet (PoE+) support, 42.5 to 57V DC, max 20W consumption
-
QuickMount Technology: Proprietary mounting system included for quick ceiling or wall installation
Cloud-Based Management

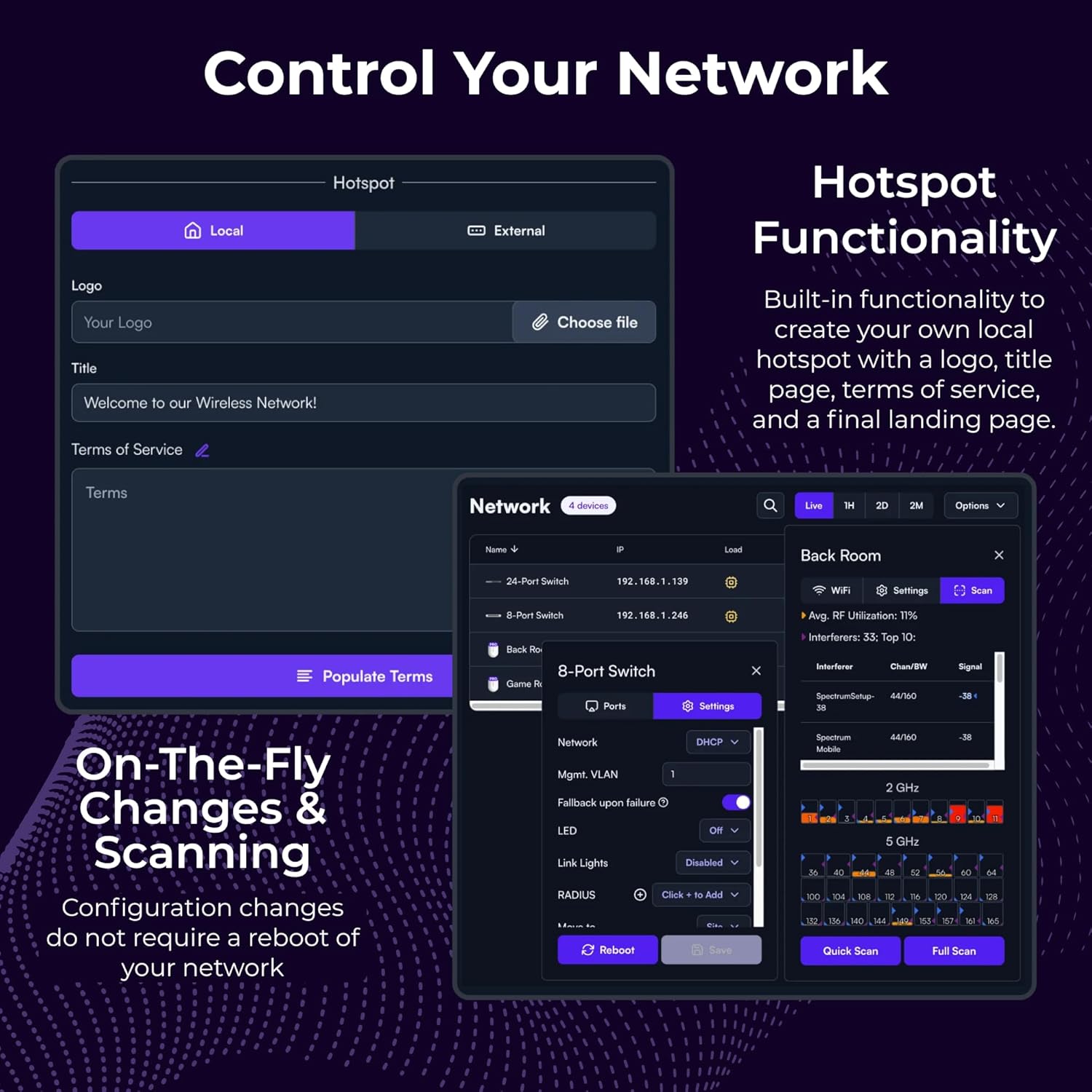

Alta Labs provides an intuitive and easy-to-use cloud-based management interface accessible from desktop browsers or the Alta Networks mobile app. Manage multiple sites, monitor real-time traffic, apply on-the-fly configuration changes without rebooting, and customize your dashboard with the network data you need. The platform features wireless network color coding, SSID broadcasting flexibility, and device-level control for enterprise-grade network administration.
Advanced Security & Hotspot Functionality
The AP6 features built-in hotspot functionality allowing you to create a local captive portal with custom logo, title page, terms of service, and landing page. Advanced filtering lets you block content by application or domain. AltaPass technology enables differentiated network access, allowing passwords to be associated with specific upload/download rates, VLANs, or to bypass filtering rules and schedules.
Connectivity & Interfaces
-
Network Interface: (1) GbE RJ45 port
-
Wireless Standards: IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
-
Additional Standards: IEEE 802.11k/v/r, IEEE 802.11e, IEEE 802.1Q
-
Bluetooth: Integrated Bluetooth for easy adoption and setup
-
Reset Button: Factory reset functionality
-
LED Indicators: Blue and white LED status indicators (customizable)
What's in the Box
- 1 × AP6 Access Point
- 1 × Mounting Plate
- 1 × Ceiling Mount
- 2 × Wall Anchors
- 2 × Wall-Mount Screws
- 2 × Ceiling Tile Screws
- T-Bar Screws
- Nuts
- Quick Start Guide
Full Specifications
| Model |
AP6 |
| Dimensions |

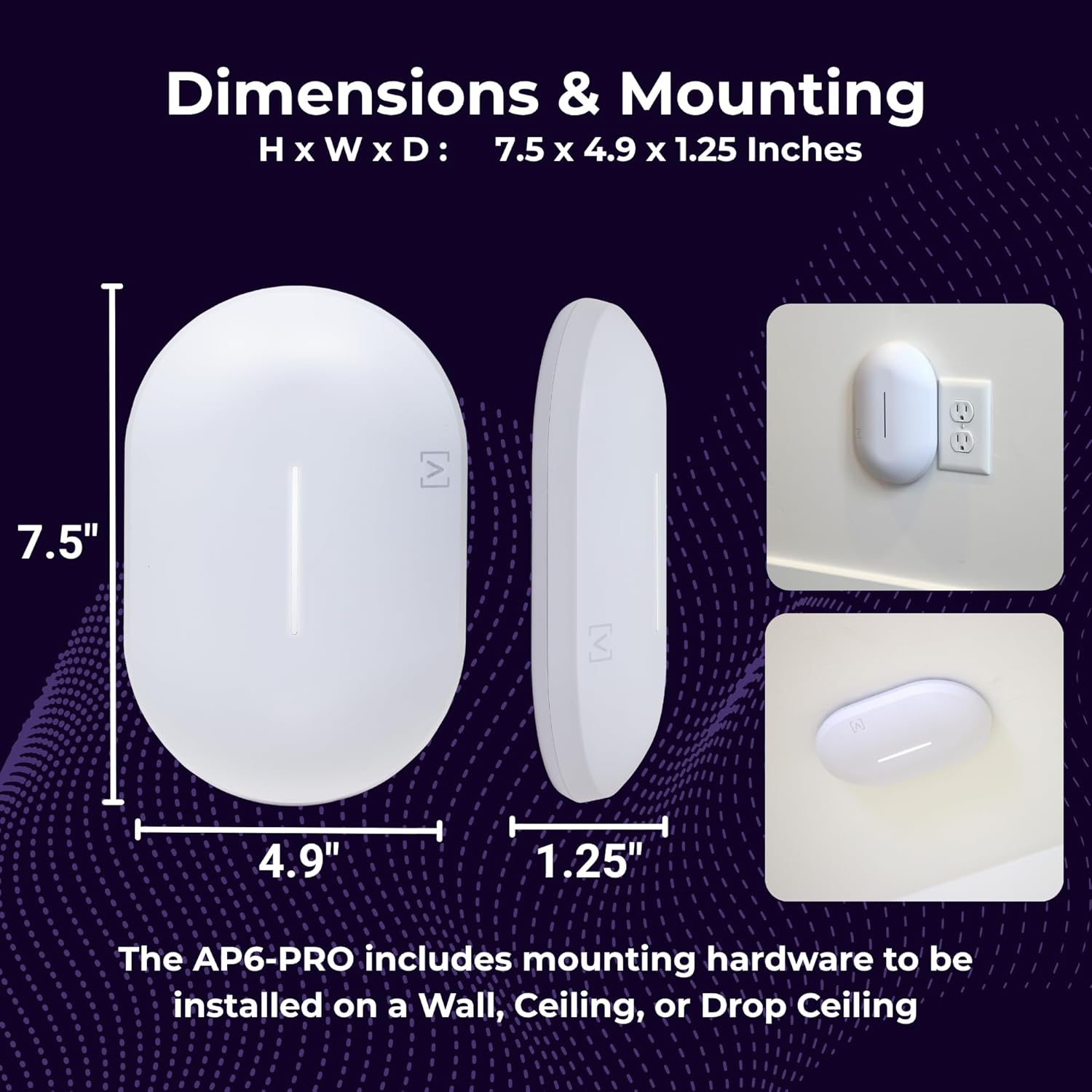

190mm (7.5") × 125mm (4.9") × 32mm (1.25") |
| Weight |
0.4 kg (0.9 lbs) |
| Mounting |
Ceiling or Wall with QuickMount technology |
| Wi-Fi Standard |
Wi-Fi 6 (IEEE 802.11ax) |
| MIMO Configuration |
2.4 GHz: 2x2, 5 GHz: 2x2 |
| Maximum Throughput |
3 Gbps combined (2.4 GHz: up to 573 Mbps, 5 GHz: up to 2.4 Gbps) |
| Antenna |
Internal proprietary antenna design |
| Network Interface |
1 × GbE RJ45 Ethernet port |
| Wireless Standards |
802.11a/b/g/n/ac/ax, 802.11k/v/r |
| Bluetooth |
Yes, integrated |
| Power Method |
PoE+ (IEEE 802.3at) |
| Voltage Range |
42.5 to 57V DC |
| Maximum Power Consumption |
20W |
| LED Indicators |
Blue, White (customizable) |
| Reset Button |
Yes |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| IP Rating |
Indoor use (not IP-rated; AP6-Pro is IP54-rated) |
| Management |
Cloud-based via Alta Control platform (web & mobile app) |
| Security Features |
WPA3, AltaPass, DPI engine, content filtering, hotspot |
| Mesh Support |
Yes, intelligent mesh formation |
| Roaming |
Seamless roaming with 802.11k/v/r support |
| Warranty |
2 years |
Specifications are sourced from the manufacturer product page and may be updated.
