Alta Labs AP6-PRO Dual Band WiFi 6 Access Point 6.3Gbps 4x4 MU-MIMO
The Alta Labs AP6-PRO is a high-performance WiFi 6 access point built on an innovative dual-band, 6-stream networking platform. Incorporating 4096 QAM, one of the primary features of WiFi 7, it delivers a combined 6.3 Gbps of WiFi capacity for exceptional throughput and range. With 4x4 MU-MIMO antennas and proprietary antenna design, the AP6-PRO outperforms standard 2x2 access points by over 30%, making it ideal for dense device environments in commercial, corporate, and residential settings.
Key Features
-
WiFi 6 with WiFi 7 Benefits: Built on Qualcomm's advanced WiFi 6 platform with 4096 QAM modulation for higher throughput rates
-

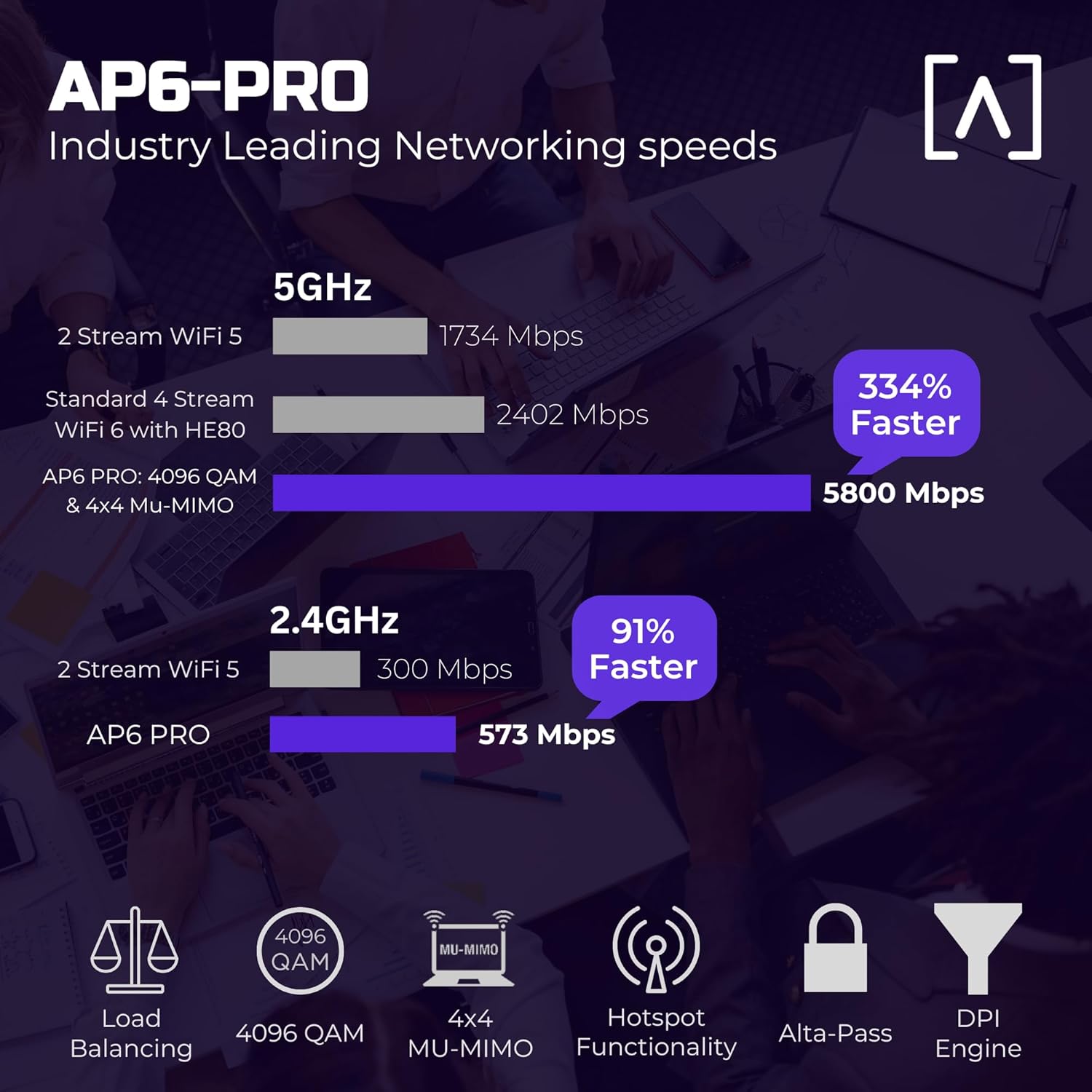

6.3 Gbps Combined Capacity: Dual-band (2.4 GHz & 5 GHz) with 6-stream configuration delivers industry-leading speeds
-
4x4 MU-MIMO Antennas: Four 5 GHz antennas provide superior range and over 30% throughput increase compared to 2x2 access points
-
IP54 Rated: Protection against dust and water spray for indoor and outdoor installation under eaves or overhangs
-
Seamless Roaming: Fully automatic with support for 802.11 k, v, and r standards
-
Intelligent Mesh Formation: Mesh capable for maximum throughput and extended network coverage
-

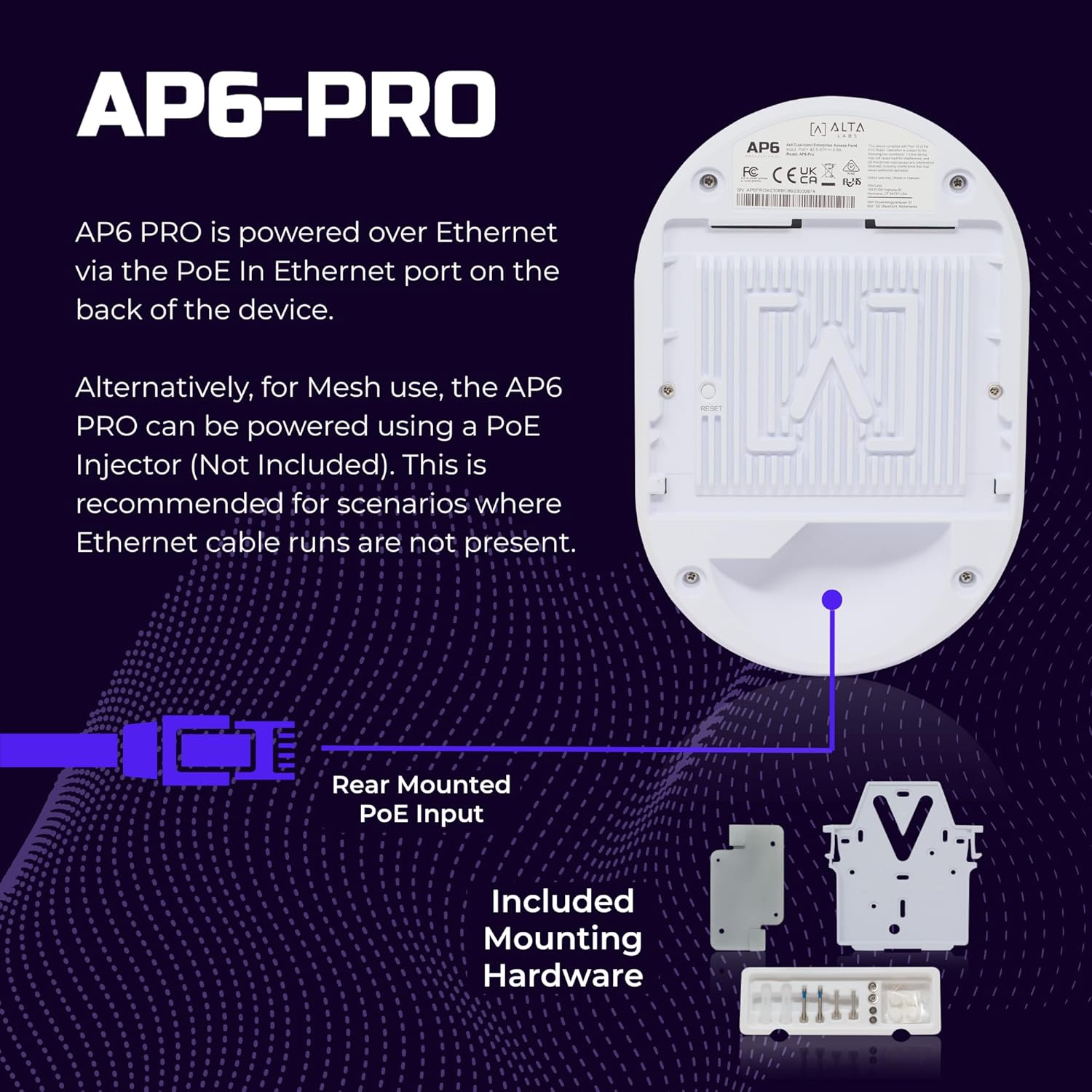

PoE+ Powered: Simple, clean installation powered over Ethernet
Cloud Management & Advanced Features

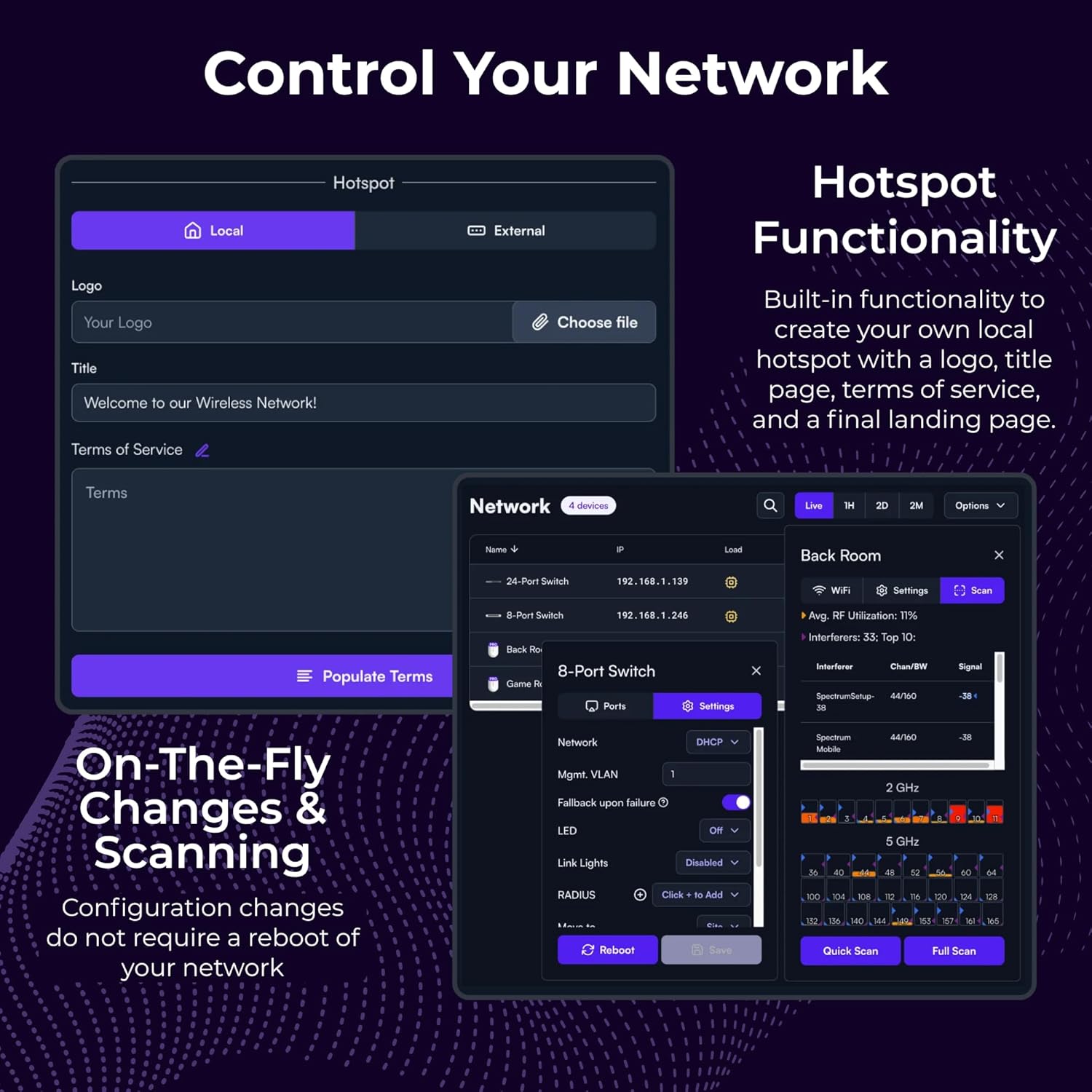

The AP6-PRO integrates with Alta Labs' intuitive cloud-based management platform, accessible from your phone, tablet, or computer via the Alta Networks app or web interface. Deploy and manage multiple sites quickly and easily with a customizable dashboard featuring real-time monitoring, upload and download throughput, device count, processor load, and channel load statistics.
-
AltaPass Multi-Password Technology: Allows clients to connect to the same SSID using different passwords with varying network access levels, upload/download rates, VLAN assignments, and filter bypass options
-
Deep Packet Inspection (DPI) Engine: Built-in content filtering and network security without additional hardware
-
Hotspot Functionality: Enable branded login pages and customizable access controls for guest networks
-
Wireless Network Color Coding: Visual identification for easy network management
-
SSID Broadcasting Flexibility: Customizable broadcasting options for enhanced control
Professional-Grade Durability
The AP6-PRO features a compact form factor with sleek aesthetic design, allowing seamless integration into any environment. Its IP54 rating offers strong protection against dust and water spray, making it suitable for both indoor and outdoor installations. The included QuickMount technology provides quick, simple mounting to ceilings or walls.
What's in the Box
- AP6-PRO Access Point
- Wall/Ceiling Mount Bracket with QuickMount technology
- Drop Ceiling Mount Bracket
- Hardware Kit (anchors, screws, nuts, rubber feet)
- Safety Instructions + Quick Start Guide QR Code
Full Specifications
Wireless Performance
| WiFi Standard |
WiFi 6 (802.11ax) with 4096 QAM |
| Frequency Bands |
Dual-band (2.4 GHz & 5 GHz) |
| Spatial Streams |
6-stream configuration (4×4 MIMO on 5 GHz, 2×2 MIMO on 2.4 GHz) |
| Maximum Data Rate |
Up to 6.3 Gbps combined WiFi capacity |
| Antenna Design |
Proprietary 4×4 MU-MIMO antennas |
| Roaming Support |
802.11 k, v, and r standards |
| Mesh Capable |
Yes, intelligent mesh formation |
Physical Specifications

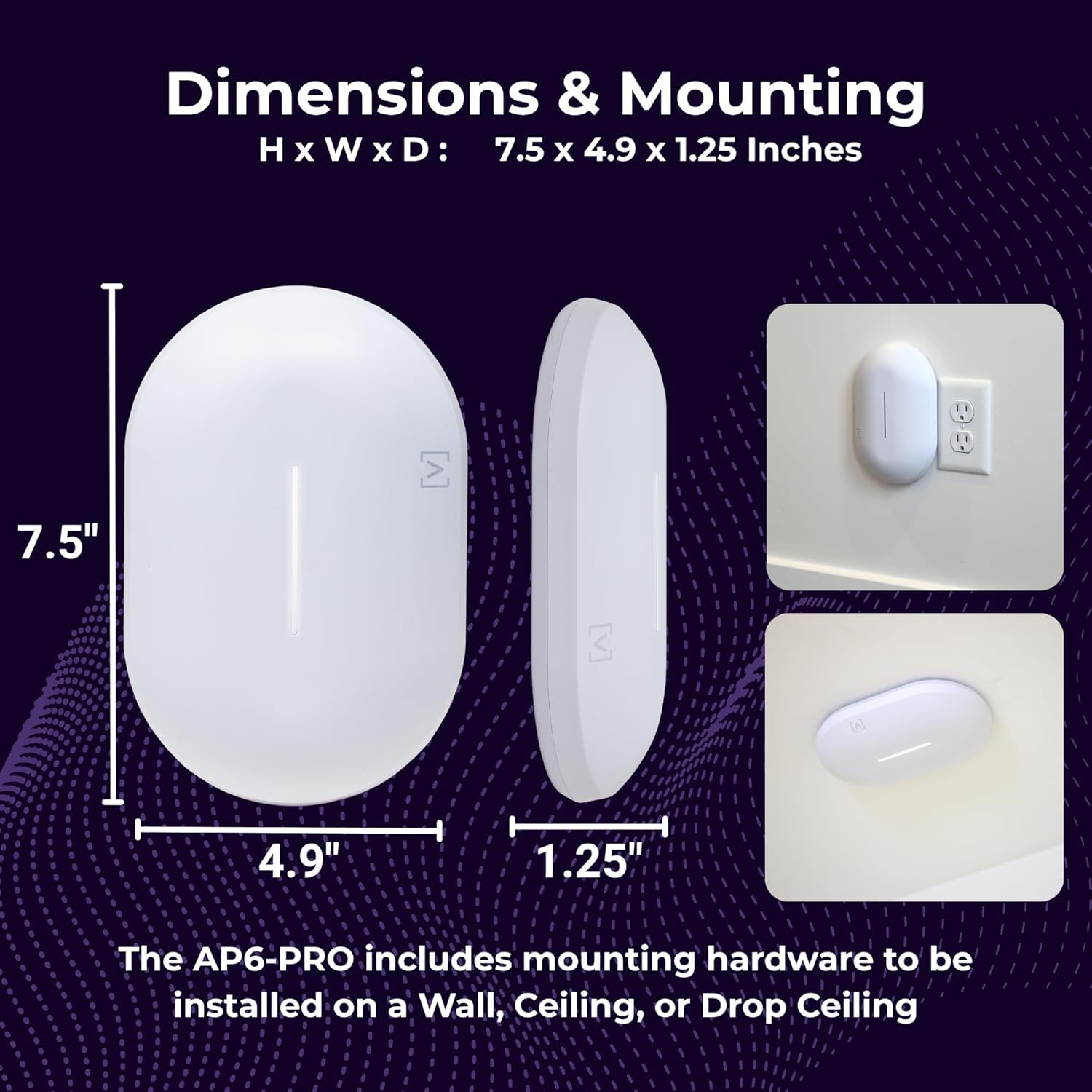

| Dimensions |
190 mm × 125 mm × 32 mm (7.5" × 4.9" × 1.25") |
| Weight |
0.4 kg (0.9 lbs) |
| Enclosure Material |
Ceiling/Wall: Polycarbonate; Drop Ceiling: Steel |
| Weatherproofing |
IP54 rated |
| Mounting |
QuickMount technology for ceiling, wall, or drop ceiling installation |
Connectivity & Power
| Network Interface |
Ethernet (1 Gbps), WiFi, Bluetooth |
| Power Input |
PoE+ (Power over Ethernet) |
| Management |
Cloud-based or local with Alta Control (sold separately) |
Software Features
| Management Platform |
Alta Labs Cloud or Alta Control (local) |
| Mobile App |
Alta Networks app (iOS & Android) |
| AltaPass |
Multi-password technology with access control |
| Content Filtering |
Built-in Deep Packet Inspection (DPI) engine |
| Hotspot Support |
Yes, with branded login pages |
| Dashboard |
Customizable with real-time statistics |
Warranty & Support
| Warranty |
2-year limited warranty |
| Technical Support |
Unlimited technical support from Alta Labs |
Specifications are sourced from the manufacturer product page and may be updated.
