Alta Labs AP6-PRO Outdoor Wi-Fi 6 Access Point 6.3Gbps IP68 Rated
The Alta Labs AP6-PRO Outdoor is a professional-grade wireless access point built for demanding outdoor environments. With IP68 weatherproof protection, it withstands extreme conditions from -40°C to 70°C. Featuring WiFi 6 technology with 4096 QAM (a key WiFi 7 feature), it delivers a combined 6.3 Gbps throughput with 4x4 MU-MIMO on 5 GHz and 2x2 on 2.4 GHz. Powered by PoE+ for simple installation and managed via cloud or mobile app, the AP6-PRO Outdoor is ideal for extending enterprise-grade WiFi to large outdoor areas, campuses, warehouses, and commercial properties.
Superior Performance and Coverage

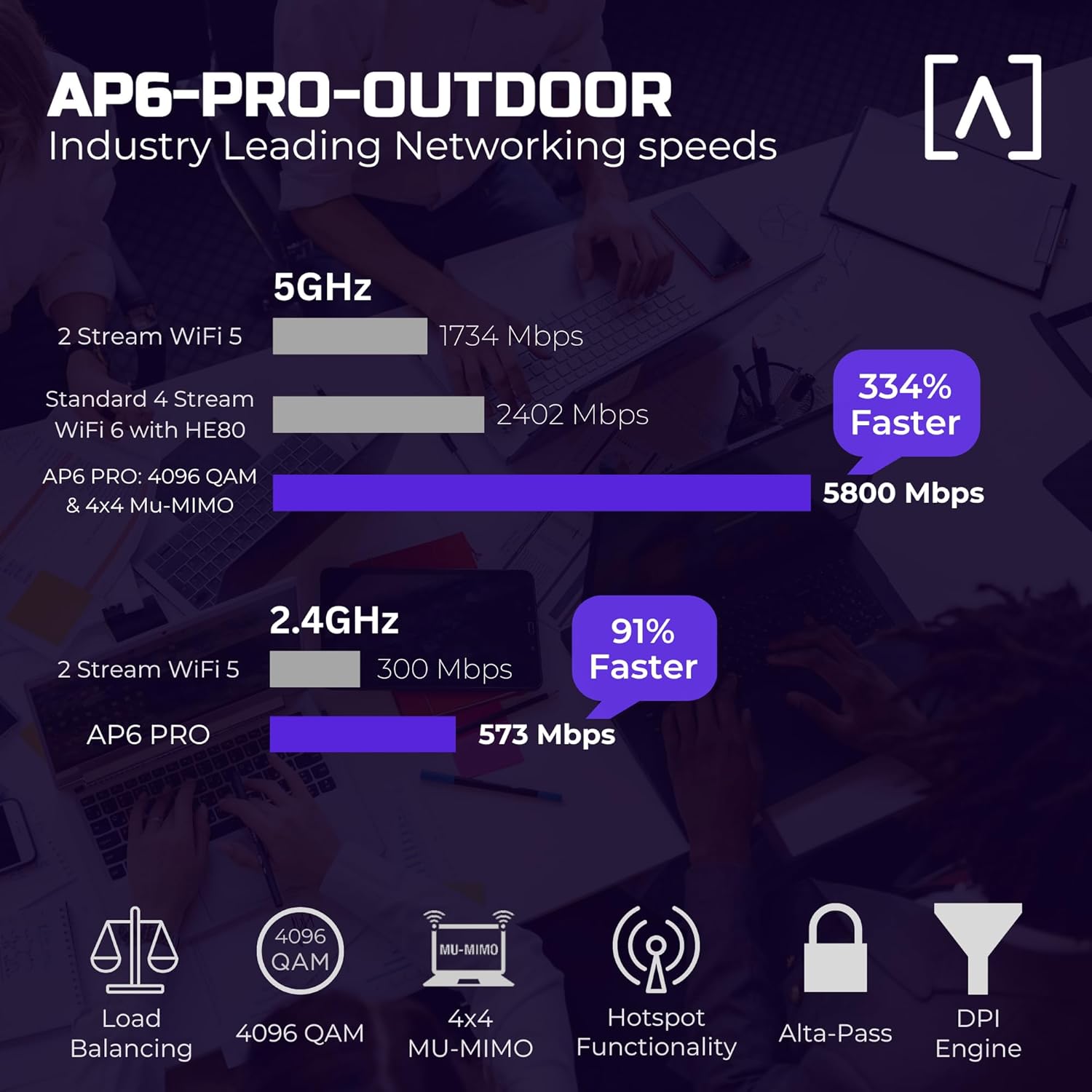

Built on an advanced dual-band WiFi 6 platform from Qualcomm, the AP6-PRO Outdoor incorporates 4096 QAM modulation, delivering up to 5.8 Gbps on 5 GHz and 573 Mbps on 2.4 GHz. The proprietary antenna design features four 5 GHz antennas with omnidirectional coverage, providing superior range and performance in all directions.
-
WiFi 6 (802.11ax): Backward compatible with 802.11a/b/g/n/ac
-
4x4 MU-MIMO: Up to 30% higher throughput than 2x2 access points
-
Mesh Connectivity: Extend networks to hard-to-reach areas wirelessly
-
Seamless Roaming: Supports 802.11k, v, and r standards
-
Concurrent Clients: Supports 350+ simultaneous connections
Extreme Weatherproof Protection
The AP6-PRO Outdoor is IP68 rated, providing maximum protection against dust ingress and water immersion. It operates reliably in harsh outdoor conditions ranging from -40°C to 70°C (-40°F to 158°F), making it suitable for installations in any climate.
-
IP68 Rating: Dust-tight and protected against water immersion
-
Operating Temperature: -40°C to 70°C (-40°F to 158°F)
-
Rugged Construction: Built for long-term outdoor deployment
Advanced Management and Security
Manage the AP6-PRO Outdoor via Alta Cloud for remote access from anywhere, or use Alta Control for local on-premise management. The Alta Networks mobile app provides flexible control from your phone or tablet.
-
AltaPass Multi-Password Technology: Allow clients to connect using different passwords with varying access levels
-
Built-in Deep Packet Inspection (DPI): Filter content by website, application, or application type without additional hardware
-
Hotspot Functionality: Create customized captive portals with logo, terms, and landing page
-
WPA3 and WPA2 Security: Enterprise-grade encryption (WPA2-PSK, WPA3-PSK, WPA-Enterprise)
-
On-the-Fly Configuration: Make changes without rebooting or taking the network offline
-
SSID Broadcasting Flexibility: Advanced scheduling and guest access options
Flexible Installation

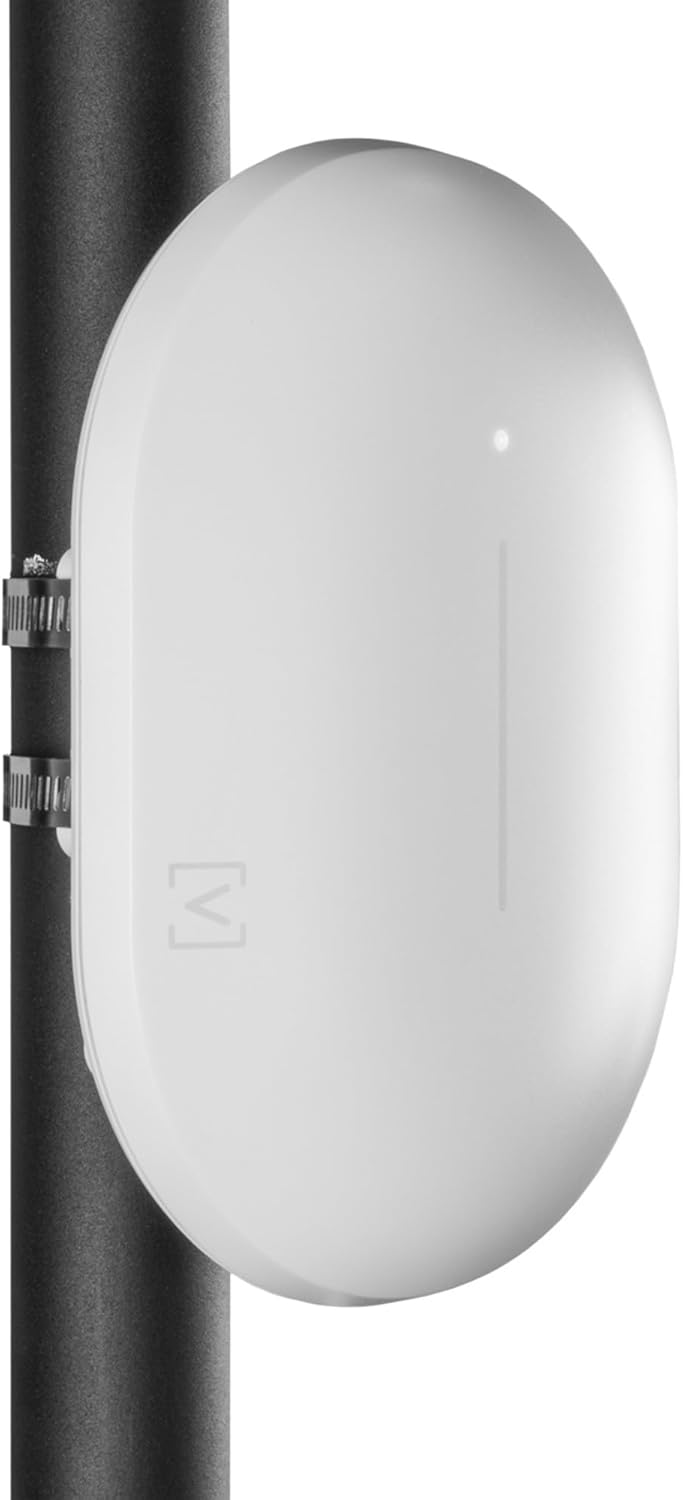

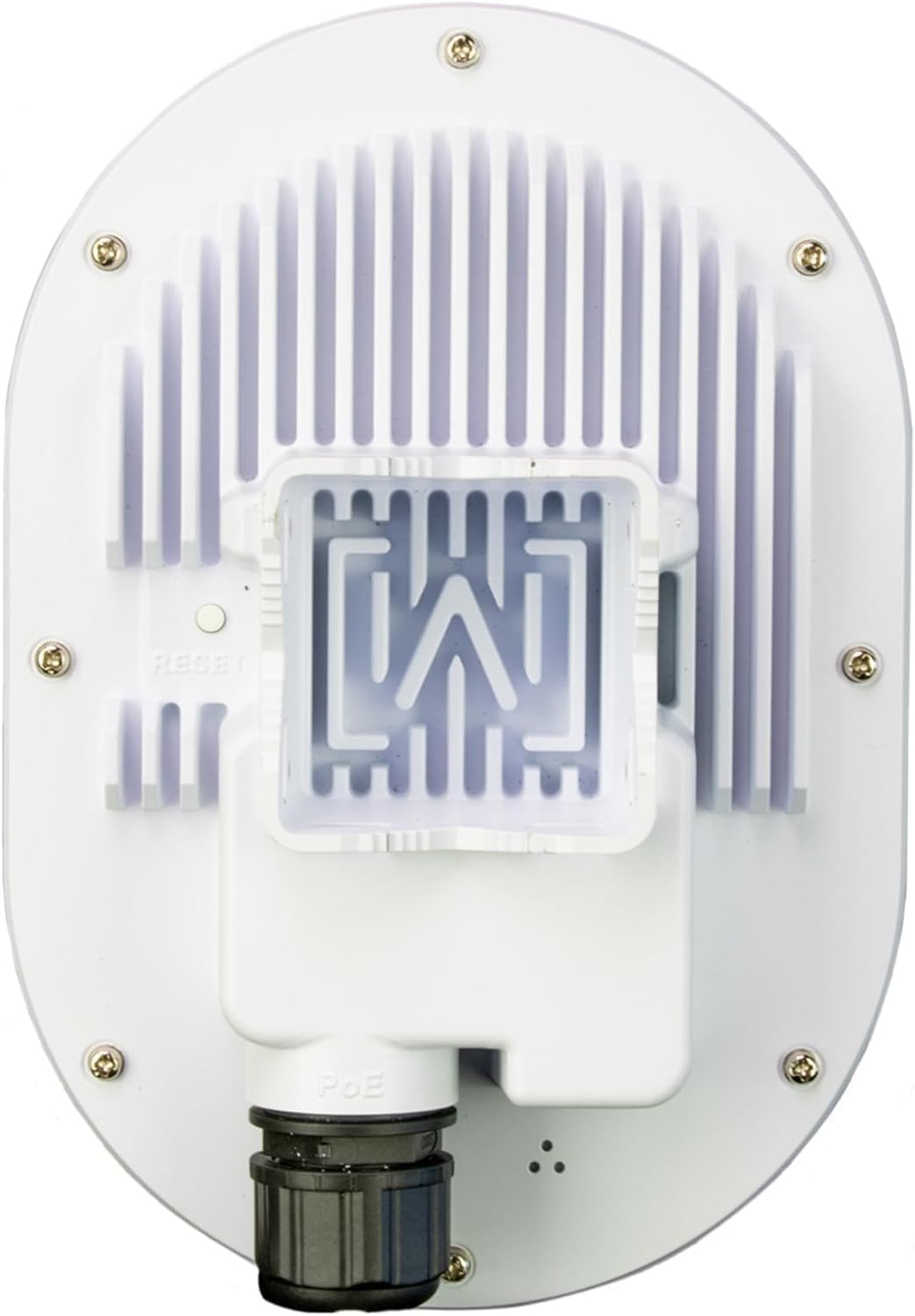

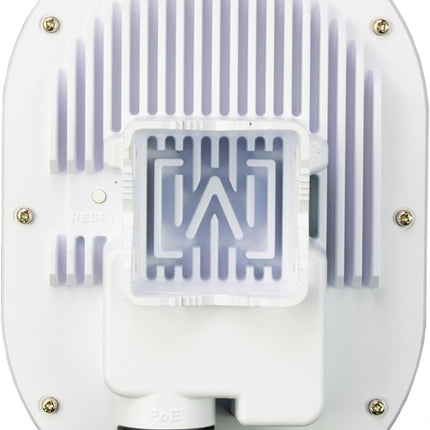

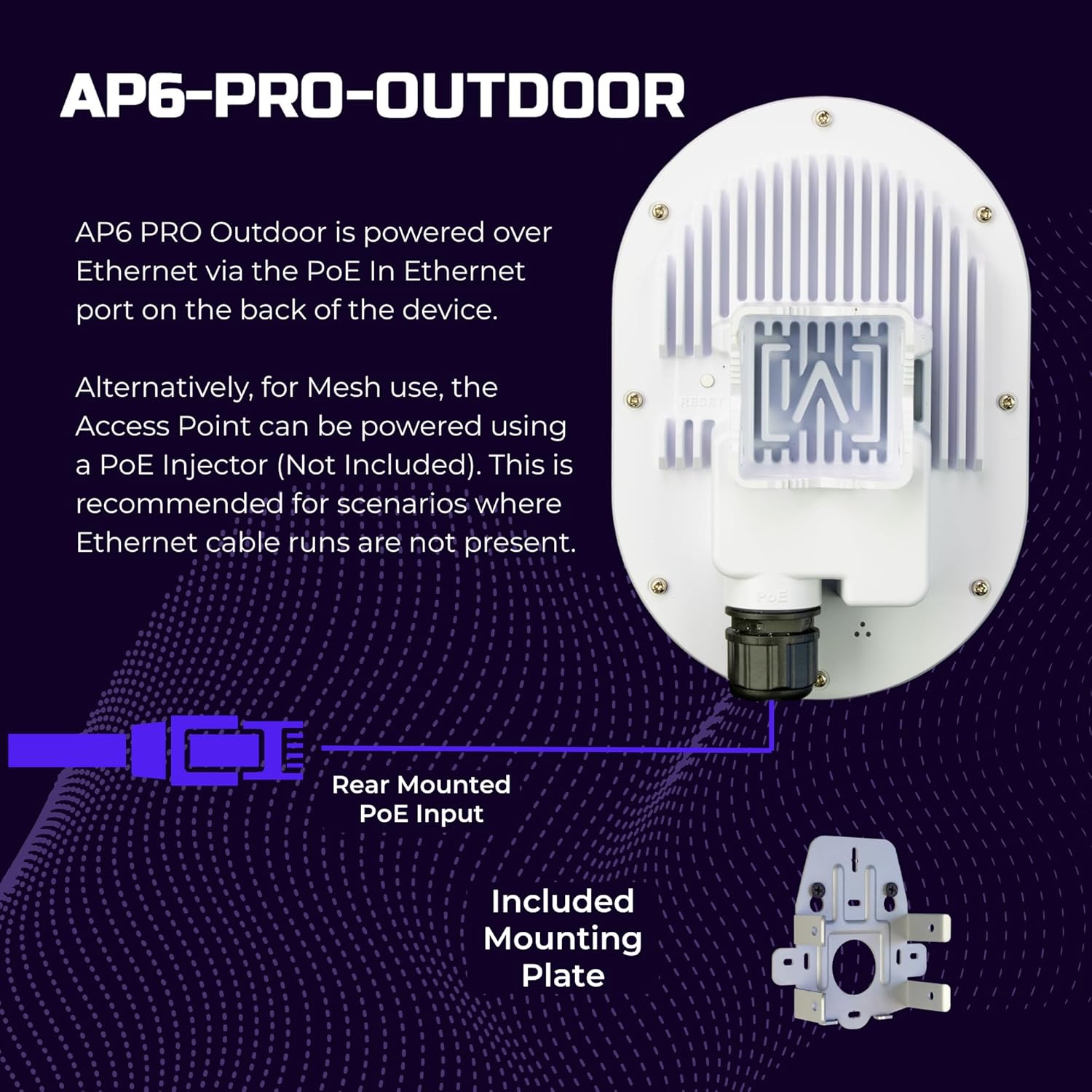

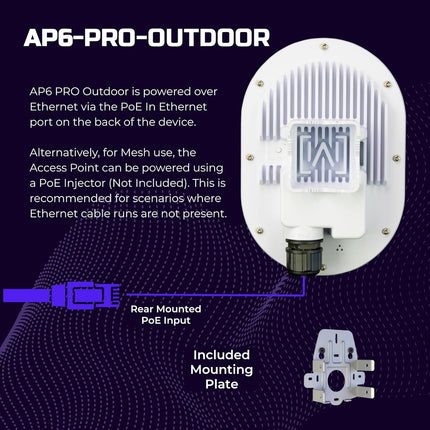

The AP6-PRO Outdoor features a built-in pole mount and includes a wall mount adapter for versatile deployment options. Powered by PoE+ (802.3at), installation is simplified with power and data delivered through a single Ethernet cable.
-
Power over Ethernet+: 42.5-57V DC, simplifies cabling
-

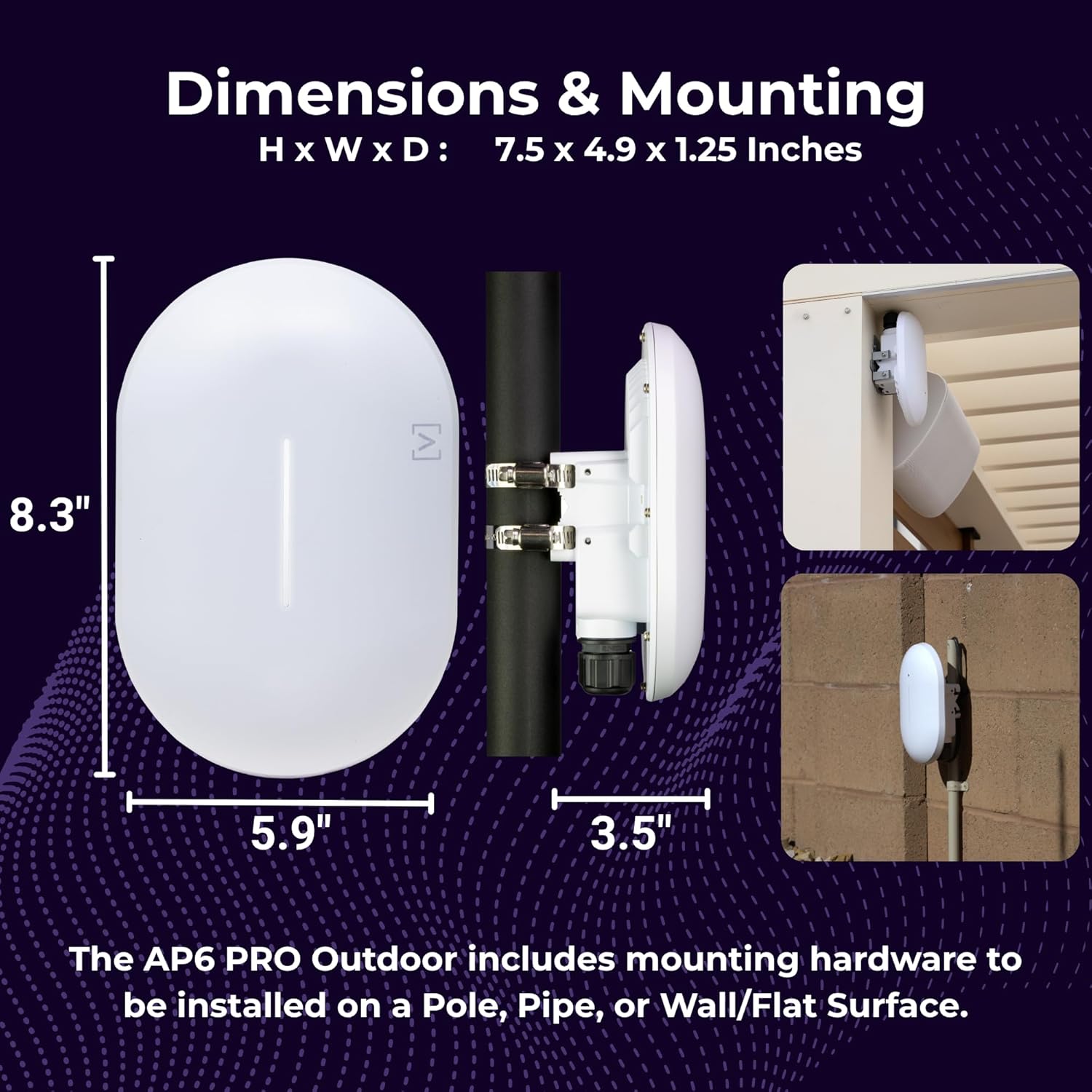

Mounting Options: Pole mount (built-in) and wall mount (included)
-
Gigabit Ethernet Port: (1) GbE RJ45 management interface
What's in the Box
- Alta Labs AP6-PRO Outdoor Access Point
- Wall Mount Adapter (2x)
- Zip Ties
- Anchors (2x)
- Wall Mount Screws (2x)
- Wall Mount Screws with Washers (4x)
Full Specifications
Physical
| Dimensions |
210 x 150 x 90 mm (8.3 x 5.9 x 3.5") |
| Weight |
0.9 kg (1.9 lbs) |
| Weatherproofing |
IP68 |
| Operating Temperature |
-40 to 70°C (-40 to 158°F) |
Wireless Performance
| WiFi Standards |
802.11a/b/g/n/ac/ax (WiFi 4/5/6) |
| MIMO Configuration |
5 GHz: 4x4 DL/UL MU-MIMO, DL/UL MU-OFDMA 2.4 GHz: 2x2 DL/UL MU-OFDMA |
| Throughput Rate |
5 GHz: Up to 5.8 Gbps 2.4 GHz: Up to 573 Mbps Combined: 6.3 Gbps |
| Transmit Power |
5 GHz: 26 dBm @4NSS 2.4 GHz: 23 dBm @2NSS |
| Antenna Gain |
5 GHz: Up to 4.3 dBi 2.4 GHz: Up to 3.3 dBi |
| Concurrent Clients |
350+ |
| Wireless Security |
WPA2-PSK, WPA3-PSK, WPA-Enterprise (WPA2/WPA3) |
Network and Power
| Network Interface |
Ethernet, WiFi, Bluetooth |
| Management Interface |
(1) GbE RJ45 Port |
| Power Method |
PoE+ (802.3at) |
| Supported Voltage Range |
42.5-57V DC |
Advanced Features
| 4096 QAM |
Yes (WiFi 7 feature) |
| Mesh Connectivity |
Yes, omnidirectional |
| Seamless Roaming |
802.11k, v, r standards |
| AltaPass Multi-Password |
Yes (patented) |
| Deep Packet Inspection |
Built-in DPI engine |
| Hotspot Functionality |
Yes, customizable captive portal |
| Management Platform |
Alta Cloud, Alta Control, Mobile App |
| Mounting |
Pole mount (built-in), wall mount (included) |
Specifications are sourced from the manufacturer product page and may be updated.
