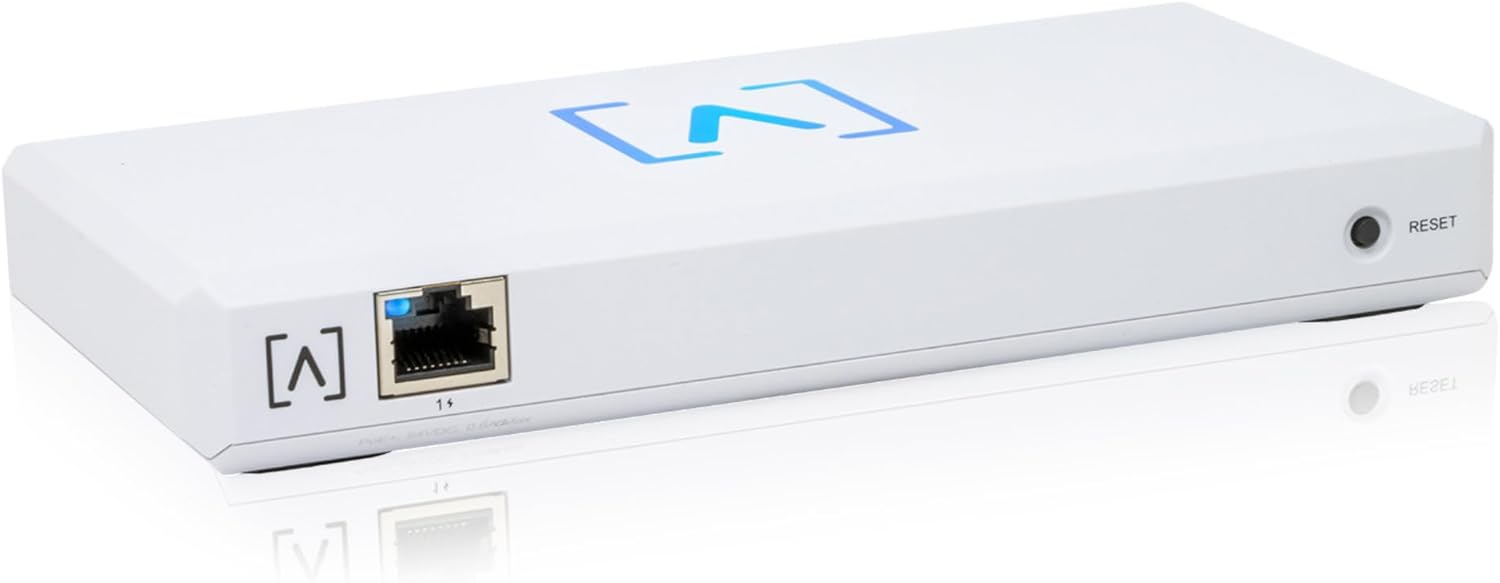

Alta Labs Control Local Network Controller Manages 1000 Devices PoE+
The Alta Labs Control is a hardware-based local network controller that provides an intuitive and easy-to-use management interface for Alta Labs access points, switches, and routers. Designed for on-premise deployment, this powerful solution allows you to manage up to 1,000 Alta Labs devices and support thousands of connected clients simultaneously. With PoE+ or USB-C power options, advanced security features, and no ongoing subscription fees, Control delivers enterprise-grade network management in a compact, reliable package.
Powerful Multi-Site Management
Deploy and manage multiple sites quickly and easily with the Alta Control platform. Add, delete, or rename sites instantly, and toggle between sites from a convenient drop-down menu. Each site contains its own dedicated data set, ensuring independent and frictionless management for complex network environments with just a few clicks.
Advanced Network Control Features
-
AltaPass Multi-Password Technology: Patented functionality that allows clients to connect to the same SSID using different passwords, each granting varying levels of network and internet access based on the password used
-

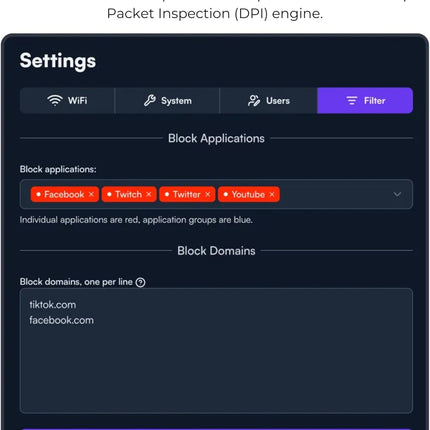

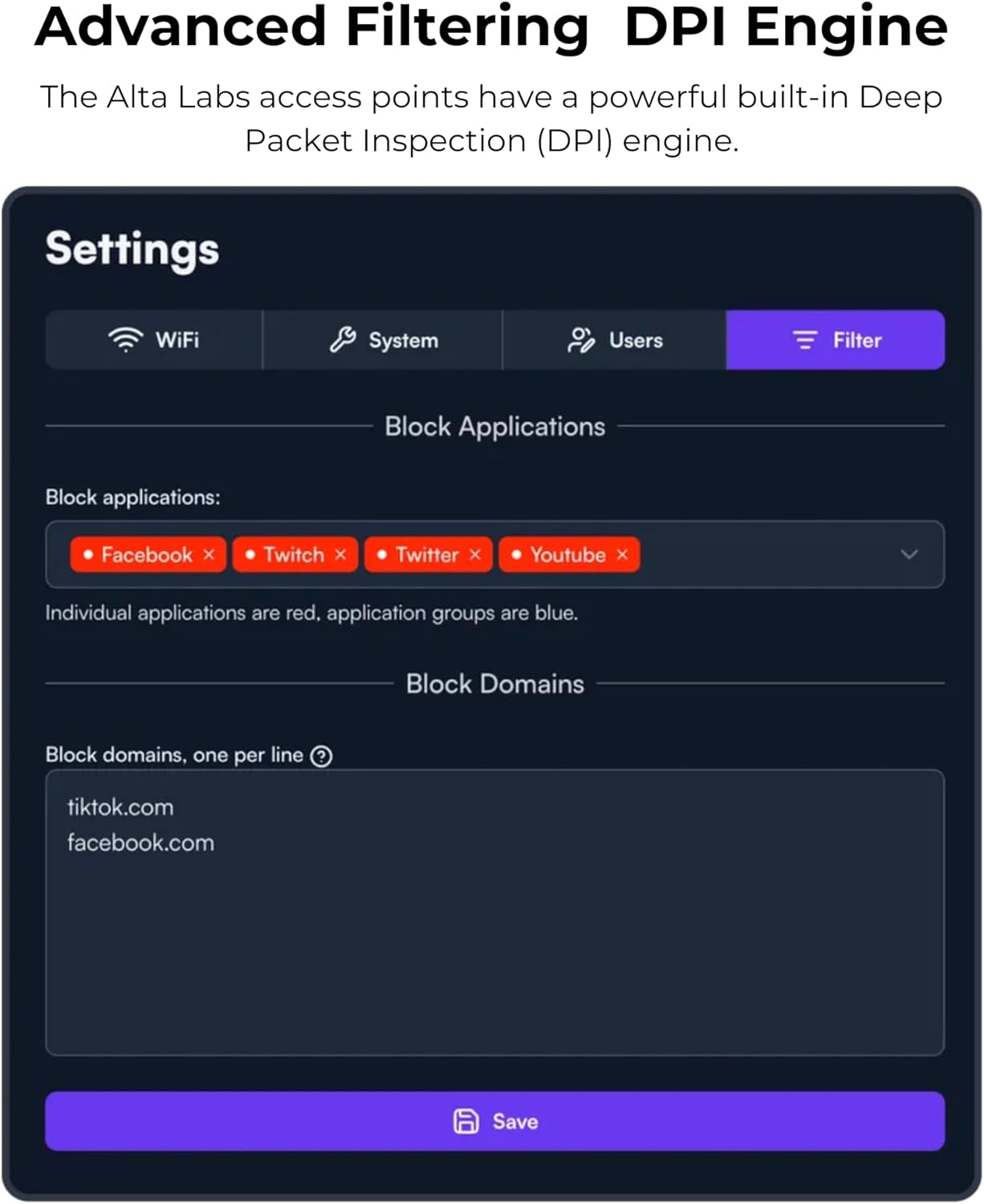

Deep Packet Inspection (DPI) Engine: Advanced content filtering to restrict access to websites, applications, or application types directly from the management interface
-
Hotspot Functionality: Built-in support for creating local hotspots with custom logos, title pages, terms of service, and landing pages
-

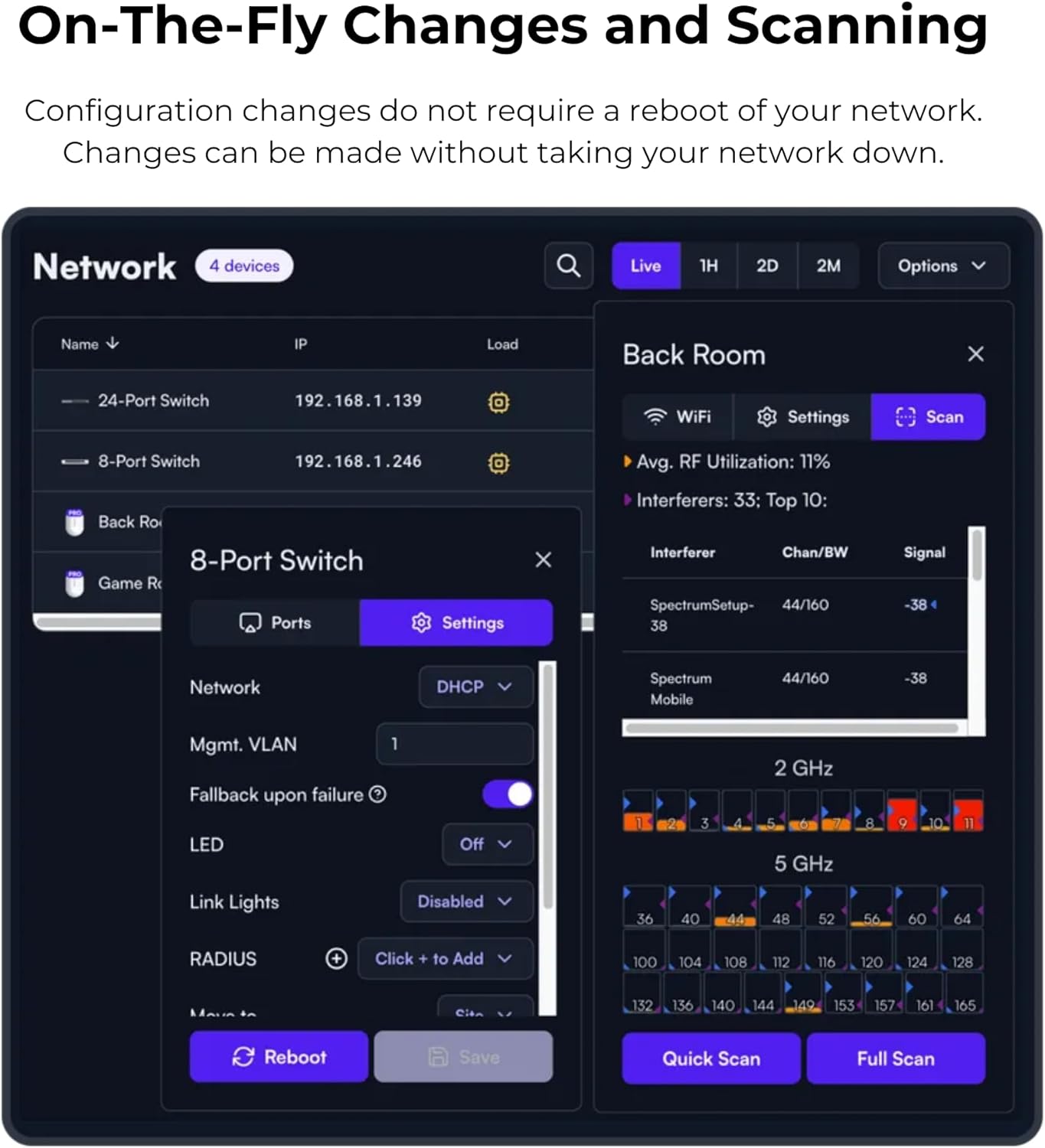

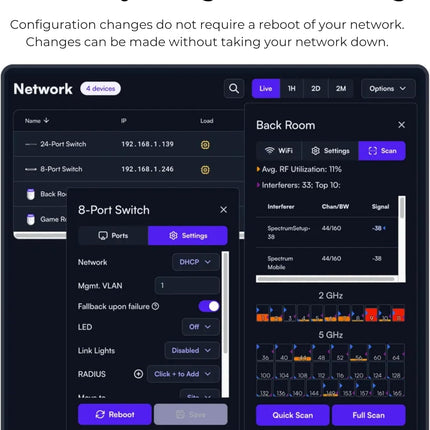

On-the-Fly Changes: Configuration changes do not require a reboot of your network, allowing changes without downtime
-

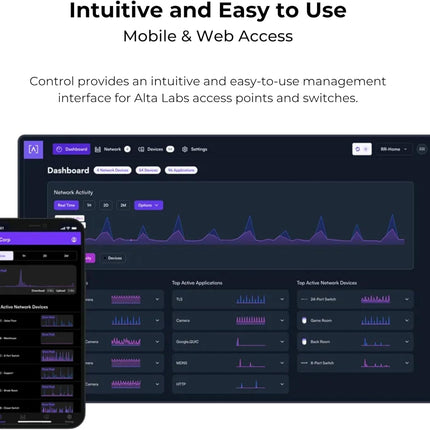

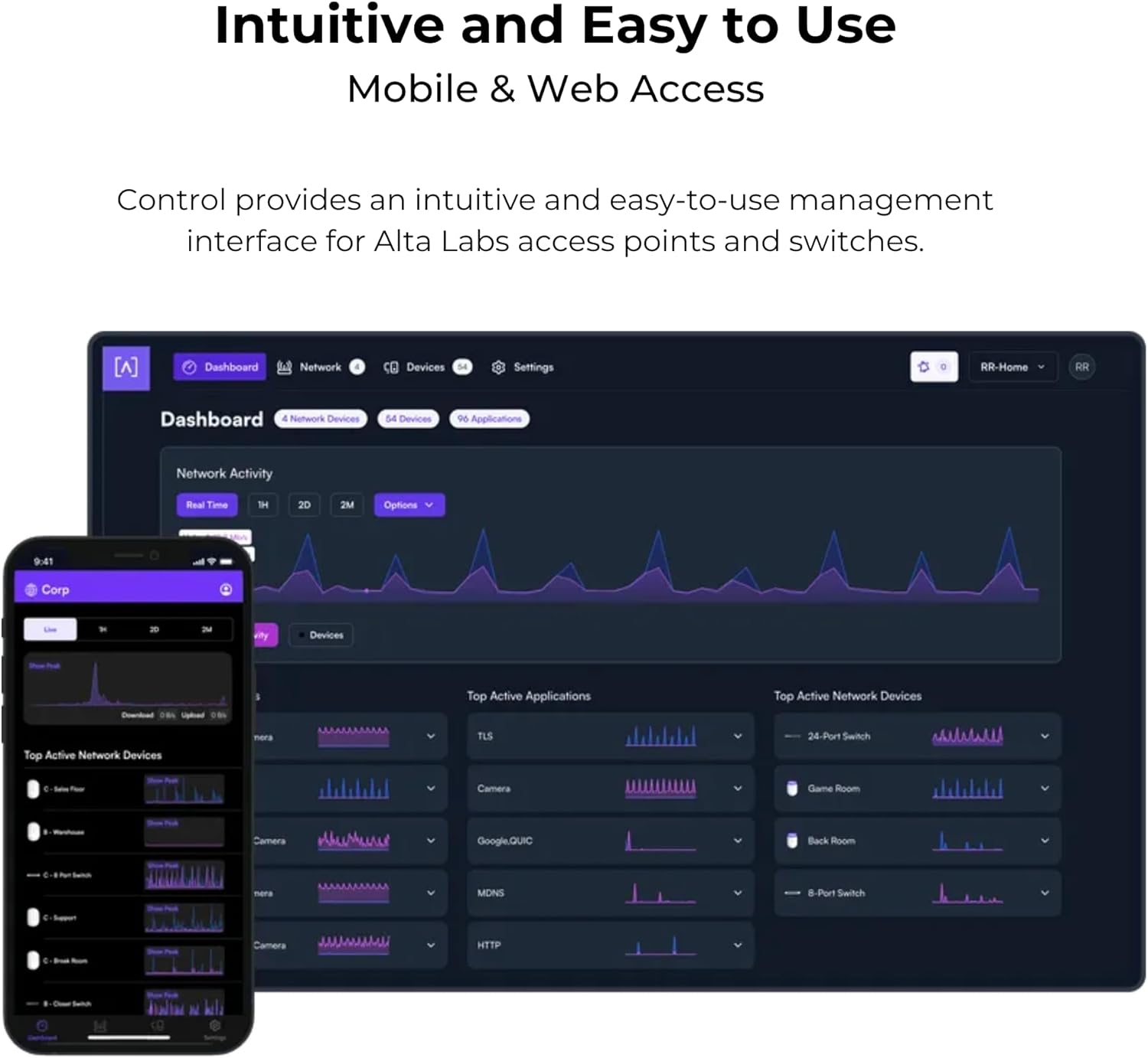

Customizable Dashboard: View device details including IP address, load, number of devices, MAC address, firmware version, and real-time status
-
Mobile App Support: Monitor and manage your networks from the convenience of your mobile device using the Alta Networks app
-
Backup and Restore Functionality: Protect your network configurations with built-in backup and restore capabilities
Flexible Power & Installation

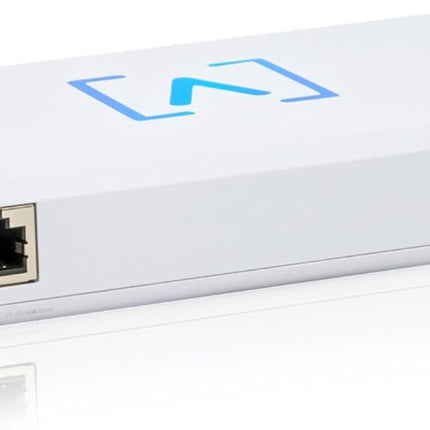

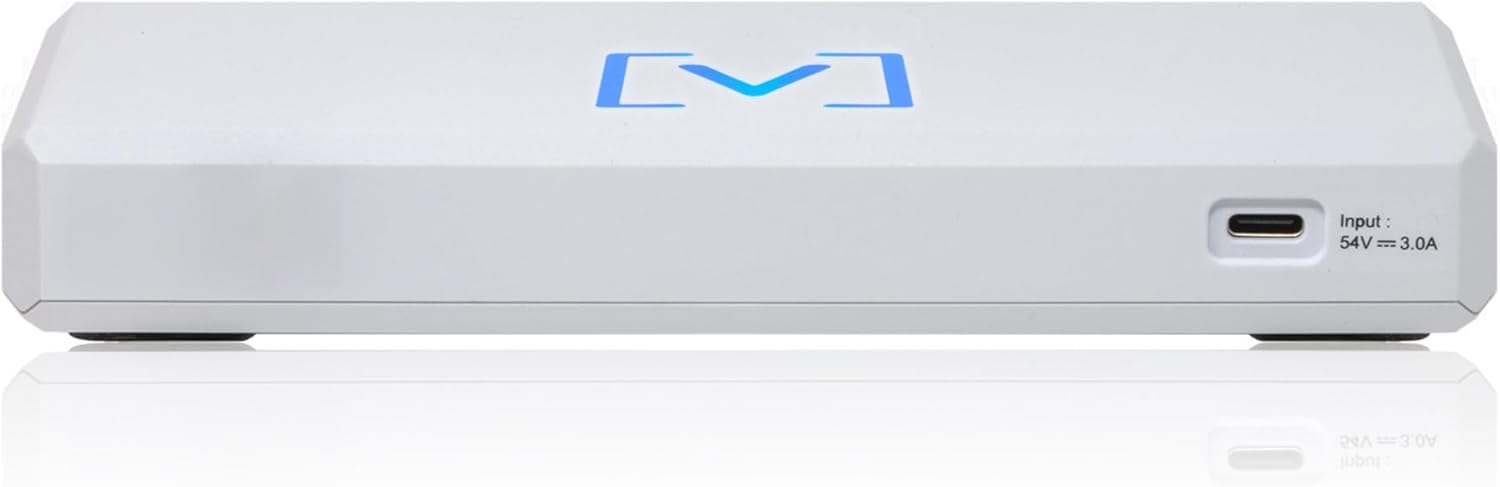

Control can be powered via PoE+ (802.3at) or USB-C (cable not included), offering maximum flexibility for your installation. The device features a Gigabit Ethernet port supporting 10/100/1000 Mbps connections and includes Bluetooth for seamless setup. Wall-mount or desktop placement options are available, with included mounting hardware for quick installation.
Enterprise-Grade Security
Protect your network with advanced filtering, VLAN support, and customizable security policies. Control offers reverse proxy HTTP support, port forwarding, and secure access controls to maintain a high-performance, protected network environment. All configuration data remains local and is not stored in the cloud, ensuring complete data privacy.
What's in the Box
- 1 × Alta Labs Control hardware controller
- 1 × Mounting bracket
- 2 × Mounting screws
- 2 × Anchors
Full Specifications
Physical
| Dimensions |
180 × 91 × 25.7 mm (7.1 × 3.6 × 1 inch) |
| Weight |
0.38 kg (0.83 lbs) |
| Material Type |
Injection Molded Plastic |
| Material Finish |
Matte |
| Color |
White |
| Mounting |
Wall, Desktop |
Hardware
| Processor |
Quad-core Qualcomm 2.2 GHz |
| Network Interface |
Ethernet, Bluetooth |
| Management Interface |
(1) GbE RJ45 Port |
| Network Speed |
Orange LED: 10/100 Mbps, Blue LED: 1000 Mbps |
| Button |
Factory Reset |
| Bluetooth |
Yes (for setup) |
| LED |
RGB/Multi-Color status indicator (color customizable) |
Power
| Power Method |
PoE+ or USB 5V |
| Supported Voltage Range |
42.4 to 57V DC for PoE, 4.75V to 5.25V for USB |
| Power Consumption |
8W max, 5W typical |
Management & Capacity
| Maximum Devices Managed |
Up to 1,000 Alta Labs devices |
| Controller Type |
Local hardware-based |
| Management Interface |
Web-based, Mobile App |
Environment
| Operating Temperature |
-5 to 50°C (23 to 122°F) |
| Certifications |
CE, FCC, IC |
Warranty
| Warranty Period |
2 Years Limited Warranty |
Specifications are sourced from the manufacturer product page and may be updated.
