Alta Labs Route10 10Gbps Router & AP6 WiFi 6 Access Point Bundle Kit
The Alta Labs 16A-ROUTE10-AP-KIT delivers a complete, high-performance networking solution designed for advanced home, business, and enterprise environments. This powerful bundle combines the Route10 10Gbps router with the AP6 WiFi 6 access point, providing seamless wired and wireless connectivity for demanding applications.
Route10 - Professional 10Gbps Routing Performance

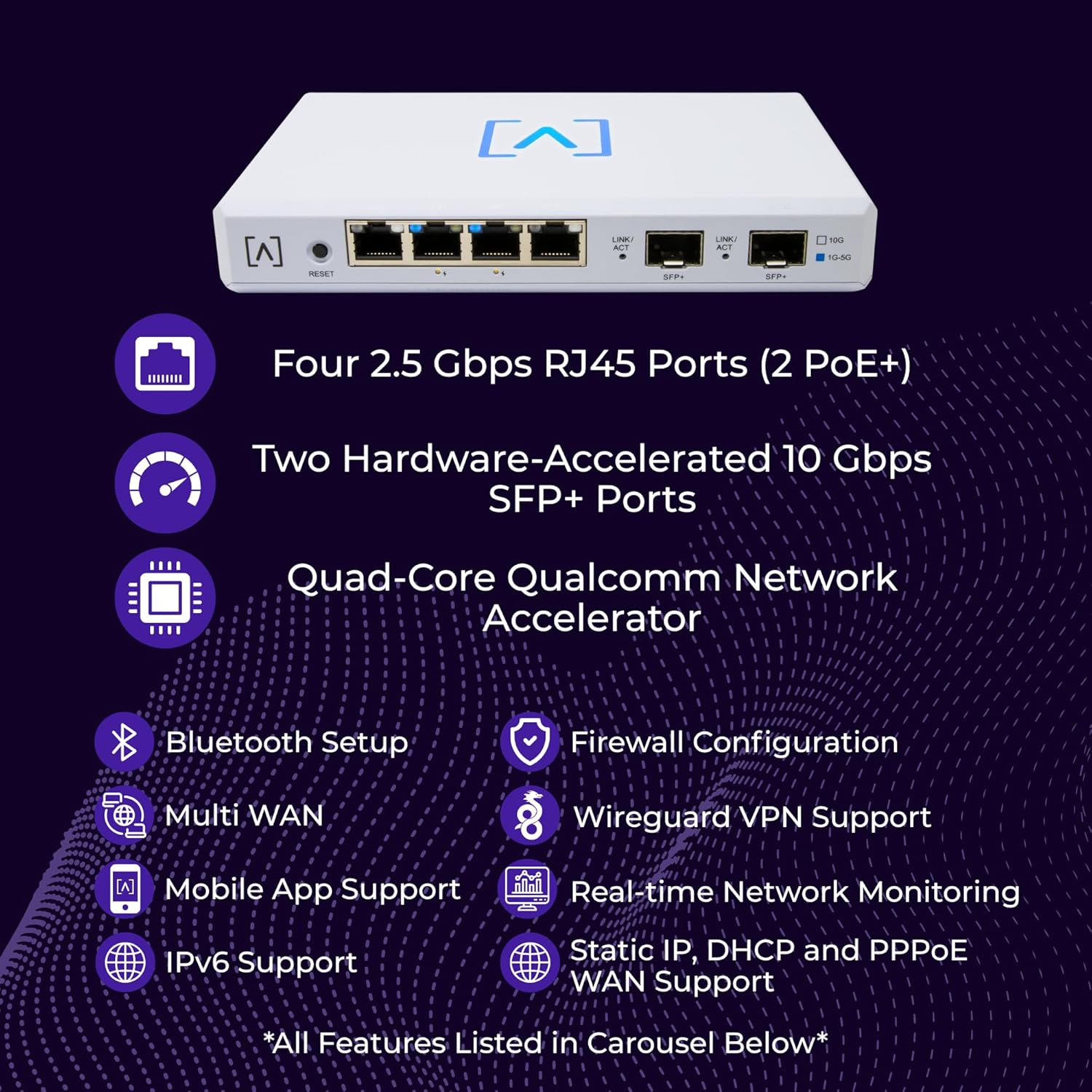

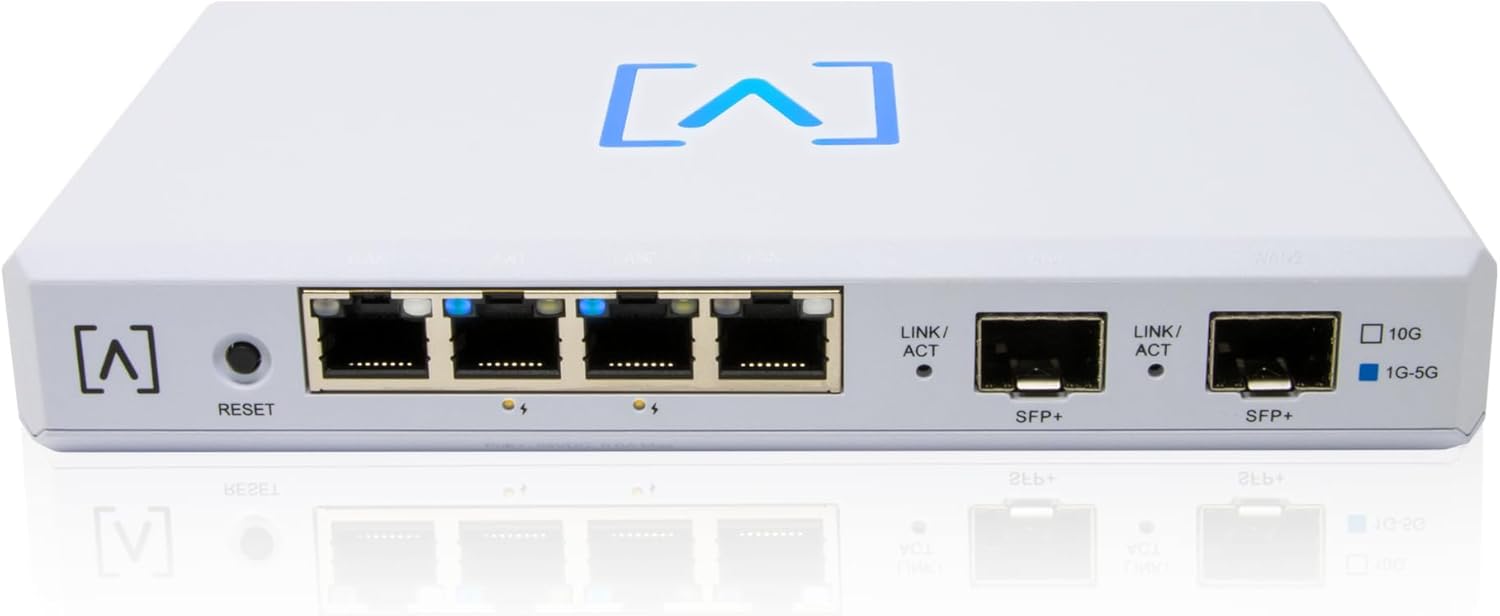

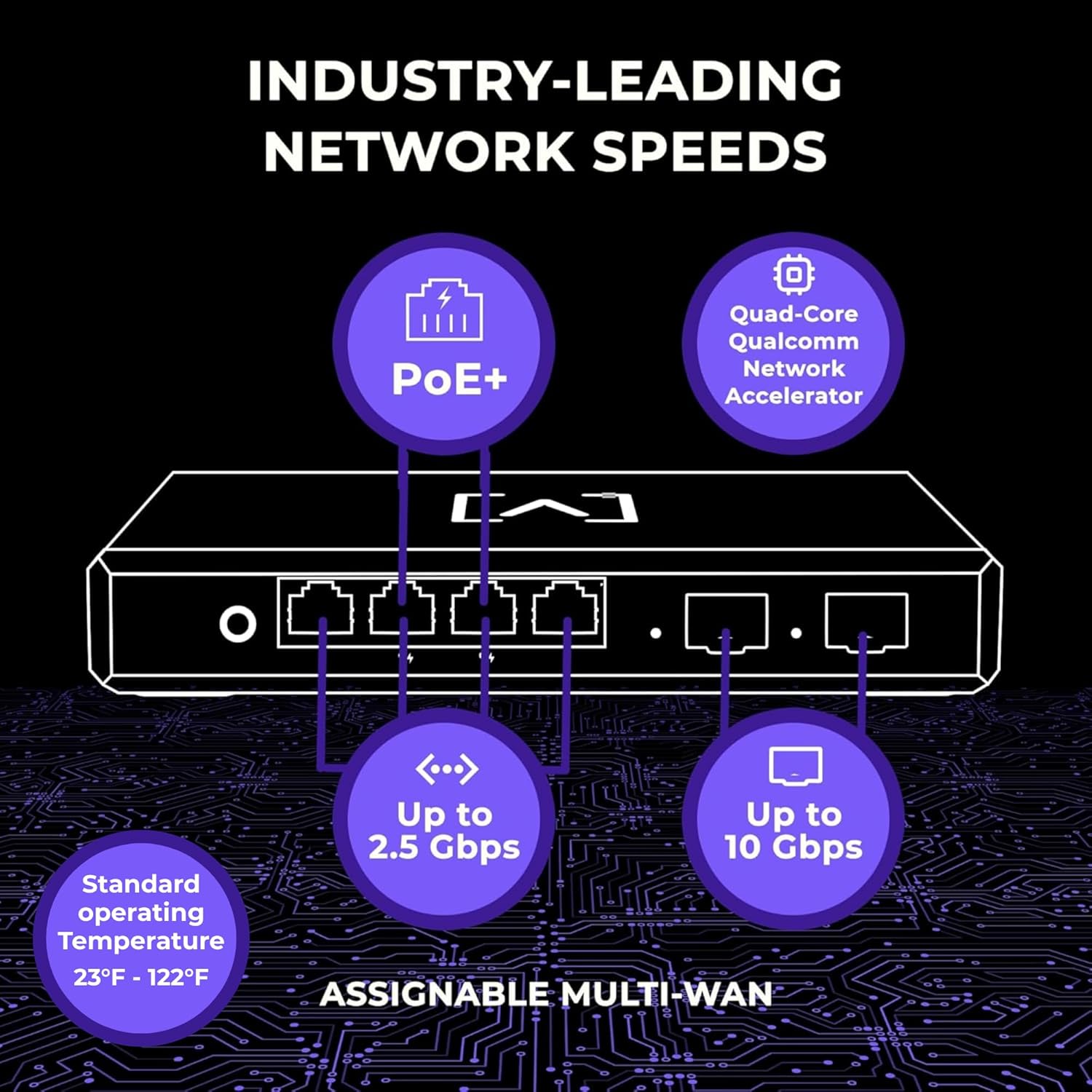

At the heart of this kit is the Route10 router, featuring a quad-core Qualcomm processor with hardware-accelerated networking for exceptional throughput and low latency. With two 10 Gbps SFP+ ports and four auto-sensing Ethernet ports supporting up to 2.5 Gbps, the Route10 delivers extreme network speeds for the most demanding environments.
-
10 Gbps Performance: Two SFP+ ports support 1, 2.5, 5, or 10 Gbps fiber or copper connections
-
Multi-Gigabit Ethernet: Four auto-sensing ports supporting 10/100/1000/2500 Mbps connections
-
Integrated PoE+: 40W PoE+ budget on ports 2 & 3 with up to 30W per port
-
Dual WAN Support: Assignable multi-WAN with failover and load balancing capabilities
-
Advanced Security: Built-in firewall, deep packet inspection (DPI), and intrusion prevention
-
Hardware VPN Acceleration: Supports WireGuard, L2TP, and IKEv2 VPN protocols
-
Real-Time Monitoring: Advanced network statistics and traffic analytics
AP6 - WiFi 6 Access Point with Mesh Capability
The included AP6 WiFi 6 access point is built on Qualcomm's dual-band, 4-stream platform, delivering optimal 2.4 GHz and 5 GHz WiFi 6 performance with a combined capacity of 3 Gbps. With 2x2 MIMO on both bands and proprietary antenna design, the AP6 provides superior range and seamless roaming.
-
WiFi 6 Performance: 2.4 GHz up to 573 Mbps, 5 GHz up to 2.4 Gbps
-
Intelligent Mesh: Mesh-capable with intelligent formation for maximum throughput
-
Seamless Roaming: Supports 802.11k/r/v standards for uninterrupted connectivity
-
Scalable Design: Supports 300+ concurrent clients
-
IP54 Rated: Protected against dust and water spray for flexible installation
-
PoE+ Powered: Clean installation using a single Ethernet cable (powered by Route10 or PoE+ switch)
-
QuickMount Technology: Simple ceiling or wall mounting with included hardware
Cloud-Based Management Platform
Manage your entire network through the intuitive Alta Labs cloud platform or mobile app, offering real-time monitoring, remote configuration, and advanced analytics from anywhere in the world.
-
Alta Networks App: iOS and Android app for on-the-go management
-
Web Interface: Full-featured dashboard at manage.alta.inc
-
AltaPass Technology: Create multiple passwords for the same SSID with different access levels
-
Content Filtering: Built-in DPI engine for website and application filtering
-
Hotspot Functionality: Create customized guest portals with branding
-
Multi-Site Support: Manage multiple locations from a single interface
-
VLAN Support: 802.1Q VLAN tagging for network segmentation
Key Features
-
Complete Networking Solution: Router and access point bundle for turnkey deployment
-
Professional-Grade Performance: 10 Gbps routing with WiFi 6 wireless coverage
-

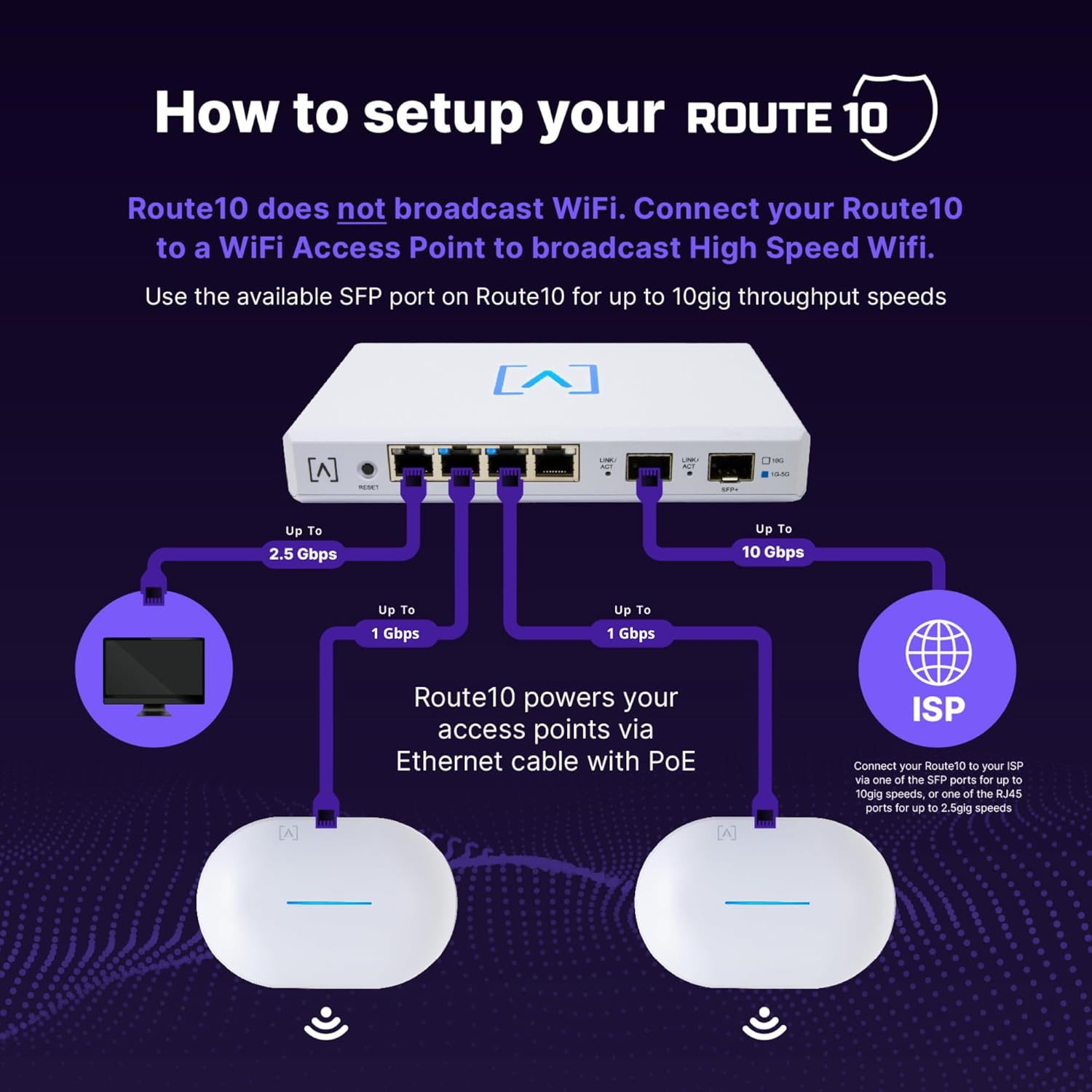

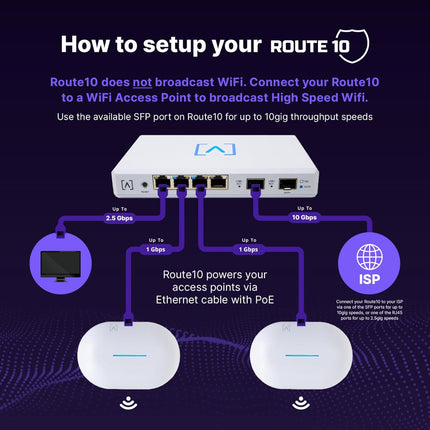

PoE+ Integration: Route10 can power the AP6 directly, reducing cable clutter
-
Compact Design: 180 × 110 × 29.8 mm router, 190 × 125 × 32 mm access point
-
Bluetooth Setup: Easy adoption and configuration via Bluetooth
-
Fanless Operation: Silent, reliable performance for noise-sensitive environments
-
Operating Temperature: Route10: -5°C to 50°C; AP6: -30°C to 60°C
Ideal Applications
- Small to medium business networks requiring multi-gigabit performance
- Home networks with high-bandwidth requirements (4K/8K streaming, gaming)
- Professional offices requiring secure VPN connectivity
- Retail and hospitality environments with guest WiFi needs
- Multi-site deployments with centralized cloud management
What's in the Box
- Alta Labs Route10 10Gbps Router
- Alta Labs AP6 WiFi 6 Access Point
- Route10 mounting bracket and hardware
- AP6 QuickMount ceiling/wall mount
- Power supply for Route10
- Quick start guide
Full Specifications
Route10 Router
| Processor |
Qualcomm Quad-Core with hardware acceleration |
| Ethernet Ports |
4 × 2.5 Gbps auto-sensing (10/100/1000/2500 Mbps) |
| SFP+ Ports |
2 × 10 Gbps (supports 1/2.5/5/10 Gbps) |
| PoE+ Output |
40W budget, ports 2 & 3 (up to 30W per port) |
| Default WAN Ports |
Port 1 (Ethernet), Last SFP+ port (WAN2) |
| VPN Support |
WireGuard, L2TP, IKEv2 |
| Security Features |
Firewall, DPI, intrusion detection/prevention |
| Dimensions |
180 × 110 × 29.8 mm (7.09 × 4.33 × 1.17") |
| Operating Temperature |
-5°C to 50°C (23°F to 122°F) |
| Power Input |
DC 5V 1.827A |
| Mounting |
Desktop, wall, or rack mount (adapter sold separately) |
AP6 WiFi 6 Access Point
| WiFi Standard |
802.11a/b/g/n/ac/ax (WiFi 4/5/6) |
| MIMO Configuration |
2.4 GHz: 2 × 2, 5 GHz: 2 × 2 |
| Maximum Throughput |
3 Gbps combined (573 Mbps @ 2.4 GHz, 2.4 Gbps @ 5 GHz) |
| Antenna Design |
Proprietary dual-band integrated antennas |
| Roaming Standards |
802.11k/r/v |
| Client Capacity |
300+ concurrent clients |
| Network Interface |
1 × Gigabit Ethernet RJ45 |
| Power Method |
PoE+ (802.3at) |
| Voltage Range |
42.5 - 57V DC |
| Maximum Power Consumption |
20W |
| Weatherproofing |
IP54 rated |
| Dimensions |
190 × 125 × 32 mm (7.5 × 4.9 × 1.25") |
| Weight |
0.4 kg (0.9 lbs) |
| Operating Temperature |
-30°C to 60°C (-22°F to 140°F) |
| Mounting |
Ceiling, wall, desktop (QuickMount included) |
Management & Software
| Management Platform |
Alta Labs Cloud (manage.alta.inc) |
| Mobile App |
Alta Networks app (iOS & Android) |
| Setup Method |
Bluetooth, web interface, mobile app |
| Multi-Site Support |
Yes |
| VLAN Support |
802.1Q |
| Security |
WPA2-PSK, WPA3-PSK, WPA-Enterprise |
| Advanced Features |
AltaPass, DPI filtering, hotspot, mesh |
Specifications are sourced from the manufacturer product page and may be updated.
