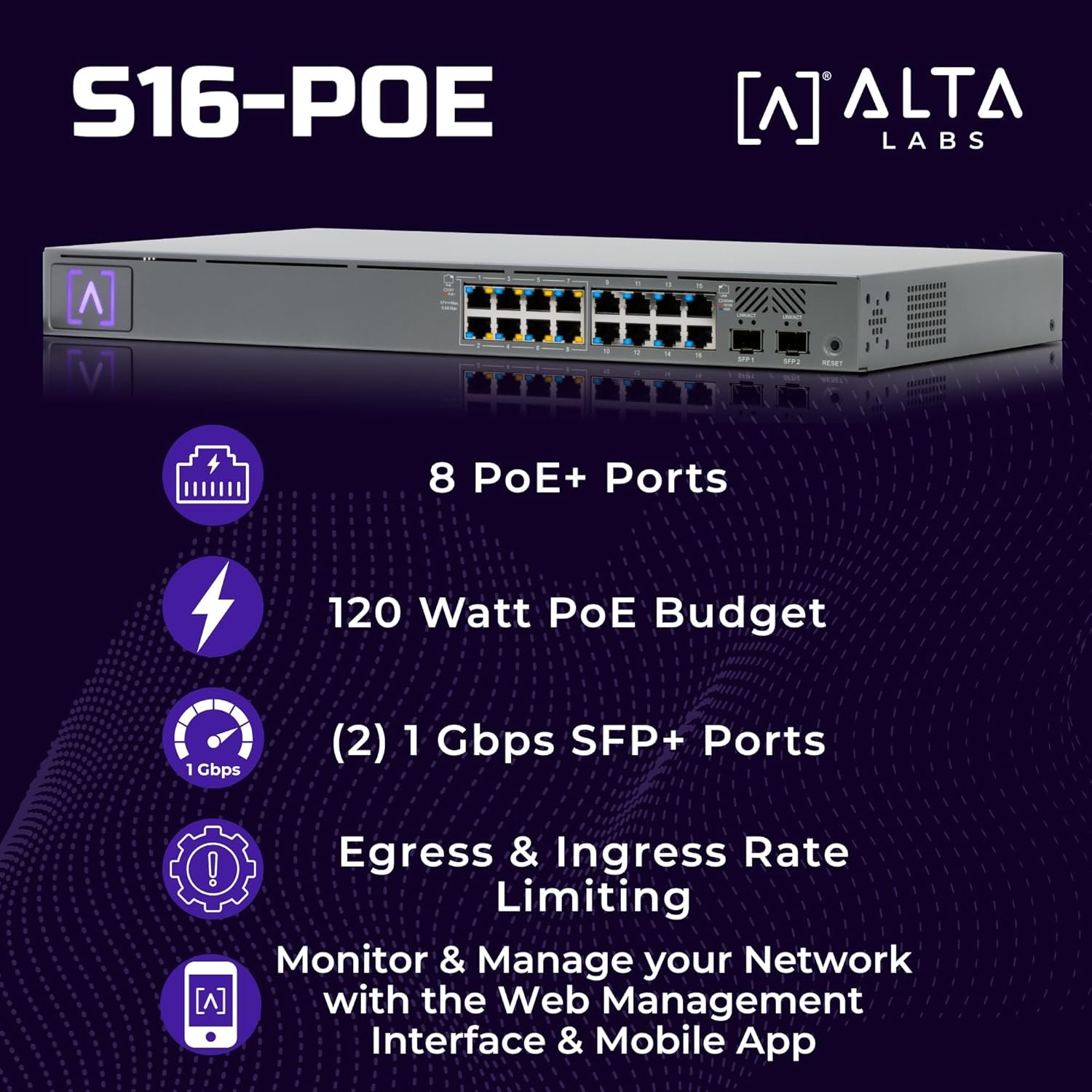

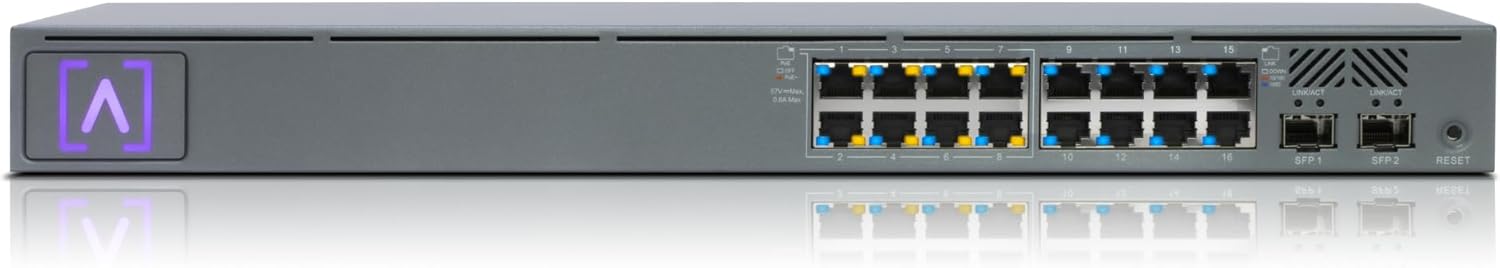

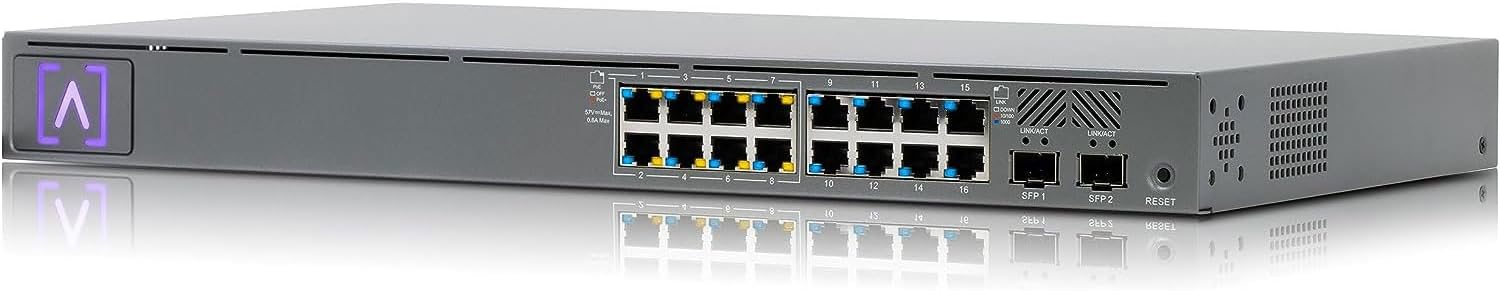

Alta Labs S16-POE 16-Port Managed PoE+ Gigabit Switch with 120W Budget
The Alta Labs S16-POE is a high-performance rackmountable managed switch designed to meet the demands of enterprise and small office networks. Featuring 16 Gigabit Ethernet ports with 8 PoE+ enabled ports (802.3at/af), this switch delivers up to 30W per port and a total 120W PoE budget to power access points, IP cameras, VoIP phones, and other PoE-enabled devices. With 2 SFP uplink ports supporting up to 1 Gbps fiber or copper connections, the S16-POE provides scalable, reliable connectivity with 36 Gbps switching capacity and 18 Gbps non-blocking throughput. Built with fanless, silent operation, SGCC rugged construction, and cloud-based or local management, this Layer 2 switch is ideal for businesses requiring advanced networking features in a compact, energy-efficient form factor.
Key Features
-
16 Gigabit Ethernet Ports: All ports support 10/100/1000 Mbps connections for high-speed wired networking
-

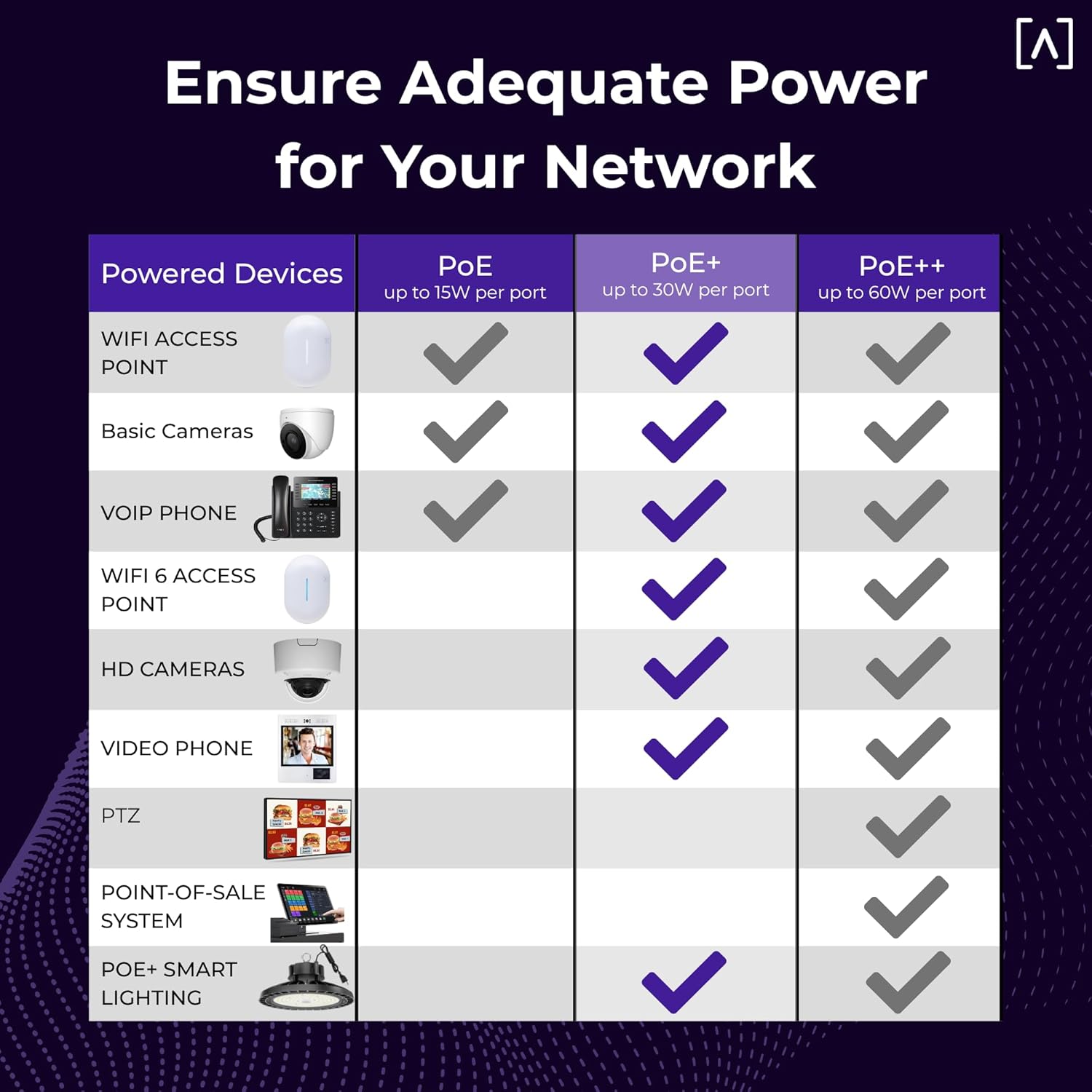

8 PoE+ Ports (802.3at/af): Ports 1-8 deliver up to 30W per port with a total 120W PoE budget, perfect for powering network devices
-
2 SFP Ports: Fiber or copper uplinks supporting up to 1 Gbps for flexible backbone connectivity
-
Switching Capacity: 36 Gbps switching capacity with 18 Gbps non-blocking throughput ensures reliable performance under heavy traffic
-
Fanless Operation: Silent, energy-efficient design with passive cooling for noise-free deployment
-
Bluetooth Setup: Seamless initial configuration via the Alta Labs mobile app using BLE (2.4 GHz)

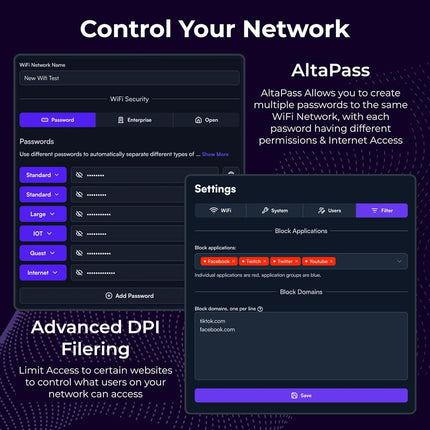

Cloud-Based Management & Advanced Features

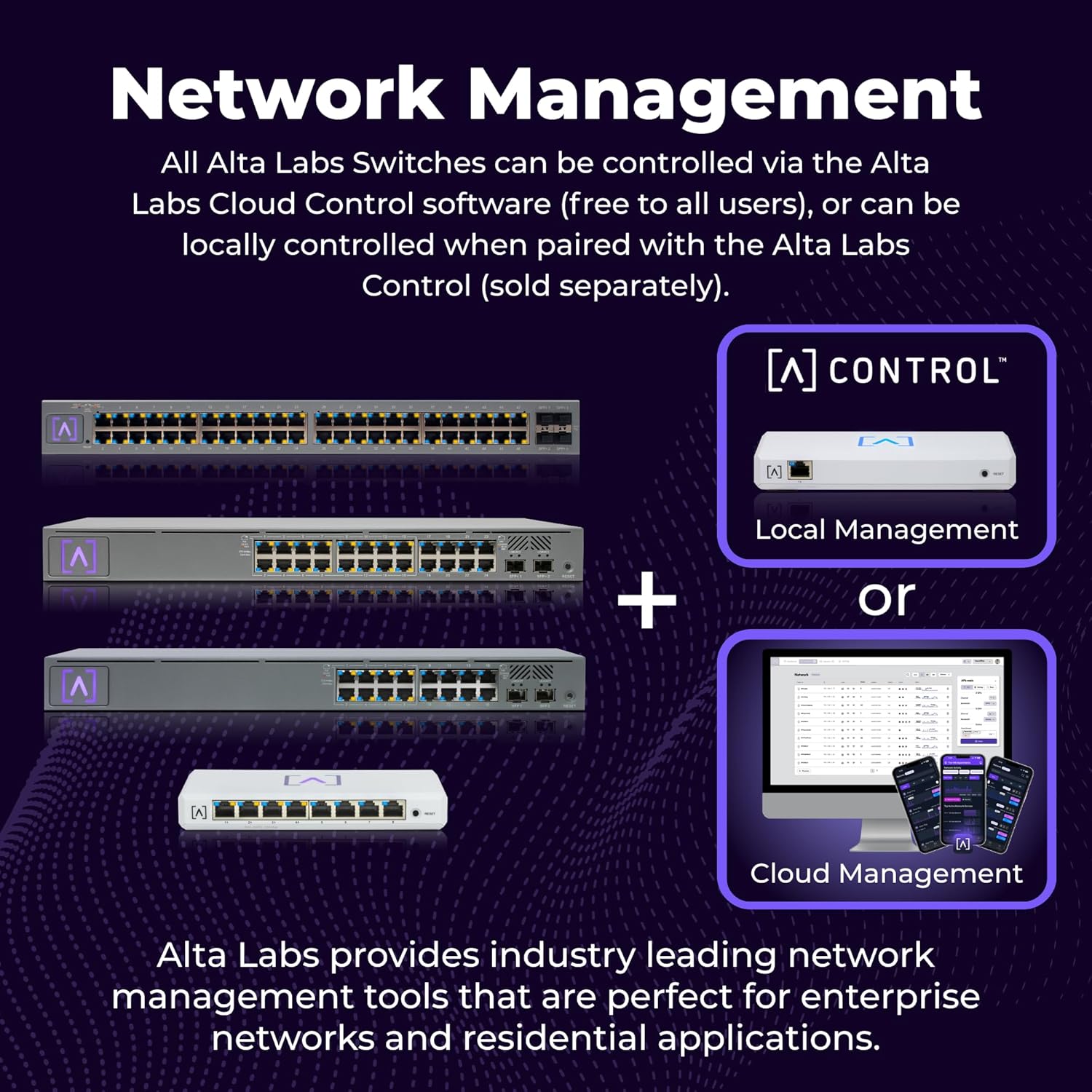

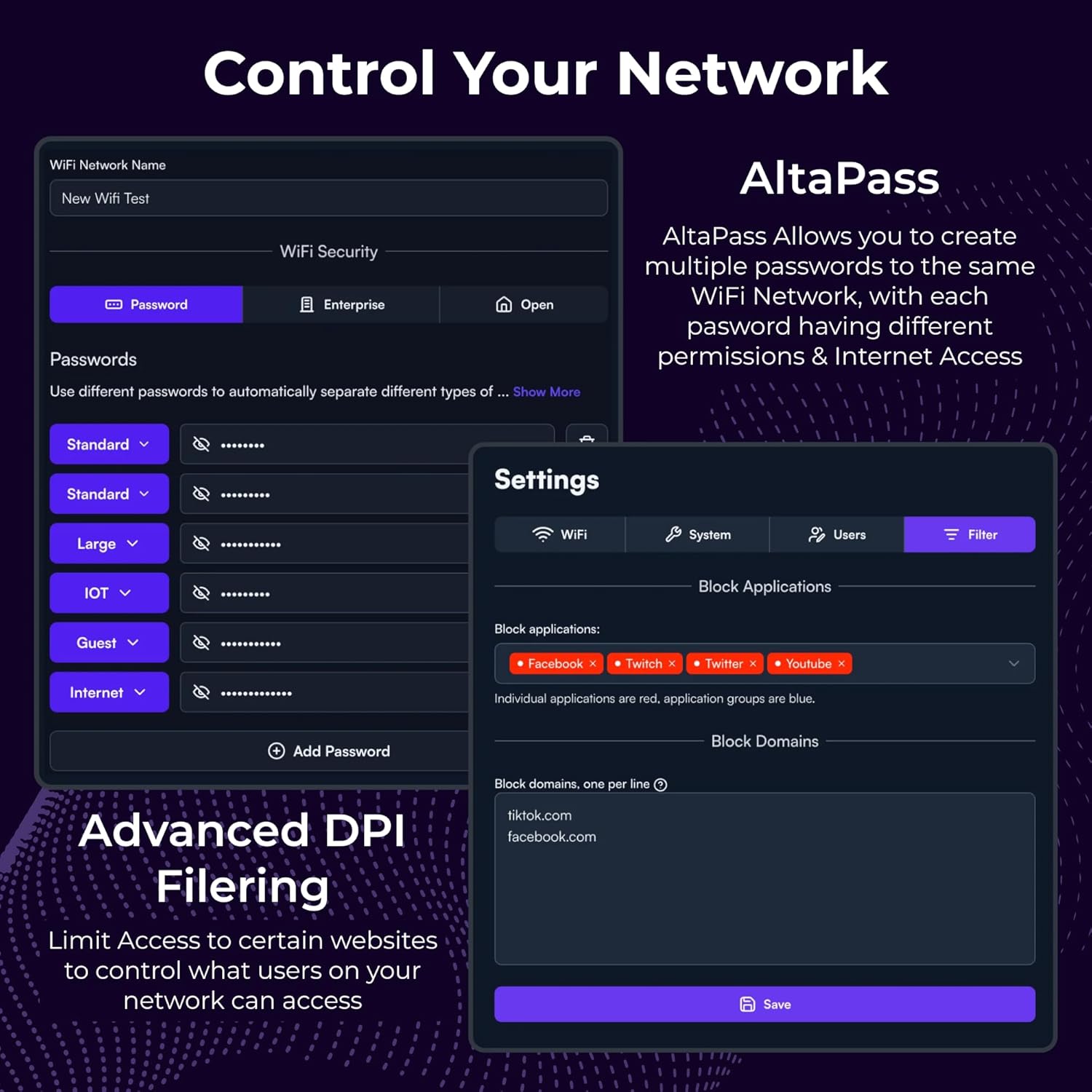

Manage your network from anywhere with the Alta Labs Cloud Management Platform, accessible via mobile app or web browser. The S16-POE can also be managed locally with the optional Alta Labs Control device. Advanced Layer 2 features include:
-
VLAN Support & Stacking: Segment network traffic for improved security and performance
-
IGMP Snooping: Optimizes multicast traffic for IPTV and video streaming applications
-
802.1X Authentication: Dynamic network authentication for enhanced security
-
Egress & Ingress Rate Limiting: Control bandwidth allocation per port for fair resource distribution
-
Network Loop Detection: Prevent network failures caused by loops
-
Customizable Dashboard: Monitor device status, throughput, load, and connected devices in real-time

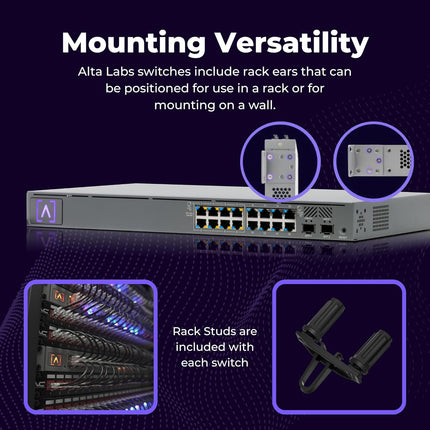

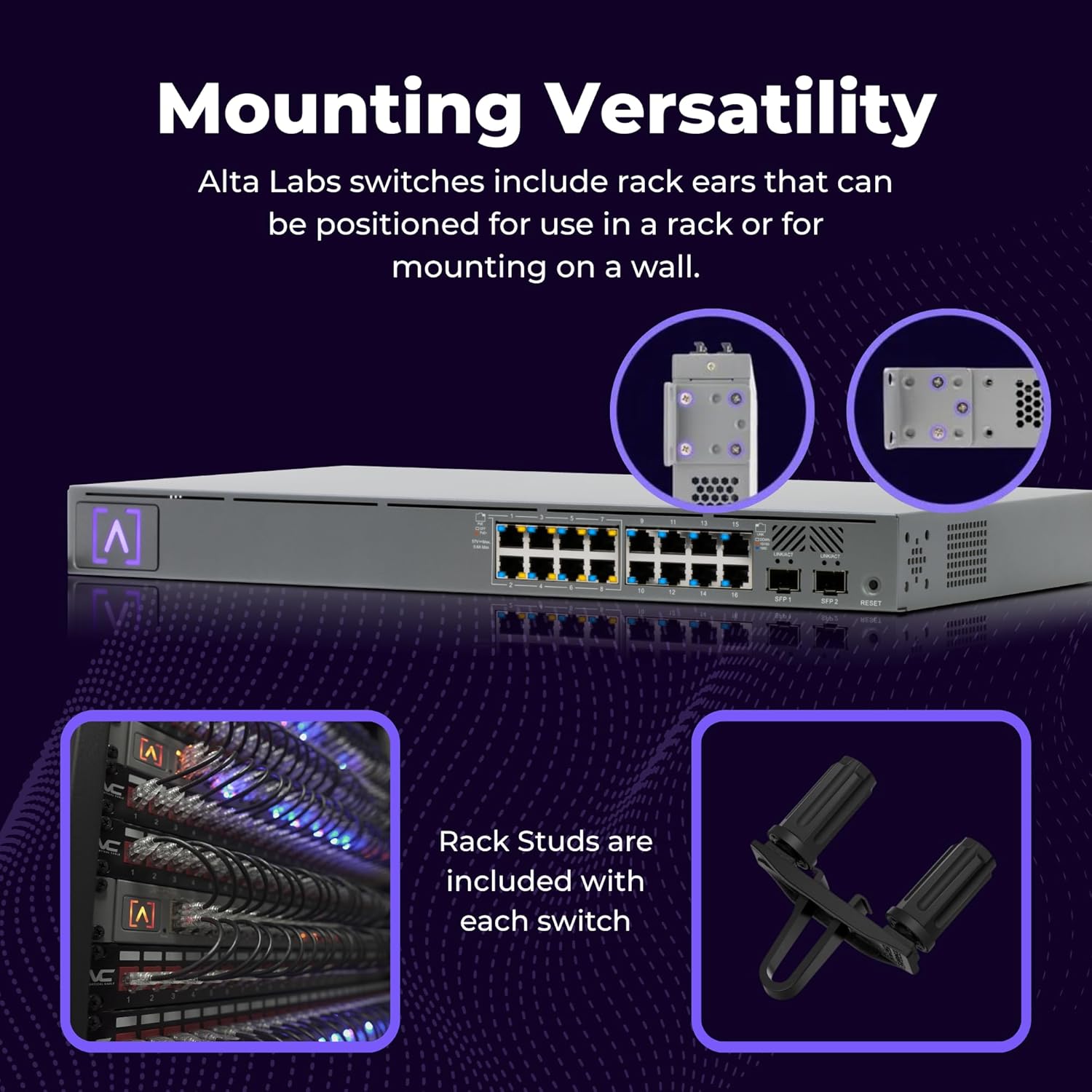

Versatile Mounting & Installation
The S16-POE includes rack ears and Rackstud DUO toolless mounting hardware for easy installation in standard 1U server racks. It can also be wall-mounted with appropriate hardware (not included). The switch features exposed cooling vents on the sides for optimal passive airflow, ensuring reliable operation in rack or wall installations.
Enterprise-Grade Build Quality
Constructed from SGCC steel with a matte powder-coat finish in metallic gray, the S16-POE is built for durability and continuous use. The internal universal AC power supply (100-240VAC, 50/60Hz) eliminates the need for external adapters. With Energy Efficient Ethernet support, the switch consumes just 6.5W idle and 23W maximum without PoE (143W at full PoE load).
What's in the Box
- Alta Labs S16-POE Switch
- Rack Ears (Qty. 2)
- Rack Ear Screws (M4 × 8.5mm, Qty. 8)
- Rackstud DUO Studs & Nuts (Qty. 4)
- Power Cord
- Quick Start Guide
Full Specifications
Mechanical
| Dimensions |
44 × 254 × 441.5 mm (1.7 × 10 × 17.4") |
| Weight |
3.6 kg (7.9 lbs) |
| Material |
SGCC steel |
| Finish |
Powder coat, matte |
| Color |
Metallic gray |
| Mounting |
1U rackmount or wall mount (rack ears and toolless Rackstud DUO included) |

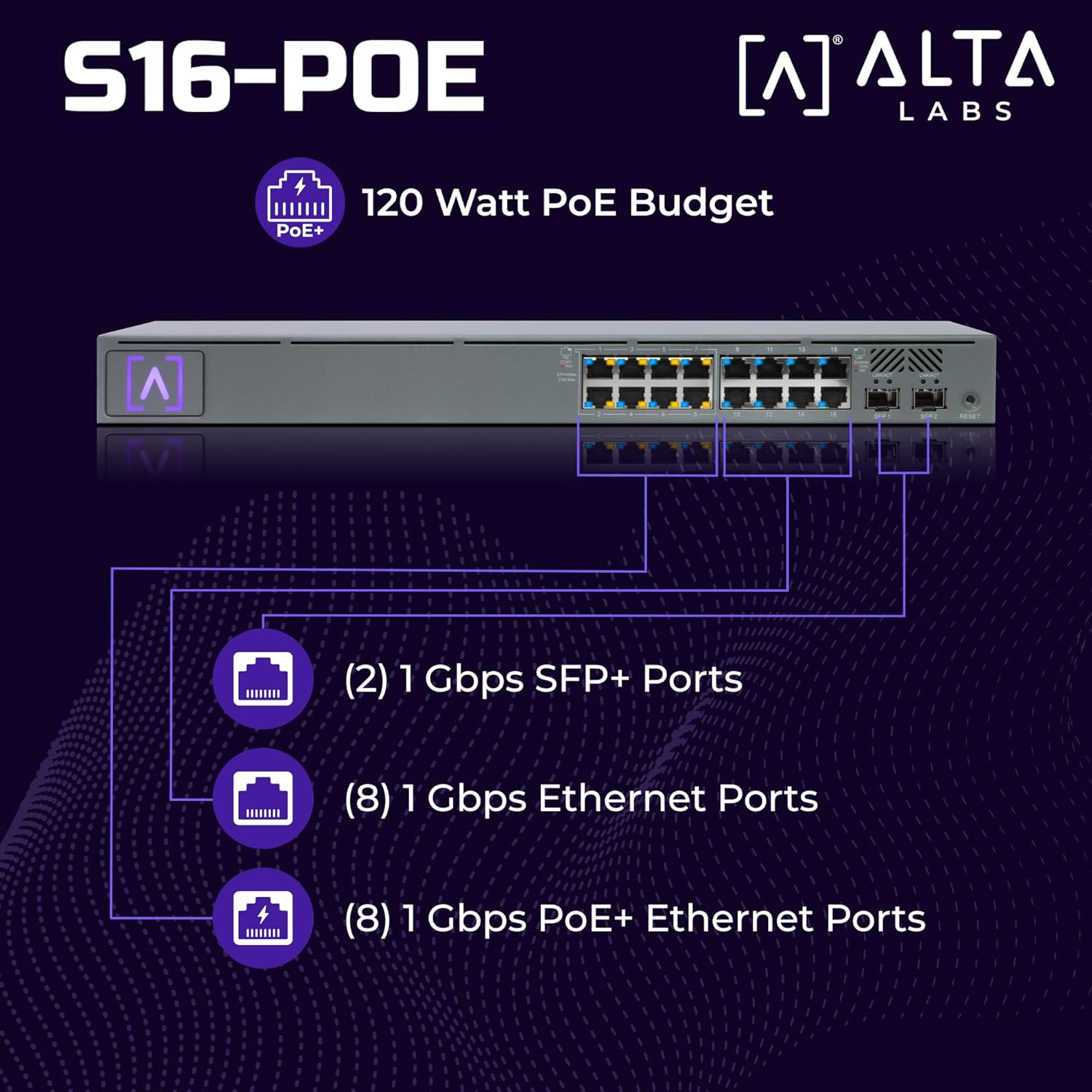

Ports & Interfaces
| Interface Ports |
16 × 10/100/1000 Mbps Gigabit Ethernet (RJ45) |
| PoE+ Ports |
8 ports (Ports 1-8, 802.3at/af) |
| Non-PoE Ports |
10 ports (Ports 9-16 plus 2 SFP) |
| SFP Ports |
2 × SFP (up to 1 Gbps fiber or copper) |
| PoE Budget |
120W total |
| PoE per Port |
Up to 30W (802.3at PoE+) |
| PoE Output |
54VDC, 0.6A max per port |
Performance
| Switching Capacity |
36 Gbps |
| Non-Blocking Throughput |
18 Gbps |
| Forwarding Rate |
26.8 Mpps |
| Packet Buffer |
4.1 Mbit |
| MAC Table Size |
8K |
Management & Features
| Management |
Cloud-based (Alta Labs Cloud) or local (with Control device) |
| Interface |
Mobile app (iOS/Android) or web browser |
| Bluetooth |
Yes, BLE for setup (2.4 GHz, 7 dBm EIRP, 2 dBi gain) |
| Layer 2 Features |
VLAN stacking, IGMP snooping, 802.1X authentication, egress/ingress rate limiting, network loop detection, QoS |
| Energy Efficient Ethernet |
Yes |
| Factory Reset |
Physical button |
Power
| Power Supply |
Internal universal AC, 100-240VAC, 50/60Hz |
| Idle Power Consumption |
6.5W |
| Max Power (without PoE) |
23W |
| Max Power (full PoE load) |
143W |
Environment & Compliance
| Cooling |
Fanless, passive (side vents) |
| RJ45 Port Surge Protection |
12kV ESD contact, 25kV air discharge |
| Certifications |
CE, FCC (Class A), IC, CAN ICES-003(A)/NMB-003(A) |
| Warranty |
2 years limited warranty |
Specifications are sourced from the manufacturer product page and may be updated.
