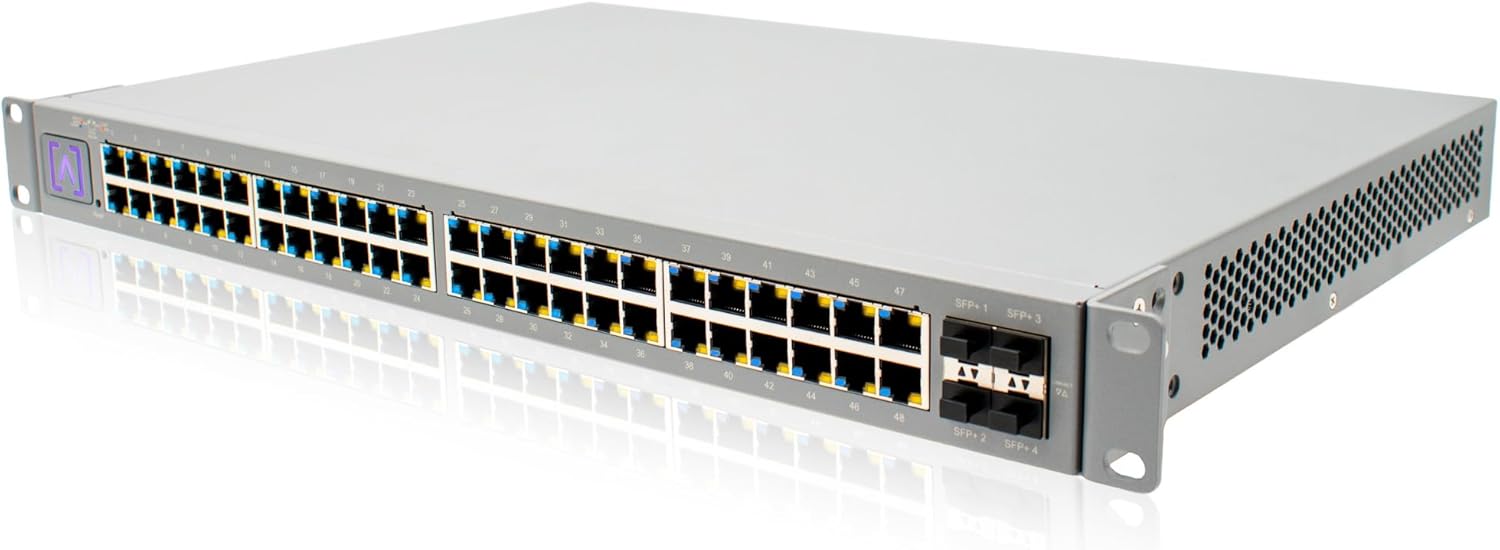

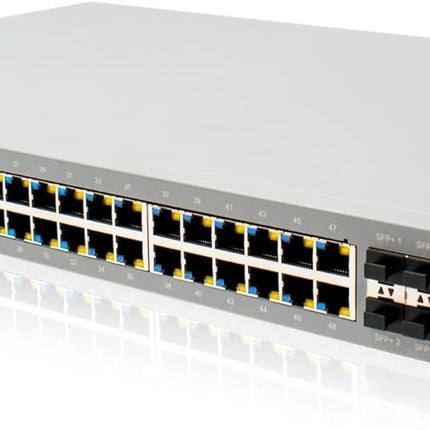

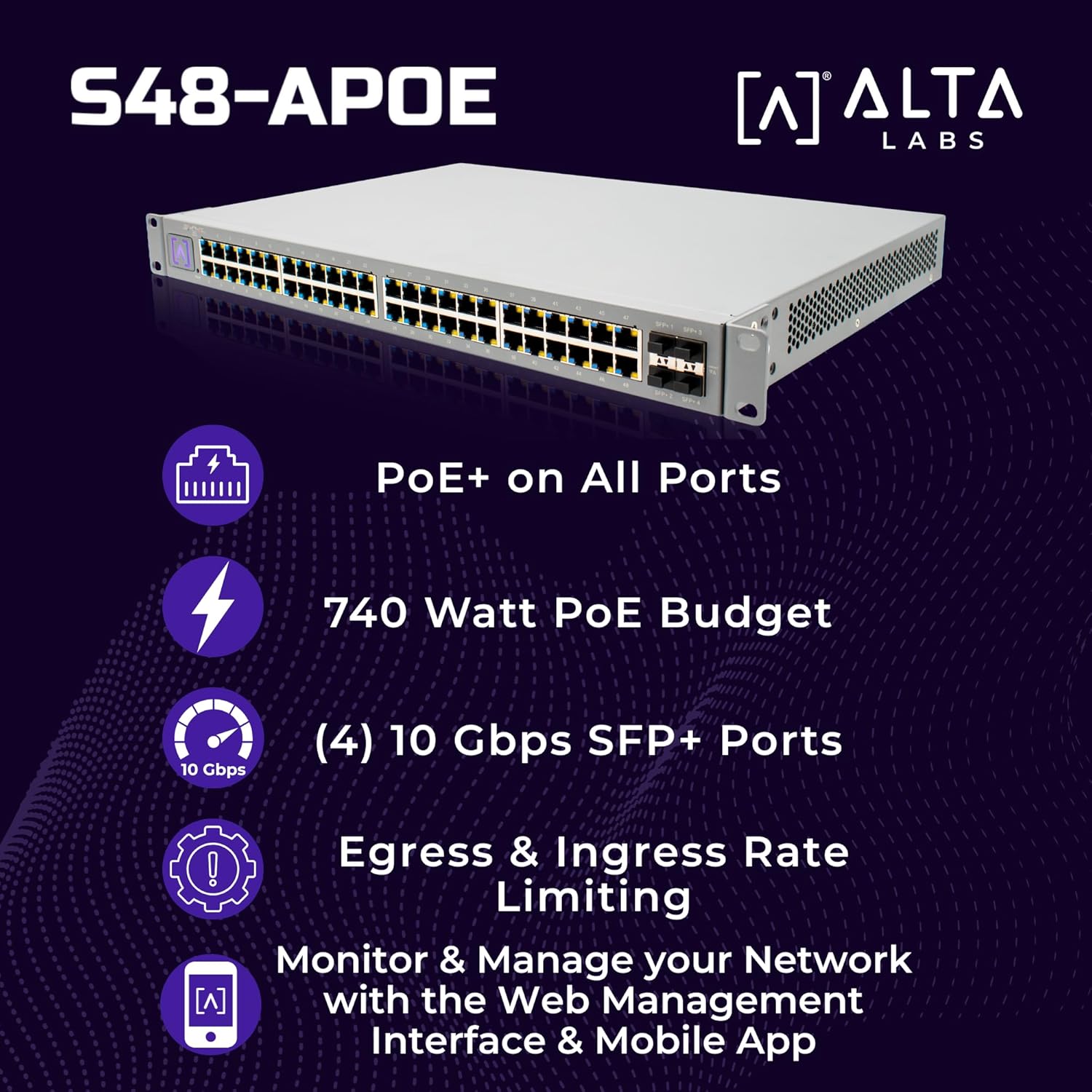

Alta Labs S48-APOE 48-Port PoE+ Managed Switch with 740W Power Budget and 10Gb Uplinks
The Alta Labs S48-APOE is a powerful cloud-managed Layer 2+ enterprise network switch designed for high-demand environments. With 48 PoE+ ports delivering a robust 740W PoE budget and up to 30 watts per port, this switch powers access points, IP cameras, VoIP phones, and other PoE-powered devices with ease. It features 32 ports supporting 1 Gbps and 16 ports supporting 2.5 Gbps connections, plus 4 SFP+ uplink ports for fiber or copper connections at speeds up to 10 Gbps, making it ideal for enterprise, education, hospitality, Pro AV, and commercial applications.
Enterprise-Grade Performance
The S48-APOE offers 250 Gbps switching capacity, delivering non-blocking throughput for high-density networks. Its advanced networking features include VLAN stacking (Q-in-Q), IGMP snooping, 802.1X authentication, network loop detection, and egress and ingress rate limiting, ensuring secure and efficient traffic management across your network.
Full PoE+ Power Across All Ports
-

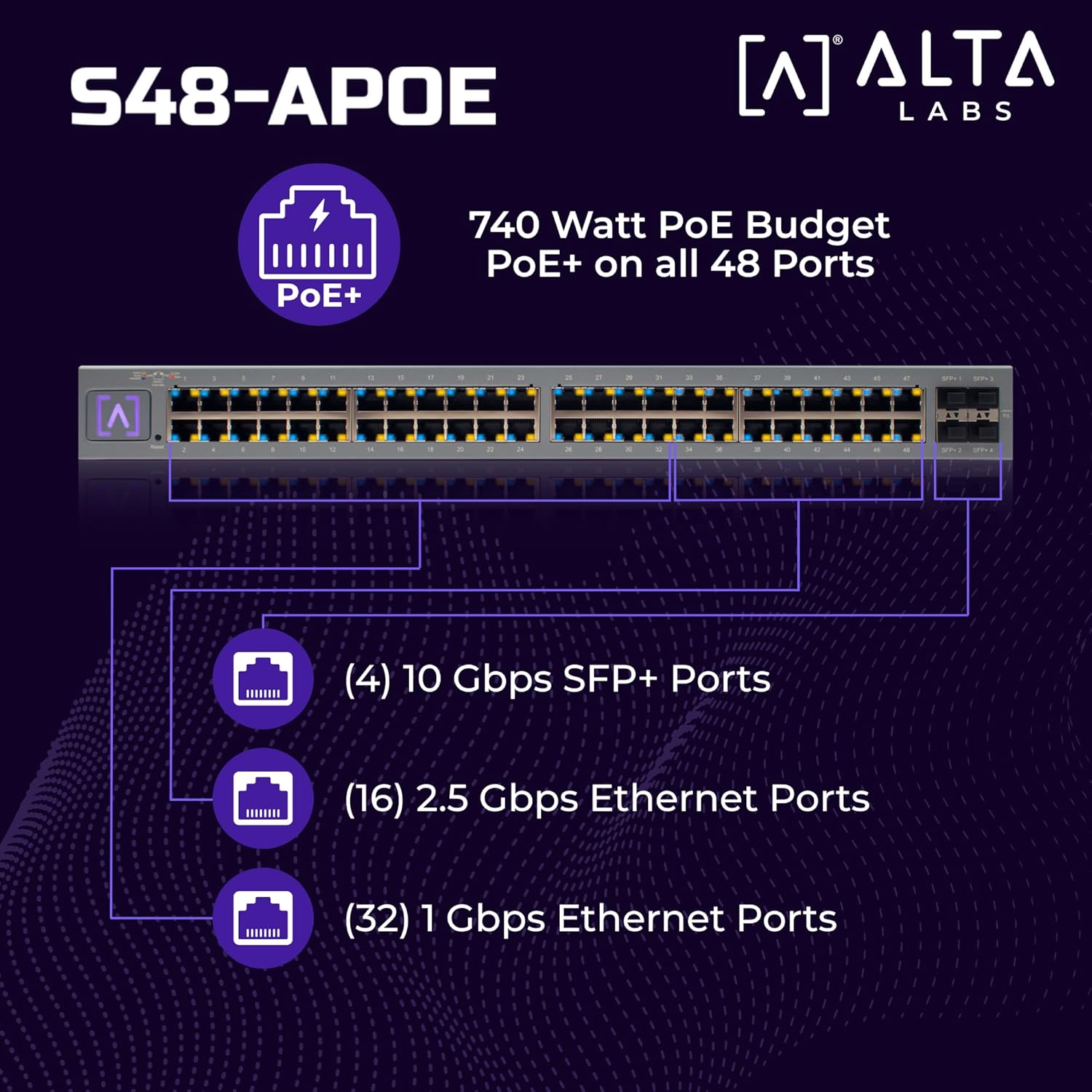

48 PoE+ Ethernet Ports: All ports support PoE+, including 32× 1 Gbps and 16× 2.5 Gbps ports
-
740W Total PoE Budget: Provides up to 30W per port, supporting 802.3at PoE+ and backwards compatible with 802.3af PoE standard
-
Flexible Power Delivery: Powers multiple network devices simultaneously, including WiFi 7 access points and high-power IP cameras
High-Speed Uplinks and Connectivity
-
4× SFP+ Ports: Support high-capacity fiber or copper connections at 1 Gbps, 2.5 Gbps, 5 Gbps, or 10 Gbps
-
Multi-Gigabit Ethernet: 16 ports at 2.5 Gbps enable faster connections for bandwidth-intensive applications
-
250 Gbps Switching Capacity: Ensures fast, reliable data transfer across all connected devices
Cloud-Based Management from Anywhere

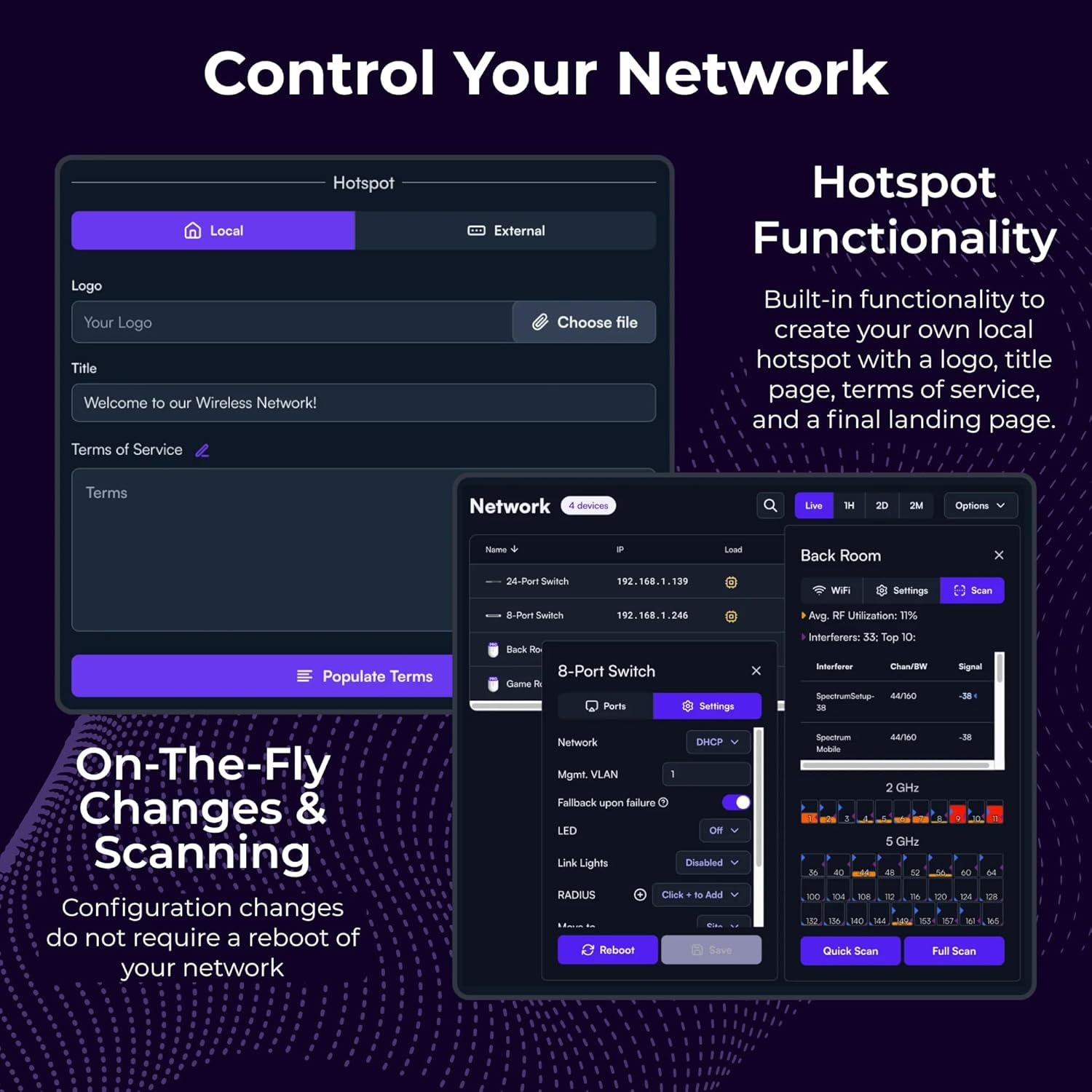

The Alta Labs S48-APOE is managed via the intuitive Alta Cloud Management platform, accessible from web browsers or the mobile app. Monitor and control your network from anywhere in the world with features including a customizable dashboard, status snapshots, device cards, and automatic firmware updates. Bluetooth setup via the Alta Labs mobile app makes initial configuration seamless and tool-free. Best of all, cloud management is included with your hardware purchase with no licensing fees or subscriptions.

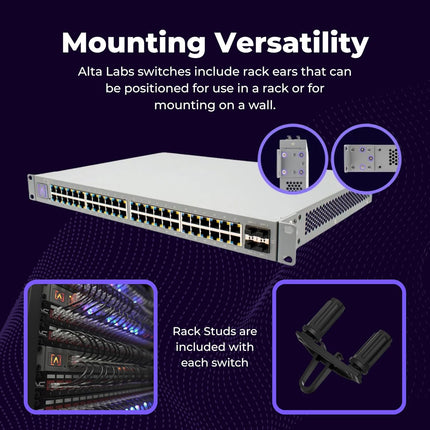

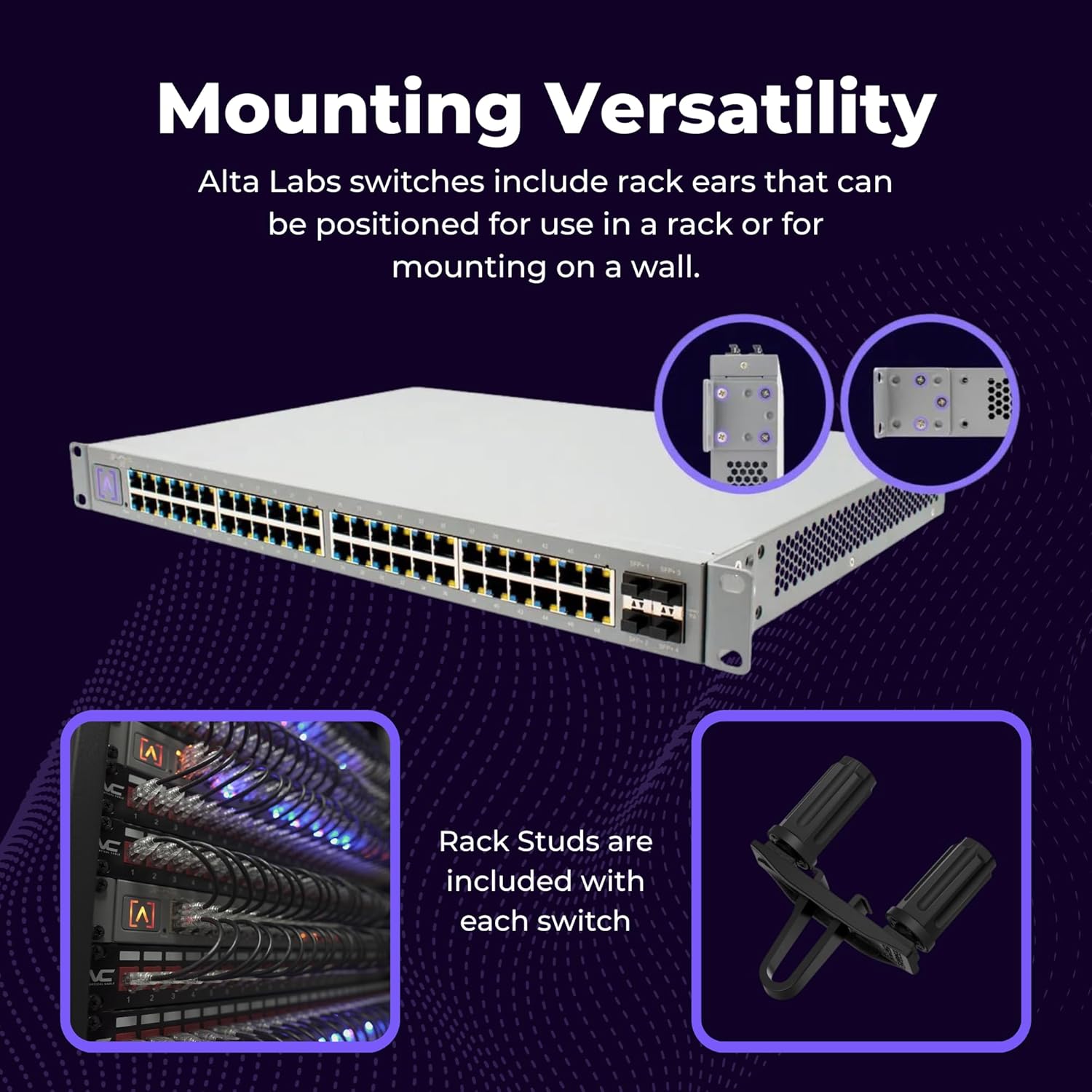

Flexible Mounting Options
-
1U Rackmount Design: Standard rackmount form factor with included rack ears and Rackstud DUO toolless mounting system
-
Wall Mount Support: Rack ears can be repositioned for wall mounting flexibility
-
Fan-Cooled: Active cooling system ensures reliability in server racks and wiring closets
Advanced Security Features
-
802.1X Authentication: Secure network access control
-
DHCP Snooping: Protects against rogue DHCP servers
-
Port Isolation: Prevents unauthorized lateral traffic
-
Access Control Lists (ACLs): Blocks malicious traffic and secures the network perimeter
What's in the Box
- Alta Labs S48-APOE 48-Port Managed Switch
- Rack ears with mounting hardware
- Rackstud DUO toolless mounting system
- Power cable
- Quick start guide
Full Specifications
| Model |
S48-APOE |
| Total Ethernet Ports |
48 |
| 1 Gbps Ports |
32 |
| 2.5 Gbps Ports |
16 |
| PoE+ Ports |
48 (all ports) |
| PoE Budget |
740W total |
| Power per Port |
Up to 30W (802.3at PoE+) |
| PoE Standards |
802.3at (PoE+), 802.3af (PoE) |
| SFP+ Uplink Ports |
4× (up to 10 Gbps each) |
| SFP+ Speed Support |
1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps |
| Switching Capacity |
250 Gbps |
| Management |
Cloud-based (web & mobile app) |
| Bluetooth Setup |
Yes, via Alta Labs mobile app |
| VLAN Support |
VLAN stacking (Q-in-Q), device configuration |
| Advanced Features |
IGMP snooping, 802.1X authentication, network loop detection, rate limiting, DHCP snooping, port isolation, ACLs |
| Mounting |
1U rackmount with included rack ears, wall mountable |
| Cooling |
Active fan cooling |
| Firmware Updates |
Automatic via cloud |
| Licensing Fees |
None |
Specifications are sourced from the manufacturer product page and may be updated.
