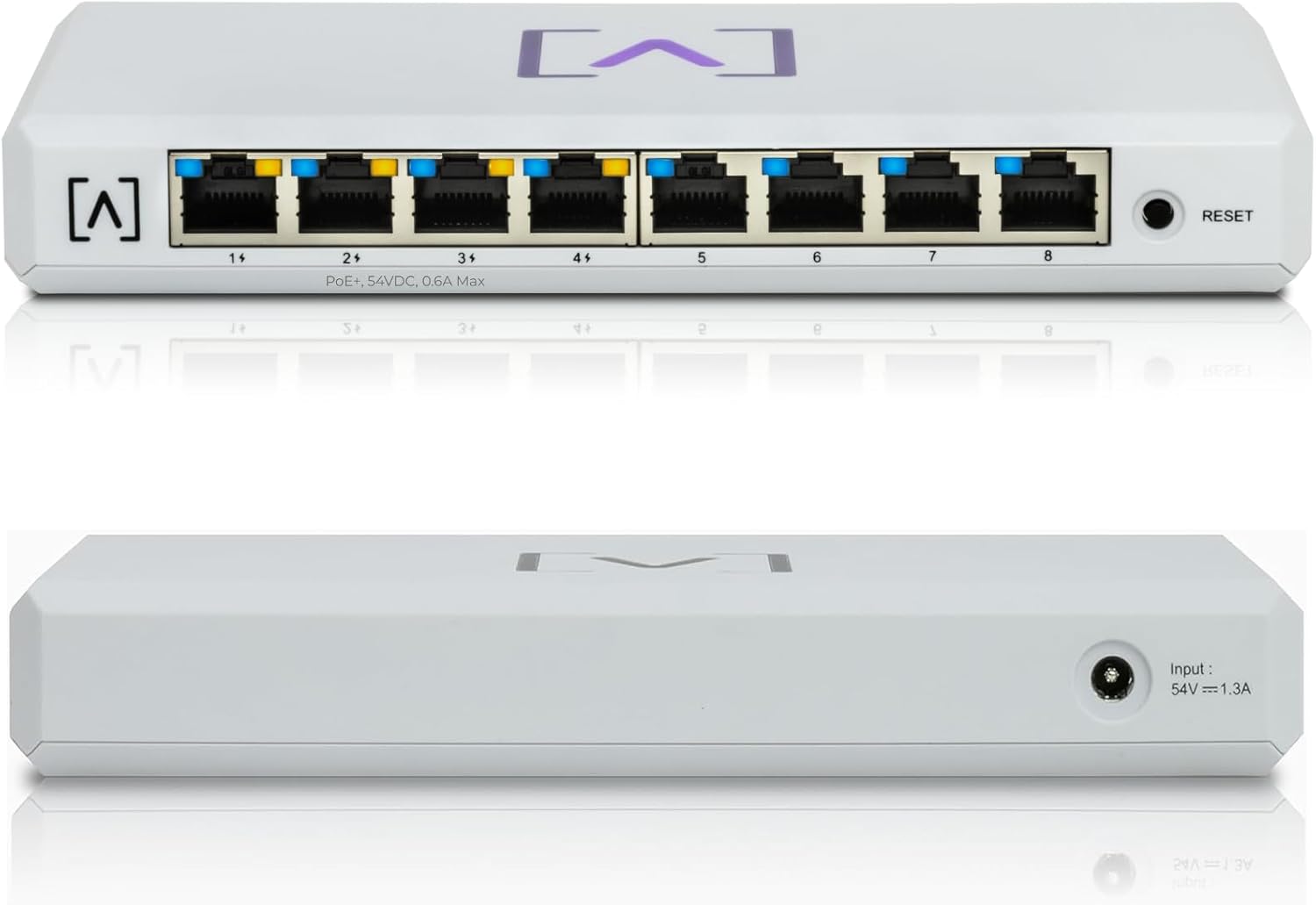

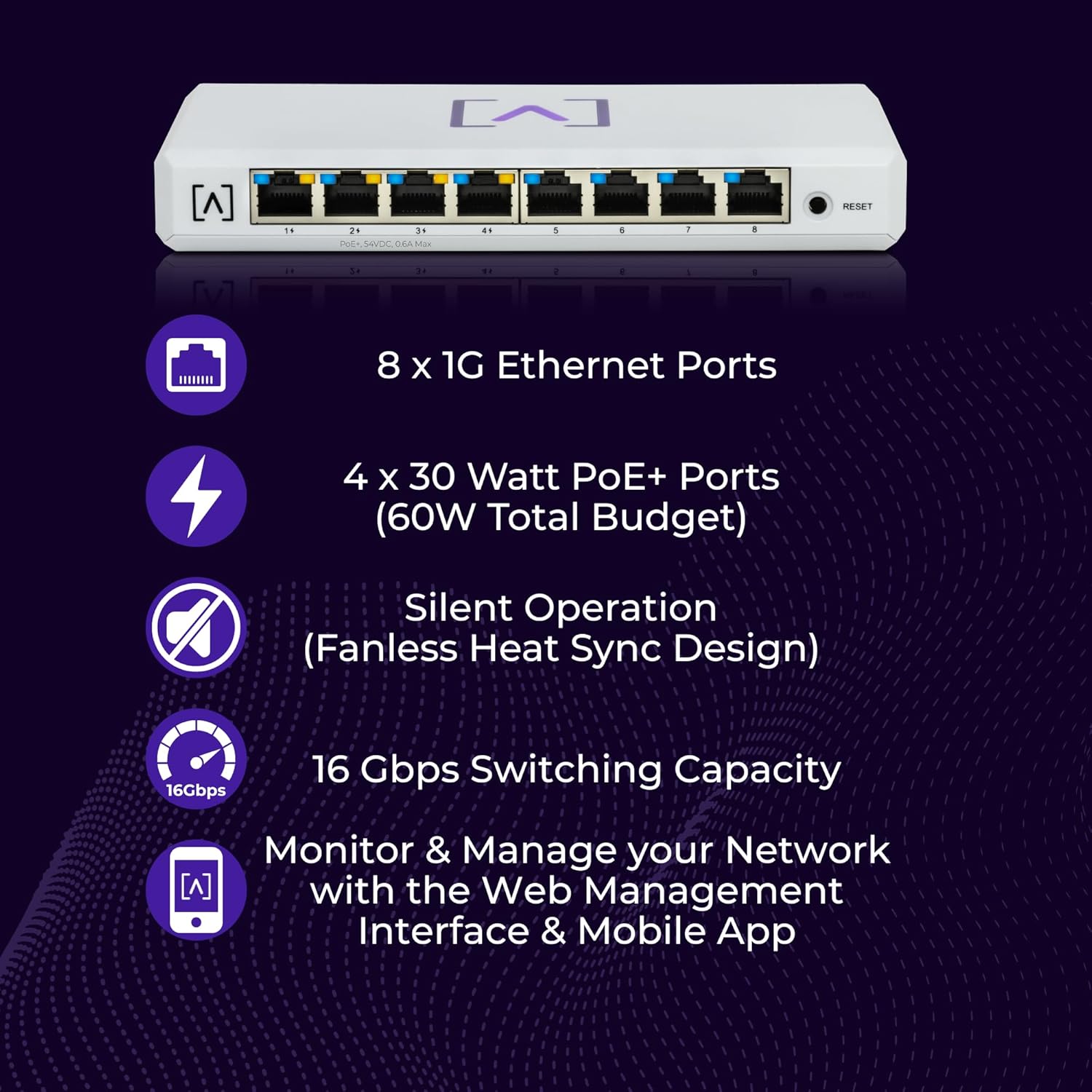

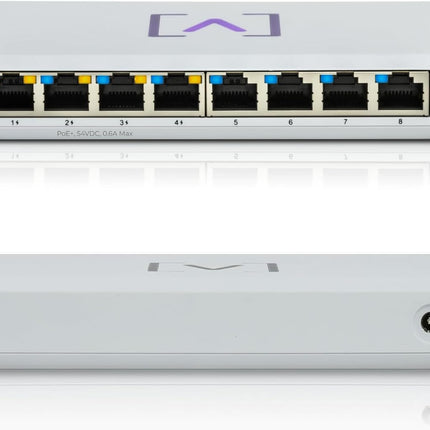

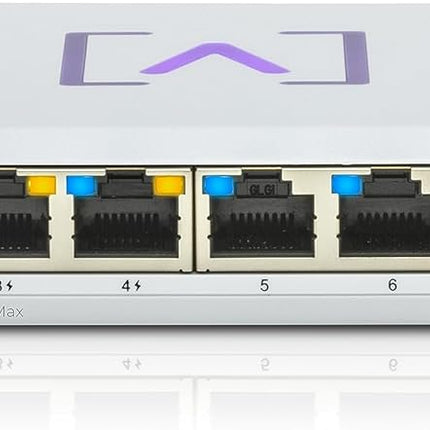

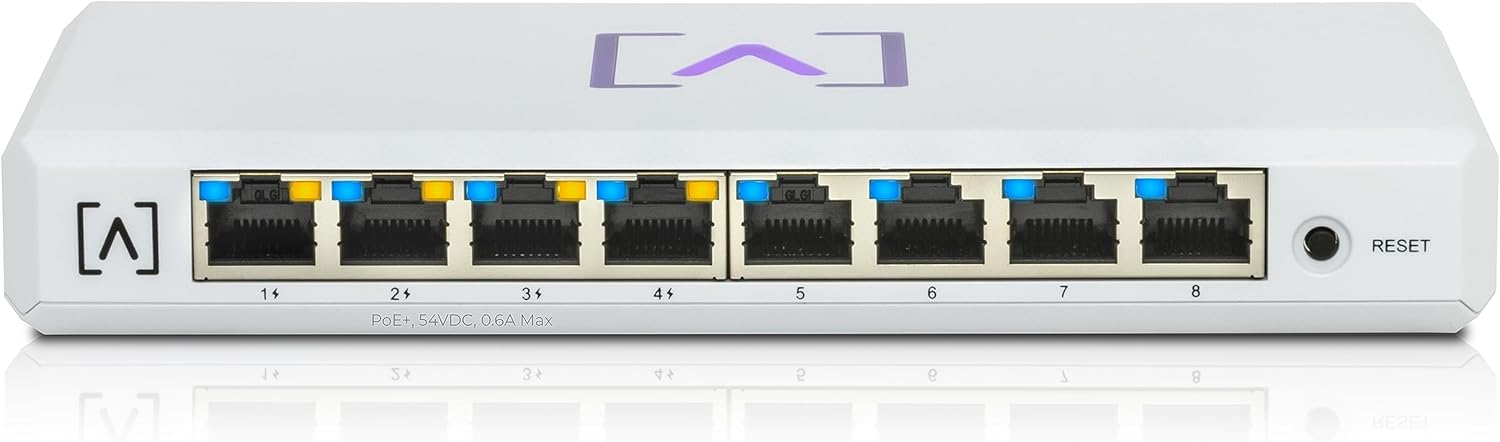

Alta Labs S8-POE 8-Port Managed Gigabit PoE+ Switch with 60W Budget
The Alta Labs S8-POE is a compact, cloud-managed network switch featuring eight Gigabit Ethernet ports with four PoE+ ports delivering up to 60W total power budget. Designed for small to medium-sized networks, this fanless switch offers silent operation, flexible desktop or wall mounting, and seamless integration with the Alta Labs Cloud Management Platform.
Professional Cloud-Managed Networking
The S8-POE integrates seamlessly with the Alta Labs Cloud Management Platform, providing intuitive network monitoring and configuration from anywhere via web browser or mobile app. Features include:
-
Bluetooth Setup: Quick and easy initial configuration using the Alta Networks mobile app
-
Remote Management: Monitor and manage your network from anywhere with internet access
-
VLAN Support: Intuitive network segmentation for enhanced security and performance
-
Rate Limiting: Control bandwidth allocation per port for optimal traffic management
-
802.1X Authentication: Dynamic network authentication for secure device access
-
IGMP Snooping: Optimizes multicast traffic for IPTV and streaming applications
-
Loop Detection: Built-in protection against network loops
Power Over Ethernet Connectivity
The S8-POE features four 802.3at PoE+ ports capable of delivering up to 30W per port with a total budget of 60 Watts. Power your Alta Labs access points, IP cameras, VoIP phones, and other PoE-enabled devices without the need for separate power adapters. The switch is backwards compatible with 802.3af PoE devices.
-
Ports 1-4: 10/100/1000 Mbps with PoE+ (up to 30W per port)
-
Ports 5-8: 10/100/1000 Mbps standard Gigabit Ethernet
-
Total PoE Budget: 60W across all PoE ports
-
Auto-sensing: Ports automatically detect PoE requirements
Silent, Compact Design
Featuring a fanless design with passive heat sink, the S8-POE operates silently, making it ideal for noise-sensitive environments such as home offices, conference rooms, or media centers. The compact white chassis can be placed on a desktop with integrated padding or mounted on a wall using the included bracket.
Enterprise-Grade Performance
-
Switching Capacity: 16 Gbps non-blocking
-
Throughput: 8 Gbps
-
Forwarding Rate: 11.9 Mpps
-
MAC Address Table: 8,000 entries
-
Packet Buffer Memory: 4.1 MB
-
Energy Efficient Ethernet: Reduces power consumption during low traffic periods

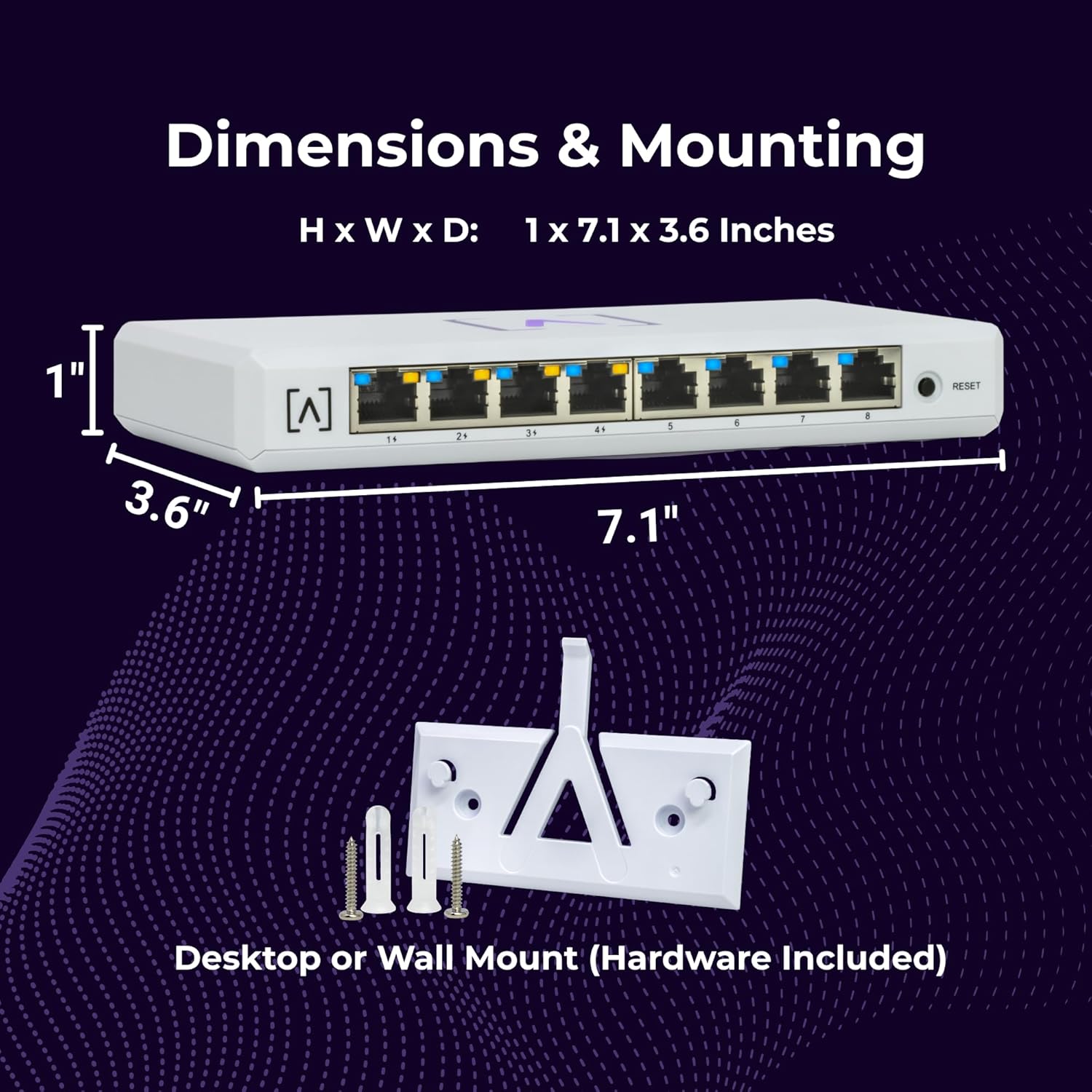

Flexible Mounting Options
The S8-POE includes desktop padding for horizontal placement and a wall-mount bracket with hardware for vertical or horizontal wall installation. The included template makes positioning simple and precise.
What's in the Box
- Alta Labs S8-POE Switch
- 54V DC Power Supply (1.3A)
- Wall-Mount Bracket
- Mounting Screws (M3×20mm, Qty. 2)
- Wall Anchors (Qty. 2)
- Quick Start Guide
Full Specifications
Ports & Connectivity
| Interface Ports |
8 × 10/100/1000 Mbps Gigabit Ethernet (RJ45) |
| PoE+ Ports |
4 × 802.3at PoE+ (Ports 1-4) |
| PoE Power Per Port |
Up to 30W |
| Total PoE Budget |
60W |
| PoE Standards |
802.3at (PoE+), 802.3af (PoE) backwards compatible |
Performance
| Switching Capacity |
16 Gbps (non-blocking) |
| Throughput |
8 Gbps |
| Forwarding Rate |
11.9 Mpps |
| MAC Address Table |
8,000 entries |
| Packet Buffer Memory |
4.1 MB |
Management
| Management Interface |
Alta Labs Cloud Management Platform (web and mobile app) |
| Bluetooth Setup |
Yes |
| VLAN Support |
Yes |
| Rate Limiting |
Egress and Ingress |
| Authentication |
802.1X |
| IGMP Snooping |
Yes |
| Loop Detection |
Yes |
| Factory Reset |
Physical button |
Power
| Power Supply |
Universal AC 100-240V, 50/60Hz (external adapter) |
| Power Input |
54V DC, 1.3A |
| Max Power Consumption (without PoE) |
8W |
| Max Power Consumption (full PoE load) |
68W |
| Energy Efficient Ethernet |
Yes |
Physical Specifications
| Dimensions (W × D × H) |
180 × 91 × 25.7 mm (7.1 × 3.6 × 1 inches) |
| Weight |
0.38 kg (0.83 lbs) |
| Material |
Injection-molded plastic |
| Finish |
Matte white |
| Cooling |
Fanless (passive heat sink) |
| Mounting |
Desktop (with padding) or wall mount (bracket included) |
Environmental & Protection
| RJ45 Port Surge Protection |
12kV ESD (contact), 25kV ESD (air) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Operating Humidity |
10% to 90% (non-condensing) |
Compliance & Standards
| Networking Standards |
IEEE 802.1x, IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet) |
| Certifications |
FCC Class B, CE |
| Warranty |
2 years limited warranty |
Specifications are sourced from the manufacturer product page and may be updated.
