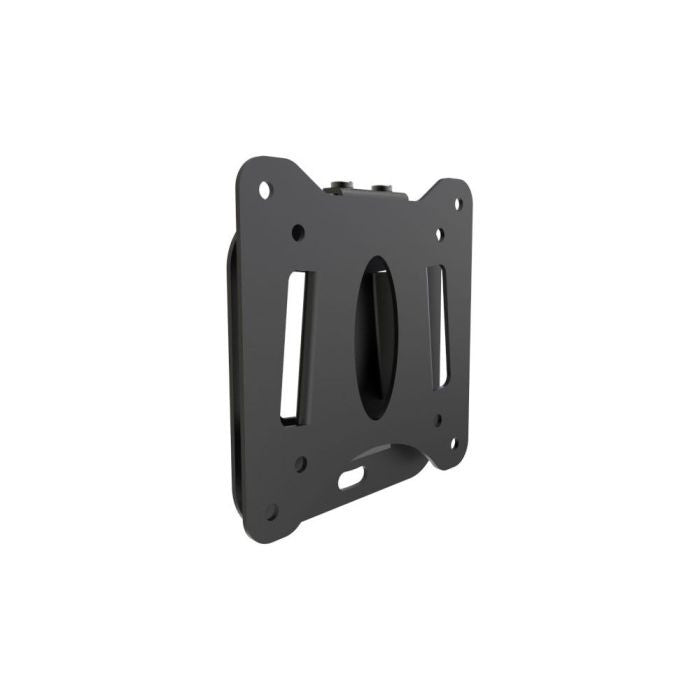

Atdec AD-30100-WF Low Profile Fixed Wall Mount for Displays up to 30kg
The Atdec AD-30100-WF is a low profile fixed wall mount designed for small displays and digital signage where screen movement is not required. With an ultra-slim 14mm profile and capacity to support displays weighing up to 30kg (66lb), this mount offers a clean, space-saving installation for commercial displays, monitors, and small flat-screen TVs.
Why Choose the Atdec AD-30100-WF?
Ideal for retail displays, corporate signage, hospitality venues, and reception areas, the AD-30100-WF combines simplicity with security. The mount's two-piece design and built-in bubble level make installation quick and hassle-free, while dual security screws protect your display against theft.
Key Features
-
30kg load capacity: Securely supports displays up to 30kg (66lb)
-
Ultra-slim 14mm profile: Sits just 14.5mm from the wall for a sleek, low-profile appearance
-
VESA compatible: Fits 75x75mm, 100x100mm, and 120x120mm VESA mounting patterns (200x200mm via optional adapter AC-AP-2020)
-
Easy installation: Two-piece design with curved mounting slots and integrated bubble level for fast, accurate installation
-
Theft protection: Dual security screws help prevent unauthorised removal of display
-
10-year warranty: Backed by Atdec's comprehensive manufacturer warranty
Compatibility
The AD-30100-WF supports VESA 75x75mm, 100x100mm, and 120x120mm mounting patterns, making it compatible with a wide range of small displays, monitors, and digital signage screens. For larger displays with 200x200mm VESA patterns, an optional adapter plate (AC-AP-2020) is available separately. The mount can be installed on wood stud walls, solid concrete walls, or brick walls with the included hardware.
Installation
Installation is straightforward thanks to the two-piece design. The wall plate features curved mounting slots for precise positioning, and the integrated bubble level ensures perfect alignment. All mounting hardware is included: M4 and M5 screws, washers, coach bolts, and nylon anchors for various wall types. A Phillips head screwdriver and power drill with 4.5mm (timber stud) or 10mm (masonry) drill bit are required.
What's in the Box
- 1 × Wall Mount Plate
- 4 × M4 x 14mm Screw
- 4 × M5 x 14mm Screw
- 4 × M5 Washer
- 2 × Coach Bolt
- 2 × Nylon Anchor
- 2 × Coach Bolt Washer
- User Guide
Full Specifications
| Model |
AD-30100-WF |
| Mount Type |
Fixed Wall Mount (Low Profile) |
| Maximum Load Capacity |
30kg (66lb) |
| VESA Compatibility |
75x75mm, 100x100mm, 120x120mm (200x200mm via optional adapter AC-AP-2020) |
| Wall Distance (Profile) |
14mm |
| Adjustment |
Fixed (no tilt, swivel, or extension) |
| Security |
Dual security screws |
| Colour |
Black |
| Wall Type Compatibility |
Wood stud, solid concrete, brick |
| Warranty |
10 years |
Specifications are sourced from the manufacturer product page and may be updated.
