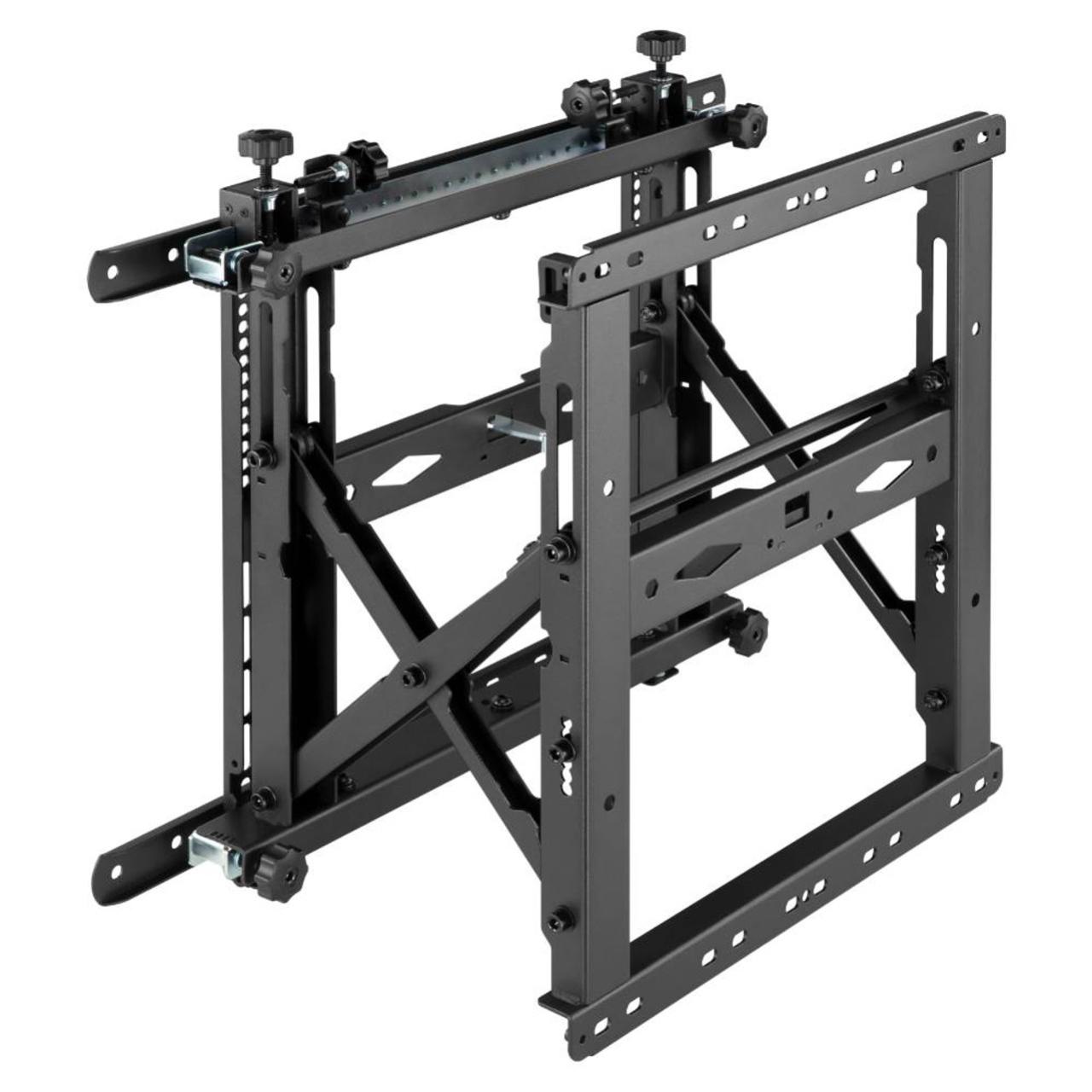

Atdec AD-VWPH Heavy Duty Pop-Out Video Wall Mount
The Atdec AD-VWPH is a heavy duty pop-out video wall bracket designed for professional digital signage installations where easy rear access and precise alignment are critical. With a 70kg (154lb) display capacity and spring-loaded pop-out mechanism, this mount makes servicing displays and accessing rear-mounted media devices effortless, even in recessed wall cavities or tightly configured video wall arrays. Perfect for corporate control rooms, retail video walls, hospitality venues, and conference facilities, the AD-VWPH combines robust steel construction with tool-free fine-tuning adjustments in three dimensions for pixel-perfect alignment.
Key Features
-
Spring-Loaded Pop-Out Mechanism: Push to open and close with integrated kickstands that hold the display out during servicing, providing fast and safe rear access without dismantling the video wall
-
Heavy Duty 70kg Capacity: Supports large-format commercial displays up to 70kg (154lb) with robust steel construction and black powder-coated finish
-
3D Post-Installation Fine Tuning: Tool-free dials for vertical levelling (13mm), lateral adjustment (±15mm), and in/out depth adjustment to achieve seamless video wall alignment
-
Adjustable Pop-Out Force Control: 6 settings allow you to calibrate the spring tension to suit varying display weights for smooth, controlled operation
-
Universal VESA Compatibility: Fits VESA patterns up to 400×400mm, and up to 600×400mm or 400×600mm with included adaptor for portrait orientations
-
Flush or Recessed Installation: Minimum wall distance 110mm (4.33"), maximum pop-out extension 315mm (12.40") for flexibility in recessed spaces
-
Theft Resistance: Includes lockable security point (padlock sold separately) ideal for public spaces and high-traffic retail environments
-
10 Year Warranty: Backed by Atdec's industry-leading warranty for long-term reliability
Effortless Servicing & Maintenance
The pop-out functionality is the standout feature of the AD-VWPH. The spring-loaded mechanism allows technicians to push the display forward from the wall without tools, providing clear access to cables, connectors, and rear-mounted media devices. Integrated kickstands hold the display securely in the open position, so you can work hands-free regardless of display size. This is invaluable for video wall installations in recessed wall cavities or where multiple displays are tightly aligned with minimal bezel gaps.
Precision Alignment for Video Walls
Achieving seamless video wall alignment is easy with the AD-VWPH's post-installation fine-tune adjustments. Each display corner has tool-free dials for precise depth adjustment, enabling you to align displays perfectly in all three dimensions. Independent vertical adjustment dials on each bracket allow levelling after installation, and lateral adjustment of ±15mm (with 400mm or wider VESA) ensures your video wall looks pixel-perfect from every angle. This eliminates the time and hassle of removing and remounting displays during setup.
Ideal Applications
The AD-VWPH is part of Atdec's digital signage mounting range and is perfect for:
-
Corporate Video Walls: Conference rooms and lobbies requiring easy media device access and professional appearance
-
Control Rooms & Data Centres: Mission-critical environments with multi-display arrays monitoring real-time data
-
Retail & Hospitality: High-traffic public spaces where security features and fast maintenance are essential
-
Education & Universities: Conference facilities and lecture halls benefiting from quick changeover and secure installations
-
Recessed Video Walls: Flush wall installations in architectural spaces where aesthetics and serviceability must coexist
Conceal Media Devices
The AD-VWPH allows you to mount media players, connectivity boxes, and other electronic devices within the mount footprint at the rear of the display, with space for devices up to 90mm (3.54") depth. For displays 55" and larger, Atdec recommends the optional sliding device panel accessory (AD-AC-PS) for even easier access to concealed equipment.
Robust Construction & Security
Built from heavy-gauge steel with a durable black finish, the AD-VWPH is designed for demanding commercial and public environments. The lockable security point provides tamper resistance in retail, hospitality, and public installations. The adjustable pop-out force control with 6 settings ensures smooth operation across a wide range of display weights, and the pop-out lock keeps displays securely closed when not being serviced.
What's in the Box
- Wall Mount Assembly (x1)
- Display Brackets (x2)
- 600mm VESA Adaptors (x2) for portrait displays up to 400×600mm
- Right Lateral Adjuster (x1)
- Left Lateral Adjuster (x1)
- M6×14 Screws (x4)
- M6×30 Screws (x4)
- M8×16 Screws (x4)
- M8×35 Screws (x4)
- M8 Washers (x4)
- 5mm Spacers (x4)
- 15mm Spacers (x4)
- M6×10 Screws (x4)
- 6mm Hex Key (x1)
- Installation Guide
Full Specifications
| Model |
AD-VWPH |
| Colour |
Black |
| Display Capacity |
70kg (154lb) |
| VESA Compatibility |
100×100mm to 400×400mm (standard), up to 600×400mm or 400×600mm with included adaptor |
| Pop-Out Distance (Minimum) |
110mm (4.33") |
| Pop-Out Distance (Maximum) |
315mm (12.40") |
| Pop-Out Force Control |
6 adjustable settings |
| Pop-Out Lock |
Included |
| Vertical Adjustment (Levelling) |
13mm (0.51") per bracket |
| Lateral Adjustment |
±15mm (0.59") with 400mm or wider VESA |
| Tool-Free Lateral Adjustment |
±7mm (0.28") |
| Depth/Tilt Adjustment |
13mm (0.51") range, +2° to -3° tilt |
| Media Device Depth |
Up to 90mm (3.54") |
| Material |
Steel with black powder-coated finish |
| Security Features |
Lockable security point (padlock not included) |
| Mounting Configuration |
One bracket required per display |
| Application |
Video walls, digital signage, control rooms, recessed wall installations |
| Warranty |
10 years limited |
Specifications are sourced from the manufacturer product page and may be updated.
