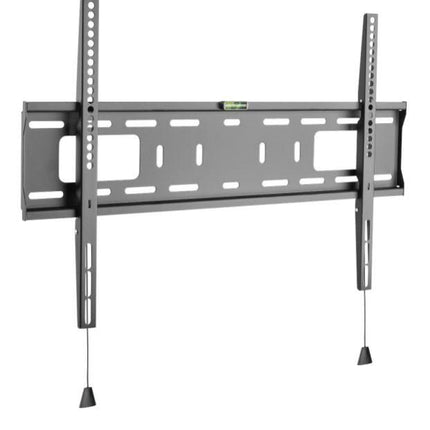

Atdec AD-WF-5060 Fixed Wall Mount for Displays up to 50kg Ultra Slim
The Atdec AD-WF-5060 Fixed Wall Mount is the perfect ultra-slim mounting solution for medium to large displays in commercial, domestic, and light industrial environments. Engineered to support displays weighing up to 50kg (110lb) with VESA patterns from 100 × 100 to 600 × 400mm, this robust fixed mount sits flush against the wall with an incredibly low 25mm (1 inch) profile. Designed for stud walls with 24-inch spacing, the AD-WF-5060 combines strength, versatility, and ease of installation, making it ideal for digital signage, home theatres, conference rooms, and classrooms across Australia.
Key Features
-
Heavy-duty capacity: Supports displays weighing up to 50kg (110lb) with confidence
-
Ultra-slim 25mm profile: Mounts displays parallel to the wall for a sleek, modern look
-
Universal VESA compatibility: Fits mounting patterns from 100 × 100mm to 600 × 400mm
-
Lateral shift adjustment: Position your display precisely, even if offset from the wall bracket
-
Easy installation: Built-in spirit level, slotted mounting holes, and quick-connect display attachment
-
Magnetic release cords: Easy to conceal and access for safe display removal
Professional Installation Made Simple
The AD-WF-5060 is built with installers in mind. The integrated spirit level ensures perfect alignment every time, while the forgiving slotted mounting holes make it easy to secure the wall plate even if your initial drilling isn't perfectly positioned. The quick-connect display attachment system allows you to mount and remove displays safely and efficiently, while the magnetic-tipped release cords remain concealed for a clean, professional finish.
Compatibility & Adjustability
Designed for stud walls with 24-inch stud spacing, the AD-WF-5060 offers exceptional versatility. The mount accommodates a wide range of display sizes and VESA patterns, typically suiting displays from 32 inches to 80 inches. The built-in lateral shift feature allows minor horizontal adjustment, so you can position your display exactly where you want it, even if the wall bracket is slightly offset. This makes it perfect for retrofitting or aligning displays in multi-screen installations.
Built for Australian Conditions
Constructed from high-grade steel, the AD-WF-5060 is built to last in commercial, domestic, and light industrial environments. Its robust construction ensures long-term reliability and safety, while the low-profile design keeps your display sitting close to the wall for a streamlined appearance. Suitable for mounting to stud walls, concrete, brick, or timber with appropriate fasteners (not included).
What's in the Box
- AD-WF-5060 wall plate
- Display brackets
- Quick-release cords with magnetic tips
- Display mounting hardware
- Installation guide
Note: Wall mounting fasteners are not included. Professional installation recommended to ensure correct fastener type, location, and quantity to suit your wall structure.
Full Specifications
| Model |
AD-WF-5060 |
| Product Type |
Fixed Wall Mount |
| Weight Capacity |
50kg (110lb) |
| VESA Compatibility |
100 × 100mm to 600 × 400mm |
| Profile Depth |
25mm (1 inch) |
| Material |
Steel |
| Mounting Angle |
Fixed parallel to wall (0°) |
| Stud Spacing |
24 inches (610mm) |
| Lateral Adjustment |
Yes |
| Built-in Level |
Yes |
| Installation Features |
Slotted mounting holes, quick-connect attachment, magnetic release cords |
| Suitable Environments |
Commercial, domestic, light industrial (indoor use only) |
| Finish |
Black |
Specifications are sourced from the manufacturer product page and may be updated. Curved monitors, deep devices (such as all-in-one PCs), VESA-mounted accessories, and offset VESA locations may exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec or Projectors Australia if you require further information.
