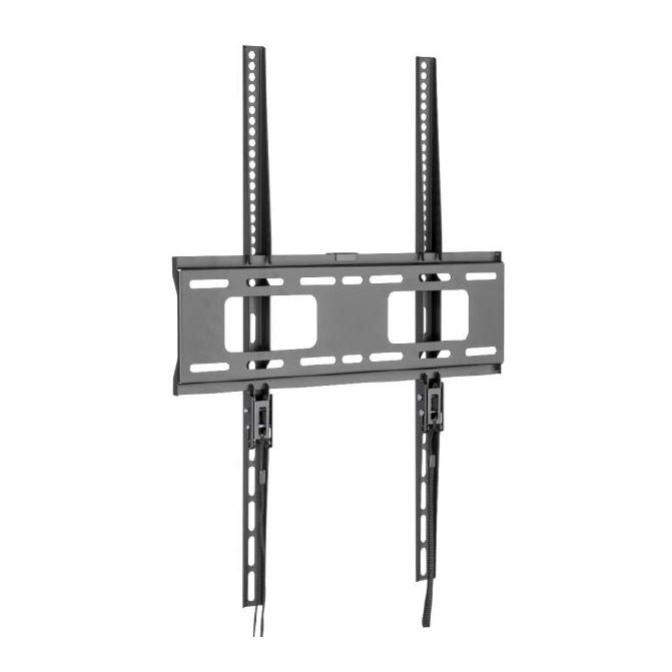

Atdec AD-WFP-5040 Portrait Fixed Wall Mount for Flat Panel Displays
The Atdec AD-WFP-5040 is a professional-grade fixed wall mount engineered specifically for portrait orientation displays. With a robust 50kg (110lb) weight capacity and ultra-slim 27mm (1.06") profile, this mount delivers secure, low-profile installation for digital signage, information kiosks, and commercial display applications. Designed for displays with VESA patterns that aren't supported by standard landscape mounts, the AD-WFP-5040 offers unmatched versatility and precision positioning.
Why Choose the Atdec AD-WFP-5040?
-
Portrait-Optimised Design: Purpose-built for vertical display mounting with VESA compatibility from 100×100mm to 400×600mm
-
Heavy-Duty Capacity: Supports displays up to 50kg (110lb) with robust steel construction
-
Ultra-Slim Profile: Just 27mm (1.06") from wall for a sleek, modern appearance
-
Lateral Shift Adjustment: Horizontal positioning even when offset from wall bracket position
-
Security Features: Lockable display brackets (accepts 4.5mm padlock, not included) for theft prevention
-
Easy Installation: Built-in spirit level, slotted mounting holes, and quick-connect display attachment
Perfect for Commercial Applications
The AD-WFP-5040 is ideal for digital signage, retail displays, information kiosks, wayfinding systems, and menu boards where portrait orientation maximises visibility and readability. Its theft-resistant design makes it suitable for high-traffic public spaces, shopping centres, airports, and corporate environments.
Universal VESA Compatibility
Supporting an extensive range of 15 VESA mounting patterns, the AD-WFP-5040 accommodates displays with hole patterns including 100×100, 100×200, 200×100, 200×200, 200×300, 200×400, 200×600, 300×200, 300×300, 400×200, 400×300, 400×400, 400×600, 600×200, and 600×400. This makes it compatible with most small to medium-large flat panel displays from leading brands.
Installation Made Simple
Atdec's easy-installation ethos shines through with features designed for professional installers and DIY users alike. The integrated spirit level ensures perfect vertical alignment, while forgiving slotted mounting holes allow precise positioning on the wall. The quick-connect display attachment system with magnetic-tipped release cords makes installation and future display changes effortless.
What's in the Box
- 1 × Wall Plate
- 2 × Display Brackets
- 4 × M5×14 Screws
- 4 × M6×14 Screws
- 4 × M6×30 Screws
- 4 × M8×30 Screws
- 4 × M8×50 Screws
- 4 × Multi Washers
- 8 × Short Spacers
- 8 × Long Spacers
- 1 × Spirit Level
- Installation Guide
Full Specifications
| Product Code |
AD-WFP-5040 |
| Colour |
Black |
| Material |
Steel |
| Maximum Load Capacity |
50kg (110lb) |
| VESA Compatibility |
100×100 to 400×600 (15 patterns) |
| Universal Width Range |
100mm to 400mm |
| Universal Height Range |
100mm to 600mm |
| Wall Offset / Profile |
27mm (1.06") |
| Orientation |
Portrait (Fixed) |
| Range of Motion |
Fixed angle parallel to wall |
| Lateral Shift |
Yes - horizontal adjustment |
| Tilt / Pan |
None (fixed mount) |
| Security |
Lockable brackets (4.5mm padlock compatible, not included) |
| Installation Features |
Built-in spirit level, slotted mounting holes, quick-connect attachment, magnetic release cords |
| Warranty |
10 years limited |
| Package Dimensions (Single Unit) |
66cm (L) × 15.6cm (W) × 4.1cm (H) |
| Weight (Single Unit) |
2.08kg |
| UPC |
881493019263 |
| Suitable Environments |
Commercial, domestic, light industrial |
Specifications are sourced from the manufacturer product page and may be updated. Wall mounting hardware not included - use appropriate fixings for your wall type.
