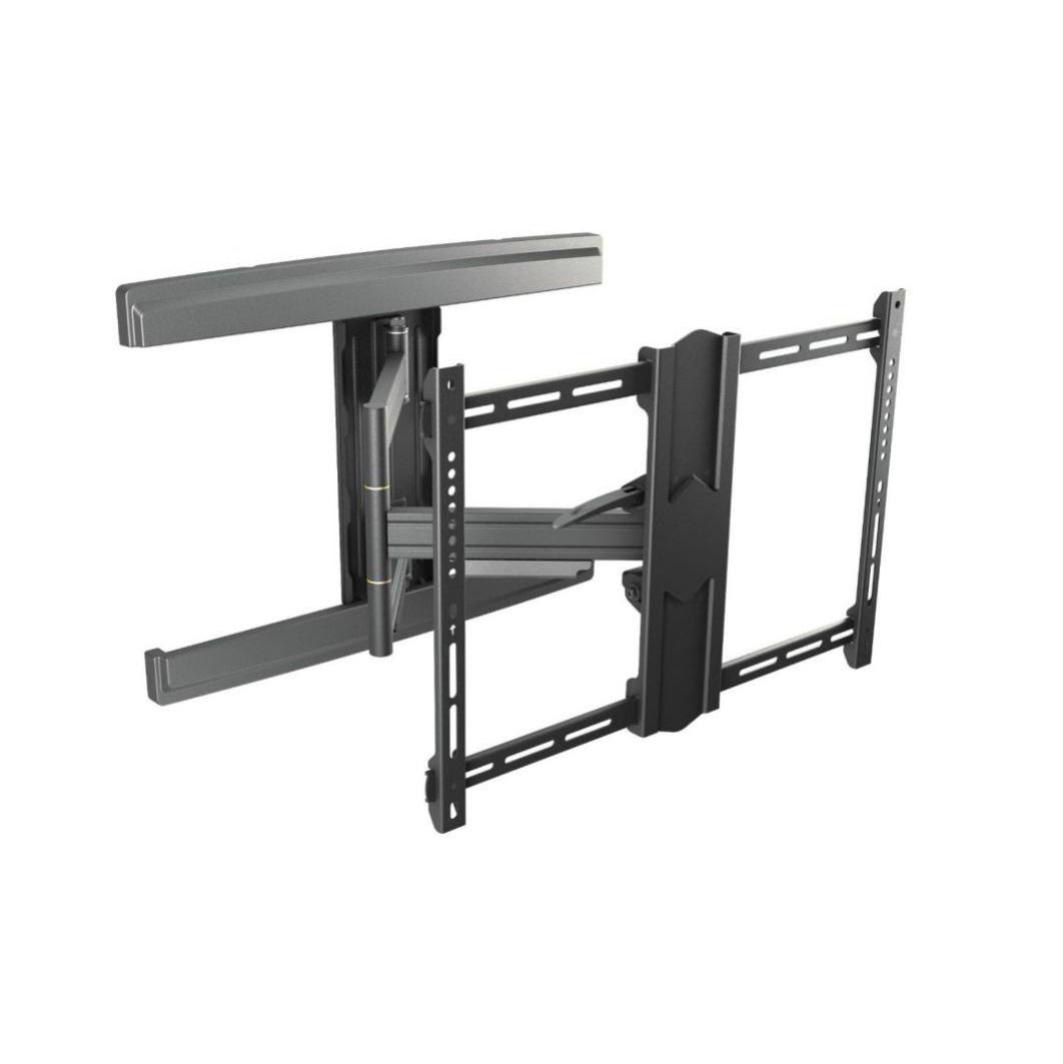

Atdec AD-WM-5060 Full Motion TV Wall Mount 50kg for 32-70 inch Screens
The Atdec AD-WM-5060 is a full motion wall mount designed for professional and residential installations requiring maximum display flexibility. With a 50kg (110lb) weight capacity, this heavy-duty mount supports displays from 32 to 70 inches and offers complete articulation including tilt, pan, rotation, and lateral adjustment. Perfect for collaboration spaces, meeting rooms, retail environments, and home theatres where precise display positioning is essential.
Why You'll Love the AD-WM-5060
-
Ultimate Flexibility: Full motion articulation with lateral, tilt, pan, and rotational adjustments for perfect viewing angles from any position
-
Extended Reach: Extends up to 650mm (25.6 inches) from the wall and retracts to a slim 70mm (2.8 inch) profile when not in use
-
Heavy-Duty Construction: Supports displays up to 50kg (110lb) with robust steel and aluminium construction
-
Quick Installation: Arrives pre-assembled with all display mounting hardware and installation guide included
-
Universal Compatibility: Fits VESA patterns from 200×100mm to 600×400mm in both landscape and portrait orientations
-
10-Year Warranty: Backed by Atdec's comprehensive 10-year limited warranty for peace of mind
Extreme Articulation for Every Viewing Scenario
The AD-WM-5060 delivers six-axis movement that adapts to any room layout or seating arrangement. Pan your display ±90° to face different areas of the room, tilt +2° to -15° to eliminate glare and optimize viewing height, and fine-tune with ±3° rotational levelling. The single arm can also be shifted laterally ±200mm (7.9 inches) along the wall plate, allowing you to position the display perfectly during installation even if wall studs aren't ideally located.
Sleek Design with Integrated Cable Management
Constructed from premium steel and aluminium with a professional black finish, the AD-WM-5060 blends seamlessly with modern displays and interiors. Integrated cable management channels keep power and video cables organized and concealed for a clean, professional installation. When retracted, the mount sits just 70mm from the wall, maintaining a low profile that won't dominate your space.
Perfect For
-
Collaboration Spaces: Easily reposition displays for close-up document review or group presentations
-
Meeting Rooms: Adjust viewing angles for participants seated in different areas
-
Digital Signage: Commercial-grade construction suitable for retail and hospitality installations
-
Home Theatres: Pull your TV away from the wall for access to ports and cables, then tuck it back when done
-
Multi-Purpose Rooms: Adapt your display position for different events and seating configurations
Installation Made Easy
The AD-WM-5060 arrives pre-assembled with all necessary display mounting hardware included, saving you time and eliminating guesswork. The display arm features alternative fixing points to accommodate optimal viewing angles for your specific environment. An installation guide is included to ensure a secure, professional mount. Note: wall mounting hardware is not included as appropriate fasteners vary depending on your wall construction (wood stud, concrete, brick, etc.).
What's in the Box
- AD-WM-5060 Full Motion Wall Mount (pre-assembled)
- Display mounting hardware kit
- Installation guide
Wall mounting hardware not included – select fasteners appropriate for your wall type.
Full Specifications
Compatibility
| Display Size Range |
32 to 70 inches |
| Maximum Weight Capacity |
50kg (110lb) |
| VESA Mounting Patterns |
Universal: 200×100, 300×200, 200×200, 400×200, 300×300, 400×300, 400×400, 600×200, 600×400mm |
| Orientation |
Landscape and portrait |
Movement & Adjustability
| Tilt Adjustment |
+2° to -15° |
| Pan Adjustment |
±90° (180° total range) |
| Rotation Adjustment |
±3° |
| Lateral Shift |
±200mm (7.9 inches) |
| Minimum Profile to Wall |
70mm (2.8 inches) |
| Maximum Extension |
650mm (25.6 inches) |
Construction & Finish
| Primary Material |
Steel and aluminium |
| Colour |
Black |
| Cable Management |
Integrated |
Warranty
| Warranty Period |
10 years limited |
Specifications are sourced from the manufacturer product page and may be updated. Curved displays, deep devices, VESA-mounted accessories, and offset VESA locations may exert additional leverage that can affect mount capacity even when display weight is within the stated range. Contact Atdec for specific compatibility questions.
