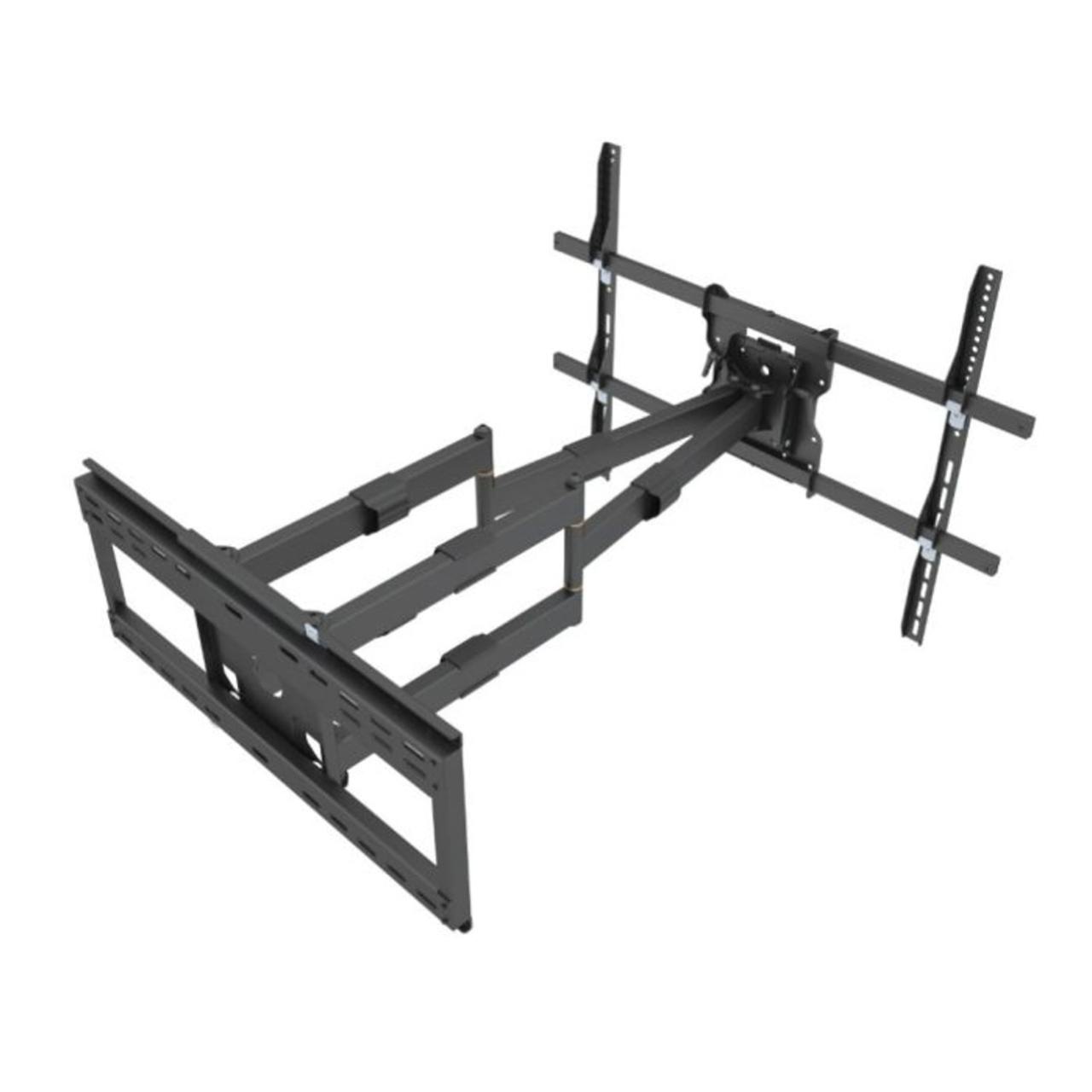

Atdec AD-WM-9080 Heavy-Duty Full Motion Wall Mount 50-100 inch to 90kg
The Atdec AD-WM-9080 is a heavy-duty full motion wall mount engineered for large and heavy displays from 50 to 100 inches, supporting up to 90kg (200lbs). Designed for commercial, retail, and home theatre installations requiring maximum flexibility, this robust mount features an extra-long arm extension up to 980mm (39 inches) from the wall, combined with full tilt, pan, rotation, and lateral shift capabilities. Whether you're installing a video wall in a conference room, a large display in a retail environment, or a home cinema screen, the AD-WM-9080 delivers unmatched versatility and precision positioning.
Key Features
-
Heavy-Duty Construction: Built primarily from steel for long-term durability and supports displays up to 90kg (200lbs)
-
Extreme Arm Extension: Extends from 110mm (4 inches) to 980mm (39 inches) from the wall for easy access to the rear of the display
-
Full Motion Adjustability: Tilt -10° to +5°, pan ±90°, rotational levelling ±5°, and lateral shift ±200mm (7.9 inches)
-
Wide VESA Compatibility: Supports VESA patterns from 100×100mm up to 800×600mm for compatibility with most large displays
-
Easy Installation: Pre-assembled with all display mounting fasteners included; accommodates 24-inch (600mm) stud spacing
-
Integrated Cable Management: Built-in clips keep cables organized and concealed for a clean, professional appearance
Professional-Grade Full Motion Adjustability
The AD-WM-9080 provides complete freedom of movement for precise display positioning. The lateral shift capability of ±200mm allows you to position the display exactly where you need it, even if it's offset from the wall bracket mounting location. The mount enables pan adjustment of ±90 degrees, tilt from -10° to +5°, and rotational levelling of ±5 degrees, ensuring optimal viewing angles and perfect alignment in any installation. When smaller displays are used within the supported size range, even greater freedom of movement is available.
Robust Construction for Heavy Displays
Constructed primarily of high-grade steel with a sleek black finish, the AD-WM-9080 is built for heavy-duty operation and long service life. This mount is designed specifically for large and heavy displays requiring full motion and extremely long arm extension. It suits commercial, retail, domestic, and light industrial environments, serving virtually all large-screen applications including corporate video walls, digital signage, home theatres, and sports bars. The mount accommodates installation on stud walls with standard 24-inch spacing.
Installation and Compatibility
Designed for fast and easy installation, the AD-WM-9080 arrives pre-assembled with all display mounting fasteners included. The mount features forgiving slotted mounting holes, a built-in spirit level, quick-connect display attachment, and easy-to-conceal magnetic-tipped display release cords. The universal VESA compatibility up to 800×600mm ensures the mount works with most large displays from 50 to 100 inches. Note that wall mounting hardware is not included and must be selected based on your specific wall type.
What's in the Box
- AD-WM-9080 wall mount (pre-assembled)
- Display mounting fasteners
- Cable management clips
- Magnetic-tipped display release cords
- Installation instructions
Full Specifications
| Display Size Range |
50 to 100 inches |
| Maximum Load Capacity |
90kg (200lbs) |
| VESA Compatibility |
100×100mm to 800×600mm |
| Arm Extension |
110mm to 980mm (4 to 39 inches) from wall |
| Tilt Adjustment |
-10° to +5° |
| Pan Adjustment |
±90° |
| Rotational Levelling |
±5° |
| Lateral Shift |
±200mm (±7.9 inches) |
| Stud Spacing |
24 inches (600mm) |
| Construction Material |
Aluminium and steel |
| Finish |
Black |
| Cable Management |
Integrated clips included |
| Warranty |
10 years limited |
Specifications are sourced from the manufacturer product page and may be updated. Note: Curved displays, deep devices, VESA-mounted accessories, and offset VESA locations may exert additional leverage that can affect the weight capacity even when the display weight is within the stated range. Contact Atdec for specific installation questions.
