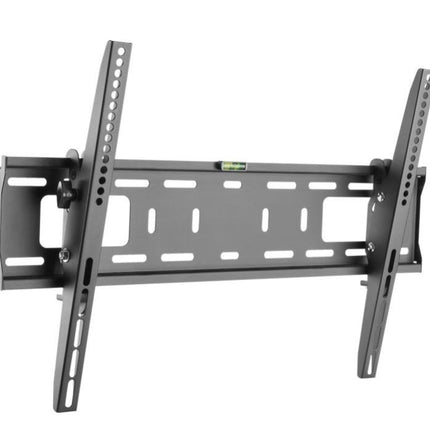

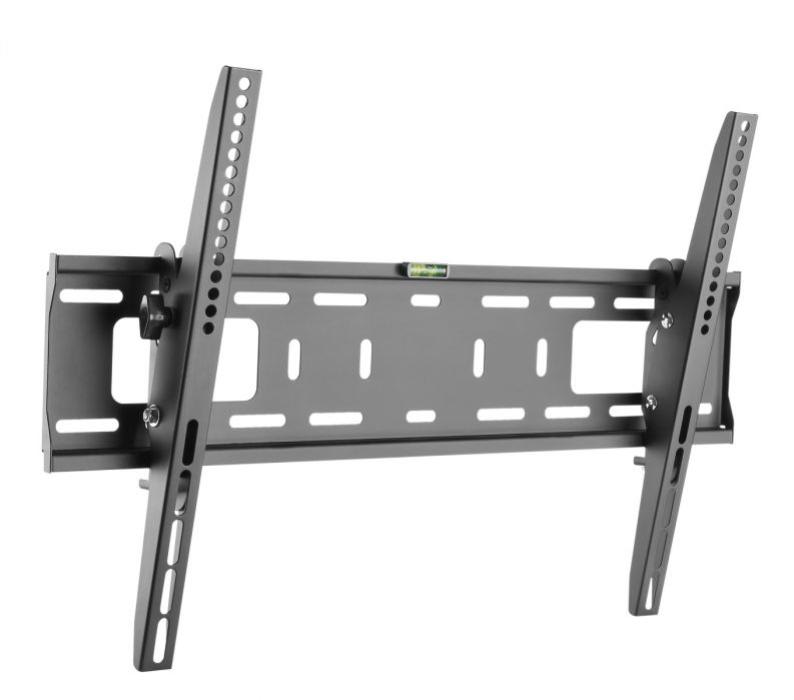

Atdec AD-WT-5060 Tilt Wall Mount 50kg Universal VESA Display Bracket
The Atdec AD-WT-5060 is a professional-grade tilt wall mount designed for medium to large flat panel displays up to 50kg (110lb). With adjustable tilt functionality, lateral shift positioning, and integrated installation features including a built-in spirit level, this mount delivers effortless setup and optimal viewing angles for commercial, education, hospitality, and home environments. Supporting universal VESA patterns up to 600×400, the AD-WT-5060 is compatible with most modern displays and accommodates both common stud wall patterns for Australian installations.
Key Features
-
Heavy-Duty Capacity: Supports displays up to 50kg (110lb) with robust steel construction
-
Adjustable Tilt: Tilt range from -10° to +5° for glare reduction and optimal viewing comfort
-
Universal VESA Compatibility: Supports VESA patterns including 100×100, 200×100, 200×200, 300×200, 300×300, 400×200, 400×300, 400×400, 600×200, and 600×400
-
Device Concealment Space: 56mm (2.2 inches) of space behind the display to hide media players, cables, and components
-
Easy Installation: Built-in spirit level and forgiving slotted mounting holes simplify wall plate positioning
-
10-Year Warranty: Backed by a 10-year limited warranty for long-term peace of mind
Perfect for Australian Installations
The AD-WT-5060 is specifically designed for stud walls with 24 inch spacing, making it ideal for standard Australian commercial and residential construction. Multiple features for fast and easy installation are incorporated into the design, allowing professional installers and DIY users alike to achieve secure, level mounting quickly. Its versatility and construction makes it suitable for commercial, domestic, and most light industrial environments.
Adjustable Viewing Angles
The tilt mechanism allows you to angle your display for the best viewing experience in any room. Whether you need to reduce glare from windows or lights, or simply find the perfect angle for seated or standing viewers, the display can be tilted to the desired viewing angle with a screw knob to lock the angle in place. The brackets allow minor lateral adjustment to position the display precisely as desired, even if slightly offset from the wall plate.
Clean, Professional Installations
The mount provides 56mm of space behind the display, ideal for concealing devices, cables, and other components while allowing proper ventilation and easy access to connections. This rear cavity keeps your installation looking clean and professional, with no visible cables or media devices cluttering the appearance.
What's in the Box
- Wall plate
- 2 × display brackets
- 4 × M5×14 screws
- 4 × M6×14 screws
- 4 × M6×30 screws
- 4 × M8×30 screws
- 4 × M8×50 screws
- 4 × washers
- 8 × spacers (long)
- 8 × spacers (short)
- Spirit level
- Installation guide
Full Specifications
| Model |
AD-WT-5060 |
| Mount Type |
Tilt wall mount |
| Maximum Load Capacity |
50kg (110lb) |
| Tilt Range |
-10° to +5° |
| VESA Compatibility |
100×100, 200×100, 200×200, 300×200, 300×300, 400×200, 400×300, 400×400, 600×200, 600×400 |
| Mounting Hole Pattern Range |
75mm to 620mm wide × 70mm to 405mm high |
| Space Behind Display |
56mm (2.2 inches) |
| Stud Wall Spacing |
24 inches (610mm) |
| Construction |
Steel |
| Finish |
Black |
| Installation Features |
Integrated spirit level, slotted mounting holes, lateral shift adjustment |
| Suitable Environments |
Commercial, domestic, light industrial (indoor use only) |
| Warranty |
10 years limited |
Specifications are sourced from the manufacturer product page and may be updated.
