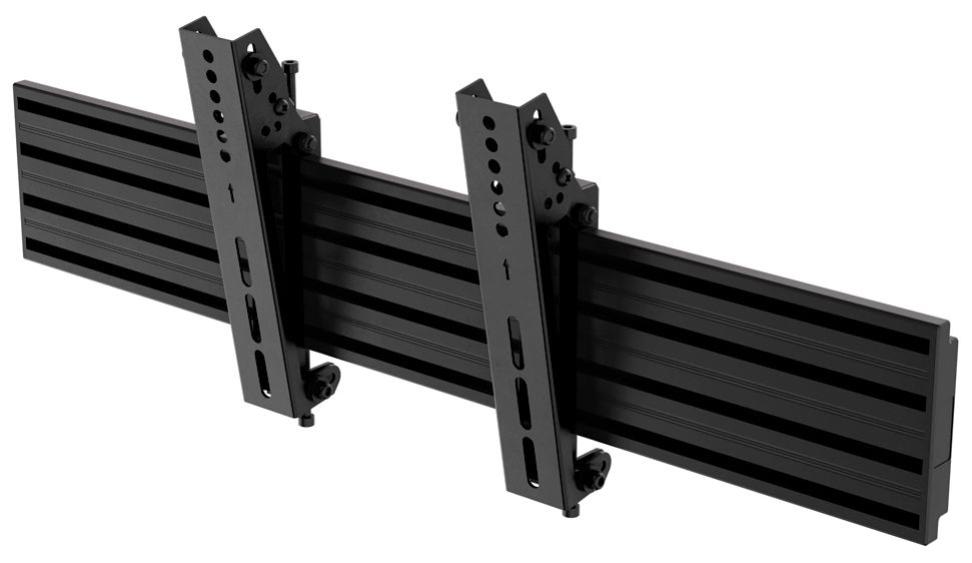

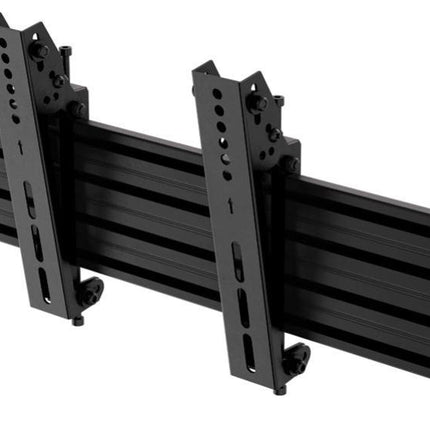

Atdec ADB-B200T VESA 200 Tilt Brackets for Digital Signage Displays
The Atdec ADB-B200T VESA 200 Tilt Brackets are designed for single or multi-screen digital signage installations, mounting small to medium displays in a tilted position along modular horizontal rails. Supporting screens up to 50kg (110lb) with a VESA pattern up to 200mm, these brackets deliver versatile mounting solutions for retail, hospitality, corporate, and public spaces. The simple hook-on design allows fast installation, while fine-tune adjustments ensure perfect alignment post-installation.
Key Features
-
Tilt Range: Adjustable from -15° to +5° for optimal viewing angles
-
Load Capacity: Supports displays up to 50kg (110lb)
-
VESA Compatibility: Universal VESA patterns up to 200mm high
-
Dual Orientation: Mount screens in landscape or portrait mode
-
Easy Installation: Hook-on design for fast fitting to ADB rails
-
Fine-Tune Adjustments: Vertical ±3mm (0.12") and lateral adjustments on rail
Part of the Atdec Modular Digital Signage Family
The ADB-B200T brackets integrate seamlessly with the Atdec Modular ADB system, allowing you to create custom single-screen or multi-screen digital signage configurations. Whether you're building a video wall, menu board, wayfinding display, or interactive signage solution, these brackets provide the flexibility and reliability your project demands. Pair them with ADB rails, poles, feet, and other components to design the perfect mounting solution.
Professional-Grade Construction
Built from robust steel construction in a sleek black finish, the ADB-B200T brackets are engineered for durability and long-term performance in commercial environments. The levelling screws on each bracket enable quick horizontal and vertical adjustments both during and after installation, ensuring perfect screen alignment every time. Backed by a 10-year warranty, these brackets deliver peace of mind for installers and venue managers alike.
Ideal Applications
Perfect for retail digital menu boards, corporate lobbies, conference rooms, hospitality signage, education facilities, and any application requiring reliable, adjustable display mounting. The tilt functionality ensures optimal visibility from various viewing heights, while the modular design future-proofs your installation for easy reconfiguration.
What's in the Box
- Set of 2 VESA 200 tilt brackets
- Mounting hardware
- Installation instructions
Full Specifications
| Product Code |
ADB-B200T |
| Material |
Steel |
| Colour |
Black |
| VESA Pattern |
Universal up to 200mm high |
| Load Capacity |
50kg (110lb) |
| Tilt Range |
-15° to +5° |
| Vertical Adjustment |
±3mm (0.12") |
| Lateral Adjustment |
On rail |
| Screen Orientation |
Landscape or portrait |
| Compatibility |
Atdec Modular ADB system |
| Warranty |
10 years |
| Quantity |
Set of 2 brackets |
| UPC |
881493018952 |
Specifications are sourced from the manufacturer product page and may be updated.
