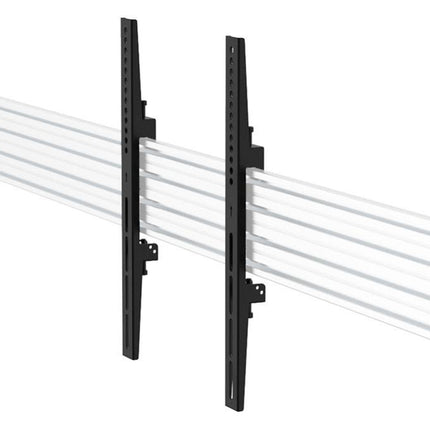

Atdec ADB-B400F VESA 400 Fixed Brackets for Displays up to 50kg
The Atdec ADB-B400F VESA 400 Fixed Brackets are designed for mounting medium to large displays in a fixed position parallel to the wall. Ideal for single or multi-screen installations, this set of two brackets supports displays up to 50kg (110lb) with universal VESA mounting patterns up to 400mm high. Part of Atdec's modular digital signage family, these brackets hook onto ADB rails for fast, simple installation and offer fine-tune adjustments for perfect alignment.
Key Features
-
Universal VESA Compatibility: Supports VESA mounting patterns up to 400mm high, compatible with a wide range of display models
-
Heavy-Duty Capacity: Holds displays up to 50kg (110lb) per bracket set
-
Fine Adjustment: Vertical adjustment of +/-3mm (0.12") and lateral adjustment on rail for precise alignment after installation
-
Flexible Orientation: Mount displays in landscape or portrait orientation to suit your needs
-

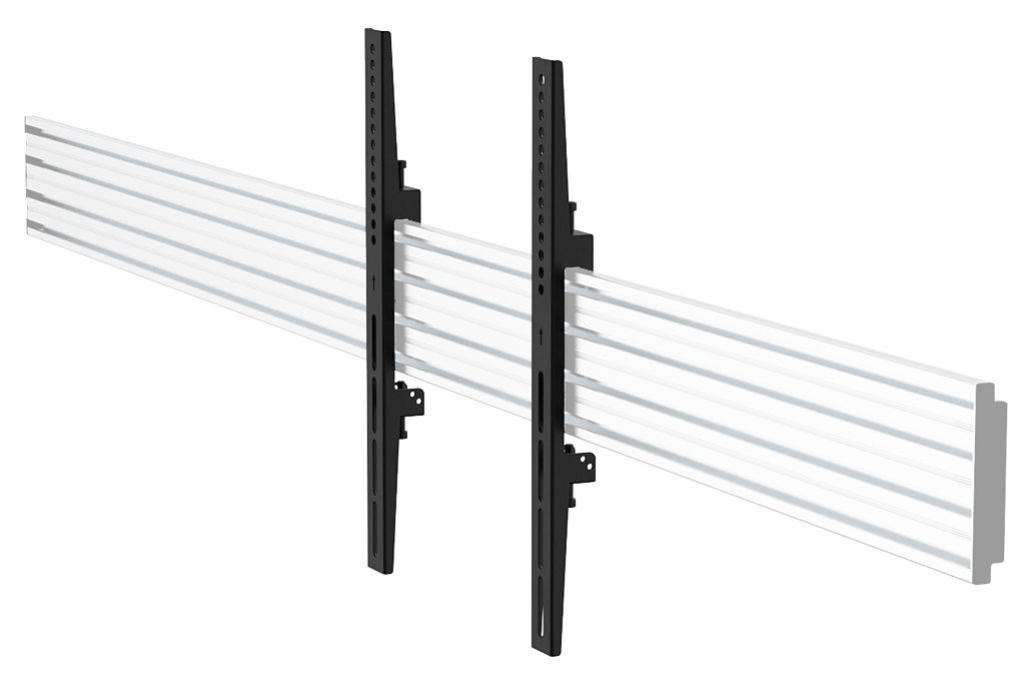

Easy Installation: Simple hook-on design for fast installation onto ADB modular rails
-
10-Year Warranty: Backed by Atdec's industry-leading warranty for long-term peace of mind
Perfect for Digital Signage and Multi-Screen Installations
The ADB-B400F brackets are ideal for retail digital signage, corporate video walls, control rooms, and broadcast environments where multiple displays need to be mounted securely along a horizontal rail. The modular design integrates seamlessly with Atdec's ADB rail system, allowing you to create custom single-screen or multi-screen configurations with ease.
Modular Digital Signage System
As part of the Atdec modular digital signage family, the ADB-B400F brackets work with ADB rails, uprights, poles, and accessories to create floor-to-ceiling mounts, freestanding floor mounts, and video wall configurations. Mix and match components to build the perfect mounting solution for your space, from single displays to complex multi-screen arrays.
Built for Commercial Durability
Constructed from high-quality steel with a black powder-coated finish, these brackets are built to withstand the demands of commercial environments. Levelling screws on each bracket provide quick horizontal and vertical height adjustment both during and after installation, ensuring displays are perfectly aligned every time.
What's in the Box
- 2 × ADB-B400F VESA 400 fixed brackets
- Mounting hardware
- Installation instructions
Full Specifications
| Product Code |
ADB-B400F |
| Quantity |
Set of 2 brackets |
| VESA Compatibility |
Universal VESA up to 400mm high |
| Maximum Load Capacity |
50kg (110lb) per display |
| Screen Orientation |
Landscape or portrait |
| Vertical Adjustment |
+/-3mm (0.12") |
| Lateral Adjustment |
On rail |
| Material |
Steel |
| Colour |
Black |
| Dimensions (single unit) |
432mm (L) × 84mm (W) × 43mm (H) |
| Weight (single unit) |
1kg (2.20lb) |
| Compatible System |
Atdec modular digital signage (ADB) rail system |
| Warranty |
10 years |
| UPC |
881493015852 |
Specifications are sourced from the manufacturer product page and may be updated.
