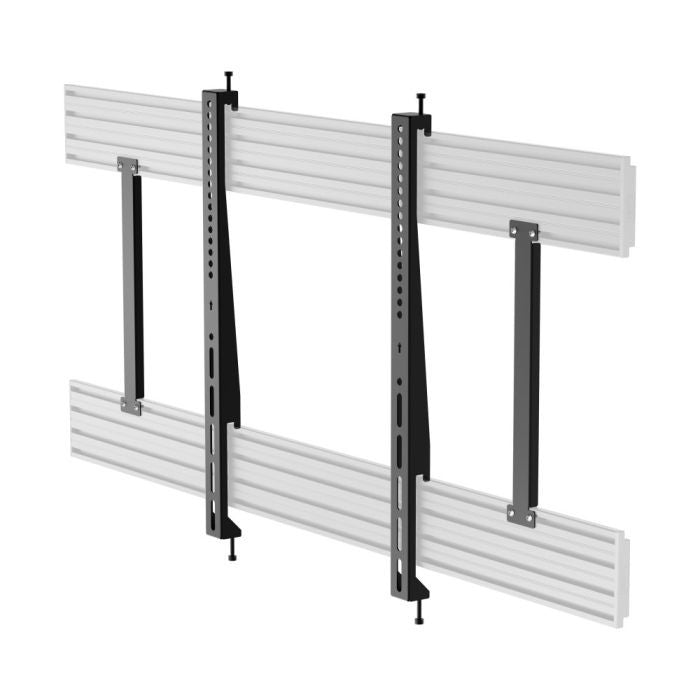

Atdec ADB-B600H VESA 600 Heavy Duty Fixed Bracket Set
The Atdec ADB-B600H is a professional-grade heavy duty fixed bracket set designed for mounting large and heavy displays up to 100kg (220lb) per display. Sold as a set of two brackets, the ADB-B600H is ideal for touchscreens, interactive flat panels, video walls, menu boards, and digital signage installations. Part of Atdec's modular ADB family, these brackets offer reinforced steel construction and flexible configuration options for wall, ceiling, floor, or floor-to-ceiling mounting applications.
Why Choose the Atdec ADB-B600H?
-
Heavy Duty Capacity: Supports displays up to 100kg (220lb) per bracket, perfect for large format and commercial-grade screens
-
VESA 600 x 600mm Compatibility: Universal mounting pattern accommodates a wide range of large displays including 65", 75", 86" and larger screens
-
Reinforced Steel Construction: Built with reinforcing spacers (380mm long) to ensure stability and safety for heavy installations
-
Flexible Orientation: Supports both landscape and portrait screen orientation for versatile digital signage applications
-
Fine Tune Adjustment: Features vertical levelling adjustment (+/-3mm) for precise alignment after installation
-
10 Year Warranty: Backed by Atdec's comprehensive warranty for long-term peace of mind
Modular Design for Maximum Flexibility
The ADB-B600H is part of the Atdec modular digital signage family, allowing you to create virtually any configuration for your commercial display needs. These brackets work seamlessly with Atdec's ADB rails, upright posts, and mounting accessories to build floor, ceiling, wall, or floor-to-ceiling solutions. They're particularly popular for multi-screen installations, video walls, and menu boards in retail, hospitality, corporate, and education environments.
Easy Installation Features
The ADB-B600H brackets include hooks to hang the display prior to affixing, making installation easier and safer when working with heavy screens. The universal slots and holes for connection and mounting (635mm long) provide flexibility in positioning, while the included reinforcing spacers ensure the entire structure maintains its strength under heavy loads.
Ideal Applications
- Interactive touchscreens and collaboration displays
- Large format digital signage (retail, airports, corporate lobbies)
- Video walls and multi-screen menu boards
- Single or back-to-back display configurations
- Mobile digital signage on wheeled structures
- Displays with integrated devices requiring heavy duty support
What's in the Box
- 2 x Heavy duty fixed brackets (635mm long)
- 2 x Reinforcing spacers (380mm long)
- Installation hardware
- Installation guide
Full Specifications
| Model |
ADB-B600H |
| Load Capacity |
100kg (220lb) per display |
| VESA Compatibility |
Universal to 600 x 600mm high |
| Bracket Length |
635mm (25") |
| Spacer Length |
380mm (15") |
| Vertical Levelling |
+/-3mm (0.12") |
| Orientation |
Landscape or portrait |
| Material |
Reinforced steel |
| Colour |
Black |
| Mounting Configurations |
Wall, ceiling, floor, floor-to-ceiling, mobile |
| Included in Set |
2 x brackets, 2 x spacers |
| Warranty |
10 years |
Specifications are sourced from the manufacturer product page and may be updated.
