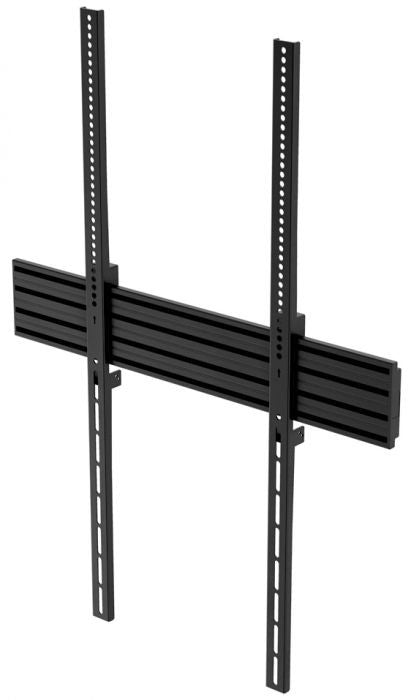

Atdec ADB-B900F VESA 900 Fixed Brackets for Large Digital Signage
The Atdec ADB-B900F is a professional-grade set of fixed mounting brackets designed for large displays up to 50kg (110lb) in digital signage, video wall, and menu board applications. These brackets mount large displays in a fixed position, parallel to the wall, with VESA patterns up to 900mm high accommodating both landscape and portrait orientations. The brackets hook onto ADB rails easily for fast simple installation.
Why Choose the ADB-B900F Fixed Brackets?
-
Heavy-Duty Load Capacity: Each bracket can support up to 50 kg (110 lbs), ensuring secure mounting for most large displays.
-
Universal VESA Compatibility: Supports displays with VESA mounting patterns up to 900 mm high, accommodating a variety of large-screen sizes and orientations, including both landscape and portrait modes.
-
Fine-Tune Adjustability: Features leveling screws on each bracket, providing quick and easy horizontal and vertical height adjustments both during and after installation.
-
Modular Integration: Part of the Atdec modular digital signage system, these brackets hook onto ADB rails for rapid alignment in multi-screen video wall configurations.
-
10-Year Warranty: Backed by Atdec's industry-leading 10-year warranty for long-term reliability and peace of mind.
Ideal for Single and Multi-Screen Installations
The ADB-B900F is a pair of fixed-angle brackets designed for mounting large displays in a fixed position, parallel to the wall, and are particularly suitable for single or multi-screen installations, such as video walls or digital signage applications. Whether you're building an eye-catching retail video wall, a corporate lobby display, or a restaurant menu board system, these brackets provide the secure, low-profile mounting solution you need.
Easy Installation and Alignment
The simple hook-on design integrates seamlessly with Atdec's ADB rail system, allowing installers to mount and align multiple displays quickly and precisely. Vertical adjustment of ±3mm (0.12") and lateral adjustment on rail ensure perfect alignment even after installation, eliminating gaps and misalignment in multi-display arrays.
Built for Australian Commercial Environments
Engineered for demanding commercial applications across Australia, the ADB-B900F brackets are ideal for retail stores, shopping centres, corporate offices, hospitality venues, education facilities, and transportation hubs. The black finish complements modern display aesthetics while the robust construction ensures years of reliable performance.
What's in the Box
- 2 × ADB-B900F fixed mounting brackets
- Mounting hardware and screws
- Installation instructions
Full Specifications
| Model |
ADB-B900F |
| Product Type |
Fixed VESA Brackets (Set of 2) |
| Load Capacity |
50kg (110lb) per bracket |
| VESA Compatibility |
Universal patterns up to 900mm high |
| Orientation |
Landscape or Portrait |
| Vertical Adjustment |
±3mm (0.12") |
| Horizontal Adjustment |
Lateral on rail |
| Mounting Type |
Hook-on design for ADB rail system |
| Colour |
Black |
| Warranty |
10 years |
Specifications are sourced from the manufacturer product page and may be updated.
