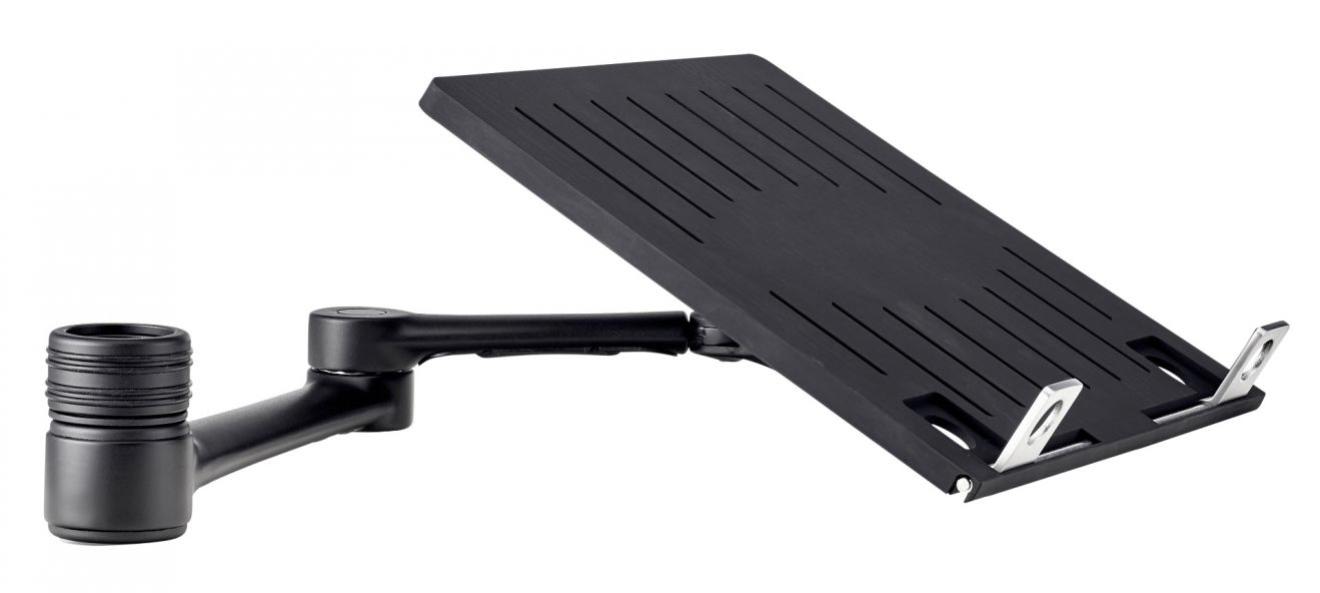

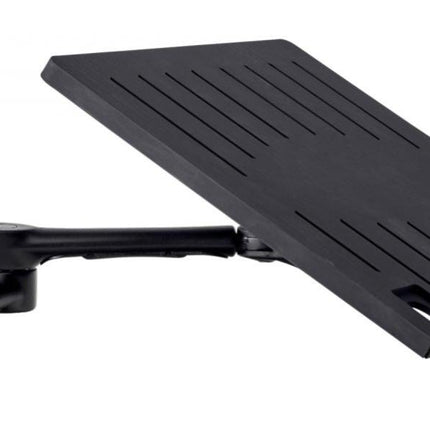

Atdec AF-AN-B Accessory Notebook Arm for AF-AT-B Pole Mount Black
Transform your Atdec AF-AT-B pole mount into a powerful dual-screen workstation with the AF-AN-B Accessory Notebook Arm. Designed for professionals seeking an ergonomic, space-saving solution, this premium notebook arm supports laptops up to 18 inches and 8kg (17.6lb), delivering superior screen position control and flexibility for corporate and home office environments.
Key Features
-
Full Motion Articulation: 360° pole rotation, 180° pan adjustment, and 10-35° tilt adjustment for optimal viewing angles
-
Ergonomic Design: Three pivot points with a maximum arm reach of 380mm (14.96") for extended reach and comfort
-
Ventilated Non-Slip Base: Ensures extended laptop performance with moveable feet for easy port access
-
Dual Configuration Ready: Combines with AF-AT-B monitor arm for independent monitor and laptop positioning
-
Quick-Release Head: Features integrated security screw for safe display removal and installation
-
Tool-Free Height Adjustment: Easy adjustments without tools for maximum convenience
Premium Construction & Design
The AF-AN-B features a sleek black finish with aluminium and durable plastic construction, combining stylish aesthetics with contemporary office décor. The lightweight yet strong, recyclable aluminium design ensures long-lasting durability while maintaining a professional appearance. The ventilated tray base prevents laptop overheating during extended use, making it ideal for power users running demanding applications.
Ergonomic Flexibility
Achieve the perfect dual-screen setup with independent adjustment capabilities for both your monitor and notebook. The articulated design offers glare control and optimal viewing angle adjustment through comprehensive tilt and pan capabilities. The arm supports 360° rotation around the mounting pole, or can be limited to 180° using the included rotation limiter. With ±5° horizontal adjustment and ±25° tilt range, you can fine-tune your laptop position for maximum comfort and productivity.
Versatile Mounting Options
When the notebook tray is removed, the arm supports 75 × 75mm or 100 × 100mm VESA mounting patterns, allowing you to mount a secondary monitor up to 8kg (17.6lb). This versatility makes the AF-AN-B perfect for hot-desking environments, conference rooms, or professionals who switch between laptop and monitor configurations.
Installation & Compatibility
The AF-AN-B is designed for installation on existing Atdec AF-AT-B pole mounts (sold separately). Height adjustment range spans from 95mm (3.75") minimum to 435mm (17.13") maximum, accommodating users of different heights and desk configurations. The arm includes all necessary mounting hardware and fasteners for straightforward installation.
What's in the Box
- Atdec AF-AN-B Notebook Arm Assembly
- Hand Grip Assembly
- Rotation Limiter
- Primary and Secondary Arm Cable Covers
- Self-Adhesive Hook & Loop Fasteners (4 sets)
- Mounting Hardware and Fasteners
Full Specifications
Capacity & Compatibility
| Maximum Notebook Weight |
8kg (17.6lb) |
| Maximum Notebook Width |
18 inches |
| VESA Compatibility (without tray) |
75 × 75mm, 100 × 100mm |
| Compatible Pole Mounts |
AF-AT-B, AF-AT-P (sold separately) |
Range of Movement
| Pole Rotation |
360° (or 180° with limiter) |
| Pan Adjustment |
180° |
| Tilt Adjustment Range |
10° to 35° (25° total range) |
| Horizontal Adjustment |
±5° |
| Maximum Arm Reach |
380mm (14.96") |
| Pivot Points |
3 |
Dimensions
| Minimum Height |
95mm (3.75") |
| Maximum Height |
435mm (17.13") |
| Overall Dimensions |
340mm × 440mm (13.39" × 17.32") |
| Notebook Tray Depth Range |
128mm (5.04") to 258mm (10.16") |
Construction & Finish
| Material |
Aluminium and plastic |
| Colour |
Black |
| Tray Features |
Ventilated, non-slip base with moveable feet |
| Cable Management |
Integrated cable covers included |
Additional Features
| Height Adjustment |
Tool-free |
| Quick Release Head |
Yes, with integrated security screw |
| Warranty |
10 years limited |
Specifications are sourced from the manufacturer product page and may be updated.
