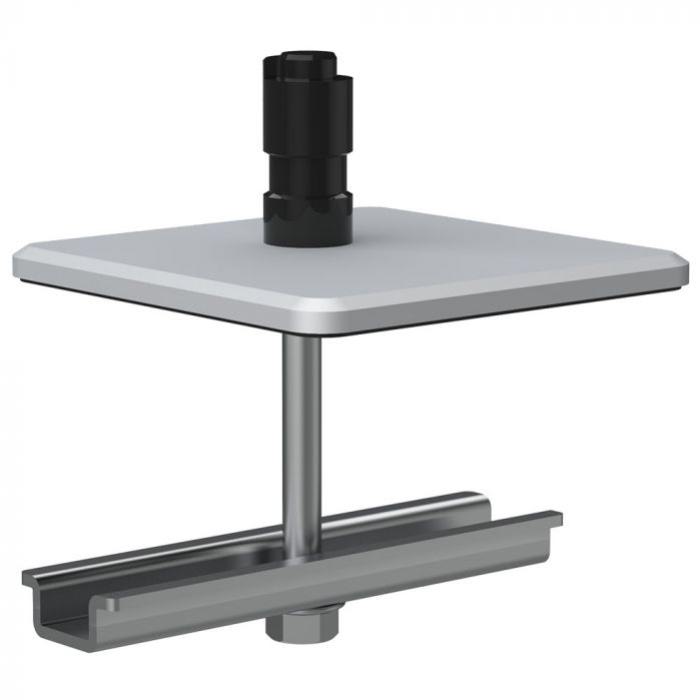

Atdec AW-FB-S Bolt Through Grommet Mount for Ora Monitor Arm - Silver
The Atdec AW-FB-S is a bolt through and grommet fixing accessory designed specifically for the award-winning Ora monitor arm range. When edge-mounting isn't possible due to bevelled or obstructed desk edges, this versatile fixing provides the perfect solution. Compatible with grommet holes from 60mm to 80mm and desks up to 55mm thick, it offers flexible mounting options for modern ergonomic workspaces across Australia.
Why Choose the Atdec AW-FB-S Grommet Fixing?
This silver-finish mounting accessory is engineered for workspaces where traditional clamp mounting is not feasible. It supports the full capacity of Ora monitor arms, accommodating displays from 2kg to 8kg (4.4lb to 17.6lb) and screen sizes up to 35 inches, whether curved or flat. The bolt-through design allows cables to pass cleanly through the grommet hole behind the clamp for a tidy, professional installation.
Key Features
-
Grommet Compatibility: Fits grommet holes from 60mm to 80mm (2.36 to 3.15 inches)
-
Bolt Through Option: Minimum clearance hole size of 9mm (3/8 inch) for direct bolt-through installation
-
Desk Thickness Range: Supports desks from 0mm to 55mm (0 to 2.17 inches) thick
-
Monitor Capacity: Supports 2kg to 8kg (4.4lb to 17.6lb) monitors up to 35 inches
-
Pan Movement: 180° to 360° rotation for flexible positioning
-
Cable Management: Cables pass through the grommet hole behind the clamp for a clean setup
-
Silver Finish: Matches silver Ora monitor arms for a cohesive aesthetic
-
10-Year Limited Warranty: Backed by Atdec's industry-leading warranty coverage
Perfect for Modern Workspaces
The AW-FB-S is ideal for contemporary offices, hot-desking environments, home offices, and corporate workstations where desk edges are bevelled, rounded, or otherwise incompatible with traditional clamps. It integrates seamlessly with the Ora monitor arm family, one of the most awarded monitor arms globally (iF Award, Red Dot Award, Good Design awards). Whether you're outfitting a single home office or deploying across an entire corporate campus in Sydney, Melbourne, Brisbane, or beyond, this fixing ensures reliable, ergonomic monitor mounting.
Installation & Compatibility
Installation requires basic tools: a 4mm hex key (supplied with Ora arm), an 8.5mm drill bit, a power drill, a 13mm spanner, and a Phillips head screwdriver. The fixing must be positioned at least 40mm from the work surface edge. It is designed exclusively for use with Atdec Ora monitor arms (sold separately).
What's in the Box
- 1 × Clamp Plate
- 1 × Clamp Bar
- 1 × Arm Spigot
- 1 × M8 Stud Bolt
- 1 × M8 Flange Nut
- Installation Guide
Full Specifications
| Model Number |
AW-FB-S |
| SKU |
AW-FB-S |
| UPC |
881493020337 |
| Finish |
Silver |
| Compatibility |
Atdec Ora monitor arm range |
| Mounting Type |
Bolt through / Grommet fixing |
| Grommet Hole Size |
60mm to 80mm (2.36" to 3.15") |
| Minimum Hole Size (Bolt Through) |
9mm (3/8") |
| Desk Thickness Range |
0mm to 55mm (0" to 2.17") |
| Monitor Weight Capacity |
2kg to 8kg (4.4lb to 17.6lb) |
| Display Size |
Up to 35" (curved or flat) |
| Pan Movement |
180° to 360° |
| Minimum Distance from Edge |
40mm (1.57") |
| Warranty |
10 years limited |
| Tools Required |
4mm hex key, 8.5mm drill bit, power drill, 13mm spanner, Phillips screwdriver |
Specifications are sourced from the official manufacturer product page and may be updated. Ora monitor arms sold separately.
