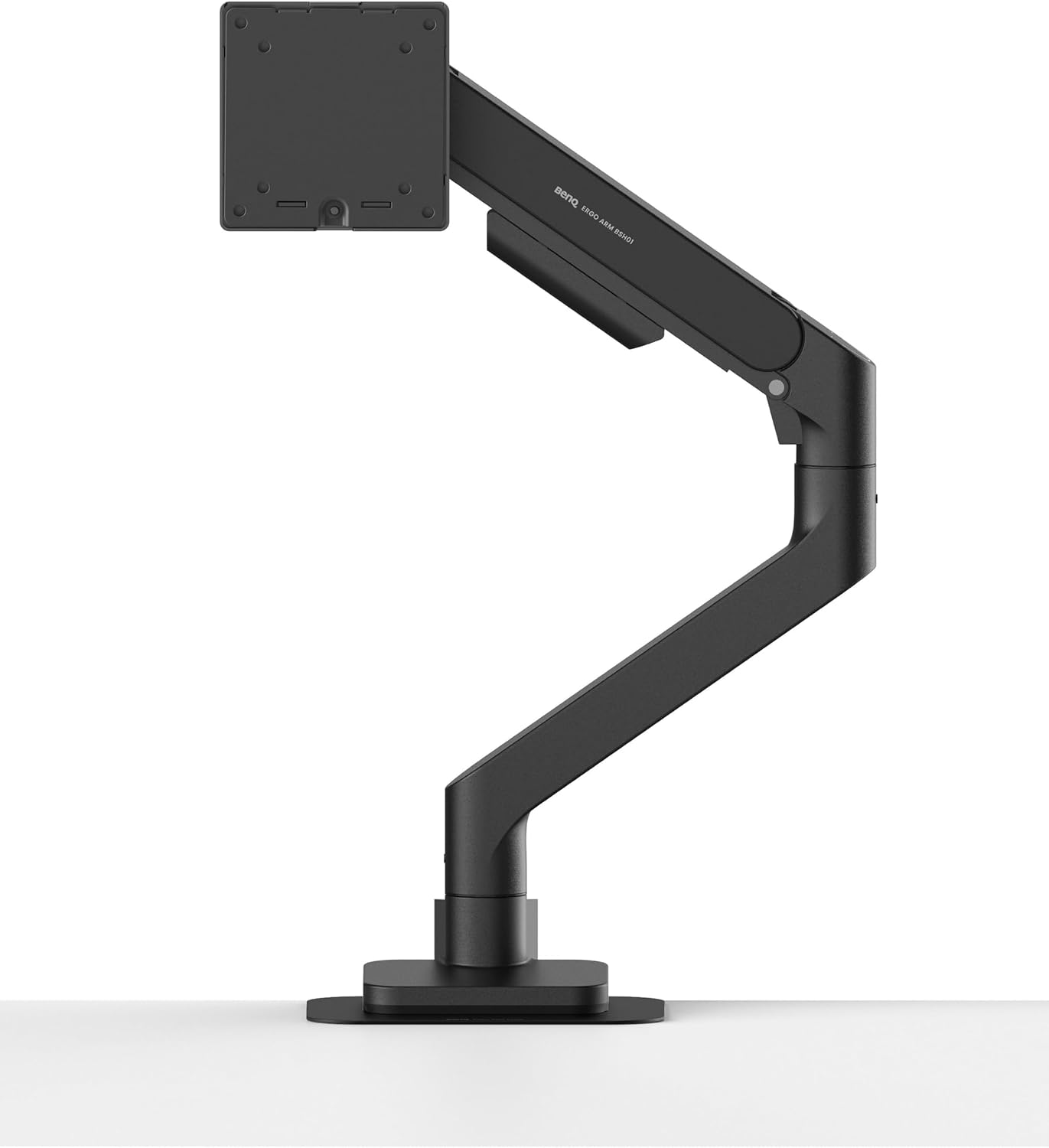

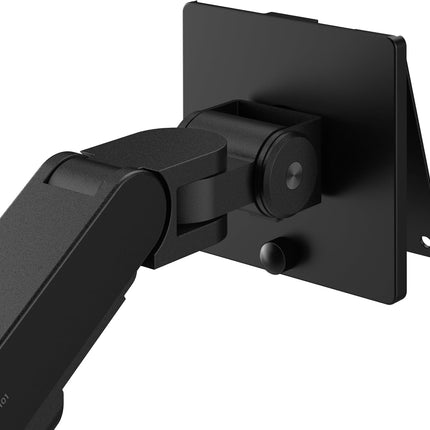

BenQ BSH01 Single Ergo Arm Gas Spring Monitor Mount Up to 45 Inch
The BenQ BSH01 Ergo Arm is a premium gas spring monitor mount designed to support large displays up to 45 inches and 20 kg (44 lbs). Built for stability and ergonomic flexibility, this heavy-duty mount features an optimised tilt structure with a gas spring mechanism tested for 25,000 cycles to prevent sagging and ensure long-lasting, wobble-free performance. Perfect for ultrawide monitors, professional workstations, and home offices, the BSH01 delivers smooth, effortless adjustments and includes a reinforcement plate to protect your desk from scratches and deformation.
Key Features
-
Heavy-Duty Weight Capacity: Supports monitors from 2 kg to 20 kg (4.4 to 44 lbs), ideal for ultrawide and large displays
-
Gas Spring Mechanism: Tested for 25,000 cycles, ensuring consistent sturdiness without sagging or drooping over time
-
Full Motion Adjustability: Arm extends up to 568 mm (22.4 inches), with 50° to -20° tilt, 180° swivel, and 360° rotation
-
Desk Protection Included: Steel reinforcement plate protects thin, glass, and fragile tabletops from scratches and deformation
-
Quick Installation: Top-mounting design with included C-clamp and grommet options, plus factory preset tension for easy setup
-
Integrated Cable Management: Built-in cable routing channels keep your workspace clean, organised, and clutter-free
Universal Compatibility
The BSH01 is compatible with a wide range of monitors from 17 inches to 45 inches, supporting VESA 75 × 75 mm and 100 × 100 mm mounting patterns. It works seamlessly with BenQ, Dell, HP, Samsung, LG, ASUS, Acer, and other major monitor brands. The mount also accommodates webcams and monitor light bars, making it a versatile solution for modern workspaces.
Ergonomic Adjustability
Designed for maximum comfort and productivity, the BenQ BSH01 offers comprehensive adjustment options:
-
Extension: Maximum reach of 568 mm (22.4 inches) to position your monitor at the perfect viewing distance
-
Tilt: Adjustable from +50° to -20° to reduce neck and eye strain
-
Swivel: 180° range (+90° to -90°) for easy screen sharing and collaboration
-
Rotation: Full 360° rotation from portrait to landscape orientation
Installation and Desk Protection
The BSH01 features a top-mounting system for quick and easy installation using either the included C-clamp or grommet mount. The mount fits desks between 12 mm to 45 mm thick with the reinforcement plates, or 17 mm to 50 mm without. The included steel reinforcement plate distributes the mount's weight evenly across your desk surface, protecting it from damage and ensuring long-term durability. Factory preset tension means your monitor is ready to use right out of the box with minimal adjustments required.
What's in the Box
- BenQ BSH01 Ergo Arm
- Steel Reinforcement Plate
- C-Clamp Mount
- Grommet Mount

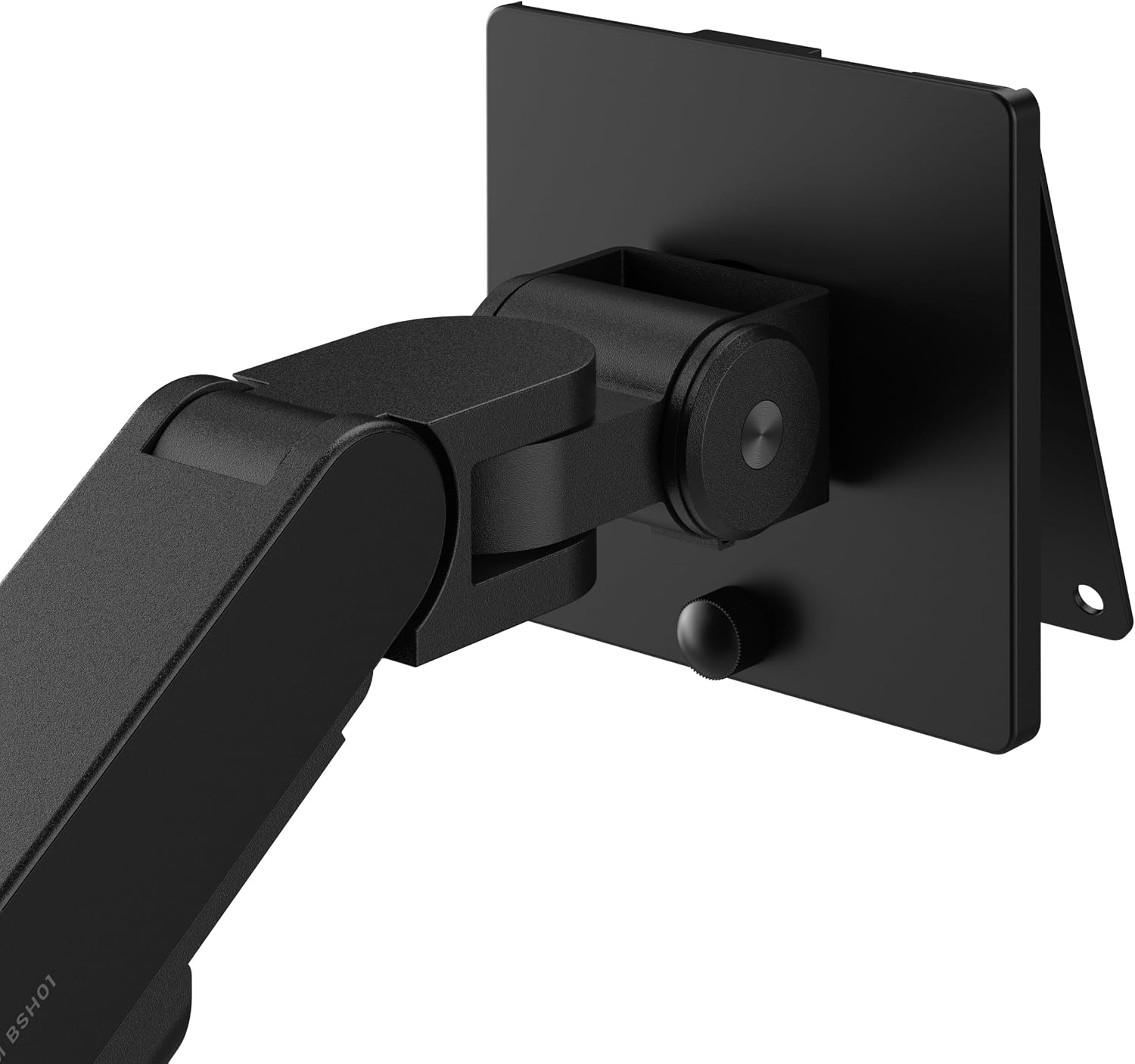

- Quick-Release VESA Plate
- Cable Management Clips
- Spare Parts Kit
- Quick Start Guide
- Warranty Card
- Regulation Sheet
Full Specifications
| Product Type |
Single Monitor Arm Mount |
| Model |
BSH01 |
| Arm Dimensions |
130 × 573 × 548 mm |
| Net Weight |
4.43 kg |
| Fits Screen Size |
17 inches to 45 inches |
| VESA Compatibility |
75 × 75 mm, 100 × 100 mm |
| Weight Capacity |
2 kg to 20 kg (4.4 to 44 lbs) |
| Extension |
Maximum 568 mm (22.4 inches) |
| Screen Rotation |
180° to -180° (360° total) |
| Swivel Range |
90° to -90° (180° total) |
| Tilt Range |
+50° to -20° |
| Cable Management |
Yes, integrated channels |
| Fits Desk Thickness |
Without reinforcement plate: 17 to 50 mm
With reinforcement plate: 12 to 45 mm |
| Mounting Options |
C-Clamp, Grommet (both top-mounting) |
| Reinforcement Plate |
Included (steel) |
| Gas Spring Test Cycles |
25,000 cycles |
| Colour |
Black |
Specifications are sourced from the official manufacturer product page and may be updated.
