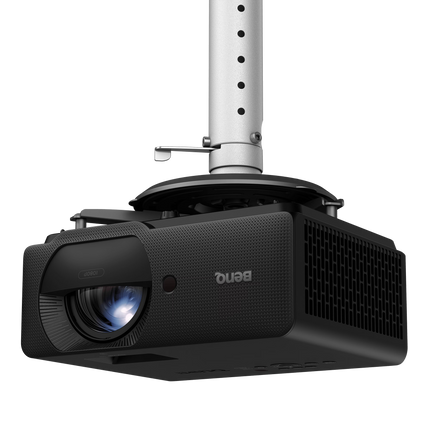

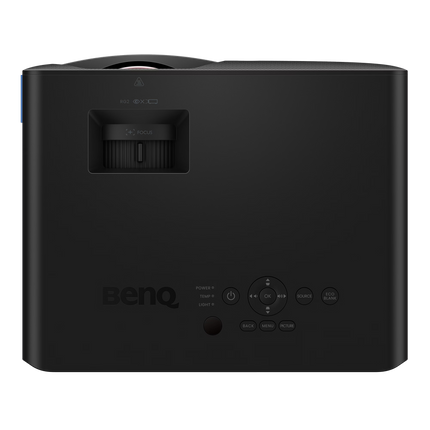

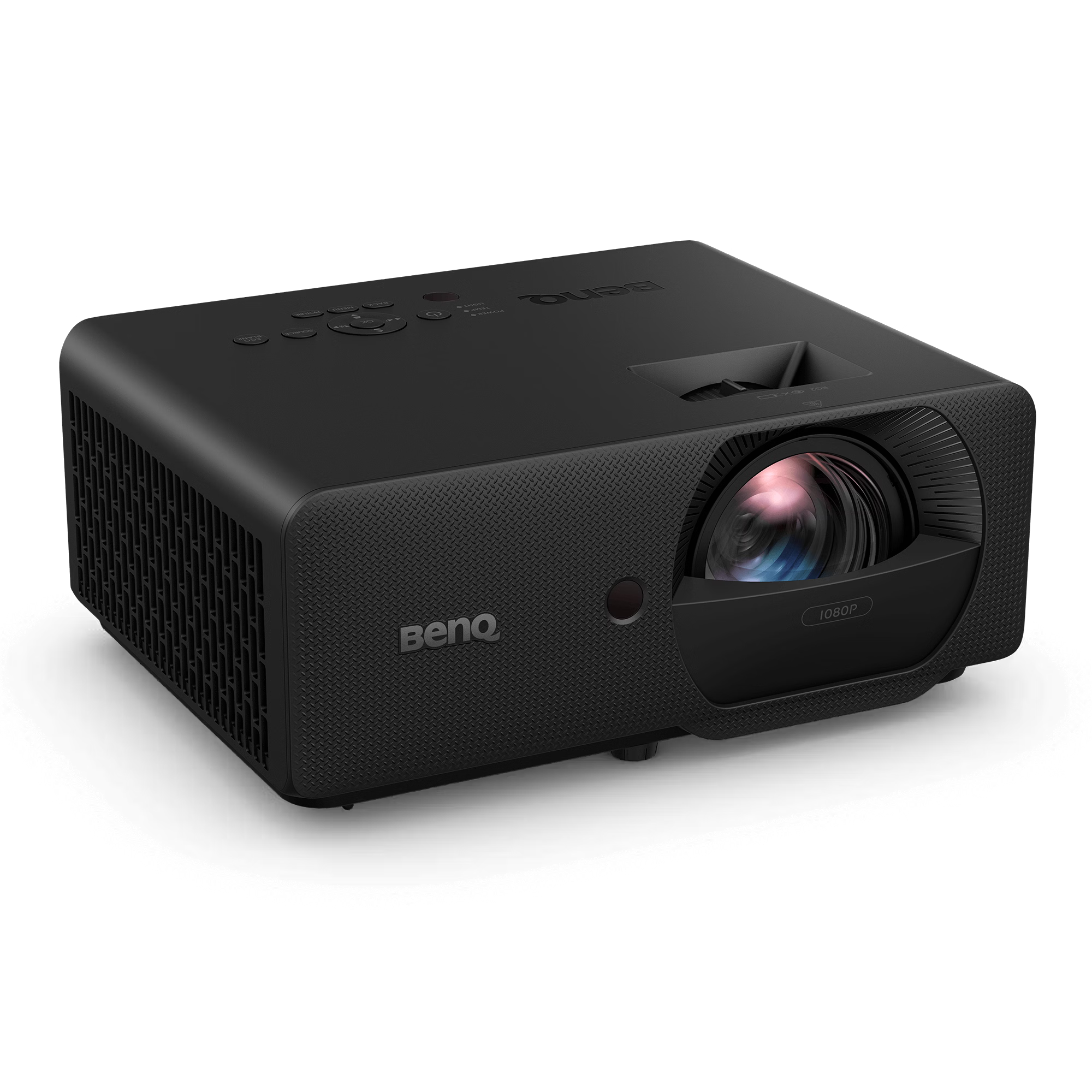

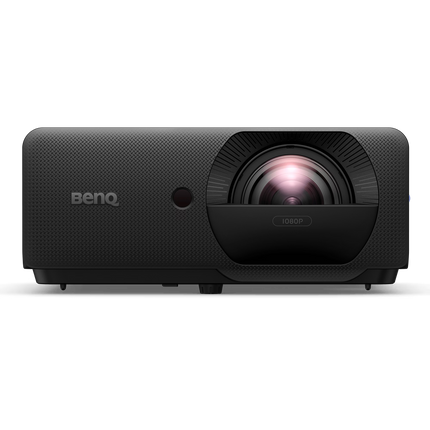

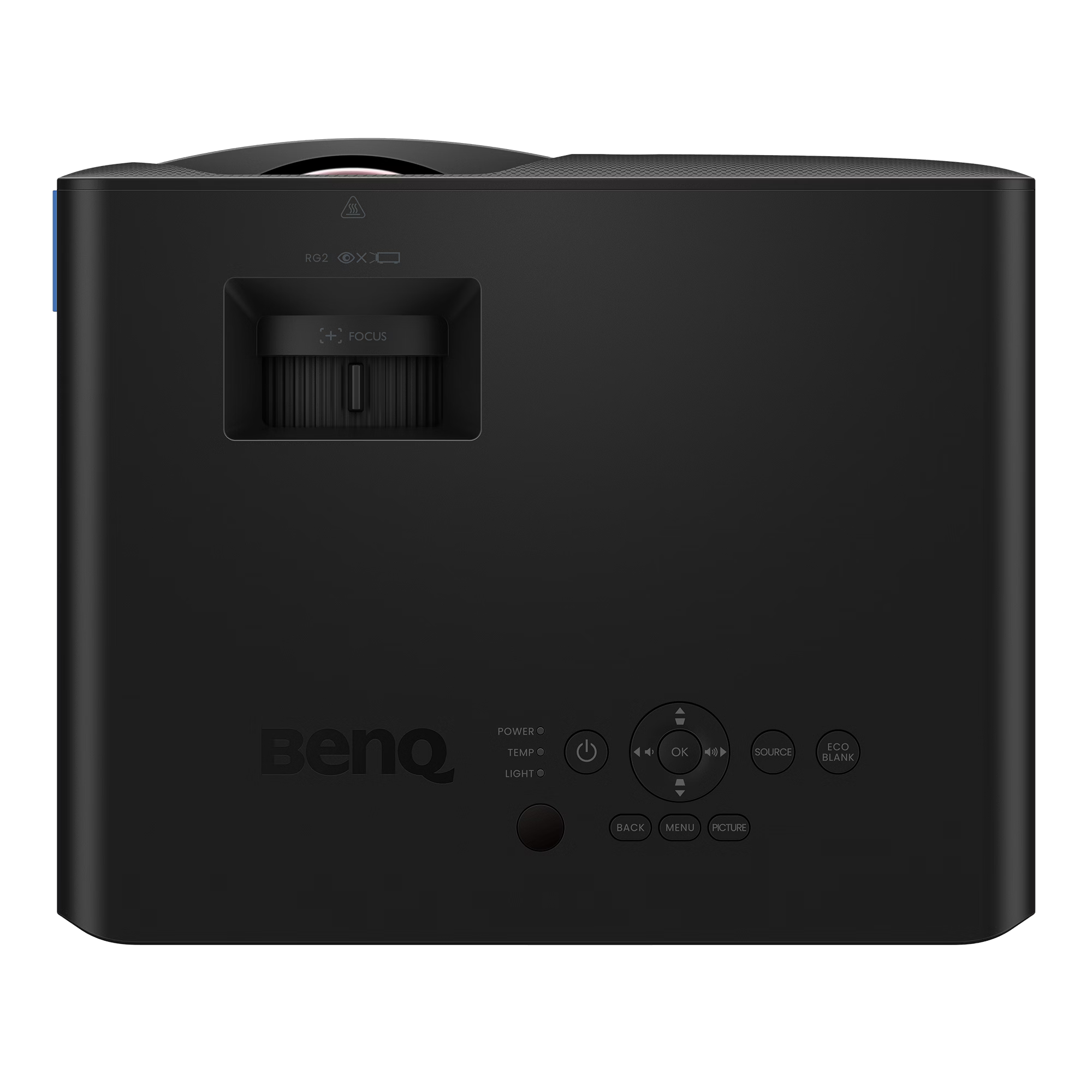

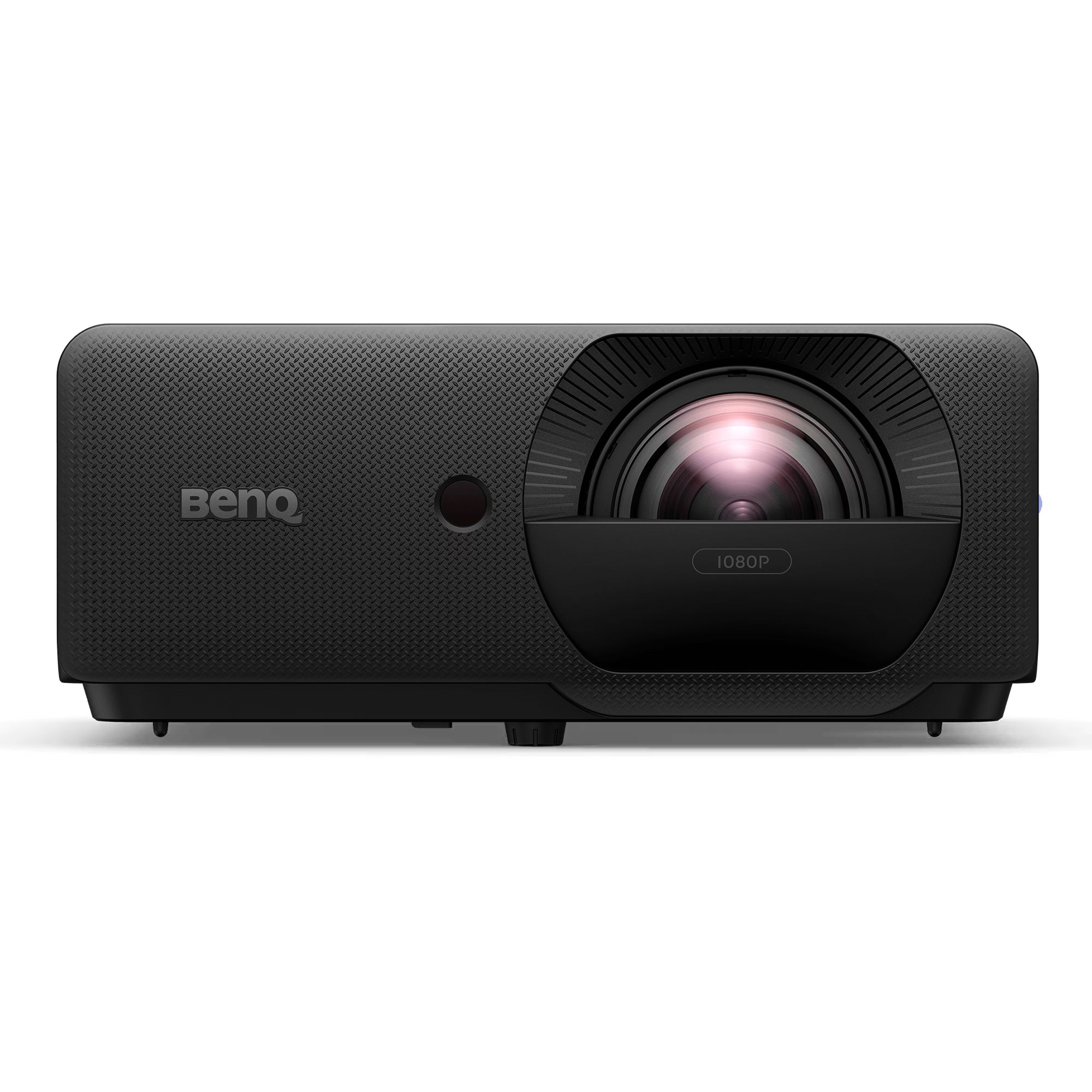

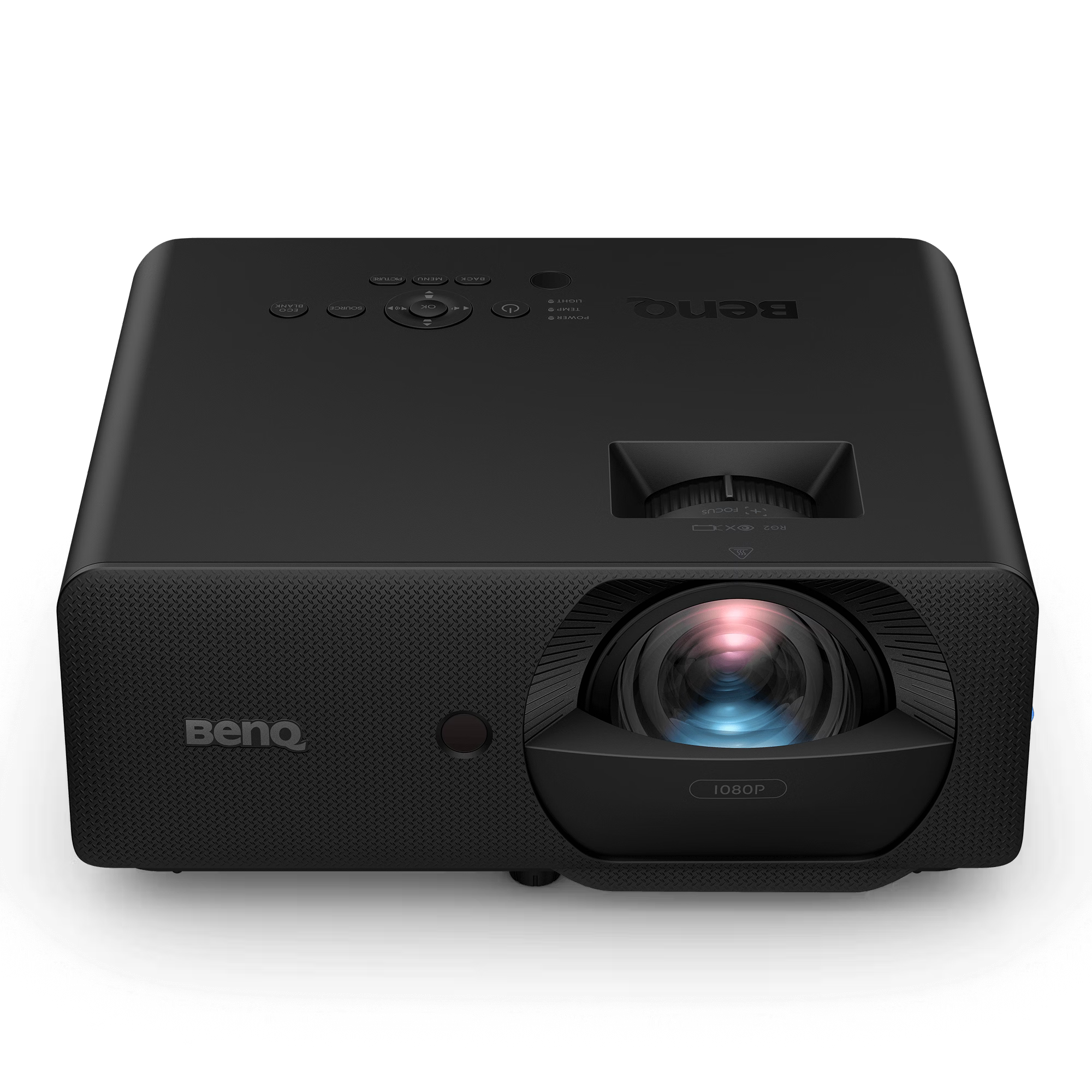

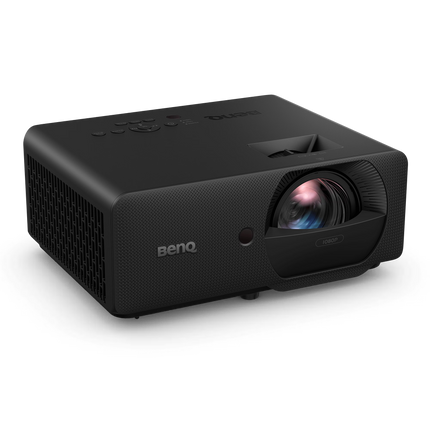

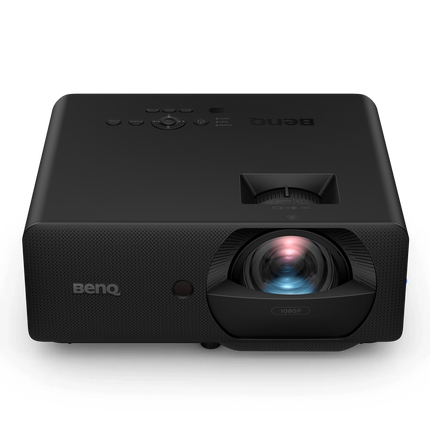

BenQ LH830ST 4000 Lumen Full HD Short Throw Laser Business Projector
The BenQ LH830ST is a 4000 ANSI lumen Full HD 1080p laser projector built for boardrooms, classrooms, training rooms and golf simulator setups where space is tight. With a 0.496 short throw ratio, a 3,000,000:1 contrast ratio, a 20,000 hour laser light source and 16.7 ms input lag, it produces large, bright, sharp images from just a short distance away.
Bright, Sharp Full HD Images
BenQ's DLP engine delivers 4000 ANSI lumens of brightness with native Full HD 1080p (1920 × 1080) resolution and 30-bit colour depth for 1.07 billion colours. With 93% Rec. 709 coverage and HDR10 and HLG support, content looks accurate and vibrant even with ambient light in the room.
-
Brightness: 4000 ANSI lumens
-
Resolution: Full HD 1080p (1920 × 1080)
-
Contrast: 3,000,000:1 (FOFO)
-
Colour: 30-bit, 1.07 billion colours, 93% Rec. 709
-
HDR: HDR10 and HLG support
Short Throw for Tight Spaces
A 0.496 fixed short throw lens means the LH830ST can throw a 100 inch image from roughly 1.1 metres away. That makes it ideal for small meeting rooms, classrooms, retail displays and golf simulator enclosures where a standard throw projector simply will not fit.
-
Throw ratio: 0.496 (fixed)
-
Lens: F 2.8, f 17.51 mm
-
Projection offset: 116%
-
2D Auto Keystone: Vertical ±30°, Horizontal ±30°
Long-Life Laser Light Source
The maintenance-free laser light engine is rated for up to 20,000 hours in Normal mode and 30,000 hours in Eco mode, removing the need for lamp replacements over the life of the product and keeping running costs down.
Versatile Picture Modes
Twelve picture modes including Entertainment, 3D, Bright, Cinema, Golf, HDR10, HLG, Presentation, sRGB, User 1, User 2 and Vivid let you tune output to the room and content. The dedicated Golf mode is particularly useful for simulator installations.
Responsive 16.7 ms Input Lag
With 16.7 ms input lag at 1080p 60Hz, the LH830ST is responsive enough for simulator and casual gaming use alongside its primary business and education roles.
Quiet Operation
Acoustic noise is rated at 30 dB Typical and just 24 dB in Eco mode, low enough to stay out of the way in quiet meeting rooms and classrooms.
Universal Connectivity
- HDMI 2.0b with HDCP 2.2 (×2)
- USB Type-A (×2)
- LAN (RJ45) for network control
- RS-232 in (DB-9 pin) for system integration
- 3.5 mm audio out
- Built-in 15W speaker
What's in the Box
- BenQ LH830ST projector
- Remote control RCA011 with batteries
- Power cord (1.8 m, by region)
- Quick Start Guide
- Warranty card
Full Specifications
Display
| Projection System |
DLP |
| Brightness |
4000 ANSI lumens |
| Native Resolution |
Full HD 1080p (1920 × 1080) |
| Native Aspect Ratio |
16:9 |
| Contrast Ratio (FOFO) |
3,000,000:1 |
| Display Colour |
30-bit (1.07 billion colours) |
| Light Source |
Laser |
| Light Source Life |
Normal 20,000 hrs / Eco 30,000 hrs |
| Screen Fill |
4:3; 16:9; 16:10; 1:1; 5:4 |
Optical
| Throw Ratio |
0.496 (fixed) |
| Zoom Ratio |
Fixed |
| Lens |
F 2.8, f 17.51 mm |
| Projection Offset |
116% |
| Keystone Adjustment |
2D Auto, Vertical ±30°, Horizontal ±30° |
Picture & Gaming
| Rec. 709 Coverage |
93% |
| HDR Support |
HDR10, HLG |
| Picture Modes |
Entertainment, 3D, Bright, Cinema, Golf, HDR10, HLG, Presentation, sRGB, User 1, User 2, Vivid |
| Input Lag |
16.7 ms (1080p 60Hz) |
| Resolution Support |
VGA (640 × 480) to 4K UHD (3840 × 2160) |
| Horizontal Frequency |
15K to 135 KHz |
| Vertical Scan Rate |
23 to 120 Hz |
Audio
| Speaker |
15W (×1) |
| Audio Out |
3.5 mm Mini Jack (×1) |
I/O Interfaces
| HDMI in |
2 × HDMI 2.0b / HDCP 2.2 |
| LAN (RJ45) |
1 |
| USB Type A |
2 |
| RS-232 in |
1 (DB-9 pin) |
| Audio Out |
1 (3.5 mm) |
Power & Environment
| Power Supply |
AC 100 to 240V, 50/60 Hz |
| Typical Power Consumption |
230W @ 110VAC |
| Standby Power |
< 0.5W |
| Network Standby Power |
< 2W |
| Operating Temperature |
0 to 40°C |
| Acoustic Noise (Typical / Eco) |
30 / 24 dB |
Physical
| Dimensions (W × H × D) |
279.2 × 120.5 × 229.3 mm |
| Net Weight |
3.4 kg (±100g) |
What's in the Box
| Projector |
BenQ LH830ST |
| Remote Control |
RCA011 with batteries |
| Power Cord |
1.8 m (by region) |
| Documentation |
Quick Start Guide, Warranty Card |
| Optional Accessories |

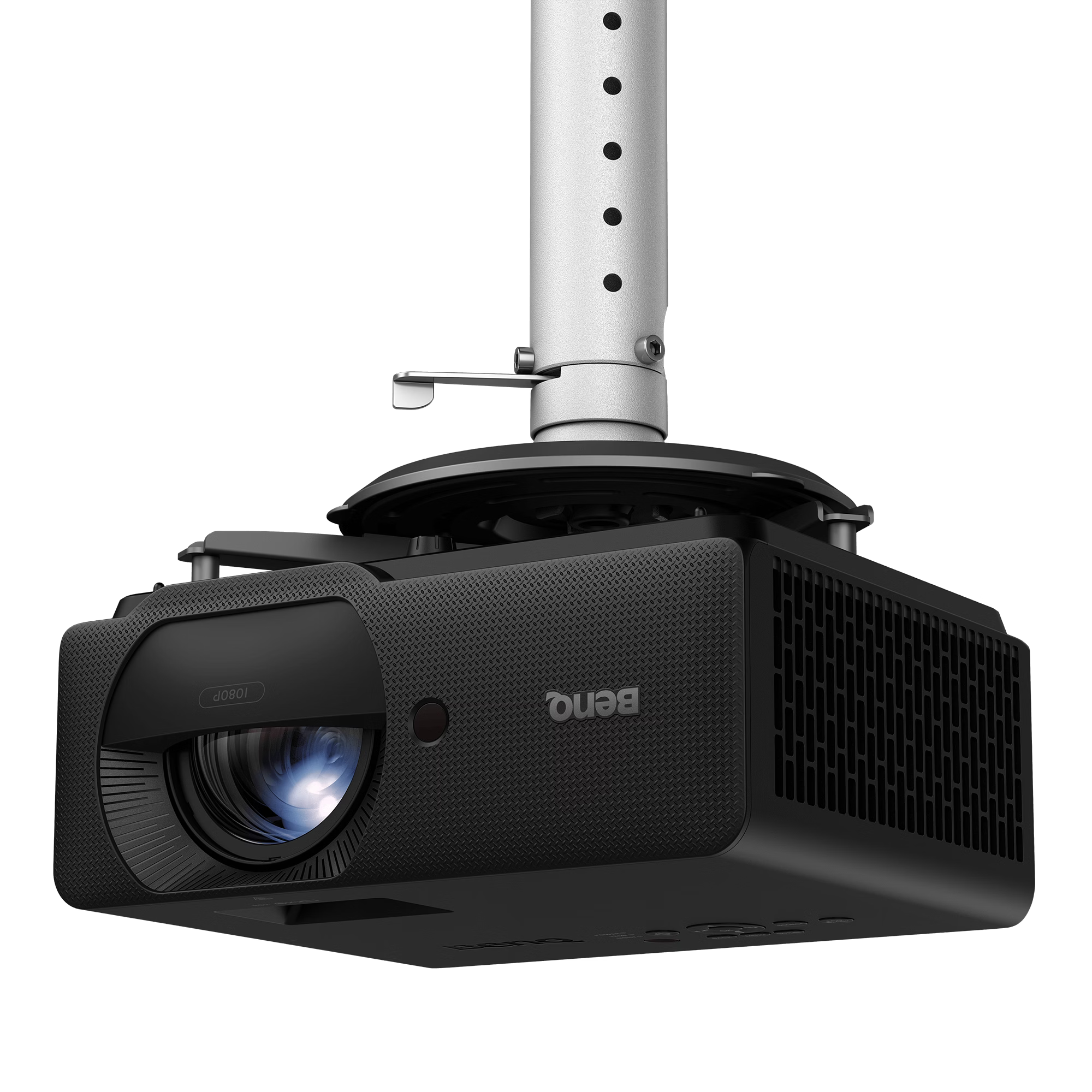

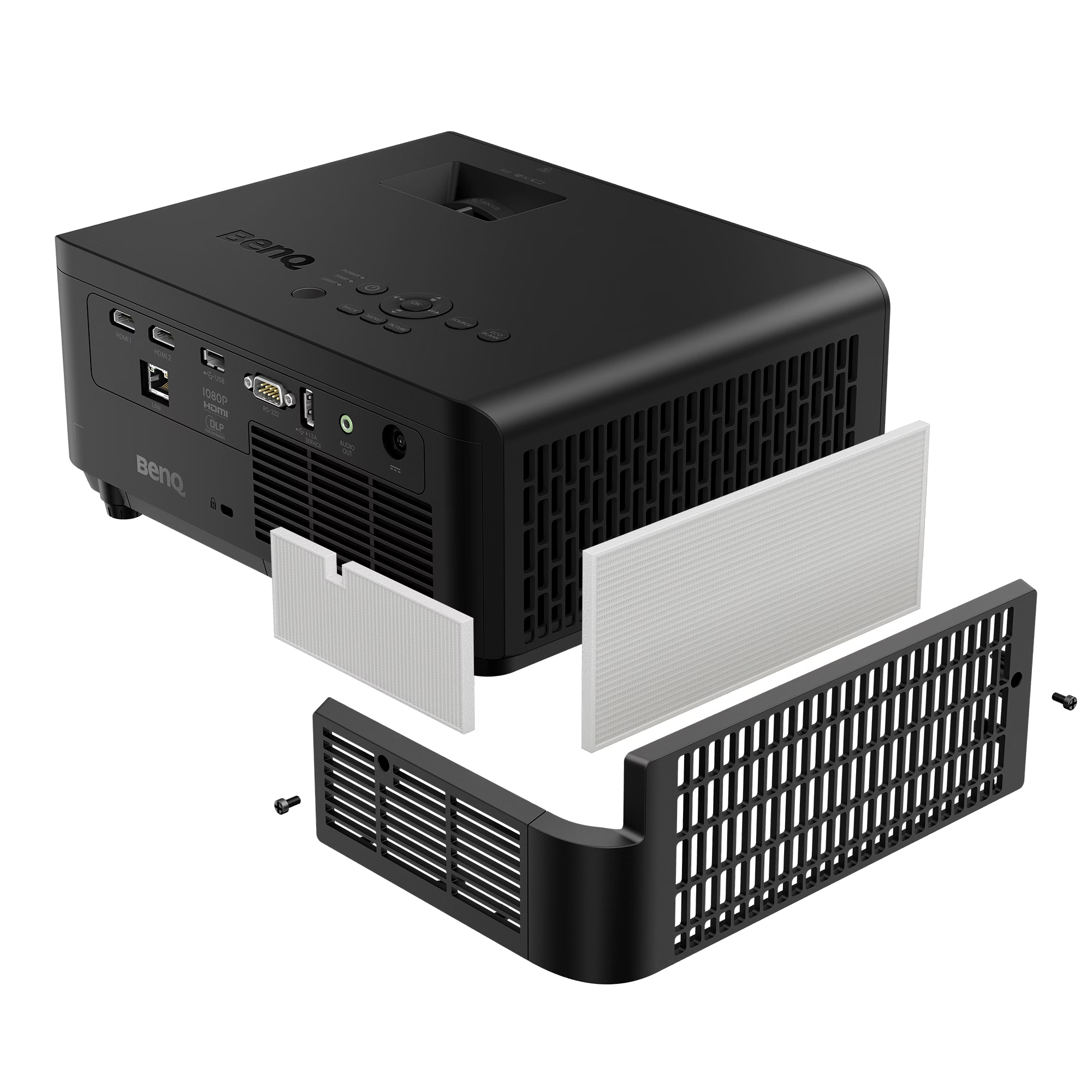

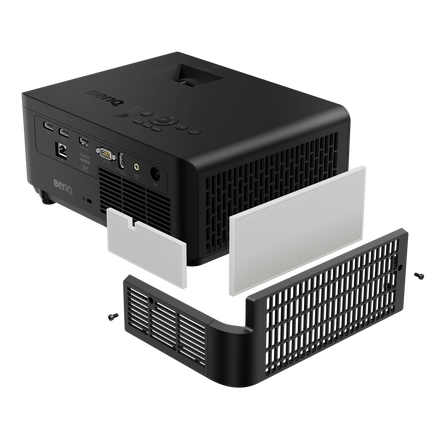

Anti-dust filter, Universal ceiling mount CM00G3 |
Specifications are sourced from the official manufacturer product page and may be updated.
