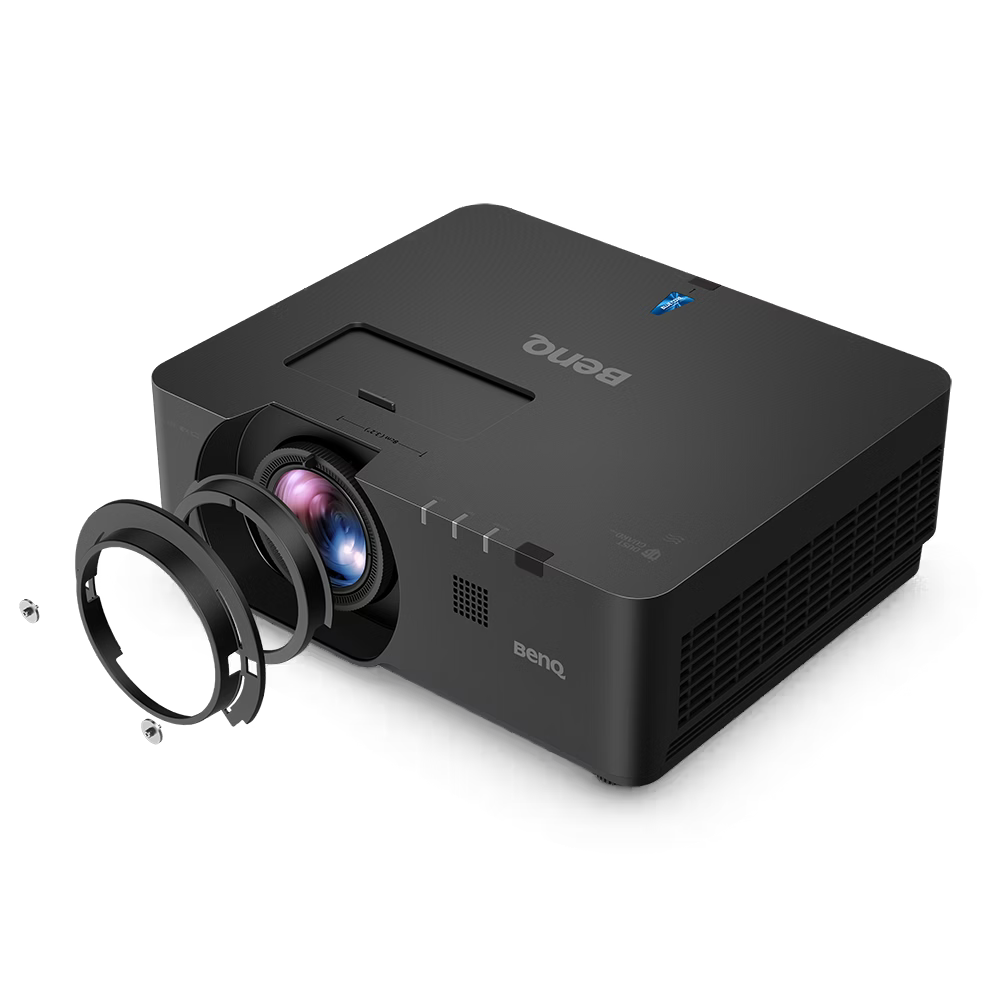

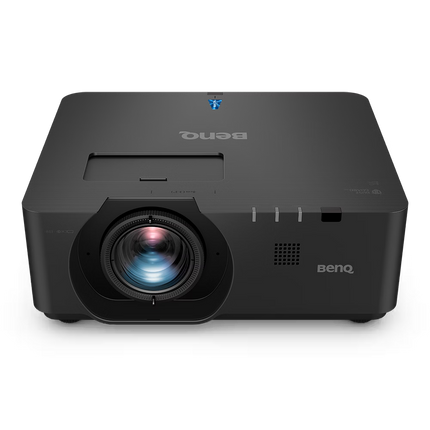

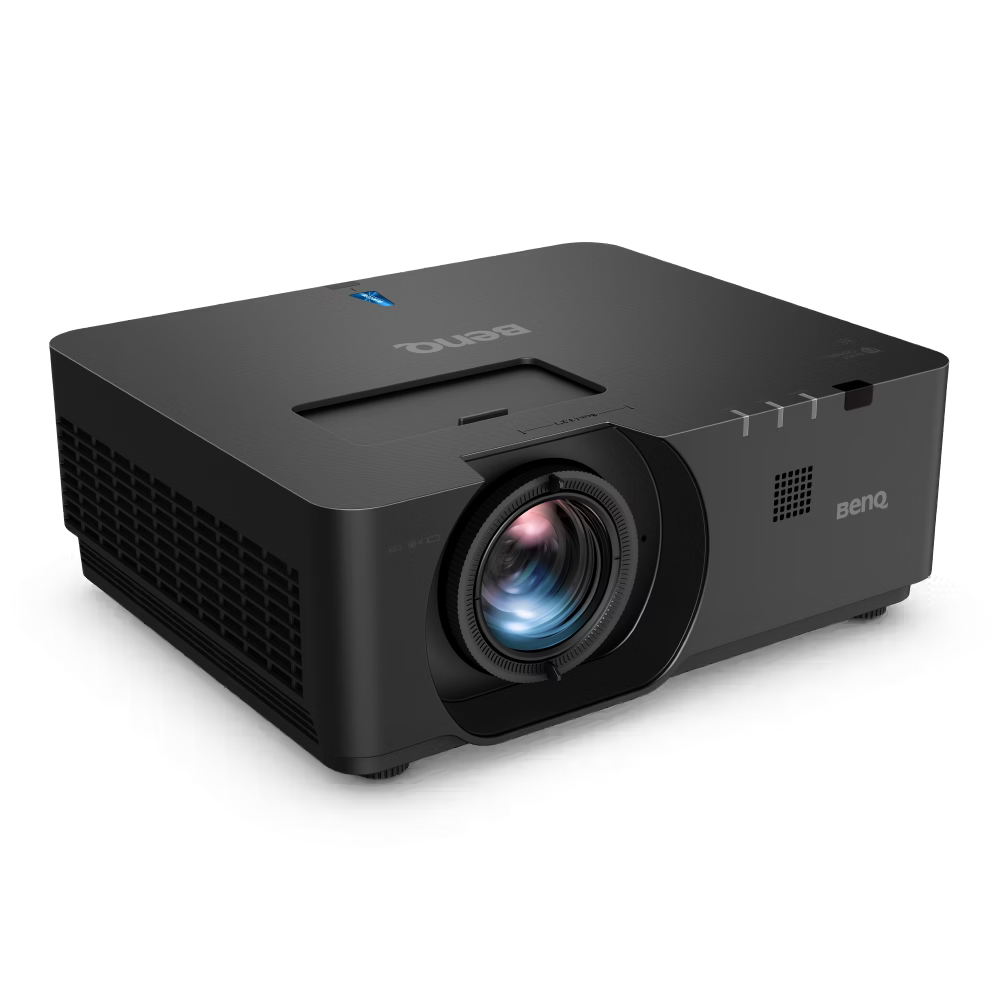

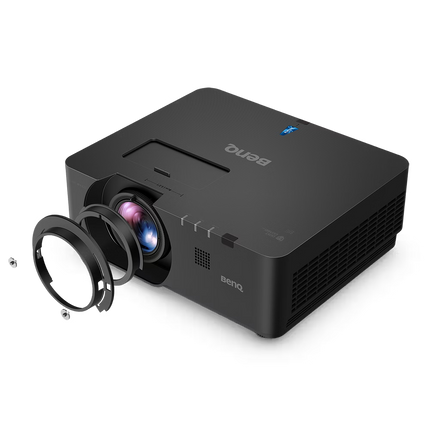

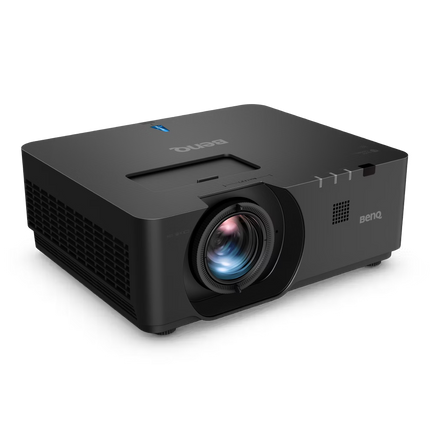

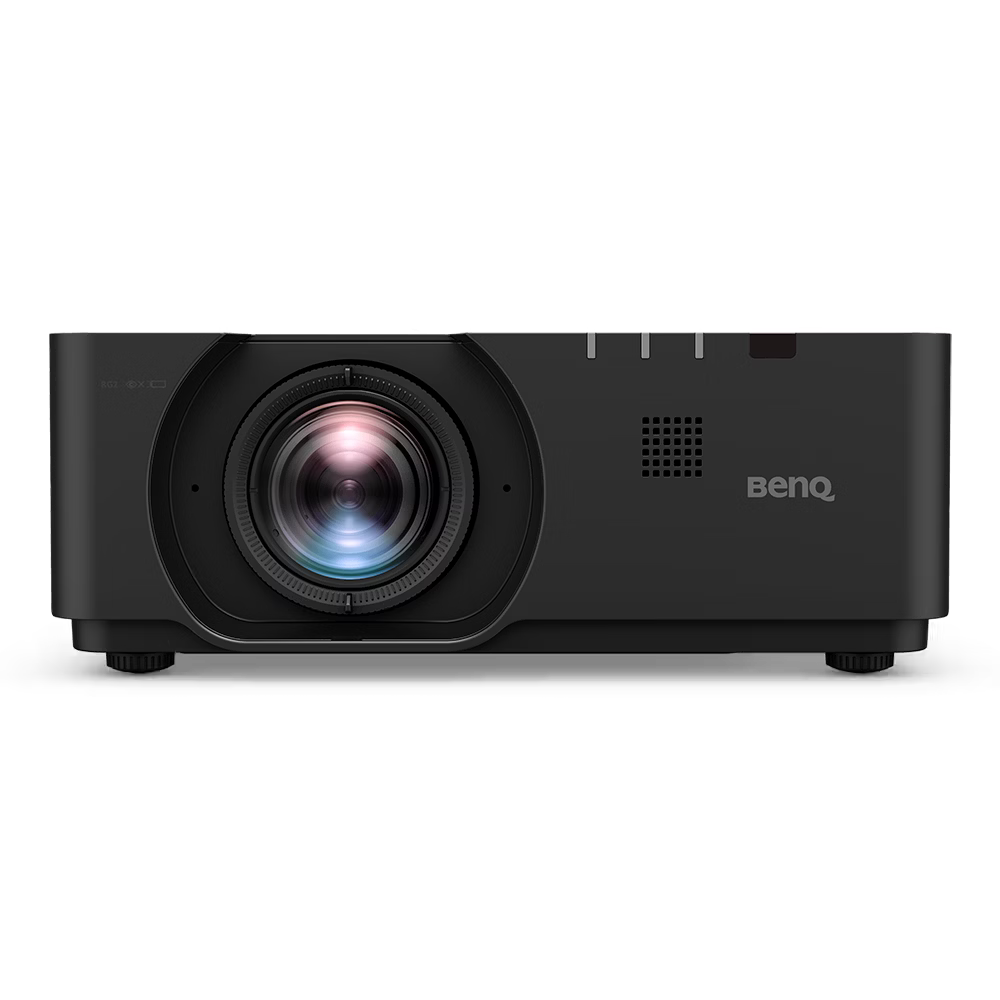

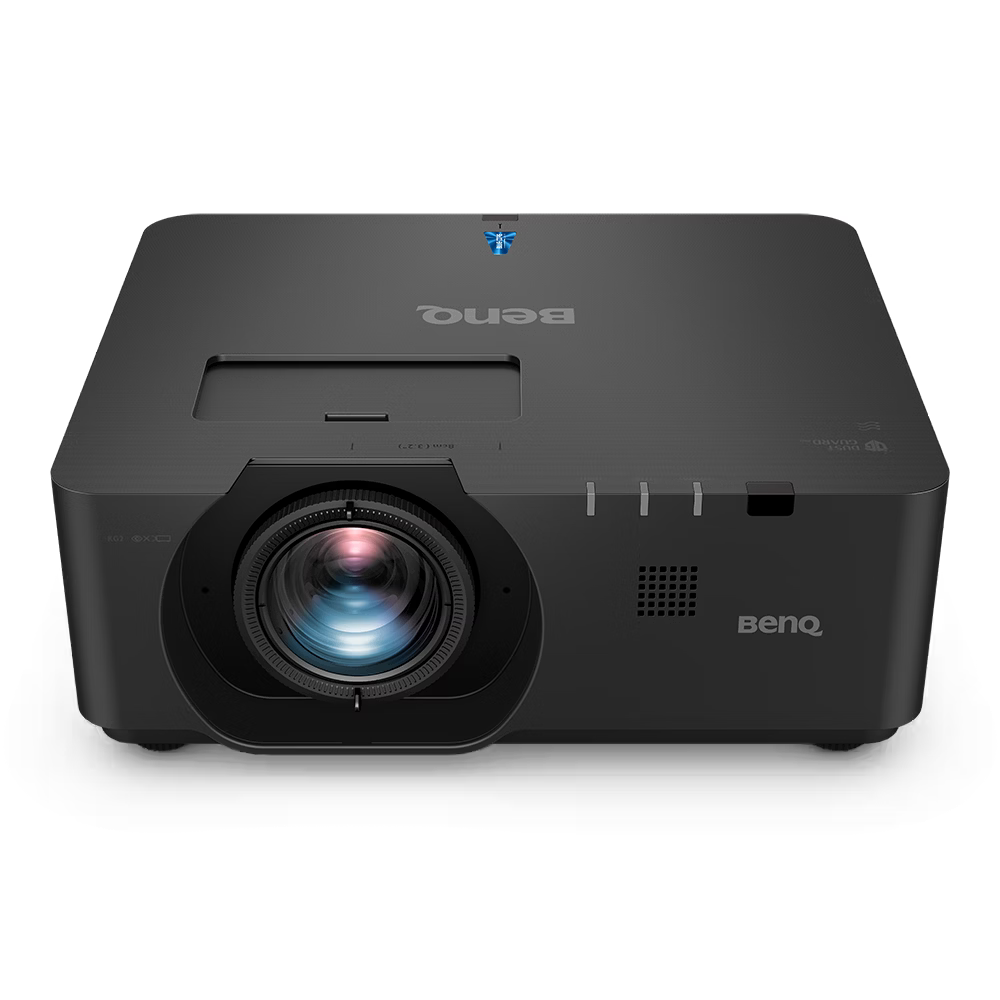

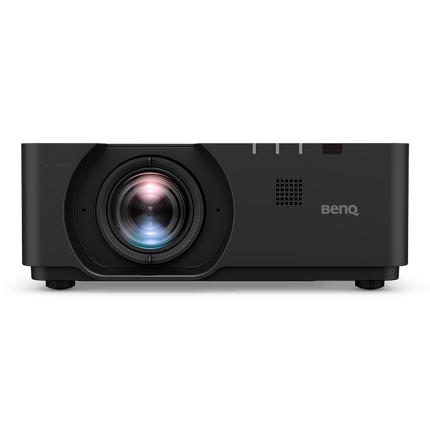

BenQ LU960ST2 WUXGA Short Throw Laser Installation Projector
The BenQ LU960ST2 is a professional installation projector built for large meeting rooms, lecture halls, and command centres. With 5,200 ANSI lumens of laser brightness, native WUXGA (1920 × 1200) resolution, and a fixed 0.5 short throw lens, it delivers a sharp, high-impact image from very close to the screen, with reliable laser longevity rated up to 20,000 hours.
Bright, Reliable Laser Performance
Engineered for demanding installation environments, the LU960ST2 combines a long-life laser light source with high-output brightness for vivid, consistent visuals.
-
5,200 ANSI lumens: bright enough to overcome ambient light in conference rooms and classrooms.
-
Laser light source: rated up to 20,000 hours in Normal mode, 38,000 hours in ECO, and 70,000 hours in Dimming mode.
-
3,000,000:1 dynamic contrast with 30-bit colour processing for over a billion colours and deep black levels.
-
92% Rec. 709 coverage for accurate, broadcast-grade colour reproduction.
Short Throw Flexibility for Tight Spaces
The fixed 0.5 short throw lens projects a large image from a short distance, ideal for rooms where standard throw projectors would be impractical.
-
0.5 throw ratio: produces a 100-inch image from approximately 1.1 metres away.
-
Vertical lens shift: -55% to +55%.
-
Horizontal lens shift: -23% to +23%.
-
2D keystone correction: vertical ±30° and horizontal ±30° for flexible installation.
Built for Installation and Control
Designed for integrated AV systems with full control and signal distribution options.
-
HDBaseT for control, video, and audio over a single LAN cable run.
-
RS-232 control and DC 12V trigger for screen and automation integration.
-
Wired remote input (3.5mm) for fixed-position control.
-
Network standby below 2W for energy-efficient always-on deployment.

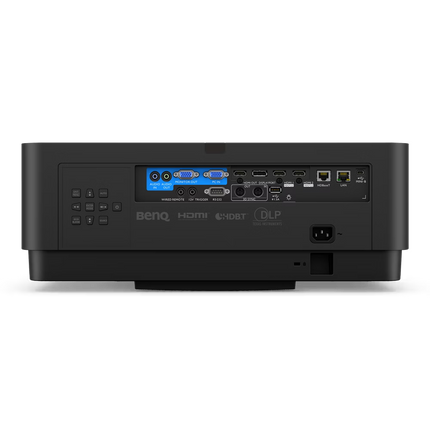

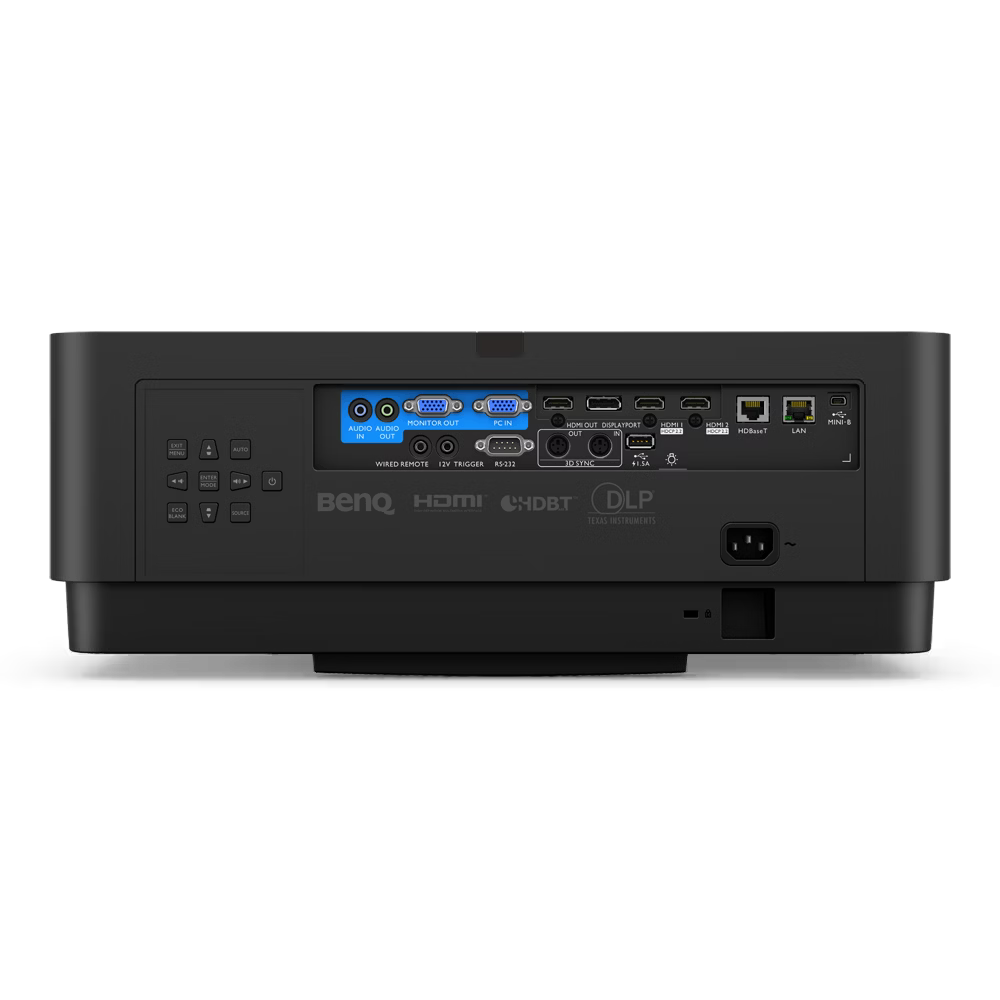

Universal Connectivity
- HDMI 2.0a / HDCP 2.2 (×2)
- HDMI Monitor Out (×1)
- VGA / D-sub 15-pin Input (×1)
- VGA / D-sub 15-pin Monitor Out (×1)
- Display Port (×1)
- HDBaseT / RJ45 (×1) for control, video, and audio
- LAN / RJ45 (×1)
- USB Type-A 2.0 with 1.5A power supply (×1)
- USB Type Mini-B for service (×1)
- 3D Sync In and Out (×1 each)
- RS-232 (DB-9pin) (×1)
- Wired Remote In (3.5mm) (×1)
- DC 12V Trigger (3.5mm) (×1)
- Audio In (3.5mm) (×1)
- Audio Out (3.5mm) (×1)
- Built-in 10W speaker
What's in the Box
- BenQ LU960ST2 Projector
- Remote Control RCA024 with battery
- Power Cord (1.8m, by region)
- Installation Guide
- Warranty Card (by region)
Full Specifications
Display
| Brightness |
5,200 ANSI lumens |
| Native Resolution |
WUXGA (1920 × 1200) |
| Native Aspect Ratio |
16:10 |
| Contrast Ratio (FOFO) |
3,000,000:1 |
| Display Colour |
30-bit (1.07 billion colours) |
| Light Source |
Laser |
| Light Source Life |
20,000 hrs (Normal) / 38,000 hrs (ECO) / 70,000 hrs (Dimming) |
| Projection System |
DLP |
Optical
| Throw Ratio |
0.5 (short throw) |
| Zoom Ratio |
Fixed |
| Lens |
Manual |
| Projection Offset (Full-Height) |
0% |
| Keystone Adjustment |
2D, Vertical ±30° / Horizontal ±30° |
| Lens Shift Vertical |
-55% to +55% |
| Lens Shift Horizontal |
-23% to +23% |
Picture & Compatibility
| Rec. 709 Coverage |
92% |
| Picture Modes |
3D, Bright, HDR10, HLG, Presentation, Simulator, sRGB, User 1, User 2, Video |
| Input Lag |
8.3 ms (1080p 120Hz) |
| Resolution Support |
VGA (640 × 480) to 4K UHD (3840 × 2160) |
| Horizontal Frequency |
15K to 135KHz |
| Vertical Scan Rate |
23 to 120Hz |
Audio
| Speaker |
10W (×1) |
| Audio In |
3.5mm Mini Jack (×1) |
| Audio Out |
3.5mm Mini Jack (×1) |
I/O Interfaces
| HDMI In |
2 (HDMI 2.0a / HDCP 2.2) |
| HDMI Monitor Out |
1 |
| VGA / D-sub 15-pin In |
1 |
| VGA / D-sub 15-pin Monitor Out |
1 |
| Display Port |
1 |
| LAN (RJ45) |
1 |
| HDBaseT (RJ45) |
1 (Control / Video / Audio) |
| USB Type-A |
1 (USB 2.0 / 1.5A power supply) |
| USB Type Mini-B |
1 (service) |
| 3D Sync In / Out |
1 / 1 |
| RS-232 (DB-9pin) |
1 |
| Wired Remote In (3.5mm) |
1 |
| DC 12V Trigger (3.5mm) |
1 |
Power & Environment
| Operating Temperature |
0 to 40°C |
| Power Supply |
AC 100 to 240V, 50/60 Hz |
| Typical Power Consumption (110V) |
450W |
| Stand-by Power Consumption |
<0.5W |
| Network Stand-by Power Consumption |
<2W |
Physical
| Dimensions (W × H × D) |
479.6 × 182.8 × 402 mm |
| Net Weight |
12 kg |
What's in the Box
| Remote Control |
RCA024 with battery |
| Power Cord |
1.8m (by region) |
| Documentation |
Installation Guide, Warranty Card |
Specifications are sourced from the official manufacturer product page and may be updated.
