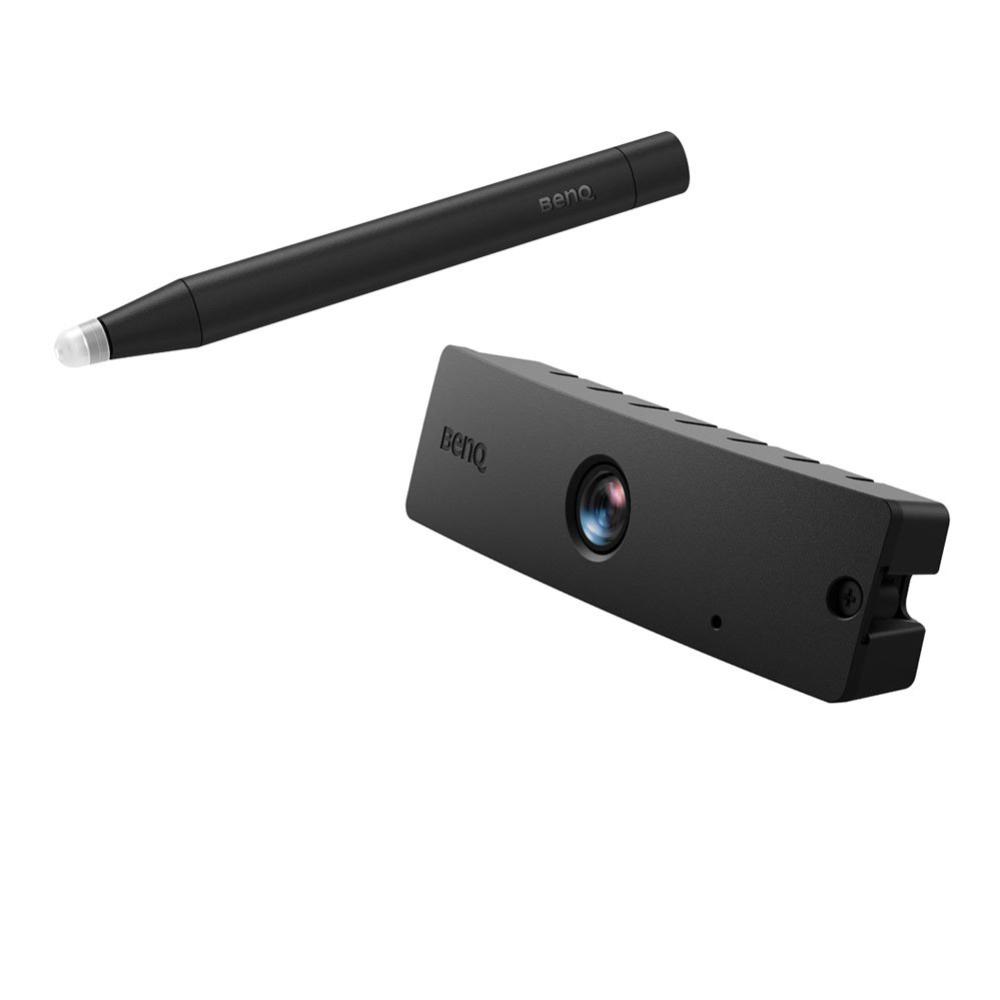

BenQ PointWrite PW30U Interactive Touch Module Kit with 10-Point Touch
Transform your BenQ ultra short throw projector into a fully interactive whiteboard with the BenQ PointWrite PW30U Touch Module Kit. Designed for collaborative education and business environments, the PW30U uses advanced infrared technology with 60 Hz frame rate to deliver ultra-fast 16ms response time and support for up to 10 simultaneous touch points. Compatible with BenQ MW855UST+, MH856UST+, and LW855UST projectors, this kit includes everything needed to create an engaging, interactive learning or presentation space.
Key Features
-
10-Point Multi-Touch: Supports up to 10 pens simultaneously for true collaborative interactivity
-
Enhanced Anti-Light Interference: Improved infrared technology ensures optimal usability even under bright sunlight in pen or finger mode
-
Ultra-Fast Response Time: 16ms response time with 60 Hz frame rate for seamless writing and gesturing
-
Windows Gesture Support: Intuitive multi-touch gestures including zoom, scroll, and pinch for Windows 7 and above
-
Dual Screen Capability: Connect two projectors side by side to create an extended interactive canvas
-
Works on Any Flat Surface: No expensive digital whiteboard required - project onto walls, desks, or tables
Interactive Learning and Collaboration
The PW30U PointWrite kit works seamlessly with QWrite software to transform BenQ projectors into collaborative learning environments. Teachers and students can write, annotate, and create together using intuitive templates and annotation tools. The system supports both infrared pen input and optional finger touch mode when paired with the PT20 Touch Module, providing flexibility for different teaching and presentation styles.
Advanced Infrared Technology
Equipped with infrared 940 nm technology, the PW30U delivers exceptional accuracy with a maximum tracking error of just ±2 pixels. The enhanced anti-light interference level ensures consistent performance in brightly lit classrooms and meeting rooms, while the Gen2 PointWrite Pen features auto power-off function to preserve battery life.
Connectivity and Compatibility
Connect the PW30U to your computer via Mini USB interface with PC USB power. The system supports cable lengths up to 15m using the included 5m USB cable plus optional repeater. Compatible with Windows 7, 8, 10 and Mac OS X 10.9 or later, making it ideal for diverse computing environments in education and business settings.
What's in the Box
- PW30U PointWrite Interactive Whiteboard Sensor
- 2 × PointWrite G2 Pens
- 10 × Additional Pen Tips
- 5m Mini USB Cable
- 4 × AAA Batteries
- Quick Start Guide
Full Specifications
Performance
| Image Processing Technology |
Infrared 940 nm |
| Frame Rate |
60 Hz |
| Response Time |
Max. 0.016 sec (16ms) |
| Accuracy |
±2 Pixel (Max.) |
| Multi-Touch Support |
10 pens simultaneously |
| Touch Points |
Up to 10 points |
| Dual Screen Support |
2 units side by side |
Connectivity
| Interface |
Mini USB |
| Power |
PC USB Power |
| Cable Length |
15m (5m USB cable + Repeater) |
| Wired Remote Control |
Max. 10 meters |
Compatibility
| Compatible Projectors |
BenQ MW855UST+, MH856UST+, LW855UST (Ultra short throw models with throw ratio 0.35 and 0.33) |
| Operating System |
Windows 7, 8, 10 / Mac OS X 10.9 or later |
| Touch Module |
Optional PT20 for finger touch mode |
PointWrite Pen G2 Specifications
| Length |
164 mm |
| Diameter |
16 mm |
| Weight |
27 g (without batteries) |
| Power |
2 × AAA Batteries |
| Color |
Black |
| Auto Power-Off |
Yes (after pressing tip for 30 seconds) |
Environmental
| Operating Temperature |
5°C ~ 40°C |
| Operating Humidity |
10% ~ 85% RH (Max.) non-condensing, inside projector |
| Storage Temperature |
-10°C ~ 60°C |
| Storage Humidity |
5% ~ 95% RH (Max.) |
Physical
| Module Dimensions |
118.3 mm × 31.3 mm × 23.6 mm |
| Module Weight |
53.0 g |
What's in the Box
| PW30U Touch Module |
1 |
| PointWrite G2 Pens |
2 |
| Additional Pen Tips |
10 |
| 5m Mini USB Cable |
1 |
| AAA Batteries |
4 |
| Quick Start Guide |
1 |
Specifications are sourced from the manufacturer product page and may be updated.
