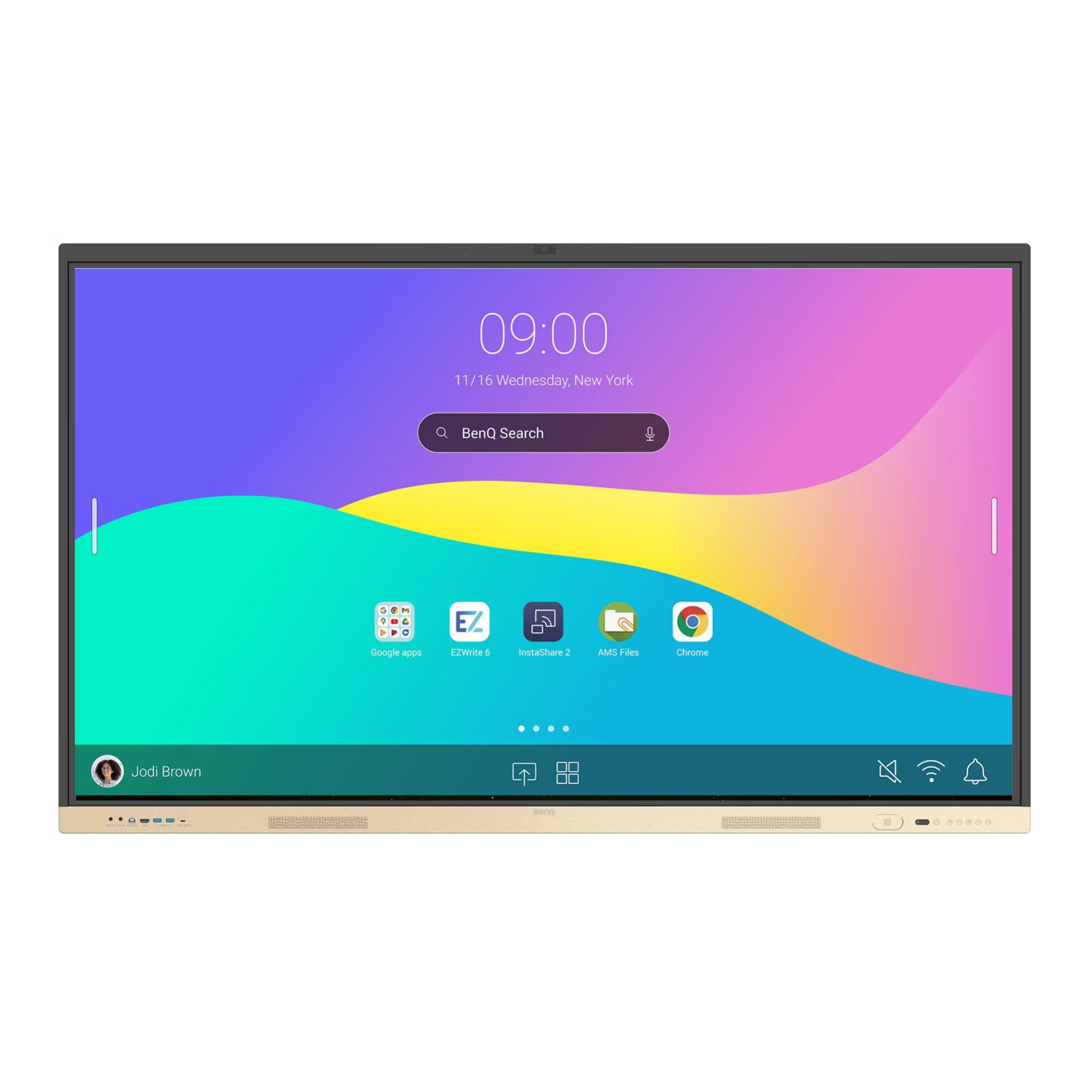

BenQ RE6504FV Essential Series 65" 4K Interactive Flat Panel Display
The BenQ Board RE6504FV is an all-in-one 65-inch 4K UHD interactive flat panel designed for engaging presentations, hybrid meetings, and seamless video conferencing. Built with Android 13, a built-in 4K camera, integrated speakers, and array microphones, this smart board transforms meeting rooms and classrooms into collaborative spaces. With 40 touch points using precision infrared technology and EDLA certification for access to Google services, the RE6504FV combines professional-grade hardware with intuitive software for modern workplaces and educational environments.
Key Features
-
Stunning 4K UHD Display: 65-inch IPS panel with 3840 × 2160 resolution and 450 nits brightness delivers crisp, clear visuals even in bright rooms
-
Built-in Video Conferencing: Integrated 4K camera, dual 20W speakers, and array microphones for instant BYOM (Bring Your Own Meeting) capability
-
40-Point Multi-Touch: Precision infrared touch technology enables multiple users to collaborate simultaneously on the germ-resistant 9H tempered glass surface
-
Android 13 Smart System: EDLA-certified with access to Google Play, Google Drive, and leading UCaaS platforms including Microsoft Teams, Zoom, and Google Meet
-
EZWrite Whiteboard: Feature-rich digital whiteboard with expandable canvas, AI-enhanced tools, and session saving for unlimited collaborative possibilities
-
Wireless Screen Sharing: InstaShare technology supports Miracast, AirPlay, and app-based sharing from laptops, tablets, and smartphones
Professional Connectivity
The RE6504FV offers extensive connectivity options for modern meeting spaces and classrooms:
-
HDMI: 3 × HDMI 2.0 inputs plus 1 × HDMI 2.0 output (with ARC support)
-
DisplayPort: 1 × DisplayPort 1.2a for high-quality digital video
-
USB-C: 1 × USB 3.0 Type-C with 65W Power Delivery for single-cable laptop connection, plus 1 × USB 2.0 Type-C
-
USB-A: 2 × USB 3.0 and 2 × USB 2.0 ports for peripherals and storage devices
-
USB-B (Touch): 2 × USB 2.0 Type-B ports for touch functionality when used as an external display
-
VGA: Legacy VGA input with dedicated 3.5mm audio jack
-
Network: Dual Gigabit Ethernet ports (10/100/1000 Mbps) for Android and OPS connectivity
-
RS-232: Serial control for integration with AV control systems
-
S/PDIF: Digital audio output
-
MicroSD Card Slot: Expandable storage for presentations and files
-
OPS Slot: Standard OPS slot for optional Windows PC module integration
Hybrid Meeting Excellence
Designed specifically for in-person and hybrid collaboration, the RE6504FV streamlines your meeting spaces by combining all essential tools into one powerful smart solution. The built-in conferencing features make it compatible with any UCaaS platform, eliminating the need for external cameras, microphones, or speakers. Simply connect your laptop via USB-C with 65W PD or HDMI, and instantly access the board's professional AV equipment for enhanced meeting experiences.
Education-Focused Design
The BenQ Board Essential Series incorporates ClassroomCare technology with Eyesafe 2.0 certification, featuring low blue light and flicker-free performance to reduce eye strain during extended use. The anti-glare coating on the germ-resistant surface ensures comfortable viewing from any angle, while the intuitive EZWrite 6.0 whiteboarding interface provides a dynamic canvas with lesson tools and AI features that enhance interactive learning.
Smart Device Management
For IT administrators, the RE6504FV integrates with BenQ Device Management Solution (DMS), offering remote management, policy configuration, usage analytics, and over-the-air updates. Built-in data security features including Google Play Protect and Safe Browsing protect organisations from security and privacy threats. The board is also ENERGY STAR certified with multiple eco features for reduced power consumption and environmental impact.
What's in the Box
- BenQ RE6504FV 65" Interactive Flat Panel
- Wall mount bracket (pre-installed)
- 2 × Passive touch pens
- Remote control
- HDMI cable (3m)
- VGA (D-sub 15-pin) cable (3m)
- USB-B Touch cable (3m)
- USB-C cable (1.5m)
- Power cord
- Quick start guide
Full Specifications
Display
| Screen Size |
65 inches (diagonal) |
| Panel Type |
IPS (In-Plane Switching) |
| Native Resolution |
4K UHD (3840 × 2160 pixels) |
| Active Display Area |
1428.5 × 803.5 mm |
| Brightness |
450 cd/m² (nits) |
| Contrast Ratio |
1200:1 |
| Response Time |
8 ms |
| Aspect Ratio |
16:9 |
| Surface Treatment |
9H tempered glass with anti-glare, germ-resistant coating |
Touch Technology
| Touch Technology |
Infrared (IR) precision touch |
| Touch Points |
40 simultaneous touch points |
| Touch Pens Included |
2 × passive touch pens |
Smart System
| Operating System |
Android 13 |
| Processor |
8-core ARM Cortex chipset |
| Internal Storage |
32 GB |
| Certification |
EDLA (Enterprise Devices Licensing Agreement) for Google services |
| Google Services |
Google Play, Google Drive, Google Meet |
Camera & Audio
| Built-in Camera |
4K camera for video conferencing |
| Microphones |
Array microphones (integrated) |
| Speakers |
2 × 20W built-in speakers |
Connectivity
| HDMI Input |
3 × HDMI 2.0 |
| HDMI Output |
1 × HDMI 2.0 (with ARC support) |
| DisplayPort |
1 × DisplayPort 1.2a |
| VGA |
1 × VGA (D-sub 15-pin) |
| USB Type-C |
1 × USB 3.0 (PD 65W), 1 × USB 2.0 |
| USB Type-A |
2 × USB 3.0, 2 × USB 2.0 |
| USB Type-B (Touch) |
2 × USB 2.0 |
| Audio Jack |
3.5mm (for VGA audio input) |
| S/PDIF |
1 × S/PDIF digital audio output |
| LAN |
2 × RJ45 Gigabit Ethernet (10/100/1000 Mbps) - Android/OPS |
| RS-232 |
1 × RS-232 serial port |
| MicroSD Card Slot |
1 × MicroSD reader (expandable storage) |
| OPS Slot |
1 × OPS (Open Pluggable Specification) slot for optional PC module |
| NFC Reader |
Built-in NFC for tap-to-login functionality |
Wireless Connectivity
| Wi-Fi |
Supported (via optional adapter or built-in depending on region) |
| Bluetooth |
Supported (via optional adapter or built-in depending on region) |
| Screen Sharing |
InstaShare (app-based), Miracast, AirPlay |
Power & Environment
| Power Supply |
100-240V AC, 50-60 Hz |
| Power Consumption |
Typical operating (varies by usage) |
| Certifications |
ENERGY STAR certified |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
20% to 80% (relative humidity, non-condensing) |
Physical Specifications
| Dimensions (W × H × D) |
1482.1 × 907.3 × 87.7 mm (without packaging) |
| Dimensions with Packaging |
1640 × 1010 × 185 mm |
| Net Weight |
36.7 kg |
| Gross Weight (with packaging) |
49.7 kg |
| VESA Mount |
600 × 400 mm (4 × M8 × 25mm screws) |
Specifications are sourced from the manufacturer product page and may be updated. Always verify current specifications on the official BenQ website.
