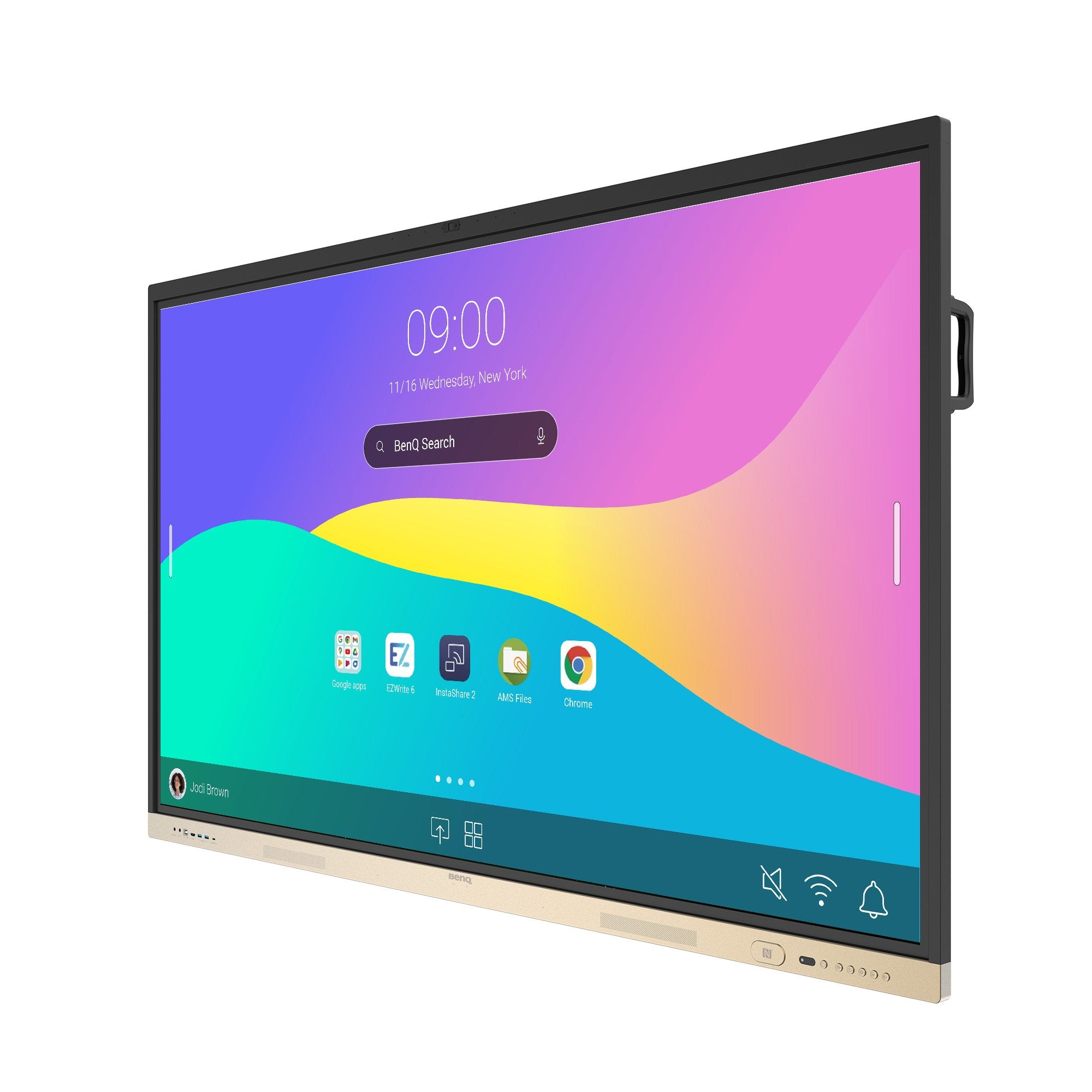

BenQ RE7504FV 75" 4K UHD Essential Series Interactive Flat Panel
The BenQ RE7504FV is a 75-inch 4K UHD interactive flat panel built for modern classrooms and meeting rooms. With a 40-point precision IR touch system, Android 14 (EDLA), and a robust 8GB RAM / 128GB storage configuration, it delivers a smooth, responsive experience for teaching, presenting, and collaboration.
Brilliant 4K UHD Display
The 75" IPS panel produces sharp, true-to-life images with a UHD 3840 × 2160 resolution and 10-bit colour depth. With 450 nits of brightness, anti-glare 9H tempered glass, and a wide 72% NTSC colour gamut, content stays clear and vibrant in any lighting condition.
-
Resolution: UHD 3840 × 2160
-
Brightness: 450 nits typical
-
Contrast Ratio: 1200:1 native, 30,000:1 dynamic
-
Response Time: 8 ms
-
Colour Depth: 10-bit
-
Backlight Life: 50,000 hours typical
Precision IR Touch with 40 Points
Up to 40 simultaneous touch points with a sub 5 ms touch response time make collaboration natural and lag-free. Two included styluses let multiple users write, draw, and annotate together without interruption.
Android 14 EDLA Certified
Powered by an octa-core CPU (4 × A73 + 4 × A53) and Mali G52 MP8 GPU, with 8GB of RAM and 128GB of storage, the RE7504FV runs Android 14 with full Google EDLA certification, giving you access to the Google Play Store, Google services, and a smooth Android experience out of the box.
Built-in Collaboration Tools
-
EZWrite 6.0 whiteboarding software
-
InstaShare 2 wireless screen sharing
-
DMS device management and AMS account management
-
X-Sign Broadcast for school-wide announcements
-
8-microphone array with up to 8 m pickup range
-
Built-in camera, NFC sensor, and ambient light sensor
-
Flicker Free and Low Blue Light for eye comfort
Comprehensive Connectivity
- 3 × HDMI 2.0 in, 1 × HDMI 2.0 out
- 1 × DisplayPort 1.2a
- 2 × USB-A 2.0, 2 × USB-A 3.0
- 1 × USB-C 2.0, 1 × USB-C 3.0 (PD 65 W)
- 2 × USB-B 2.0 (for touch)
- 1 × VGA
- 3.5 mm Line in (PC audio), 3.5 mm Line in (Mic), 3.5 mm Line out (earphone)
- 2 × Gigabit Ethernet (Android + OPS)
- 1 × OPS slot for slot-in PC
- 1 × Micro SD reader (up to 512GB)
- 1 × S/PDIF optical out
- 1 × RS-232
What's in the Box
- BenQ RE7504FV 75" Interactive Flat Panel
- Wall mount × 1
- Stylus pen × 2
- Remote control × 1
- VGA cable (3 m) × 1
- HDMI cable (3 m) × 1
- USB-B cable for touch (3 m) × 1
- USB-C cable (1.5 m) × 1
Full Specifications
Panel
| Screen Size |
75" |
| Panel Type |
IPS |
| Active Area |
1649.7 × 927.9 mm |
| Aspect Ratio |
16:9 |
| Resolution |
UHD 3840 × 2160 |
| Response Time |
8 ms |
| Colour Depth |
10-bit |
| Orientation |
Landscape |
| Operation Hours |
18 hours / 7 days |
| Panel Brightness (typical) |
450 nits |
| Contrast Ratio (typical) |
1200:1 |
| Dynamic Contrast Ratio |
30,000:1 |
| Colour Gamut |
72% NTSC |
| Backlight Life (typical) |
50,000 hrs |
Glass
| Germ-resistant Technology |
Availability dependent on region |
| Anti-glare |
Yes |
| Hardness |
9H tempered |
Touch Screen
| Touch Technology |
Precision IR |
| Touch Points |
Up to 40 |
| Touch Response Time |
< 5 ms |
System
| GPU |
G52 MP8 |
| CPU |
A73 × 4 + A53 × 4 |
| Memory / Storage |
8 GB / 128 GB (depends on region) |
| OS |
Android 14.0 (EDLA) |
Connectivity
| HDMI (in / out) |
3 × HDMI 2.0 in / 1 × HDMI 2.0 out |
| DisplayPort |
1 × 1.2a |
| USB-A |
2 × 2.0 + 2 × 3.0 |
| USB-C |
1 × 2.0 + 1 × 3.0 (PD 65 W) |
| USB-B (for touch) |
2 × 2.0 |
| 3.5 mm Line in (PC Audio) |
1 |
| VGA |
1 |
| 3.5 mm Line out (earphone) |
1 |
| OPS slot (for slot-in PC) |
1 |
| Micro SD reader |
1 (expandable up to 512GB) |
| S/PDIF out |
1 (optical) |
| Ethernet |
10 / 100 / 1000 Mbps (Android + OPS) × 2 |
| 3.5 mm Line in (Mic) |
1 |
| RS-232 |
1 |
Built-in Peripherals
| NFC Sensor |
Yes |
| Ambient Light Sensor |
Yes |
| IR Sensor |
Yes |
| Microphone |
8-microphone array (range up to 8 m) |
| Speaker |
2 × 20 W (max) |
| Camera |
1 |
Power & Environment
| ENERGY STAR® |
Yes |
| Power |
AC 100-240V 50/60Hz |
| Standby Power Consumption |
< 0.5 W |
| Typical Power Consumption |
73.9 W |
| Operating Temperature |
0°C ~ 40°C |
| Storage Temperature |
-10°C ~ 60°C |
| Operating Humidity |
20% ~ 80% RH non-condensing |
| Storage Humidity |
10% ~ 80% RH non-condensing |
Physical
| Dimensions (W × H × D) |
1716.5 × 1045.4 × 87.7 mm |
| Shipping Dimensions (W × H × D) |
1860.0 × 1125.0 × 185.0 mm |
| Weight (product / shipping) |
49.6 kg / 57 kg |
| VESA Mount |
800 × 600 mm (4 × M8 × 25L) |
Software
| Whiteboarding |
EZWrite 6.0 |
| Wireless Screen Sharing |
InstaShare 2 |
| Device Management |
DMS |
| Account Management |
AMS |
| Flicker Free |
Yes |
| Quick Access Tool |
Floating Tool |
| Broadcast System |
X-Sign Broadcast |
| Low Blue Light |
Yes |
What's in the Box
| Cables |
1 × VGA (3 m), 1 × HDMI (3 m), 1 × USB-B for touch (3 m), 1 × USB-C (1.5 m) |
| Wall Mount |
1 |
| Pen |
2 |
| Remote Control |
1 |
Specifications are sourced from the official manufacturer product page and may be updated.
