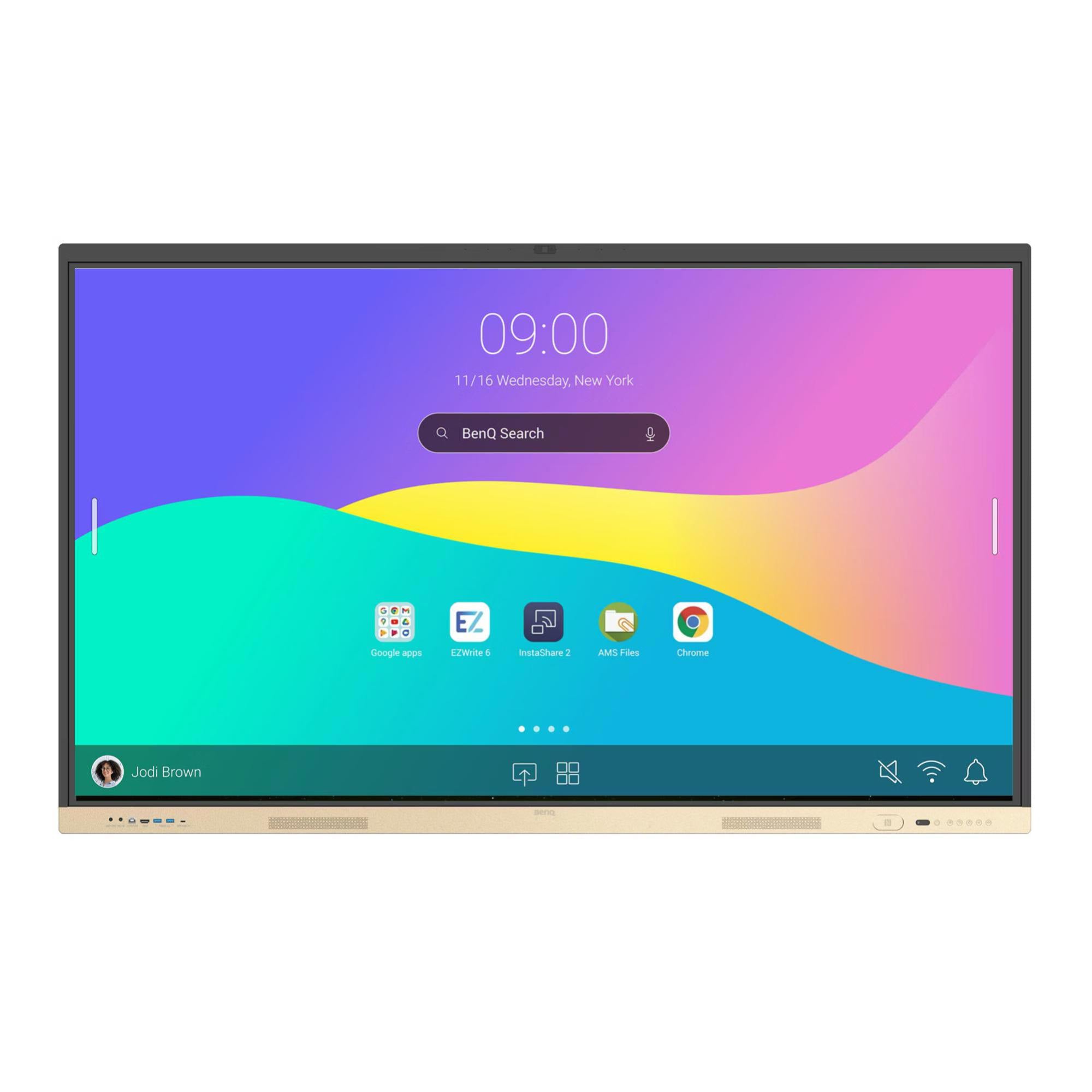

BenQ RE8604FV Essential Series 86" 4K UHD Interactive Flat Panel Display
Transform your classroom or meeting room with the BenQ RE8604FV 86-inch interactive flat panel, a powerful all-in-one collaboration solution designed for modern education and business environments. Featuring 4K UHD resolution (3840 × 2160) on a massive 86-inch IPS display, this EDLA-certified interactive board delivers stunning visual clarity with 178-degree viewing angles and 400 nits brightness. Built on Android 13 with an octa-core processor, 8GB RAM, and expandable storage, the RE8604FV brings seamless access to Google services, video conferencing platforms, and educational apps directly on the display.
Interactive Collaboration Made Easy
Experience natural, gap-free writing with 40-point Precision IR touch technology and an ultra-fast response time of less than 5ms. Whether you're teaching a classroom full of students, leading a corporate presentation, or facilitating remote collaboration via Google Meet, Microsoft Teams, or Zoom, the RE8604FV supports simultaneous multi-user interaction with precision and fluidity. The included EZWrite 6.0 whiteboard software offers an expandable canvas, session saving, and cloud integration for limitless collaboration possibilities.
-
40-Point Multi-Touch: Engage multiple users simultaneously for dynamic group work and brainstorming sessions
-
Gap-Free Writing Experience: Precision IR touch delivers natural, responsive handwriting with no air gap
-
Built-in AI Tools: Text-to-Speech, OCR, and multilingual translation features enhance accessibility and inclusivity
-
Video Conferencing Ready: Compatible with major UCaaS platforms for hybrid learning and remote meetings
ClassroomCare Technologies for Healthier Learning
The BenQ RE8604FV prioritises user wellbeing with a comprehensive suite of ClassroomCare features. The TÜV-certified antimicrobial and anti-glare screen protects against germs and reduces reflections, while advanced Eye-Care technologies including flicker-free backlighting and low blue light minimise eye strain during extended use. These health-focused innovations create a more comfortable environment for all-day teaching and collaboration.
Powerful Connectivity and Performance
Stay connected with versatile input and output options designed for modern workflows. The RE8604FV features USB-C 65W Power Delivery for single-cable connectivity with laptops, three HDMI 2.0 inputs plus one HDMI output, DisplayPort 1.2a, VGA, and multiple USB 3.0 and USB 2.0 Type-A ports. Built-in dual 20W speakers deliver room-filling audio, while wireless connectivity options enable seamless screen sharing from any device. An optional OPS slot allows you to expand functionality with a Windows PC module for specialised applications.
-
USB-C with 65W PD: Connect, charge, and control your laptop with a single cable
-
3 × HDMI 2.0 Inputs + 1 × HDMI Output: Switch between multiple sources and mirror content
-
DisplayPort 1.2a: High-bandwidth digital connectivity for PC workstations
-
VGA Input: Legacy device compatibility for older equipment
-
Multiple USB Ports: Front and rear USB 3.0 and USB 2.0 Type-A ports for peripherals and storage
-
Wi-Fi & Bluetooth: Wireless screen mirroring and device connectivity
-
RS-232C: Serial control for integration with AV control systems
-
SPDIF Out: Digital audio output for external sound systems
Energy Efficient and Environmentally Responsible
With a typical power consumption of just 74W, the BenQ RE8604FV delivers world-class energy efficiency without compromising performance. The 50,000-hour backlight lifespan ensures years of reliable operation with minimal maintenance, making it a cost-effective choice for schools and businesses committed to sustainability.
What's in the Box
- BenQ RE8604FV 86" Interactive Flat Panel Display
- Remote Control
- Power Cord
- 2 × Stylus Pens
- Quick Start Guide
- Regulation Sheet
- Touch USB Cable
- HDMI Cable
- VGA (D-Sub 15-pin) Cable
- Type-C Cable
- Wall Mount Bracket
Full Specifications
Display
| Screen Size |
86 inches (diagonal) |
| Panel Type |
IPS |
| Active Area |
1895.0 × 1096.0 mm |
| Aspect Ratio |
16:9 |
| Resolution |
4K UHD 3840 × 2160 pixels |
| Brightness (with glass) |
400 nits |
| Contrast Ratio (typical) |
1200:1 |
| Dynamic Contrast Ratio |
30,000:1 |
| Viewing Angle (H/V) |
178° |
| Response Time (G-to-G) |
8 ms |
| Backlight Life |
50,000 hours |
Touch Technology
| Touch Technology |
Precision IR (Infrared) |
| Touch Points |
40-point multi-touch |
| Touch Response Time |
Less than 5 ms |
| Surface Treatment |
Anti-glare, antimicrobial (TÜV certified) |
Smart System
| Operating System |
Android 13 (Google EDLA Certified) |
| Processor |
Octa-core ARM Cortex |
| RAM |
8 GB |
| Internal Storage |
32 GB / 64 GB / 128 GB (varies by configuration) |
| Expandable Storage |
SD Card slot (up to 512 GB) |
Audio
| Built-in Speakers |
Dual 20W speakers (40W total) |
| Microphone |
Built-in array microphone |
I/O Interfaces
| HDMI Input |
3 × HDMI 2.0 |
| HDMI Output |
1 × HDMI 2.0 (ARC supported) |
| DisplayPort |
1 × DisplayPort 1.2a |
| VGA Input |
1 × VGA (D-Sub 15-pin) |
| USB-C |
1 × USB-C 3.0 (65W Power Delivery), 1 × USB-C 2.0 |
| USB Type-A |
2 × USB 3.0, 2 × USB 2.0 |
| USB Type-B (Touch) |
2 × USB 2.0 |
| Audio Input |
3.5mm audio jack |
| SPDIF Output |
Optical digital audio output |
| RS-232C |
Serial control port |
| LAN |
RJ-45 Ethernet |
| OPS Slot |
Optional PC module slot |
| SD Card Slot |
For storage expansion |
Wireless Connectivity
| Wi-Fi |
Built-in (with dongle support) |
| Bluetooth |
Yes |
| Screen Mirroring |
Google Cast, Miracast, AirPlay (via app) |
Power & Environment
| Power Consumption (Typical) |
74W |
| Voltage |
100-240V AC, 50/60Hz |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-20°C to 60°C |
Physical
| Dimensions (W × H × D) |
1962.4 × 1174.9 × 87.1 mm (without stand) |
| Net Weight |
63.7 kg |
| Gross Weight (with packaging) |
80.5 kg |
| VESA Mount |
800 × 600 mm |
Warranty & Certifications
| Warranty |
3 years (onsite service available in select regions) |
| Certifications |
Google EDLA, ISO, RoHS, CE, FCC, SIAA, SGS, TÜV, ADA CASA, IP5X, Flicker-free, Low Blue Light |
Specifications are sourced from the manufacturer product page and may be updated.
