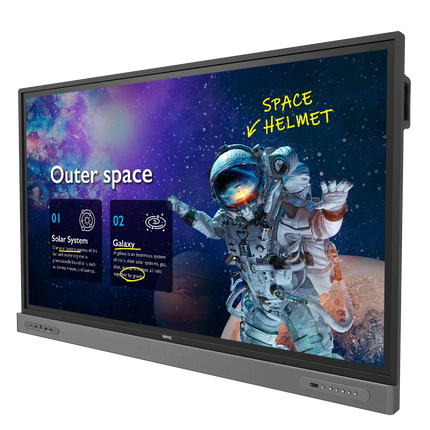

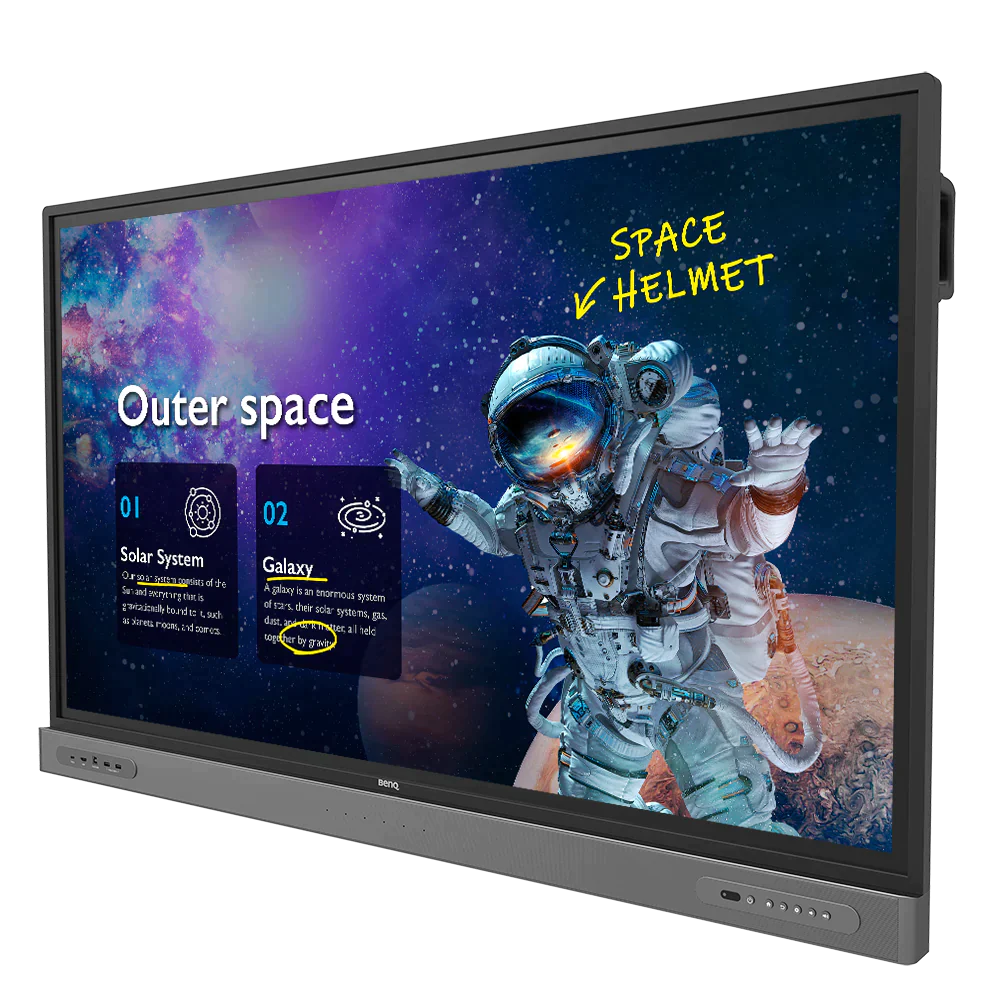

BenQ RM7504 75" 4K UHD Interactive Flat Panel Display
The BenQ RM7504 is a 75-inch 4K UHD interactive flat panel built for modern classrooms and meeting rooms. Featuring a UHD 3840 × 2160 IPS panel, 40-point high precision IR touch, and Android 13 (EDLA certified), it brings together teaching, presentation, and collaboration tools in one all-in-one display.
Stunning 4K Visuals
An IPS panel with 10-bit colour depth delivers vivid, accurate visuals across the room. With 450 nits typical brightness, anti-glare 9H tempered glass, and a 50,000:1 dynamic contrast ratio, content remains sharp and easy to view even in well-lit environments.
-
Resolution: UHD 3840 × 2160
-
Panel: IPS, 10-bit colour, 72% NTSC
-
Brightness: 450 nits (typical)
-
Anti-glare: 9H tempered germ-resistant glass with nano-ionic silver
Precision Multi-Touch
The high precision IR touch technology supports up to 40 simultaneous touch points with sub-5 ms response time, enabling natural writing, drawing, and multi-user collaboration. Two passive pens are included.
Built-In Android 13 with EDLA Certification
EDLA (Enterprise Devices Licensing Agreement) certification means full access to Google Mobile Services and the Play Store, so popular apps run natively without external hardware.
-
OS: Android 13 (EDLA)
-
CPU: Arm Cortex-A73 × 4 + A53 × 4
-
GPU: Arm Mali-G52 MP8
-
Memory / Storage: 8 GB RAM, 32 GB or 128 GB storage
Smart Collaboration Software
-
EZWrite 6.0: digital whiteboarding
-
InstaShare 2: wireless screen sharing
-
DMS & AMS: device and account management
-
X-Sign Broadcast: campus or office-wide broadcasting
-
Floating Tool: quick access annotation across any source
Universal Connectivity
- 3 × HDMI 2.0 in, 1 × HDMI 2.0 out
- 1 × DisplayPort 1.2a
- 1 × VGA
- 5 × USB-A 3.0, 2 × USB-A 2.0
- 1 × USB-C 3.0 with 65W Power Delivery, 2 × USB-C 3.0
- 3 × USB-B 3.0 (for touch)
- 2 × Ethernet (LAN)
- 1 × RS-232 control
- 1 × OPS slot for slot-in PC
- 1 × S/PDIF optical audio out
- 1 × 3.5 mm Mic in, 1 × 3.5 mm PC audio in, 1 × 3.5 mm earphone out
- Bluetooth 5.2
- Wi-Fi 6 (optional dongle)
- NFC sensor, ambient light sensor, IR sensor
- 8-microphone array (range up to 8 m)
What's in the Box
- BenQ RM7504 75" Interactive Flat Panel
- 2 × Stylus Pens
- 1 × Remote Control
- 1 × Wall Mount
- 1 × VGA Cable (3 m)
- 1 × HDMI Cable (3 m)
- 1 × USB-B Touch Cable (3 m)
- 1 × USB-C Cable (1.5 m)
Full Specifications
Display
| Screen Size |
75" |
| Panel Type |
IPS |
| Active Area |
1649.7 × 927.9 mm |
| Aspect Ratio |
16:9 |
| Resolution |
UHD 3840 × 2160 |
| Response Time |
8 ms |
| Colour Depth |
10-bit |
| Orientation |
Landscape |
| Operation Hours |
18 hours / 7 days |
| Panel Brightness (typical) |
450 nits |
| Contrast Ratio (typical) |
1200:1 |
| Dynamic Contrast Ratio |
50,000:1 |
| Colour Gamut |
72% NTSC |
| Backlight Life (typical) |
50,000 hrs |
Glass
| Germ-resistant Technology |
Nano-ionic silver |
| Anti-glare |
Yes |
| Hardness |
9H tempered |
Touch Screen
| Touch Technology |
High Precision IR |
| Touch Points |
up to 40 |
| Touch Response Time |
< 5 ms |
System
| GPU |
Arm Mali-G52 MP8 |
| CPU |
Arm Cortex-A73 × 4 + A53 × 4 |
| Memory / Storage |
8 GB / 32 GB or 128 GB |
| OS |
Android 13 (EDLA) |
Smart System
| Whiteboarding |
EZWrite 6.0 |
| Wireless Screen Sharing |
InstaShare 2 |
| Device Management |
DMS |
| Account Management |
AMS |
| Flicker Free |
Yes |
| Quick Access Tool |
Floating Tool |
| Broadcast System |
X-Sign Broadcast |
| Low Blue Light |
Yes |
Audio
| Speakers |
2 × 20 W (max) |
| Microphone |
8-microphone array (range up to 8 m / 26 ft) |
Connectivity
| HDMI (in / out) |
3 × HDMI 2.0 / 1 × HDMI 2.0 |
| DisplayPort |
1 × 1.2a |
| USB-A |
5 × 3.0, 2 × 2.0 |
| USB-C |
1 × 3.0 (PD 65 W), 2 × 3.0 |
| USB-B (touch) |
3 × 3.0 |
| VGA |
1 |
| 3.5 mm Line in (Mic) |
1 |
| 3.5 mm Line in (PC Audio) |
1 |
| 3.5 mm Line out (Earphone) |
1 |
| S/PDIF out |
1 (optical) |
| Ethernet |
2 |
| RS-232 |
1 |
| OPS slot |
1 |
| Wi-Fi |
Wi-Fi 6 (optional) |
| Bluetooth |
Bluetooth 5.2 |
Built-in Peripherals
| NFC Sensor |
Yes |
| Ambient Light Sensor |
Yes |
| IR Sensor |
Yes |
Power & Environment
| ENERGY STAR® |
Yes |
| Power |
AC 100–240V 50/60Hz |
| Standby Power Consumption |
< 0.5 W |
| Typical Power Consumption |
124.7 W |
| Operating Temperature |
0°C ~ 40°C |
| Storage Temperature |
-10°C ~ 60°C |
| Operating Humidity |
20% ~ 80% RH non-condensing |
| Storage Humidity |
10% ~ 80% RH non-condensing |
Physical
| Dimensions (W x H x D) |
1717.1 × 1036.8 × 87.1 mm |
| Shipping Dimensions (W x H x D) |
1860.0 × 1125.0 × 185.0 mm |
| Product Weight |
51.5 kg |
| Shipping Weight |
67.6 kg |
| VESA Mount |
800 × 400 mm (4 × M8 × 25L) |
What's in the Box
| Cables |
1 × VGA (3 m), 1 × HDMI (3 m), 1 × USB-B for touch (3 m), 1 × USB-C (1.5 m) |
| Wall Mount |
1 |
| Pen |
2 |
| Remote Control |
1 |
Specifications are sourced from the official manufacturer product page and may be updated.
