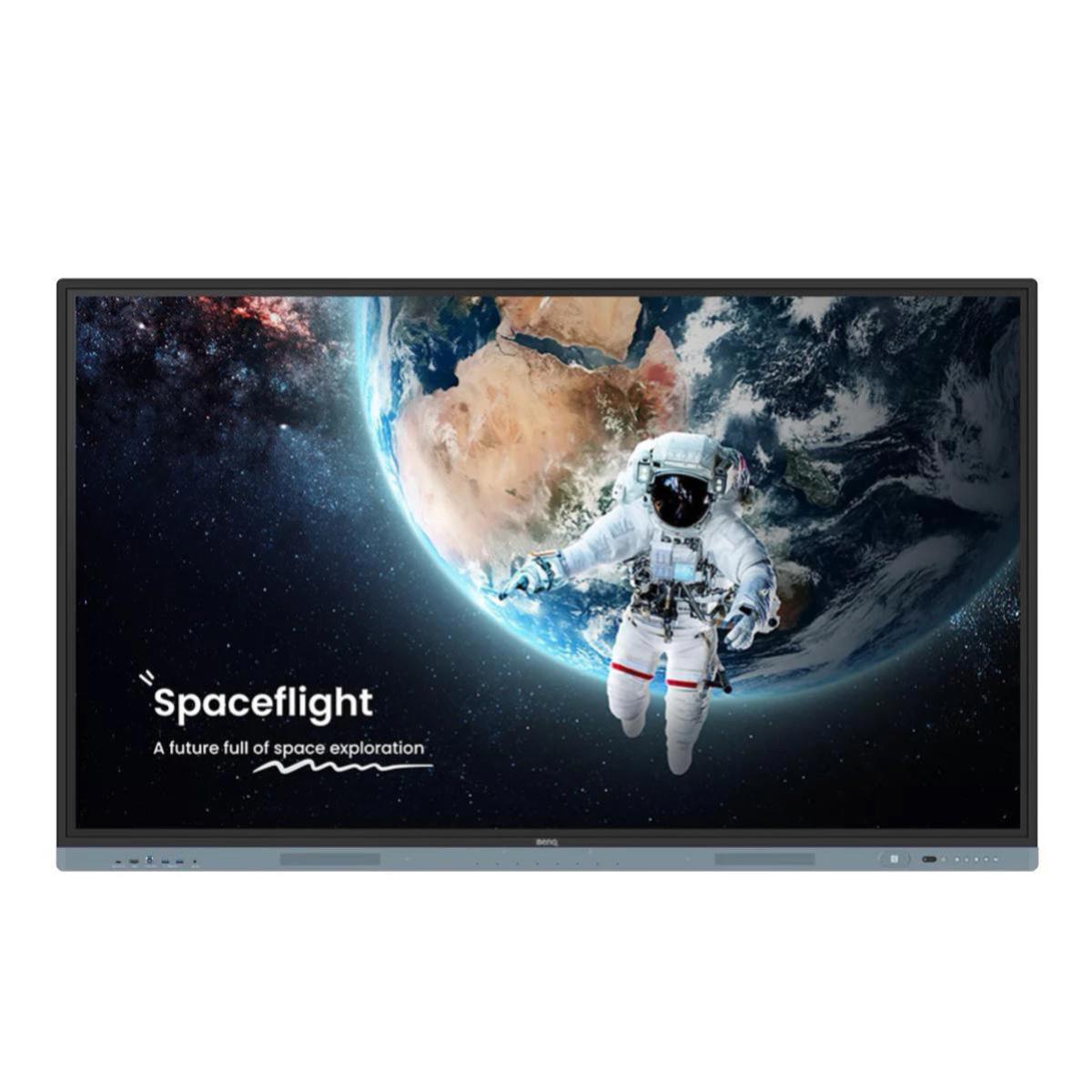

BenQ RM8604 86" 4K Interactive Flat Panel Display with 40-Point Touch & Android 13
The BenQ RM8604 is an 86-inch 4K UHD interactive flat panel display designed to transform classrooms, meeting rooms, and collaborative spaces. Featuring 40-point multi-touch technology, EDLA-certified Android 13, and a brilliant 450-nit display, this board delivers an immersive, interactive experience for education and business environments. With seamless access to Google apps, cloud storage, and advanced whiteboarding tools, the RM8604 empowers teachers and presenters to engage their audiences like never before.
Key Features
-
86-inch 4K UHD display: Crystal-clear 3840 × 2160 resolution with 10-bit colour depth and 72% NTSC colour gamut for stunning visuals
-
40-point infrared touch: Natural writing experience with 8ms touch response time for seamless collaboration
-
EDLA-certified Android 13: Official Google integration with access to Google Play, Drive, and voice assistant
-
EZWrite 6.0 whiteboarding: Powerful interactive canvas with annotation, cloud whiteboarding, and OCR text recognition
-
InstaShare 2 wireless sharing: Cast from laptops, tablets, or smartphones via Miracast, AirPlay, or the InstaShare app
-
Eye-care technology: Low blue light, flicker-free display, and anti-glare 9H tempered glass for all-day comfort
Immersive Audiovisual Experience
The RM8604 combines a stunning 86-inch 4K UHD LED-backlit display with a powerful audiovisual system. The dual 20W front-facing speakers deliver room-filling sound, while the 8-array microphone system (with up to 8m pickup range) ensures everyone can hear and be heard during lessons, presentations, or video calls.
Interactive Technology for Collaborative Learning
Equipped with infrared touch technology and supporting up to 40 simultaneous touch points, the RM8604 facilitates interactive learning and collaborative work. Multiple students or meeting participants can write, draw, and annotate on the screen at the same time. The display features a 9H hardness tempered glass surface with nano-ionic silver germ-resistant coating for durability and hygiene.
EDLA-Certified Smart Platform
The RM8604 runs Android 13.0 with 8GB RAM and 32GB storage, certified by Google's EDLA programme. Access your favourite apps from Google Play, connect to Google Drive, OneDrive, Dropbox, and Box, and use Google Assistant for voice control. With AMS (Account Management System) and DMS (Device Management Solution), you can securely log in via NFC card or QR code, load personal settings, and manage multiple devices efficiently.
Universal Connectivity
The RM8604 offers comprehensive connectivity for seamless integration with your existing devices:
-
Front I/O: 1 × HDMI 2.0, 2 × USB-A 3.0, 1 × USB-B 3.0 (touch), 1 × 3.5mm audio
-
Rear I/O: 2 × HDMI 2.0, 1 × DisplayPort 1.2a, 1 × VGA, 2 × USB-B 3.0 (touch), 1 × USB-A 3.0, 2 × USB-A 2.0, 1 × USB-C with 65W Power Delivery and DisplayPort Alt Mode, 2 × USB-C 3.0, 1 × HDMI out, 1 × TOSLINK optical audio out, 1 × 3.5mm audio out, 2 × RJ45 Gigabit Ethernet, 1 × RS-232C serial
-
Top I/O: 1 × USB-A 3.0
-
Wireless: Built-in Wi-Fi, Miracast, AirPlay support
What's in the Box
- BenQ RM8604 86" Interactive Flat Panel Display
- Wall mount bracket (VESA 800 × 600mm compatible)
- 2 × Stylus pens
- 1 × Remote control
- 1 × VGA cable (3m)
- 1 × HDMI cable (3m)
- 1 × USB Type-B cable for touch (3m)
- 1 × USB-C cable (1.5m)
- Power cord
- User manual
Full Specifications
Display
| Display Size |
86 inches (218 cm diagonal) |
| Resolution |
3840 × 2160 (4K UHD) |
| Display Area |
1895.0 × 1066.0 mm |
| Panel Type |
IPS LCD with LED backlight |
| Aspect Ratio |
16:9 |
| Brightness |
400 nits (450 nits without glass) |
| Contrast Ratio |
1200:1 (typical), 50000:1 (dynamic) |
| Colour Depth |
10-bit (1.07 billion colours) |
| Colour Gamut |
72% NTSC |
| Response Time |
8 ms |
| Viewing Angle |
178° horizontal / 178° vertical |
| Anti-Glare |
Yes |
| Light Life |
50,000 hours |
Touch Technology
| Touch Technology |
Infrared (IR) |
| Touch Points |
40 simultaneous touch points |
| Touch Response Time |
<8 ms |
| Surface Hardness |
9H tempered glass |
| Germ-Resistant Coating |
Nano-ionic silver |
| Touch Interface |
3 × USB 3.0 Type-B |
Smart System
| Operating System |
Android 13.0 (EDLA certified) |
| RAM |
8 GB |
| Storage |
32 GB |
| GPU |
Mali-G52 MP8 |
| Built-in Camera |
Optional (DV01K sold separately) |
| NFC Reader |
Yes (for Tap & Teach login) |
Audio
| Speakers |
2 × 20W front-facing |
| Total Audio Output |
40W |
| Microphones |
8-array (max pickup range 8m) |
I/O Interfaces
| Front Inputs |
1 × HDMI 2.0, 2 × USB-A 3.0, 1 × USB-B 3.0 (touch), 1 × 3.5mm audio in |
| Rear Inputs |
2 × HDMI 2.0, 1 × DisplayPort 1.2a, 1 × VGA, 2 × USB-B 3.0 (touch), 1 × USB-A 3.0, 2 × USB-A 2.0, 1 × USB-C (65W PD + DP Alt Mode), 2 × USB-C 3.0, 1 × 3.5mm audio in |
| Rear Outputs |
1 × HDMI 2.0, 1 × TOSLINK optical audio, 1 × 3.5mm audio/headphone |
| Top I/O |
1 × USB-A 3.0 |
| Network |
2 × RJ45 Gigabit Ethernet |
| Control |
1 × RS-232C serial |
| Wireless |
Wi-Fi, Miracast, AirPlay |
Power & Environment
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-10°C to 60°C |
| Storage Humidity |
10% to 80% RH (non-condensing) |
Physical
| Dimensions (W × H × D) |
1962.4 × 1174.9 × 87.1 mm (with wall mount) |
| Display Only (W × H × D) |
1488.4 × 937.6 × 117.7 mm |
| Weight |
65.2 kg (with accessories), 40.6 kg (display only) |
| Body Colour |
Black |
| Wall Mount Standard |
VESA 800 × 600 mm |
Features & Software
| Whiteboarding |
EZWrite 6.0 with OCR |
| Screen Sharing |
InstaShare 2 (Miracast, AirPlay, app) |
| Account Management |
AMS (NFC card & QR code login) |
| Device Management |
DMS (Device Management Solution) |
| Quick Access Tool |
Floating Tool (annotate, screenshot, record) |
| Broadcast System |
X-Sign Broadcast |
| Eye-Care Modes |
Low blue light, flicker-free |
Warranty
Specifications are sourced from the official manufacturer product page and may be updated.
