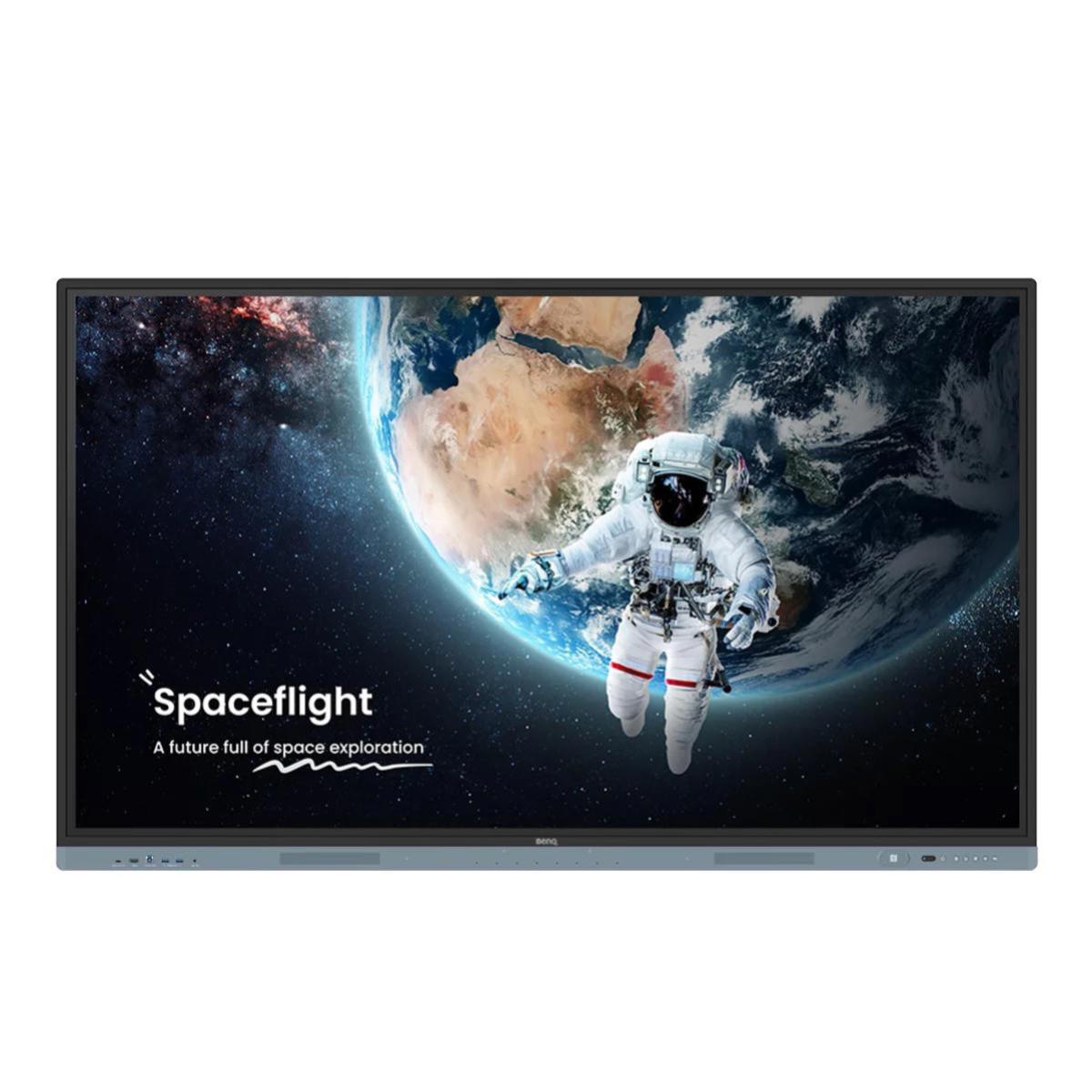

BenQ RM8604 86" Board Master 4K UHD Interactive Flat Panel Display
Transform your classroom or meeting space with the BenQ RM8604 86-inch Board Master Interactive Flat Panel. This Google EDLA-certified smart board delivers stunning 4K UHD (3840 × 2160) visuals on a massive 86-inch IPS touchscreen, designed specifically for education and collaborative environments. Powered by Android 13 with 8GB RAM and 32GB storage, it offers seamless access to Google apps, cloud services, and educational tools right out of the box. With 40-point multi-touch and infrared touch technology on 9H tempered anti-glare glass, the RM8604 creates immersive, interactive learning experiences for modern Australian classrooms.
Google EDLA Certified for Education
The BenQ Board Master RM8604 comes with official Google EDLA certification, providing pre-installed access to Google Play, Google Drive, Google Meet, and the full suite of Google Workspace for Education. Teachers can open lesson files directly from Google Docs, Sheets, and Slides on the large touchscreen, collaborate in real-time, and save materials back to the cloud effortlessly. Google Assistant voice control via the included remote makes classroom management even easier, while Google Play Protect ensures security against malware.
Why Teachers and Students Love the BenQ RM8604
-
Massive 86-inch 4K UHD display: Crystal-clear 3840 × 2160 resolution with 450 nits brightness and IPS panel for wide viewing angles
-
40-point multi-touch: Multiple students can interact simultaneously for collaborative group work and hands-on learning
-
Zero-gap infrared touch: Smooth, paper-like writing experience with precision IR touch on 9H hardened tempered glass
-
Powerful audio: Dual 20-watt front-facing speakers and 8-microphone array with echo cancellation for crystal-clear hybrid learning
-
EZWrite 6.0 whiteboarding software: Annotate, draw, and collaborate with intuitive digital whiteboard tools built-in
-
InstaShare 2 wireless screen sharing: Cast from laptops, tablets, and phones; share multiple screens at once with touchback control
Designed for Hybrid Classrooms and Meeting Rooms
The RM8604 excels in hybrid learning and conferencing environments. The 8-microphone array with advanced noise reduction captures voices clearly from up to 8 meters away, while the dual 20-watt front-facing speakers deliver room-filling sound for video calls and multimedia lessons. Pair it with the optional BenQ DV01K 4K UHD camera for AI-powered auto-framing, face tracking, and voice tracking during remote teaching or video conferencing.
Universal Connectivity for Any Device
Connect virtually any device with the RM8604's extensive port selection:
-
3 × HDMI 2.0 (1 front, 2 rear) for laptops, document cameras, and media players
-
1 × DisplayPort 1.2a for high-resolution PC connectivity
-
1 × VGA for legacy devices
-
1 × USB-C with 65W Power Delivery: Display, charge, and touchback control from a single cable
-
5 × USB-A 3.0 and 2 × USB-A 2.0 for peripherals and storage
-
3 × USB-B 3.0 for touch interface control
-
Wi-Fi 6 and Gigabit Ethernet for fast, reliable network connectivity
-
Bluetooth 5.2 for wireless accessories
-
NFC reader for instant content sharing from Android phones with a tap
-
RS-232C for device management and control systems
ClassroomCare Health and Safety Features
BenQ's ClassroomCare technology creates a healthier learning environment. The RM8604 is Eyesafe Certified 2.0, reducing harmful blue light without compromising vibrant colour accuracy. The nano-ionic silver coating provides germ resistance on the touch surface, buttons, and front ports, tested to be 99.9% effective. The anti-glare 9H tempered glass reduces reflections and eye strain, even in brightly lit Australian classrooms.
Device and Account Management Made Simple
IT administrators can remotely manage the RM8604 fleet with BenQ DMS (Device Management Solution) and AMS (Account Management System). Monitor usage, push updates, control settings, and generate reports across multiple displays. Use X-Sign Broadcast to deliver emergency announcements, event schedules, and safety protocols to multiple BenQ Boards simultaneously.
What's in the Box
- BenQ RM8604 86" Interactive Flat Panel Display
- Wall mount bracket (800 × 600mm VESA compatible)
- 2 × Stylus pens
- Remote control with Google Assistant
- Built-in 13MP camera
- VGA cable (3m)
- HDMI cable (3m)
- USB-B touch cable (3m)
- USB-C cable (1.5m)
- Power cord
- Quick start guide
Full Specifications
Display
| Screen Size |
86 inches |
| Panel Type |
IPS |
| Resolution |
4K UHD 3840 × 2160 pixels |
| Active Area |
1895.0 × 1066.0 mm |
| Aspect Ratio |
16:9 |
| Brightness (with glass) |
400 nits (typical) |
| Brightness (without glass) |
450 nits (typical) |
| Contrast Ratio |
1200:1 (typical), 50,000:1 (dynamic) |
| Response Time |
8ms |
| Color Depth |
10-bit |
| Color Gamut |
72% NTSC |
| Viewing Angle |
178° horizontal, 178° vertical |
| Backlight |
DLED |
| Light Life |
50,000 hours |
| Operation Hours |
18 hours / 7 days |
Touch Technology
| Touch Technology |
Infrared (IR) |
| Touch Points |
Up to 40 points (Windows), up to 32 points (Android) |
| Touch Method |
Finger and stylus |
| Touch Response Time |
<8ms |
| Minimum Object Recognition |
2mm (finger), 4mm/9mm (pen tip), supports 2 pens simultaneously |
| Glass Hardness |
9H tempered glass |
| Anti-Glare Coating |
Yes |
| Germ-Resistant Coating |
Nano-ionic silver (99.9% effective) |
| Eyesafe Certification |
Eyesafe Certified 2.0 |
System & Smart Features
| Operating System |
Android 13.0 (Google EDLA certified) |
| Processor |
Quad-core |
| GPU |
Mali-G52 MP8 |
| RAM |
8GB |
| Storage |
32GB |
| Voice Assistant |
Google Assistant |
| Whiteboarding Software |
EZWrite 6.0 |
| Screen Sharing |
InstaShare 2 |
| Device Management |
BenQ DMS, AMS |
| Broadcasting |
X-Sign Broadcast |
Audio
| Speakers |
2 × 20W front-facing speakers |
| Total Audio Output |
40W |
| Microphone Array |
8 microphones with echo cancellation and noise reduction |
| Microphone Pickup Range |
Up to 8 meters |
Connectivity & I/O
| HDMI |
3 × HDMI 2.0 (1 front, 2 rear) |
| DisplayPort |
1 × DisplayPort 1.2a (rear) |
| VGA |
1 × VGA (rear) |
| USB-C |
1 × USB-C 3.0 with 65W Power Delivery (rear)
2 × USB-C 3.0 (rear) |
| USB-A |
5 × USB-A 3.0 (2 front, 2 rear, 1 top)
2 × USB-A 2.0 (rear) |
| USB-B (Touch) |
3 × USB-B 3.0 for touch control (1 front, 2 rear) |
| Audio Out |
1 × 3.5mm headphone jack (rear)
1 × TOSLINK optical digital audio (rear) |
| Audio In |
1 × 3.5mm audio input (front)
1 × 3.5mm audio input (rear) |
| Network |
1 × RJ-45 Gigabit Ethernet LAN |
| Control |
RS-232C |
| HDMI Out |
1 × HDMI 2.0 (rear, for daisy-chaining) |
| Wi-Fi |
Wi-Fi 6 (802.11a/b/g/n/ac/ax), dual-band 2.4GHz & 5GHz |
| Bluetooth |
Bluetooth 5.2 |
| NFC |
NFC reader for instant content sharing |
Camera
| Built-in Camera |
Yes, 13MP |
Power & Environment
| Power Supply |
AC 100-240V, 50/60Hz |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-10°C to 60°C |
| Storage Humidity |
10% - 80% RH (non-condensing) |
Physical Specifications
| Dimensions (W × H × D) |
1962.4 × 1174.9 × 87.1 mm |
| Weight |
65.2 kg |
| VESA Mount |
800 × 600mm |
| Orientation |
Landscape |
| Body Color |
Black |
Warranty
Specifications are sourced from the manufacturer product page and may be updated.
