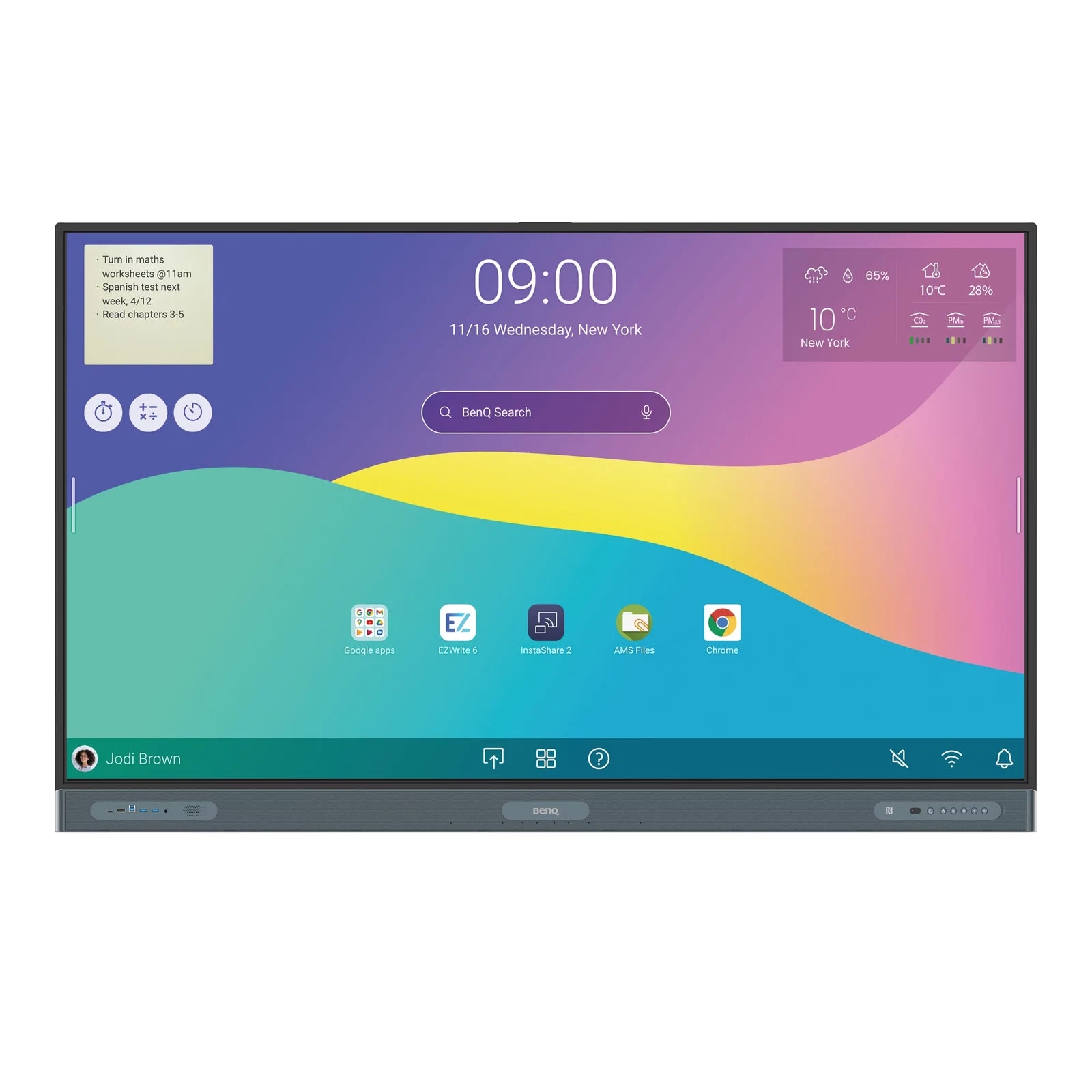

BenQ RP7504 75" 4K UHD Interactive Flat Panel Display
The BenQ RP7504 is a 75-inch 4K UHD interactive flat panel built for modern classrooms and meeting rooms. With Ultra Precision IR multi-touch (up to 50 points), a 9H tempered anti-glare germ-resistant glass surface, Android 15, Wi-Fi 6, and a built-in air quality sensor and ionizer, it brings collaborative writing, wireless screen sharing and a healthier learning environment together in one display.
Brilliant 4K Visuals
A 3840 × 2160 IPS panel delivers sharp detail and wide viewing angles, with 10-bit colour depth and 450 nits brightness so content stays vibrant in well-lit rooms.
-
Resolution: UHD 3840 × 2160
-
Panel type: IPS, 16:9 aspect ratio
-
Brightness: 450 nits typical
-
Contrast: 1200:1 typical, 50,000:1 dynamic
-
Response time: 8 ms
-
Backlight life: 50,000 hours
Precision Multi-Touch Writing
Designed for natural collaboration, the RP7504 uses Ultra Precision IR touch technology with up to 50 simultaneous touch points and a touch response time under 2.5 ms. Two pens are included.
Healthy Classroom, Healthier Learning
Beyond display quality, the RP7504 actively monitors and improves the room environment.
-
Germ-resistant nano-ionic silver glass with 9H tempered anti-glare finish
-
Air quality sensor: CO&sub2;, PM2.5, PM10, TVOC, CH&sub2;O, temperature, humidity
- Built-in air ionizer
-
Flicker Free and Low Blue Light certified for eye comfort
Smart System & Software
Powered by Android 15 on an octa-core Arm Cortex (A78 × 4 + A55 × 4) CPU with Arm Mali-G57 MC5 GPU, 8 GB RAM and 64 GB or 128 GB storage.
-
EZWrite 6.0 whiteboarding
-
InstaShare 2 wireless screen sharing
-
DMS device management and AMS account management
-
Floating Tool quick access
-
X-Sign Broadcast system
Built-in Audio & Microphone Array
Stereo 2 × 20 W speakers paired with a 16 W subwoofer, plus an 8-microphone array with up to 8 m pickup range for clear classroom audio and video conferencing.
Universal Connectivity
- 4 × HDMI 2.0 in, 1 × HDMI 2.0 out
- 1 × DisplayPort 1.2a
- 7 × USB-A 3.0, 1 × USB-A 2.0
- 1 × USB-C 3.0 with PD 100 W, 2 × USB-C 3.0, 1 × USB-C 2.0 with PD 65 W
- 3 × USB-B 3.0 (for touch)
- 1 × VGA
- 2 × Ethernet (RJ45)
- 1 × RS-232
- 1 × 3.5 mm Mic in, 1 × 3.5 mm PC Audio in, 1 × 3.5 mm earphone out
- 1 × S/PDIF optical out
- 1 × OPS slot for slot-in PC
- Wi-Fi 6 and Bluetooth 5.2
- NFC sensor, ambient light sensor, IR sensor, motion sensor
What's in the Box
- BenQ RP7504 interactive flat panel
- VGA cable (3 m)
- HDMI cable (3 m)
- USB-B touch cable (3 m)
- USB-C cable (1.5 m)
- Wall mount
- 2 × pens
- Remote control
Full Specifications
Panel
| Screen size |
75" |
| Panel type |
IPS |
| Active area |
1649.7 × 927.9 mm |
| Aspect ratio |
16:9 |
| Resolution |
UHD 3840 × 2160 |
| Response time |
8 ms |
| Color depth |
10-bit |
| Orientation |
Landscape |
| Operation hours |
18 hours / 7 days |
| Brightness (typical) |
450 nits |
| Contrast ratio (typical) |
1200:1 |
| Dynamic contrast ratio |
50,000:1 |
| Color gamut |
72% NTSC |
| Backlight life (typical) |
50,000 hrs |
Glass
| Germ-resistant technology |
Nano-ionic silver |
| Anti-glare |
Yes |
| Hardness |
9H tempered |
Touch Screen
| Touch technology |
Ultra Precision IR |
| Touch points |
Up to 50 |
| Touch response time |
< 2.5 ms |
System
| GPU |
Arm Mali-G57 MC5 |
| CPU |
Arm Cortex-A78 × 4 + A55 × 4 |
| Memory / Storage |
8 GB / 64 GB or 128 GB |
| OS |
Android 15.0 |
Connectivity
| HDMI in / out |
4 × HDMI 2.0 / 1 × HDMI 2.0 |
| DisplayPort |
1 × 1.2a |
| USB-A |
7 × 3.0, 1 × 2.0 |
| USB-C |
1 × 3.0 (PD 100 W), 2 × 3.0, 1 × 2.0 (PD 65 W) |
| USB-B (for touch) |
3 × 3.0 |
| VGA |
1 |
| 3.5 mm Line in |
Mic × 1, PC Audio × 1 |
| 3.5 mm Line out |
Earphone × 1 |
| S/PDIF out |
1 (optical) |
| Ethernet |
2 |
| RS-232 |
1 |
| OPS slot |
1 |
| Wi-Fi |
Wi-Fi 6 |
| Bluetooth |
Bluetooth 5.2 |
Built-in Peripherals & Sensors
| NFC sensor |
Yes |
| Ambient light sensor |
Yes |
| IR sensor |
Yes |
| Motion sensor |
Yes |
| Microphone |
8-microphone array (up to 8 m / 26 ft) |
| Speaker |
2 × 20 W |
| Subwoofer |
1 × 16 W |
| Air sensor |
CO&sub2;, PM2.5, PM10, TVOC, CH&sub2;O, temperature, humidity |
| Air ionizer |
Yes |
Power & Environment
| ENERGY STAR® |
Yes |
| Power supply |
AC 100-240V 50/60Hz |
| Standby power consumption |
< 0.5 W |
| Typical power consumption |
109.3 W |
| Operating temperature |
0°C to 40°C |
| Storage temperature |
-20°C to 60°C |
| Operating humidity |
10% to 90% RH non-condensing |
| Storage humidity |
10% to 90% RH non-condensing |
Physical
| Dimensions (W × H × D) |
1709.4 × 1060.8 × 117.7 mm |
| Shipping dimensions (W × H × D) |
1863 × 1155 × 205 mm |
| Product weight |
52.2 kg |
| Shipping weight |
64.5 kg |
| VESA mount |
800 × 400 mm (4 × M8 × 25L) |
| Pen tray |
Yes |
Software
| Whiteboarding |
EZWrite 6.0 |
| Wireless screen sharing |
InstaShare 2 |
| Device management |
DMS |
| Account management |
AMS |
| Quick access tool |
Floating Tool |
| Broadcast system |
X-Sign Broadcast |
| Flicker Free |
Yes |
| Low Blue Light |
Yes |
What's in the Box
| Cables |
1 × VGA (3 m), 1 × HDMI (3 m), 1 × USB-B for touch (3 m), 1 × USB-C (1.5 m) |
| Wall mount |
1 |
| Pen |
2 |
| Remote control |
1 |
Specifications are sourced from the official manufacturer product page and may be updated.
