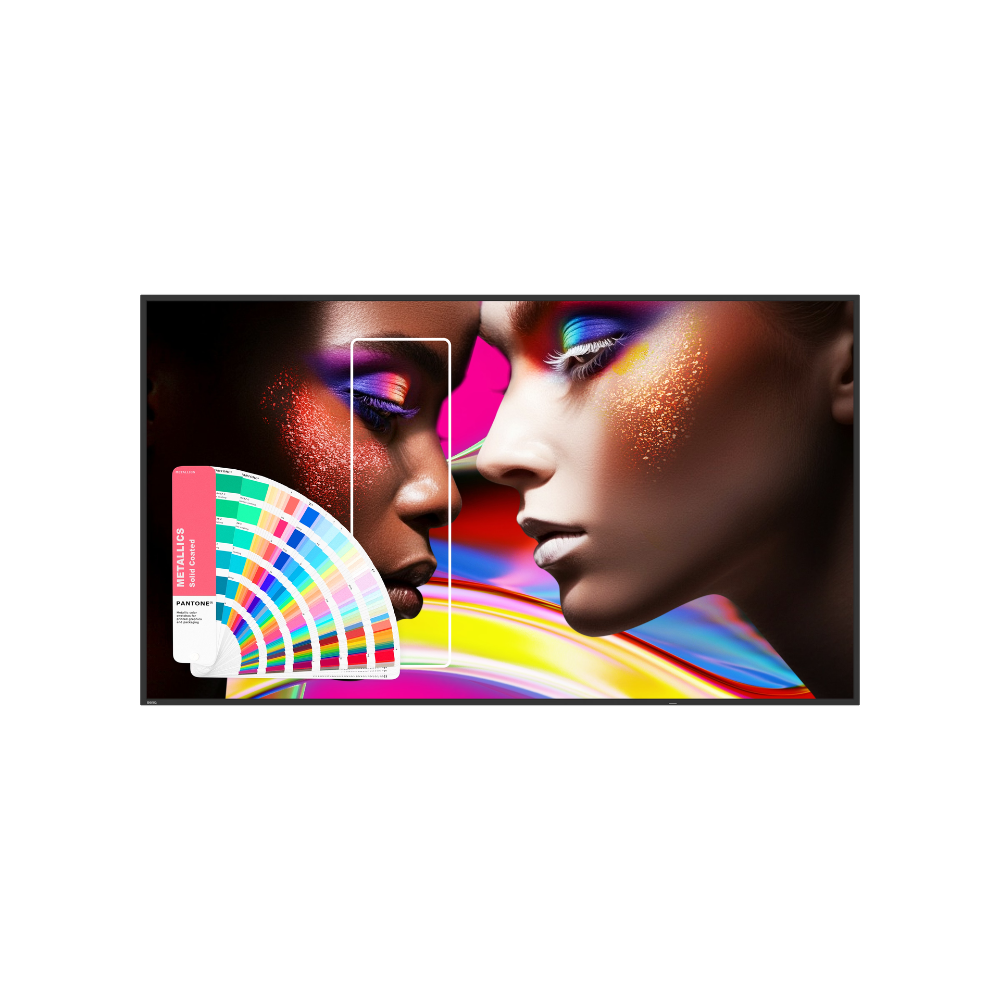

BenQ SH6504 65" Pantone Validated 4K Signage Display with Android 13 EDLA
The BenQ SH6504 is the world's first high-brightness signage display that's both Pantone Validated and Google certified, delivering exceptional 800-nit brightness and stunning 4K UHD (3840 × 2160) resolution. Designed for education, corporate signage, and creative environments, this 65-inch professional display features Android 13 EDLA certification, offering seamless access to Google Play apps, cloud services, and enterprise-grade content management. With 95% DCI-P3 colour gamut, 24/7 operation, and IP5X anti-glare glass, the SH6504 is the ultimate all-in-one digital signage solution for schools, retail, and commercial applications in Australia.
Why You'll Love the BenQ SH6504
-
Pantone Validated Colour Accuracy: Industry-standard colour reproduction with Pantone and Pantone SkinTone validation for consistent, vibrant visuals
-
Exceptional 800-Nit Brightness: Display stunning content even in sunlit areas with high-brightness 4K panel and wide 95% DCI-P3 colour gamut
-
Android 13 EDLA with Google Services: Full access to Google Play Store, Google Drive, Meet, and core services with built-in security updates
-
24/7 Commercial-Grade Operation: Designed for continuous use with 50,000-hour backlight life and ENERGY STAR 8.0 certification
-
Powerful Built-In Audio: Twin 12W speakers deliver clear, room-filling sound for engaging presentations and signage content
-
Enterprise Cloud Management: Remotely manage content, device settings, and user accounts with BenQ DMS, AMS, and X-Sign software
Stunning Pantone-Accurate Colour & High Brightness
The SH6504 is the world's first high-brightness, wide-colour-gamut signage to be Pantone Validated and Pantone SkinTone Validated. With 800 nits of brightness and a 95% DCI-P3 colour gamut (CIE 1976), this display ensures your brand visuals, educational content, and signage appear vivid and accurate in any lighting condition. The 10-bit colour depth and 1200:1 contrast ratio deliver smooth gradients and stunning detail, perfect for creative work, product displays, and corporate communications.
Google EDLA Certified for Seamless Integration
The EDLA-certified SH6504 comes with Google Core Services, including access to the Google Play Store, Google Drive, Google Meet, and all your essential productivity apps. The Android 13 operating system is powered by an advanced A73 × 4 + A53 × 4 chipset with 8GB RAM and 64GB storage, ensuring fast app launches, smooth multitasking, and responsive performance. Google Play Protect provides built-in security against malicious apps, while regular updates keep your display protected.
Enterprise Content Management & Wireless Sharing
Manage all your SH6504 displays from one central location with BenQ X-Sign content management software. Create, schedule, and push signage content, announcements, and alerts across your entire fleet. The display includes InstaShare 2 wireless screen sharing, allowing users to cast content from laptops, tablets, and smartphones without cables. DMS (Device Management System) enables remote power scheduling, energy monitoring, and firmware updates, while AMS (Account Management System) lets users securely access their cloud drives and personalised settings via QR code login.
24/7 Reliability & Energy Efficiency
Built for 24 hours / 7 days continuous operation, the SH6504 features a 50,000-hour backlight life (typical), ensuring years of reliable performance. The display is ENERGY STAR 8.0 certified, reducing energy costs and environmental impact. IP5X anti-glare glass protects the screen from dust and damage, while the IR sensor lock and Wi-Fi/USB port covers provide hardware-level security for commercial installations. The display supports both landscape and portrait orientation for versatile mounting options.
Immersive Audio & Flexible Connectivity
The SH6504's twin 12W speakers deliver clear, powerful audio for captivating presentations, video content, and signage applications. Connect external devices via 2 × HDMI 2.0 inputs, 2 × USB-A 2.0 ports, 10/100 Mbps Ethernet, and RS-232 for control integration. The display is compatible with VESA 400 × 400 mm mounting systems for easy wall or cart installation in schools, offices, retail stores, and public spaces.
Universal Connectivity
- 2 × HDMI 2.0 inputs
- 2 × USB-A 2.0 ports
- 1 × RJ45 Ethernet (10/100 Mbps for Android)
- 1 × RS-232 serial control port
- 1 × Audio out (3.5mm jack)
- Built-in Wi-Fi (optional covers for security)
- IR sensor for remote control
What's in the Box
- BenQ SH6504 65" Digital Signage Display
- Remote control with batteries
- HDMI cable (1.5m)
- RS-232 cable (1.8m)
- Power cord (region-specific)
- Quick start guide
- Warranty card
Full Specifications
Display Panel
| Screen Size |
65 inches |
| Panel Type |
IPS |
| Resolution |
UHD 3840 × 2160 pixels |
| Active Area |
1428.5 × 803.5 mm |
| Aspect Ratio |
16:9 |
| Brightness (typical) |
800 nits |
| Contrast Ratio (typical) |
1200:1 |
| Colour Gamut (CIE 1976) |
95% DCI-P3, 99% sRGB, 85% NTSC |
| Colour Depth |
10-bit |
| Response Time |
8 ms |
| Viewing Angle (H/V) |
178° |
| Backlight Life (typical) |
50,000 hours |
| Anti-Glare Glass |
Yes (IP5X rated) |
| Orientation |
Landscape and Portrait |
| Operation Hours |
24 hours / 7 days |
System & Performance
| Operating System |
Android 13.0 (EDLA certified) |
| CPU |
A73 × 4 + A53 × 4 |
| GPU |
G52 MP8 |
| Memory |
8 GB RAM |
| Storage |
64 GB |
| Google Services |
Google Play Store, Drive, Meet, Core Services |
| Colour Validation |
Pantone Validated, Pantone SkinTone Validated |
Connectivity & I/O
| HDMI Input |
2 × HDMI 2.0 |
| USB-A |
2 × USB 2.0 |
| Ethernet |
10/100 Mbps (Android) × 1 |
| RS-232 |
1 port |
| Audio Output |
3.5mm jack × 1 |
| Wi-Fi |
Built-in (with security covers) |
| IR Sensor |
Yes (with IR lock feature) |
Audio
| Internal Speakers |
2 × 12W |
Power & Environment
| Power Supply |
AC 100-240V 50/60Hz |
| Typical Power Consumption |
110.3 W |
| Standby Power |
<0.5 W |
| Energy Efficiency |
ENERGY STAR 8.0 certified |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10% to 80% RH (non-condensing) |
Physical Specifications
| Dimensions (W × H × D) |
1456.4 × 833.7 × 57 mm (57.3 × 32.8 × 2.2 inches) |
| Weight (Product) |
Approximately 20.7 kg (45.6 lbs) |
| Shipping Dimensions (W × H × D) |
1650 × 1016 × 162 mm (65 × 40 × 6.4 inches) |
| Shipping Weight |
28.7 kg (63.3 lbs) |
| VESA Mount |
400 × 400 mm (4 × M8 × 16L screws) |
Software & Management
| Bundled Software |
X-Sign Player, InstaShare 2, DMS, AMS |
| Content Management |
X-Sign cloud-based CMS |
| Wireless Sharing |
InstaShare 2 |
| Device Management |
DMS (Device Management System) |
| Account Management |
AMS (Account Management System) |
Specifications are sourced from the official manufacturer product page and may be updated.
