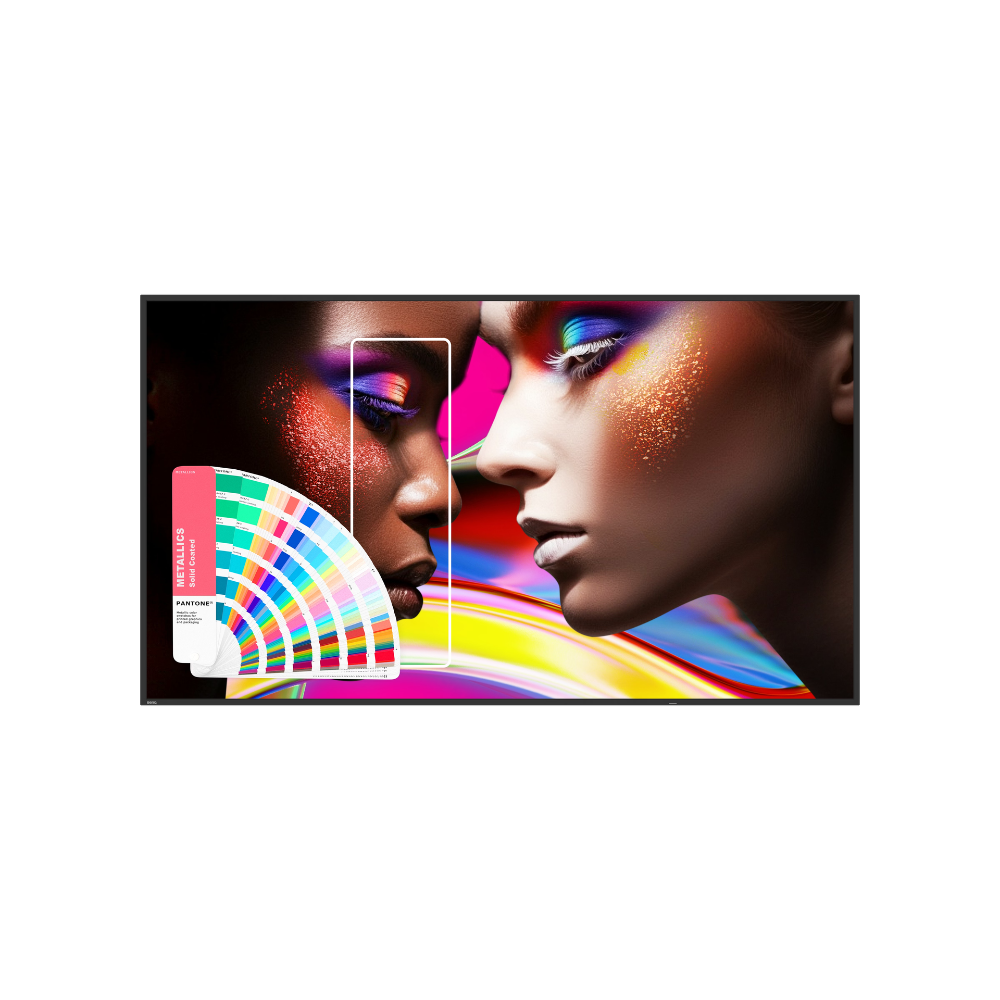

BenQ SH7504 75" Pantone Validated Pro 4K Digital Signage Display
The BenQ SH7504 is a premium 75-inch 4K UHD digital signage display designed for professional communication in education, corporate, and commercial environments. Featuring Pantone Validated colour accuracy, 800 nits of high brightness, and Google EDLA certification, this intelligent signage solution delivers stunning visual impact while offering seamless access to Google Play apps and services. With its wide 95% DCI-P3 colour gamut, Android 13 operating system, and 24/7 operation capability, the SH7504 is built for demanding professional applications where colour fidelity and reliability are paramount.
Industry-Leading Pantone Colour Accuracy
The SH7504 is Pantone Validated and Pantone SkinTone Validated, making it the world's first high-brightness, wide-colour-gamut signage to achieve this dual certification. With a 95% DCI-P3 colour gamut (99% sRGB, 85% NTSC) and 10-bit colour depth, this display reproduces industry-standard colours with exceptional accuracy. Perfect for art and design schools, fashion programs, photography courses, medical training, and professional signage where true-to-life colour representation is essential.
High-Brightness Display for Maximum Impact
With 800 nits of brightness, the BenQ SH7504 ensures your content remains vivid and clearly visible even in brightly lit environments such as hallways, reception areas, retail spaces, and cafeterias. The 4K UHD resolution (3840 × 2160) combined with high brightness delivers stunning visual clarity that captures attention and enhances communication.
Google EDLA Certification & Smart Android Platform
Powered by Android 13 with Google EDLA certification, the SH7504 provides secure access to the full Google Play Store, allowing you to install education and business apps directly on the display. Pre-installed Google Core Services including Google Drive, Meet, and Docs Editors enable seamless cloud-based collaboration and content management. The robust octa-core processor (A73 × 4 + A53 × 4) with 8GB RAM and 64GB storage ensures smooth performance for demanding applications.
Professional Content Management
Create, schedule, and manage signage content across your entire network with BenQ X-Sign broadcast software. The integrated Device Management Solution (DMS) allows IT administrators to remotely control display settings, schedule power on/off times, push firmware updates, and manage app installations across multiple SH7504 displays. Streamlined provisioning via barcode scanning simplifies deployment at scale.
Built for 24/7 Reliability
Engineered for continuous operation, the SH7504 supports 24 hours a day, 7 days a week usage with a 50,000-hour backlight lifespan. ENERGY STAR 8.0 certification ensures energy-efficient operation, helping reduce running costs while maintaining outstanding performance. The display can be mounted in both landscape and portrait orientation to suit different content and installation requirements.
Versatile Colour Modes for Different Applications
-
Pantone Mode: Industry-standard Pantone and Pantone SkinTone colours for art, design, fashion, photography, and medical education
-
Sketch Mode: Grayscale rendering with subtle warmth for visual comfort in design and illustration courses
-
Cinema Mode: HDR10 support with vivid colours and enhanced depth for video content and presentations
-
Standard Mode: Optimised for everyday signage and general communication
Wireless Collaboration with InstaShare 2
Share content effortlessly from any device with BenQ InstaShare 2, compatible with Windows, Android, macOS, iOS, iPadOS, and ChromeOS. Multiple users can wirelessly present, annotate, and collaborate in real-time, making the SH7504 ideal for meeting rooms and collaborative learning spaces.
Comprehensive Connectivity
-
2 × HDMI 2.0 inputs for multiple sources
-
2 × USB-A 2.0 ports for peripherals and media playback
-
Ethernet (10/100 Mbps) for network connectivity
-
RS-232 for control system integration
-
3.5mm audio out for external speakers
- Built-in Wi-Fi and Bluetooth (optional adapter)
Enhanced Audio
Integrated 2 × 12W stereo speakers deliver clear, powerful audio for signage content, presentations, and multimedia playback without the need for external speakers in most applications.
What's in the Box
- BenQ SH7504 75" Digital Signage Display
- Remote Control
- 1 × HDMI Cable (1.5m)
- 1 × RS-232 Cable (1.8m)
- Power Cord (region-specific)
- Quick Start Guide
Full Specifications
Display
| Screen Size |
75 inches |
| Panel Type |
IPS |
| Active Area |
1649.7 × 927.9 mm |
| Aspect Ratio |
16:9 |
| Resolution |
4K UHD (3840 × 2160 pixels) |
| Brightness (Typical) |
800 nits |
| Contrast Ratio (Typical) |
1200:1 |
| Colour Gamut |
95% DCI-P3, 99% sRGB, 85% NTSC (CIE 1976) |
| Colour Depth |
10-bit |
| Response Time |
8 ms |
| Backlight Life (Typical) |
50,000 hours |
| Glass |
Anti-glare |
Smart System
| Operating System |
Android 13 (EDLA) |
| Processor (CPU) |
Octa-core: A73 × 4 + A53 × 4 |
| GPU |
G52 MP8 |
| Memory |
8 GB |
| Storage |
64 GB |
Connectivity & I/O
| HDMI Input |
2 × HDMI 2.0 |
| USB-A |
2 × USB 2.0 |
| Ethernet |
10/100 Mbps (Android) × 1 |
| RS-232 |
1 port |
| Audio Output |
3.5mm earphone jack × 1 |
| IR Sensor |
Yes |
Audio
| Built-in Speakers |
2 × 12W |
Power & Environment
| Power Supply |
AC 100-240V, 50/60Hz |
| Typical Power Consumption |
Approx. 200W (varies by model) |
| Standby Power Consumption |
<0.5W |
| ENERGY STAR |
Version 8.0 Certified |
| Operation Hours |
24/7 (24 hours per day, 7 days per week) |
Physical Specifications
| Dimensions (W × H × D) |
1679.7 × 959 × 56.8 mm (66.1 × 37.8 × 2.2 inches) |
| Shipping Dimensions (W × H × D) |
1883 × 1140 × 186 mm (74.1 × 44.9 × 7.3 inches) |
| Weight (Product) |
29 kg (63.9 lbs) |
| Weight (Shipping) |
40.5 kg (89.3 lbs) |
| VESA Mount |
600 × 400 mm (4 × M8 × 16L screws) |
| Orientation |
Landscape and Portrait |
Specifications are sourced from the official manufacturer product page and may be updated. Visit BenQ's website for the latest information.
