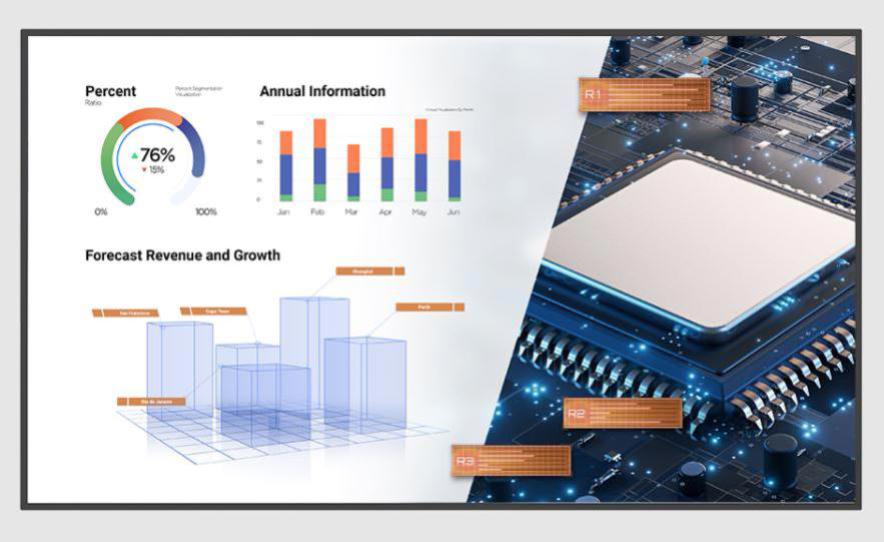

BenQ ST8602S 86" 4K UHD Smart Signage Display with Android OS
The BenQ ST8602S is an all-in-one 86-inch 4K UHD smart signage display designed for corporate presentations, retail signage, and organizational communication. Featuring ultra-thin bezels, a built-in Android operating system, and an OPS slot-in PC expansion slot, this commercial display delivers stunning 3840 × 2160 resolution with 400 nits brightness for vivid, crystal-clear visuals in any business environment. Perfect for conference rooms, digital menu boards, retail displays, and video conferencing, the ST8602S combines professional-grade image quality with easy content management and flexible connectivity.
Stunning 4K UHD Picture Quality
Experience breathtaking clarity with 4K ultra-high definition resolution (3840 × 2160), delivering four times more detail than Full HD 1080p. The 400 nit brightness and LED backlighting ensure vivid colors and sharp contrast, making your content stand out in hotels, restaurants, corporate offices, and retail environments. The display's ultra-slim bezels maximize screen real estate, creating a sleek, professional look that blends seamlessly into any setting.
Ready-to-Use Built-in Android OS
The ST8602S comes with a built-in Android 8 operating system, eliminating the need for an external PC for basic signage and content playback. Access multimedia files directly from a USB flash drive or microSD card, customize the default wallpaper with your corporate branding, and enjoy hassle-free setup. For advanced applications, the OPS slot-in PC expansion slot allows you to add optional computing power for more demanding tasks and Windows-based applications.
X-Sign CMS & Broadcasting Software
Manage your content effortlessly with X-Sign Content Management Software (CMS), included with the display. Edit, schedule, and customize content in depth through the intuitive interface. X-Sign Broadcast keeps teams informed with instant delivery of push alerts, messages, and announcements, making it ideal for corporate communication and emergency notifications.
Centralized Display Management System (DMS)
Control multiple displays remotely with the BenQ Device Management Solution (DMS). Update firmware, manage settings, monitor power consumption, and schedule on/off times across all your signage displays via LAN or Internet. Over-the-air (OTA) updates ensure your displays are always equipped with the latest features and security patches, reducing management costs and energy consumption.
Wireless Presentation with InstaShare
Enable seamless wireless collaboration with InstaShare software, allowing users to wirelessly display content from laptops, tablets, and smartphones. Perfect for meetings and presentations, InstaShare supports smooth streaming of audio files and Full HD videos, with device mirroring and control capabilities for enhanced productivity.
Video Conferencing Ready
Start video meetings with a simple click. The ST8602S integrates seamlessly with leading video conferencing platforms like Zoom and Microsoft Teams, making it an ideal solution for hybrid workplaces and remote collaboration. The built-in 2 × 10W speakers deliver clear audio for presentations and video calls.
Universal Connectivity
-
3 × HDMI 2.0 inputs for multiple video sources
-
1 × VGA input for legacy devices
-
2 × USB-A 2.0 ports for peripherals and media playback
-
Ethernet (10/100/1000 Mbps) for network connectivity and DMS
-
RS-232 for professional control systems integration
-
OPS slot for optional slot-in PC
-
MicroSD card reader for additional storage and content
- 3.5mm audio input and headphone output
Portrait or Landscape Installation
Flexible mounting options allow you to install the display in portrait or landscape orientation, adapting to your space and content requirements. The VESA 600 × 400mm mount ensures secure installation on walls or compatible stands.
What's in the Box
- BenQ ST8602S 86" Smart Signage Display
- Remote control
- Power cable
- Quick start guide
- User manual
Full Specifications
Display
| Screen Size |
86 inches |
| Resolution |
4K UHD (3840 × 2160) |
| Brightness |
400 nits |
| Backlight |
LED |
| Bezel Design |
Ultra-thin, even bezels |
| Orientation |
Landscape or Portrait |
System
| Operating System |
Built-in Android 8 |
| Processor |
A73 × 2 + A53 × 2 |
| OPS Slot |
Yes (for optional slot-in PC) |
| Storage |
MicroSD card reader |
Audio
| Built-in Speakers |
2 × 10W |
| Audio Input |
3.5mm line in (PC Audio) |
| Audio Output |
3.5mm headphone output |
Connectivity
| HDMI |
3 × HDMI 2.0 (input) |
| VGA |
1 × VGA (input) |
| USB-A |
2 × USB 2.0 |
| Ethernet |
10/100/1000 Mbps (RJ45) |
| RS-232 |
1 input, 1 output |
| OPS Slot |
1 slot |
| MicroSD Reader |
1 slot |
| IR Sensor |
Yes |
Software & Management
| Content Management |
X-Sign CMS (included) |
| Broadcasting |
X-Sign Broadcast |
| Display Management |
BenQ DMS (Device Management Solution) |
| Wireless Presentation |
InstaShare compatible |
| Security |
McAfee Mobile Security included |
| OTA Updates |
Yes |
Power
| Power Supply |
AC 100-240V, 50/60Hz |
| Typical Power Consumption |
317W |
| Standby Power |
<0.5W |
| Operating Hours |
18/7 operation |
Physical Specifications
| Dimensions (W × H × D) |
1929.0 × 1100.0 × 79.4 mm (75.9 × 43.3 × 3.1 inches) |
| Weight (Product) |
50 kg (110.2 lbs) |
| Shipping Dimensions |
2118 × 1271 × 280 mm (83.4 × 50.0 × 11.0 inches) |
| Shipping Weight |
64.3 kg (141.8 lbs) |
| VESA Mount |
600 × 400 mm (4 × M8 × 15L screws) |
Environment
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
Specifications are sourced from the official manufacturer product page and may be updated.
