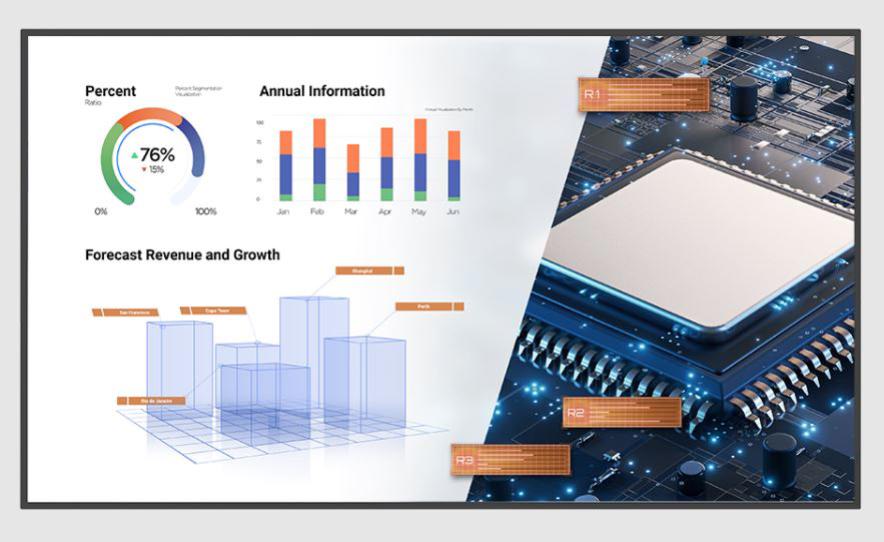

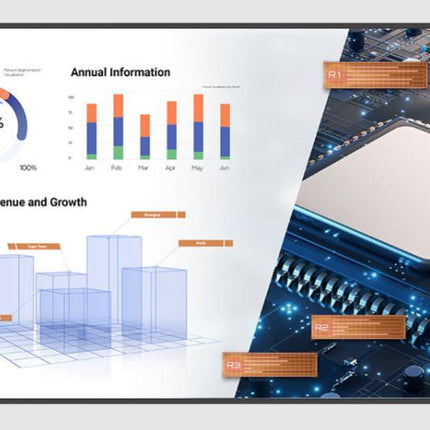

BenQ ST8602S Pro 86" 4K UHD Smart Signage Display with Android OS
The BenQ ST8602S Pro Smart Signage Display delivers stunning 4K UHD resolution (3840 × 2160) on a massive 86-inch screen, transforming enterprise conference rooms, corporate presentations, and organizational meetings with crystal-clear visuals and seamless collaboration tools. Built with 400 nits brightness, ultra-slim bezels, and Android 8.0 OS built in, the ST8602S Pro eliminates the need for external devices while offering professional-grade features including X-Sign CMS software, wireless presentation via InstaShare, centralized display management, and an OPS slot for optional PC integration. Rated for 18 hours per day, 7 days per week operation, this commercial-grade display is engineered for demanding business environments across Australia.
Crystal-Clear 4K UHD Visuals
Experience breathtaking image quality with 4K ultra-high definition resolution (3840 × 2160 pixels) that delivers four times the detail of Full HD. The 86-inch ADS panel with 400 cd/m² brightness and 1200:1 contrast ratio ensures vivid colors and sharp details in any lighting condition, while the anti-glare matte finish reduces reflections for comfortable viewing during extended meetings and presentations.
-
Screen Size: 86 inches diagonal with ultra-slim bezels (12.7mm top/right/left, 16.9mm bottom)
-
Resolution: 4K UHD 3840 × 2160 pixels
-
Brightness: 400 nits (cd/m²) with anti-glare coating
-
Contrast Ratio: 1200:1 for deep blacks and vibrant colors
-
Color Gamut: 72% NTSC for accurate color reproduction
-
Response Time: 8ms for smooth motion in video conferencing
Built-In Android Smart Platform
Work smarter with the integrated Android 8.0 operating system powered by a quad-core CPU (A73 × 2 + A53 × 2) and Mali-G51MP2 GPU. With 3GB RAM and 16GB storage, you can run apps directly on the display, access multimedia files via USB, and customize the interface with your corporate branding. No external PC required for basic signage and presentation tasks.
Professional Content Management & Wireless Presentation
The ST8602S Pro comes bundled with powerful business tools that simplify content creation and delivery:
-
X-Sign CMS: Intuitive content management software for creating, scheduling, and managing digital signage content with custom templates
-
X-Sign Broadcast: Push instant alerts, messages, and announcements across your organization in real time
-
InstaShare Wireless Presentation: Share screens wirelessly from laptops and mobile devices with two-way mirroring and touch control, supporting up to 4 split screens for collaborative work
-
DMS (Display Management System): Centralized remote control and monitoring via LAN or internet to manage settings, update firmware, schedule power on/off, and track usage across multiple displays
Commercial-Grade Reliability & Flexibility
Built for business environments, the ST8602S Pro is rated for 18 hours per day, 7 days per week continuous operation with a 30,000-hour backlight lifespan. The display supports both landscape and portrait orientation, includes an optional easy-to-go wheeled stand for room-to-room mobility, and features an OPS slot for seamless integration with slot-in PCs for advanced computing needs like Zoom Rooms and Microsoft Teams.
Universal Connectivity
-
3 × HDMI 2.0 inputs for laptops, media players, and video conferencing systems
-
1 × VGA input for legacy computer connections
-
1 × OPS slot for optional slot-in PC module
-
2 × USB 2.0 Type-A ports for media playback and peripherals
-
1 × RS-232 serial port for external control systems
-
1 × RJ45 LAN port for network connectivity and remote management
-
3.5mm Audio In (PC audio input)
-
3.5mm Line Out (earphone/headphone output)
-
Built-in speakers: 2 × 12W stereo speakers for clear audio without external amplification
What's in the Box
- BenQ ST8602S 86" Smart Signage Display
- Remote control with batteries
- Power cable
- Quick start guide
- VGA cable
- USB cable
Full Specifications
Panel & Display
| Screen Size |
86 inches |
| Panel Type |
ADS (Advanced Super Dimension Switch) |
| Active Area |
1895.0 × 1066.0 mm |
| Aspect Ratio |
16:9 |
| Resolution |
UHD 3840 × 2160 pixels |
| Brightness (Typical) |
400 nits (cd/m²) |
| Contrast Ratio (Typical) |
1200:1 |
| Response Time |
8 ms |
| Color Depth |
8-bit |
| Color Gamut |
72% NTSC |
| Backlight Type |
Direct LED |
| Backlight Life (Typical) |
30,000 hours |
| Orientation |
Landscape and Portrait |
| Operation Hours |
18 hours per day / 7 days per week |
Smart System
| Operating System |
Android 8.0 |
| CPU |
A73 × 2 + A53 × 2 (quad-core) |
| GPU |
Mali-G51MP2 |
| Memory |
3GB RAM |
| Storage |
16GB internal |
Audio
| Built-in Speakers |
2 × 12W stereo speakers |
| Audio Input |
3.5mm PC audio input × 1 |
| Audio Output |
3.5mm earphone output × 1 |
Connectivity & I/O
| HDMI Input |
3 × HDMI 2.0 |
| HDMI Output |
None |
| VGA Input |
1 × VGA (analogue) |
| USB Type-A |
2 × USB 2.0 |
| OPS Slot |
1 × OPS slot for slot-in PC |
| LAN |
1 × RJ45 Ethernet |
| Serial Port |
1 × RS-232 |
| Wireless |
InstaShare wireless presentation support (via app/dongle) |
Power & Environment
| Input Voltage |
100-240V AC, 50/60Hz |
| Power Consumption (Typical) |
Data not specified by manufacturer |
| Power Consumption (Standby) |
Data not specified by manufacturer |
Physical
| Dimensions (W × H × D) |
1929 × 1100 × 79.4 mm |
| Weight |
50 kg (without stand) |
| VESA Mount |
600 × 400 mm |
| Bezel Width |
12.7mm (top/right/left), 16.9mm (bottom) |
Warranty & Support
| Warranty Period |
3 years on-site warranty (commercial) |
Specifications are sourced from the manufacturer product page and may be updated.
