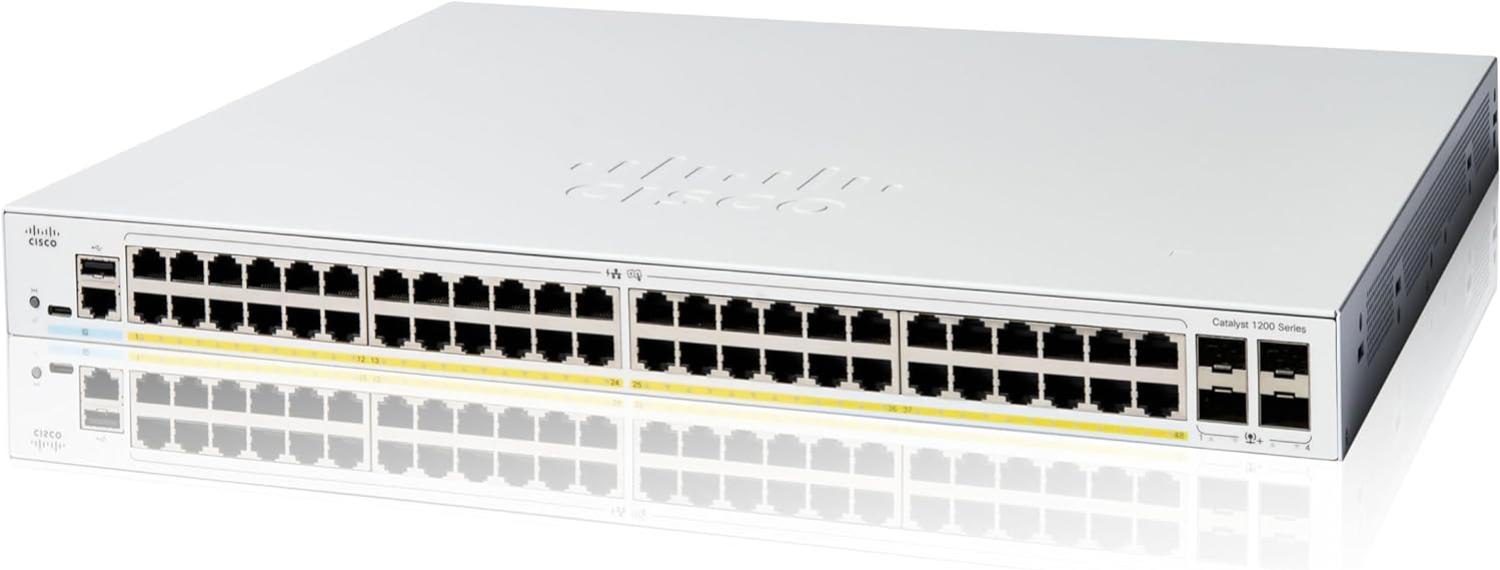

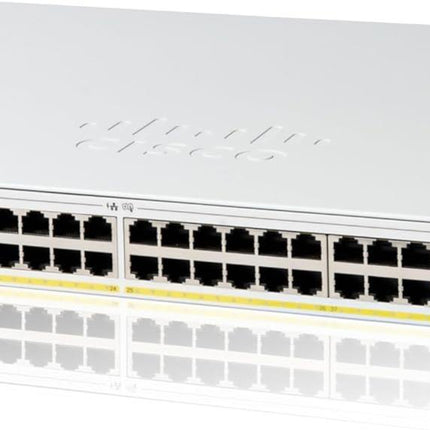

Cisco Catalyst C1200-48P-4G 48-Port Gigabit PoE+ Managed Switch
The Cisco Catalyst C1200-48P-4G is an affordable smart switch designed for small and medium-sized businesses. With 48 Gigabit Ethernet PoE+ ports, 4 Gigabit SFP uplinks, and a 375W PoE power budget, this Layer 3 managed switch delivers reliable performance for IP cameras, wireless access points, IP phones, and networked devices. Managed through the intuitive Cisco Business mobile app or dashboard, it combines powerful network performance with comprehensive security features.
Key Features
-
48 Gigabit PoE+ Ports: 10/100/1000 Mbps RJ-45 ports with up to 30W per port for powering PoE+ devices
-
375W PoE Power Budget: Total power available to support IP telephony, wireless access points, and video surveillance
-
4 Gigabit SFP Ports: 1 Gb/s fiber uplinks for flexible connectivity options
-
104 Gb/s Switching Capacity: Wire-speed, non-blocking performance with 77.38 Mpps forwarding rate
-
Layer 3 Static Routing: Advanced routing capabilities including IPv4 static routing, VLAN segmentation, and inter-VLAN communication
-
Simple Management: Cisco Business mobile app, local web interface, and Cisco Business Dashboard with step-by-step setup
-
Enhanced Security: IEEE 802.1X port security, DoS attack prevention, and extensive Access Control Lists (ACLs)
-
Energy Efficient: IEEE 802.3az Energy Efficient Ethernet compliant, reducing power consumption up to 58% vs previous generation
-
Quiet Operation: Single cooling fan with acoustic noise of 37.3 dBA at 25°C
-
Rack-Mountable Design: 1U form factor with included 19-inch mounting brackets
Power over Ethernet Plus
The C1200-48P-4G supports IEEE 802.3at PoE+ and IEEE 802.3af PoE, delivering up to 30W per port with a total power budget of 375W. This capability enables you to deploy IP telephony, wireless access points, Pan-Tilt-Zoom (PTZ) IP cameras, video phones, and thin client devices with just a single network cable, eliminating the need for separate power supplies.
Network Security
The switch provides integrated network security features to reduce the risk of security breaches. IEEE 802.1X port security controls access to your network, Denial-of-Service (DoS) attack prevention increases network uptime during attacks, and extensive Access Control Lists (ACLs) protect sensitive network portions from unauthorized users and guard against network attacks.
Unified Communications & QoS
The C1200-48P-4G provides Quality of Service (QoS) features with 8 priority queues that enable you to prioritize delay-sensitive traffic in your network and converge all communications solutions, such as IP telephony and video surveillance, onto a single Ethernet network.
Management & Monitoring
Choose from multiple management options: the Cisco Business mobile app for setup and monitoring on the go, the built-in web user interface for browser-based configuration (HTTP/HTTPS), or the Cisco Business Dashboard with embedded probe support for centralized network management. Supports SNMP, RMON, Telnet, SSH-2, TFTP, SCP, and Cisco Network Plug and Play (PnP) for zero-touch deployment.
What's in the Box
- Cisco Catalyst C1200-48P-4G Switch
- Power cord
- 19-inch rack mounting kit
- Pointer card
Full Specifications
Performance
| Switching Capacity |
104 Gb/s (wire-speed, non-blocking) |
| Forwarding Rate |
77.38 Mpps (64-byte packets) |
| Packet Buffer |
3 MB (dynamically shared) |
| Jumbo Frames |
Up to 9000 bytes (default MTU: 2000 bytes) |
| MTBF at 25°C |
856,329 hours |
Ports & Interfaces
| Total System Ports |
52 |
| Gigabit Ethernet PoE+ Ports |
48 × 10/100/1000 Mbps RJ-45 |
| Gigabit SFP Ports |
4 × 1 Gb/s (fiber uplinks) |
| Console Port |
RJ-45 and USB Type-C |
| USB Port |
USB Type-C (front panel for file/image management) |
Power over Ethernet
| PoE Standard |
IEEE 802.3at PoE+, IEEE 802.3af PoE, Cisco prestandard (legacy) PoE |
| Maximum Power per Port |
30W |
| Total PoE Budget |
375W |
Layer 2 Features
| VLANs |
255 active VLANs, IEEE 802.1Q VLAN tagging |
| Spanning Tree Protocol |
STP, RSTP, MSTP (8 instances), PVST+ (126 instances), RPVST+ (126 instances) |
| Link Aggregation |
4 groups, 8 ports per group (IEEE 802.3ad LACP) |
| IGMP Multicast Groups |
255 |
Layer 3 Features
| IPv4 Routing |
Static IP routing, 32 static routes |
| IPv4 Interfaces |
16 |
| Routing Protocols |
IGMPv2, IGMPv3, IGMP, MLDv2, MLD, CIDR |
Security
| Access Control |
IEEE 802.1X port security, 512 ACL rules |
| DoS Prevention |
Denial-of-Service attack prevention |
| Authentication |
RADIUS authentication for management access |
| Secure Protocols |
SSH-2, HTTPS, SCP |
| Boot Integrity |
Platform identity and software integrity visibility |
Management
| Management Interface |
Cisco Business mobile app, Web UI (HTTP/HTTPS), Cisco Business Dashboard |
| Remote Management |
SNMP, SNMPv2c, SNMPv3, RMON (4 groups), Telnet, SSH-2, TFTP, SCP, Syslog |
| Zero-Touch Provisioning |
Cisco Network Plug and Play (PnP) |
| QoS |
8 priority queues, IEEE 802.1p CoS |
Standards Compliance
| Networking Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Certifications |
UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
Power
| Input Voltage |
100 to 240V AC, 50 to 60 Hz (internal, universal) |
| Power Consumption (110V) |
44.81W |
| Power Consumption (220V) |
43.93W |
| Energy Efficiency |
IEEE 802.3az Energy Efficient Ethernet |
Environmental
| Operating Temperature |
-5° to 50°C (23° to 122°F) |
| Cooling |
1 fan |
| Acoustic Noise |
37.3 dBA at 25°C |
Physical Specifications
| Dimensions (W × D × H) |
445 × 350 × 44 mm (17.5 × 13.78 × 1.73 in) |
| Weight |
5.43 kg (11.97 lb) |
| Form Factor |
1U rack-mountable (19-inch brackets included), desktop mountable |
Warranty & Support
| Warranty |
Limited lifetime hardware warranty |
| Technical Support |
Complimentary 1-year access to Cisco Small Business Support Center |
Specifications are sourced from the manufacturer product page and may be updated.
