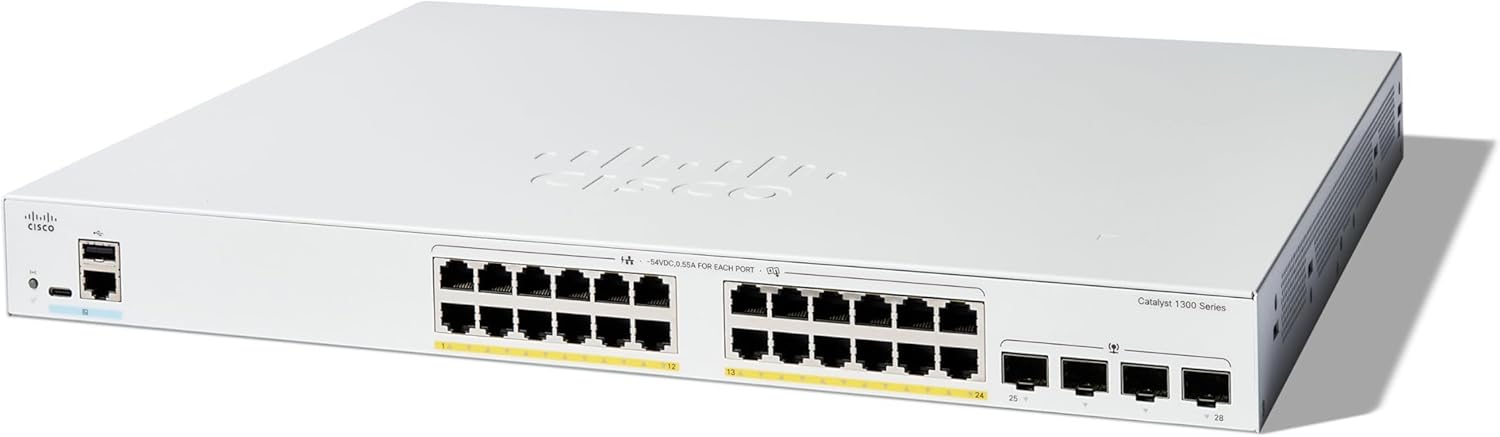

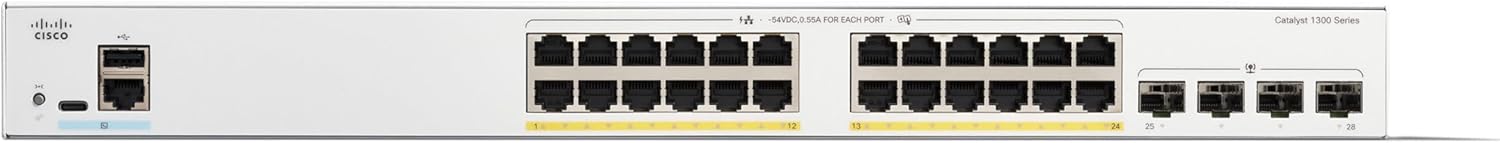

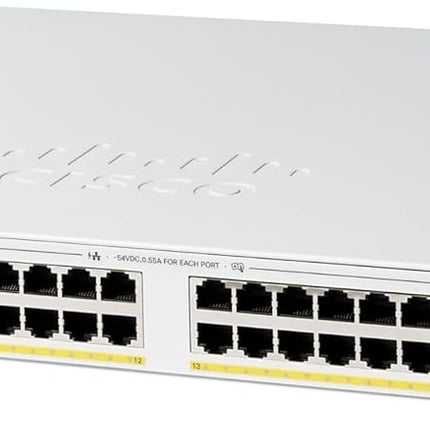

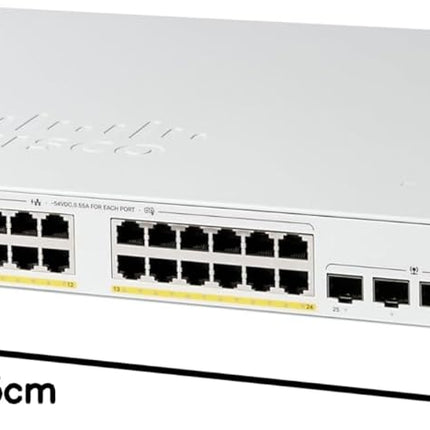

Cisco Catalyst C1300-24FP-4G 24-Port Gigabit PoE+ Managed Switch with 370W Power Budget
The Cisco Catalyst C1300-24FP-4G is a powerful managed Layer 3 switch designed for small to medium-sized businesses and enterprise branch offices. Featuring 24 Gigabit Ethernet PoE+ ports with a 370W power budget and 4 Gigabit SFP uplink ports, this switch delivers enterprise-class performance and flexibility for modern business networks.
Enterprise-Class Performance
Built on a customised Linux OS platform, the Catalyst C1300-24FP-4G delivers 56 Gbps switching capacity and 41.66 Mpps forwarding rate for high-performance network operations. The switch features a dual-core ARM processor up to 1.4 GHz, 1 GB DDR4 memory, and 16,000-entry MAC address table to handle demanding business applications with ease.
-
Layer 3 Static Routing: Segment your network into workgroups and enable seamless inter-VLAN communication
-
Front Panel Stacking: Stack up to 8 switches as a single virtual unit with one IP address
-
IPv6 Ready: Full IPv6 support ensures future-proof network infrastructure
-
QoS Support: Prioritise critical traffic for optimal application performance
Power Over Ethernet Plus (PoE+)
All 24 Gigabit ports support IEEE 802.3af PoE and 802.3at PoE+, delivering up to 30W per port with a 370W total power budget. Power IP phones, wireless access points, IP cameras, and other network devices directly through Ethernet cables, eliminating the need for separate power supplies and reducing installation costs.
-
370W PoE Budget: Ample power for up to 12 devices at maximum 30W per port
-
Dynamic Power Allocation: Intelligent power management across all PoE ports
-
Perpetual PoE: Maintains power to critical devices during switch reboots
-
Standards Compliant: Supports both 802.3af (15.4W) and 802.3at (30W) devices
Advanced Security Features
Protect your business network with comprehensive security features including IEEE 802.1X authentication, port security, and advanced defence mechanisms. Dynamic ARP inspection, IP Source Guard, and DHCP snooping detect and block deliberate network attacks, while web-based authentication provides consistent host device authentication without complex client deployment.
Simple Management
The Catalyst 1300 Series is managed through the intuitive Cisco Business Dashboard and Cisco Business mobile app, simplifying network setup and ongoing operations. The switch also supports traditional management via Web UI, CLI, and SNMP for flexible administration options.
-
Cisco Business Dashboard: Cloud-based unified management for switches, routers, and wireless APs
-
Mobile App Management: Configure and monitor your network from your smartphone
-
Cisco Network Plug and Play: Near-zero-touch deployment for new devices
-
Dual Images: Perform software upgrades with minimal network downtime
Universal Connectivity
- 24 × 10/100/1000BASE-T RJ-45 PoE+ ports (auto-sensing, auto-MDI/MDIX)
- 4 × 1G SFP uplink ports for fibre connectivity
- 1 × RJ-45 console port
- 1 × USB Type-A port for file system support
What's in the Box
- Cisco Catalyst C1300-24FP-4G Switch
- 19-inch rack-mounting brackets
- Power cord (country specific)
- Console cable
- Quick start guide
Full Specifications
Hardware
| Total Ports |
28 (24 × GE PoE+ + 4 × 1G SFP) |
| Switching Capacity |
56 Gbps |
| Forwarding Rate |
41.66 Mpps |
| Processor |
ARM Dual-Core up to 1.4 GHz |
| Memory (DRAM) |
1 GB DDR4 |
| Flash Memory |
512 MB |
| Packet Buffer |
1.5 MB |
| MAC Address Table |
16,000 entries |
| Jumbo Frames |
Up to 9000 bytes (default MTU 2000 bytes) |
| MTBF at 25°C |
396,413 hours |
Power over Ethernet
| PoE Standard |
IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| PoE Ports |
24 ports |
| Maximum Power per Port |
30W |
| Total PoE Budget |
370W |
Layer 2 Features
| VLANs |
4096 VLANs, 4094 VLAN IDs |
| Link Aggregation |
IEEE 802.3ad LACP, up to 8 ports per group |
| Spanning Tree Protocol |
IEEE 802.1D, 802.1w (RSTP), 802.1s (MSTP) |
| Port Mirroring |
SPAN (Switched Port Analyzer) |
Layer 3 Features
| Static Routing |
IPv4 static routes |
| Dynamic Routing |
RIPv1, RIPv2 |
| IPv6 Support |
IPv6 host, IPv6 static routing |
Security
| Authentication |
IEEE 802.1X, RADIUS, TACACS+, web-based authentication |
| Access Control |
Port security, ACLs (IPv4/IPv6) |
| Attack Prevention |
Dynamic ARP inspection, DHCP snooping, IP Source Guard |
| Management Security |
SSHv2, HTTPs, SNMPv3 |
Management
| Management Interfaces |
Web UI, CLI (console/SSH), SNMP, Cisco Business Dashboard, Cisco Business Mobile App |
| Stacking |
Front panel stacking, up to 8 switches |
| Zero-Touch Provisioning |
Cisco Network Plug and Play |
| Monitoring |
sFlow, RMON, port mirroring |
Physical Specifications
| Form Factor |
1U rack-mountable |

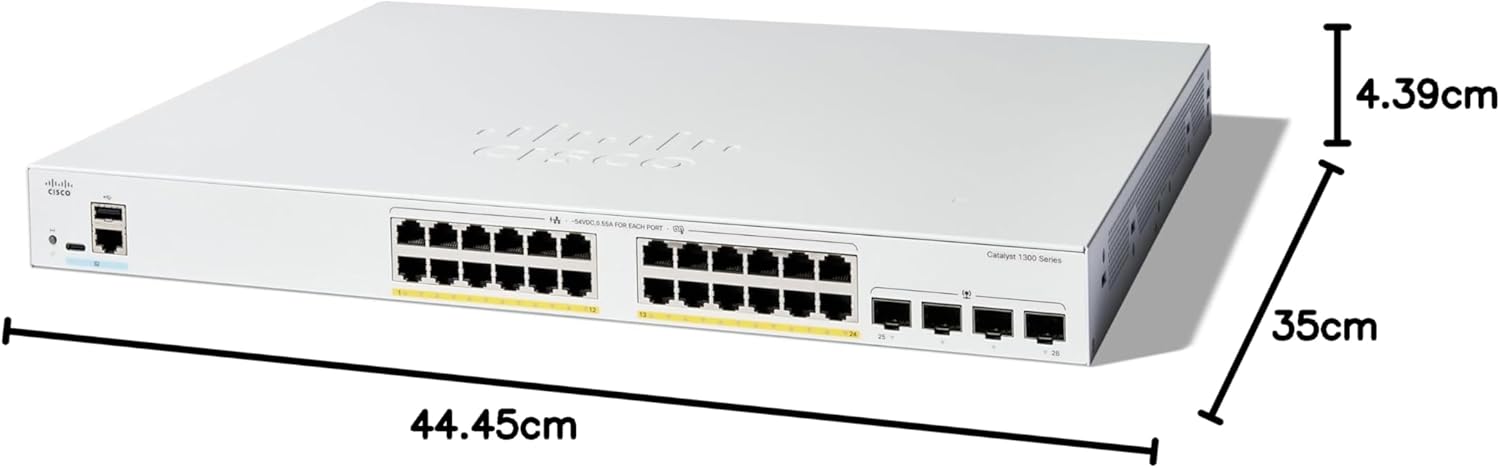

| Dimensions (W × D × H) |
444.3 × 350 × 43.94 mm (17.49 × 13.77 × 1.73 in) |
| Weight |
4.6 kg (10.14 lb) |
| Cooling |
1 fan, 39 dBA at 25°C |
| Mounting |
19-inch rack-mount brackets included (24 and 48-port models only) |
Power & Environment
| Power Supply |
Internal, 100-240V AC, 50/60 Hz, universal |
| Maximum Power Consumption |
Approximately 424W (with full PoE load) |
| Idle Power Consumption |
Approximately 40W (without PoE devices) |
| Operating Temperature |
-5°C to 50°C (23°F to 122°F) |
| Storage Temperature |
-25°C to 70°C (-13°F to 158°F) |
| Operating Humidity |
10% to 90% (non-condensing) |
Compliance & Warranty
| Standards Compliance |
IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3af, 802.3at, 802.1Q, 802.1p, 802.1X, 802.1D, 802.1w, 802.1s, 802.3ad |
| Safety Certifications |
UL, CE, FCC, VCCI |
| Warranty |
Enhanced Limited Lifetime Warranty (E-LLW) with next-business-day hardware replacement and 90 days of 8×5 Cisco TAC support |
Specifications are sourced from the official manufacturer product page and may be updated.
