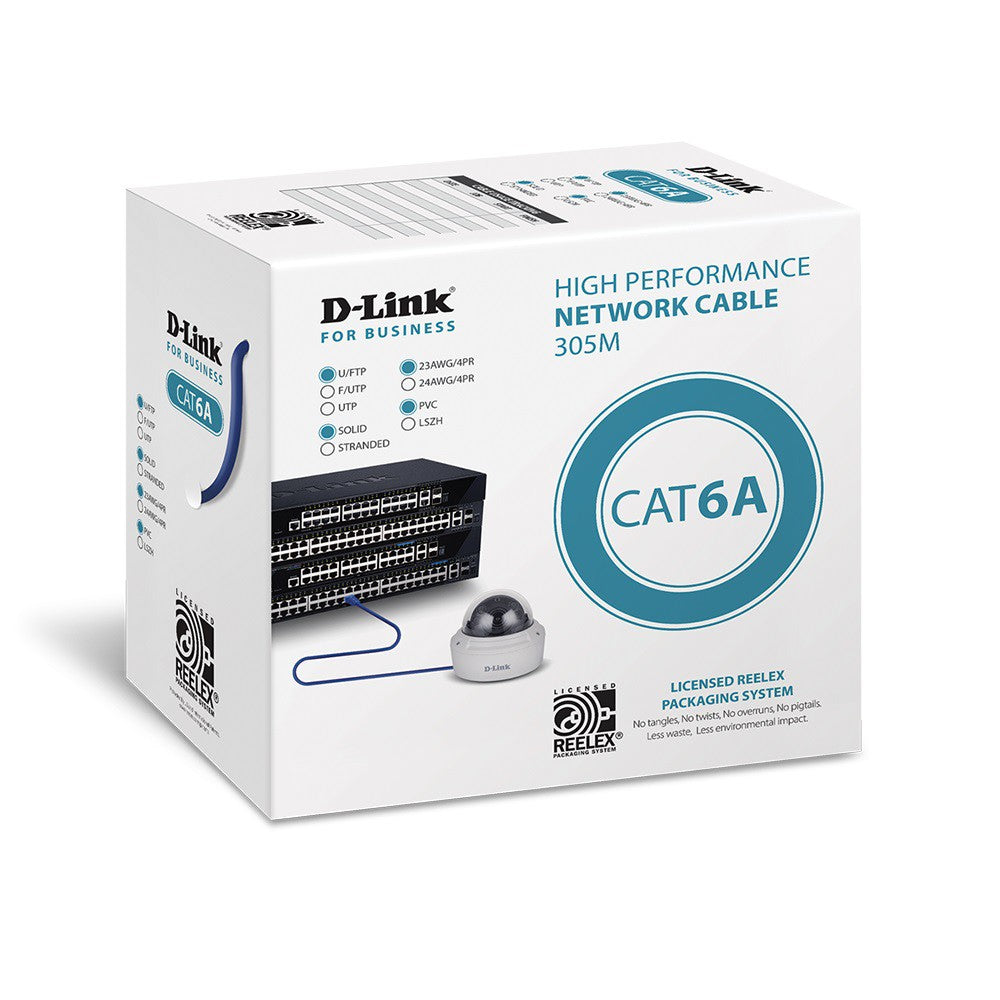

D-Link Cat6A U/FTP 23AWG Network Cable 305m Blue
The D-Link NCB-6AUFS23BLU-305 is a high-performance Cat6A U/FTP network cable designed for 10 Gigabit Ethernet applications in commercial and residential installations. Featuring 23AWG solid bare copper conductors with individual foil shielding and a RoHS-compliant PVC jacket, this cable delivers exceptional signal integrity, reduced crosstalk, and long-distance PoE, PoE+, and PoE++ support. Perfect for data centres, enterprise networks, office buildings, and high-bandwidth environments where reliable 10Gbps performance is essential.
Why Choose This Cable?
-
10 Gigabit Networking Ready: Supports speeds up to 10Gbps for future-proof network infrastructure
-
High Purity Copper Construction: 23AWG solid bare oxygen-free copper for superior conductivity and reliability
-
U/FTP Shielding: Unshielded foiled twisted pair design reduces electromagnetic interference and crosstalk
-
Long-Distance PoE Support: Compatible with PoE, PoE+, and PoE++ for powering devices over extended cable runs
-
Eco-Friendly REELEX Packaging: 305m cable supplied in licensed REELEX packaging with no tangles, twists, or waste
-
Australian Standards Certified: RCM certified and Fluke tested for guaranteed performance
Professional-Grade Performance
D-Link Cat6A cables support enhanced performance standards for twisted pair cable systems, with significantly better crosstalk performance compared to Cat6 cables, allowing speeds of up to 10Gbps. The cable exceeds performance requirements specified by the TIA/EIA-568.2-D, TIA/EIA-568C.2, and IEC 11801 standards. Ideal for high-speed data transmission, multimedia streaming, VoIP, surveillance systems, and modern office networks.
Superior Cable Construction
The NCB-6AUFS23BLU-305 uses 23AWG solid bare copper conductors which provide improved performance and reliability compared to standard gauge cables. The U/FTP (Unshielded Foiled Twisted Pair) construction features individual foil shielding around each twisted pair, protecting against EMI and ensuring consistent performance in demanding environments. The durable PVC jacket is RoHS compliant and suitable for indoor installations.
REELEX Packaging System
The 305m cable reel is supplied in licensed REELEX packaging which offers a unique and patented way of coiling cables without twists, tangles, overruns or pigtails and improves deployment performance. The REELEX Packaging System is eco-friendly and all materials used can be recycled, reducing environmental impact with a significantly reduced waste profile. This makes cable installation faster, easier, and more professional.
Compliance & Certifications
The cable is Fluke Tested and conforms to ANSI/TIA-568-C.2, ISO/IEC 11801, and EN 50288 standards, with FCC, CPR, ISO, CE, ROHS, TLC, and Australian RCM certification. This ensures the cable meets strict performance and safety requirements for commercial and residential installations across Australia.
What's in the Box
- 1 × D-Link Cat6A U/FTP Network Cable (305m) in REELEX packaging
Full Specifications
| Cable Type |
Cat6A U/FTP (Unshielded Foiled Twisted Pair) |
| Conductor |
23AWG Solid Bare Copper (High Purity Oxygen-Free) |
| Jacket Material |
RoHS Compliant PVC |
| Cable Length |
305m (1000ft) |
| Colour |
Blue |
| Data Rate |
Up to 10 Gbps |
| Bandwidth |
500 MHz |
| PoE Support |
PoE, PoE+, PoE++ |
| Standards Compliance |
ANSI/TIA-568-C.2, ISO/IEC 11801, EN 50288, TIA/EIA-568.2-D |
| Certifications |
Fluke Tested, FCC, CPR, ISO, CE, RoHS, TLC, Australian RCM |
| Packaging |
Licensed REELEX Packaging System |
Specifications are sourced from the manufacturer product page and may be updated.
